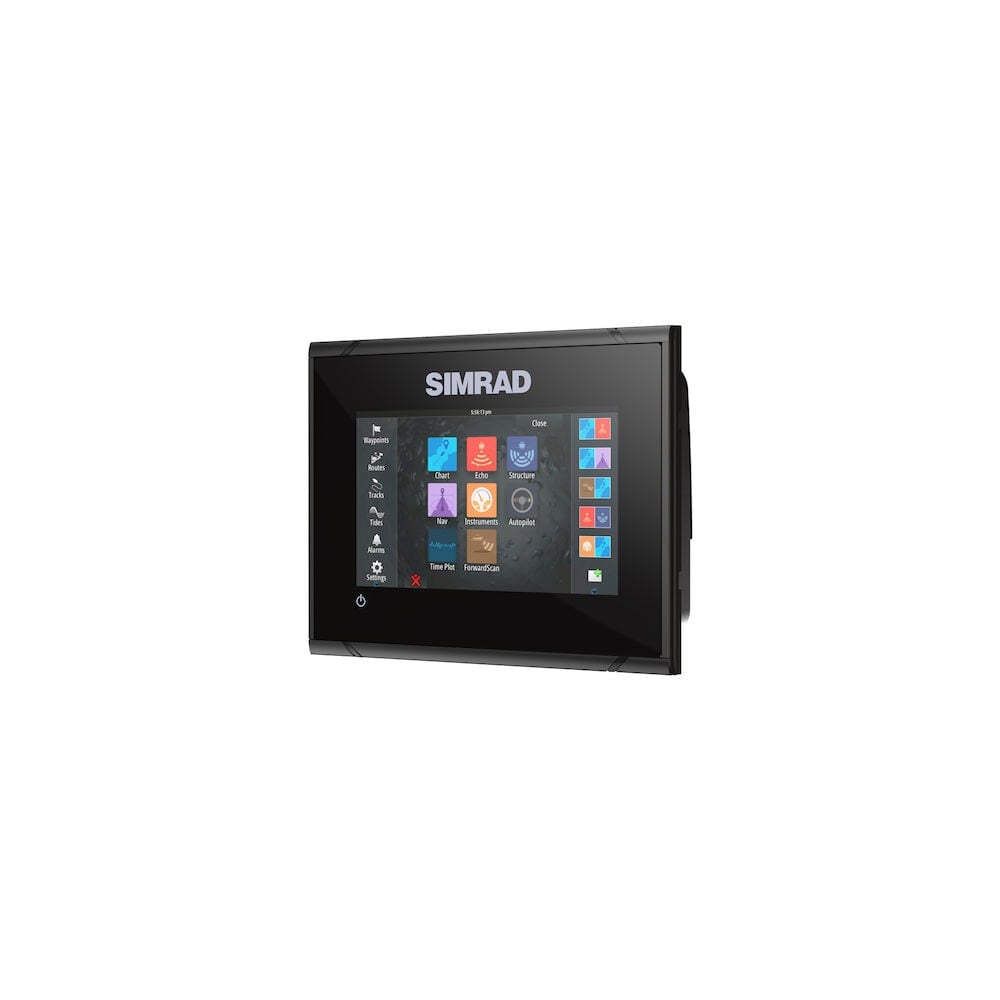

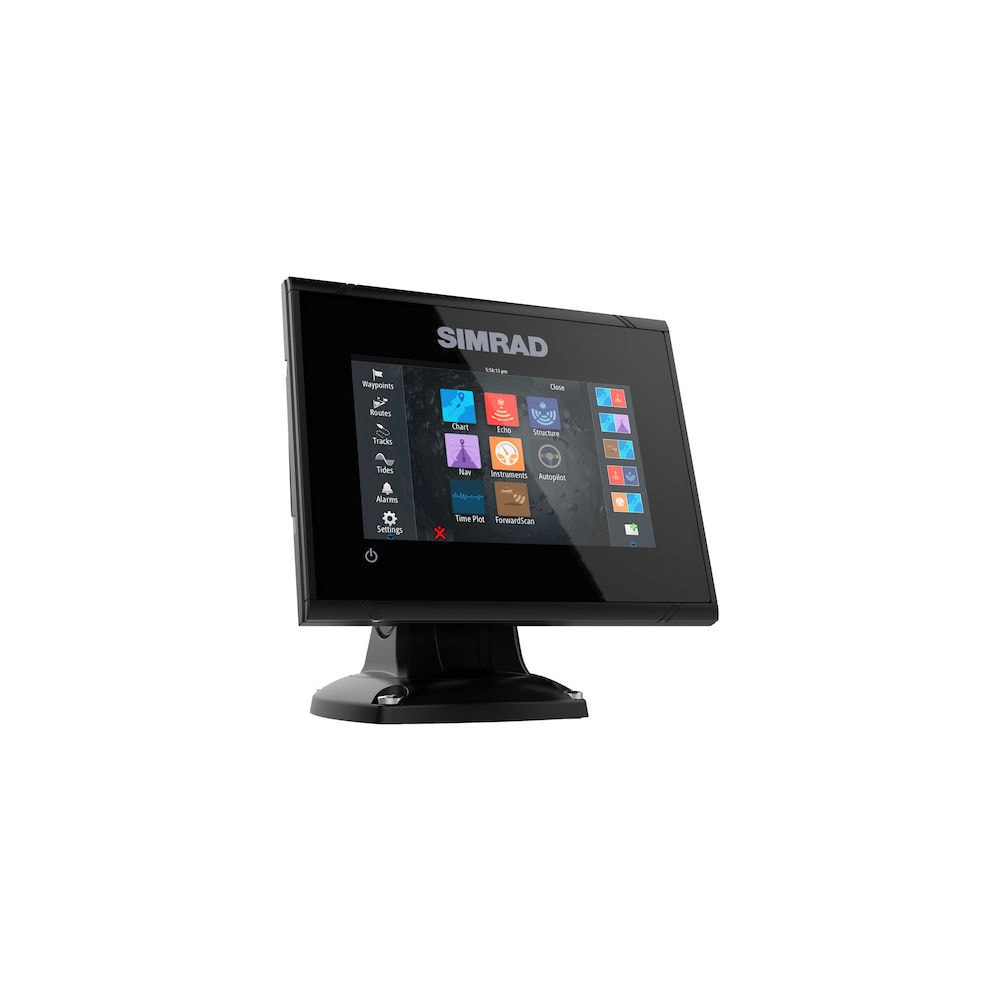

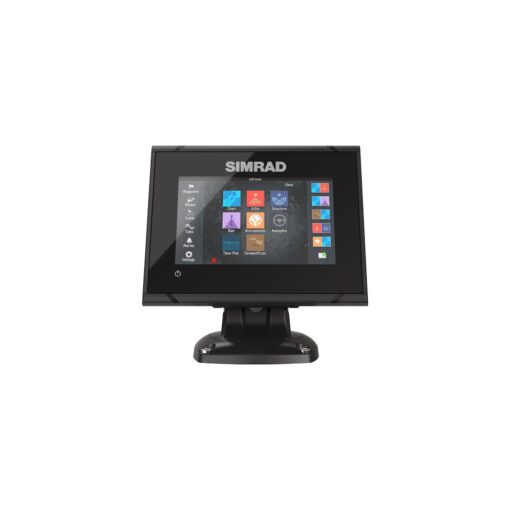

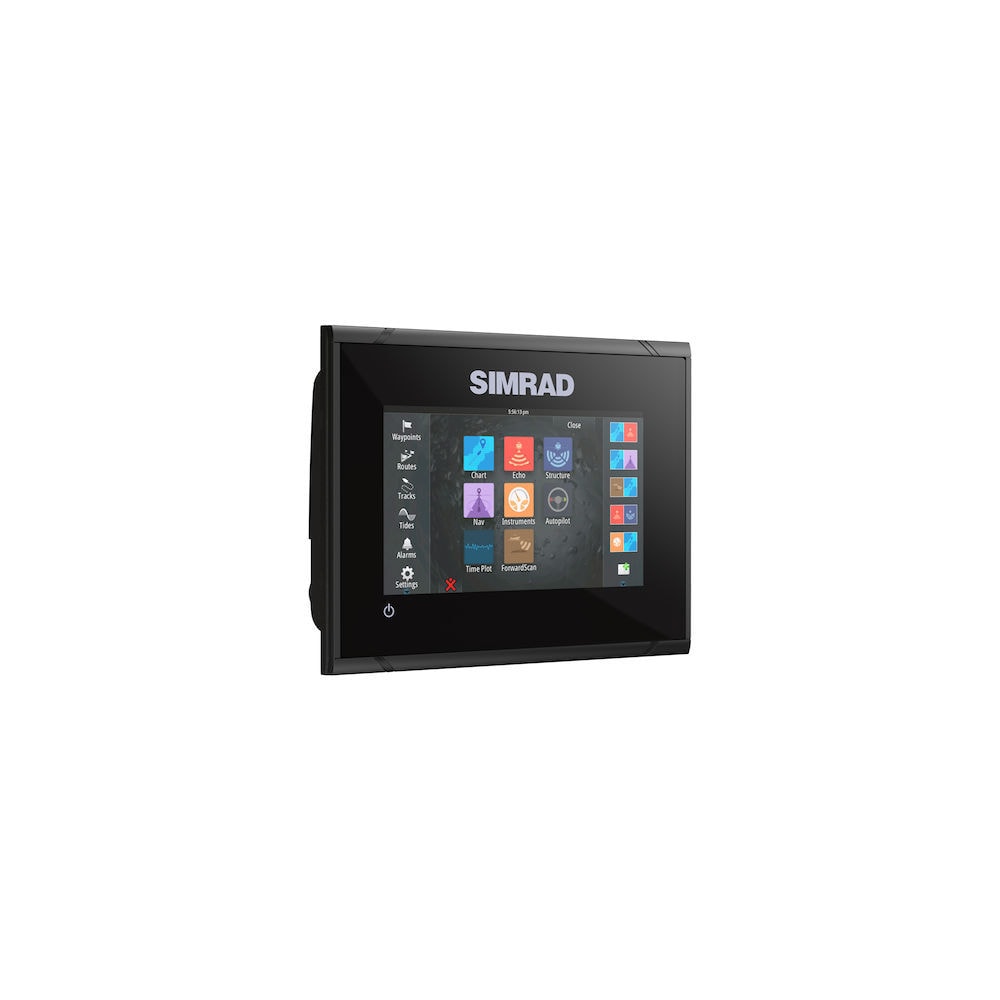

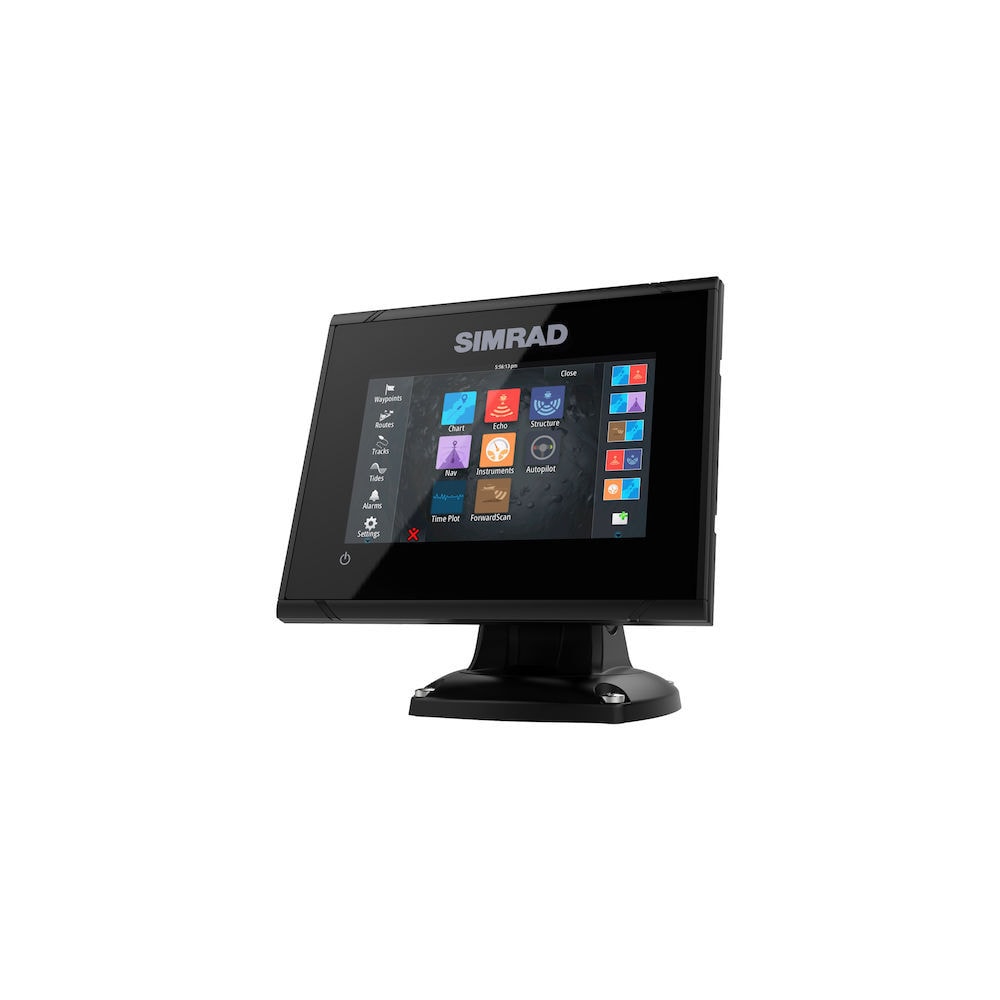

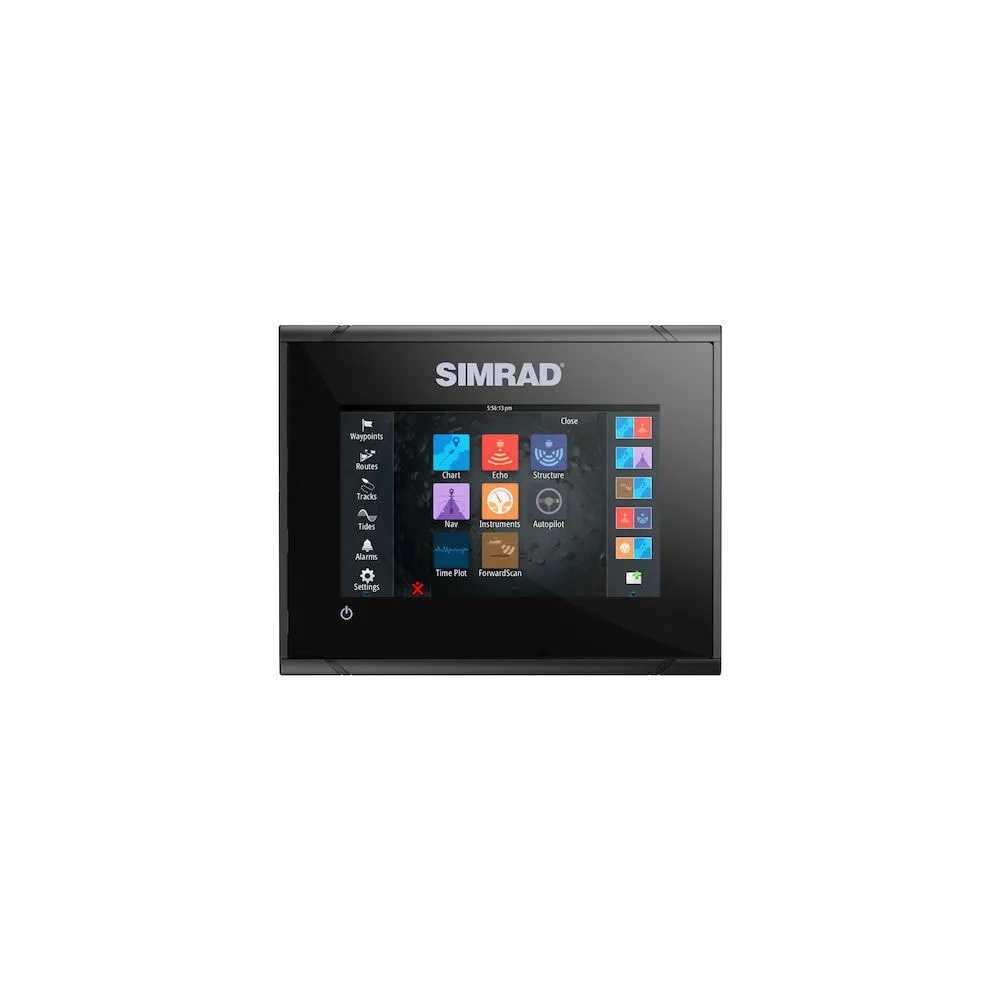

Simrad GO5 XSE Chartplotter

Intuitive Touchscreen Chartplotter

The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views. Mark waypoints on charts with a touch, and explore a world of navigation options at your fingertips. Every GO series display is a full-featured chartplotter with support for a wide range of cartography options from C-MAP, Navionics, and others.



Find Fish with CHIRP & StructureScan® HD Imaging

Add a sonar transducer and your GO series display works as a powerful fish finder, complete with CHIRP technology for clear detection of fish throughout the water column. One compact HDI transducer adds both CHIRP fish-finding sonar, and a realistic DownScan Imaging™ view of fish-holding structure. For the ultimate GO series view, a TotalScan™ transducer also offers full StructureScan® HD imaging: a picture-like view of structure beneath and around your boat.



Wireless and NMEA 2000® Connectivity

There’s much more to your GO series display than charting. Built-in wireless connectivity offers easy access to free online software upgrades via any Wi-Fi internet hotspot. When you’re out on the water, that same wireless connectivity links your display to your smartphone or tablet, keeping you connected to your equipment from anywhere on board. Industry-standard NMEA 2000® connectivity offers a wide range of expansion options such as engine monitoring, integration with your Simrad autopilot, and control of your on-board entertainment system.

• 5-inch widescreen with bright LED backlight.
• Easy to use with simple, intuitive touchscreen controls.
• Supports a wide range of charts from C-MAP, Navionics, and more.
• Built-in sounder supports CHIRP sonar, StructureScan® HD imaging, or ForwardScan™ sonar.
• Compatible with the WM-3 SiriusXM satellite weather module (North America only).

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Cartography

Chart Format	Bracket or Panel
Charts Supported	537g (1.18lb)

Connectivity

Bluetooth	No
Ethernet	No
N2K PGNs	Recieve only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Reolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Recieve:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	No
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	No
WiFi	Yes

Display

Backlight Color	White
Resolution	480 x 800, WVGA, 15:9
Screen Brightness	1200 nits
Size and Type	5″ optically bonded TFT
Viewing Angles	70° top / 30° bottom, 70° left/right

Electrical

Power Consumption, max.	12W
Recommended Fuse Rating	3A
Supply Voltage	9 – 31.2 V DC
Humidity	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

Environment

Operating Temperature Range	“-15°C to +55°C (5° F to 131° F)
Shock and Vibration	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX 7

GPS

Correction	WASS, EGNOS, MSAS
GPS Receiver Channels	32 Channels
Position Accuracy	Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix	Cold start 50 sec, Satellite Reacquisition 5 sec
Update rate	10 Hz

MFD

AIS	No
Cartography included	TBD
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
External Storage	1 MicroSD slots, max. 32GB each )>32 GB if formatted NTFS
GPS	Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage	90 MB
Multimedia	Touch screen
Sonar (inc. compatibility)	Integrated CHIRP / DownScan / Forwardscan. (transdcuer required)
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.

Physical

Dimensions (W x H x D)	2 Years
Mounting Type	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commision
Weight	BEP C-Zone

Other

Warranty Period	2 Years
Interface	Receive AIS data over NMEA 2000 only
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	2,8 kg
Dimensions	20,8 × 27,62 × 23,5 cm
SKU	000-14449-001
Brand	Simrad Yachting
Family	GO XSE
GTIN	9420024172179
Model	GO5 XSE
Class Type	Fishfinder/Chart
Component	Head/Display
Item Type	Main Product
