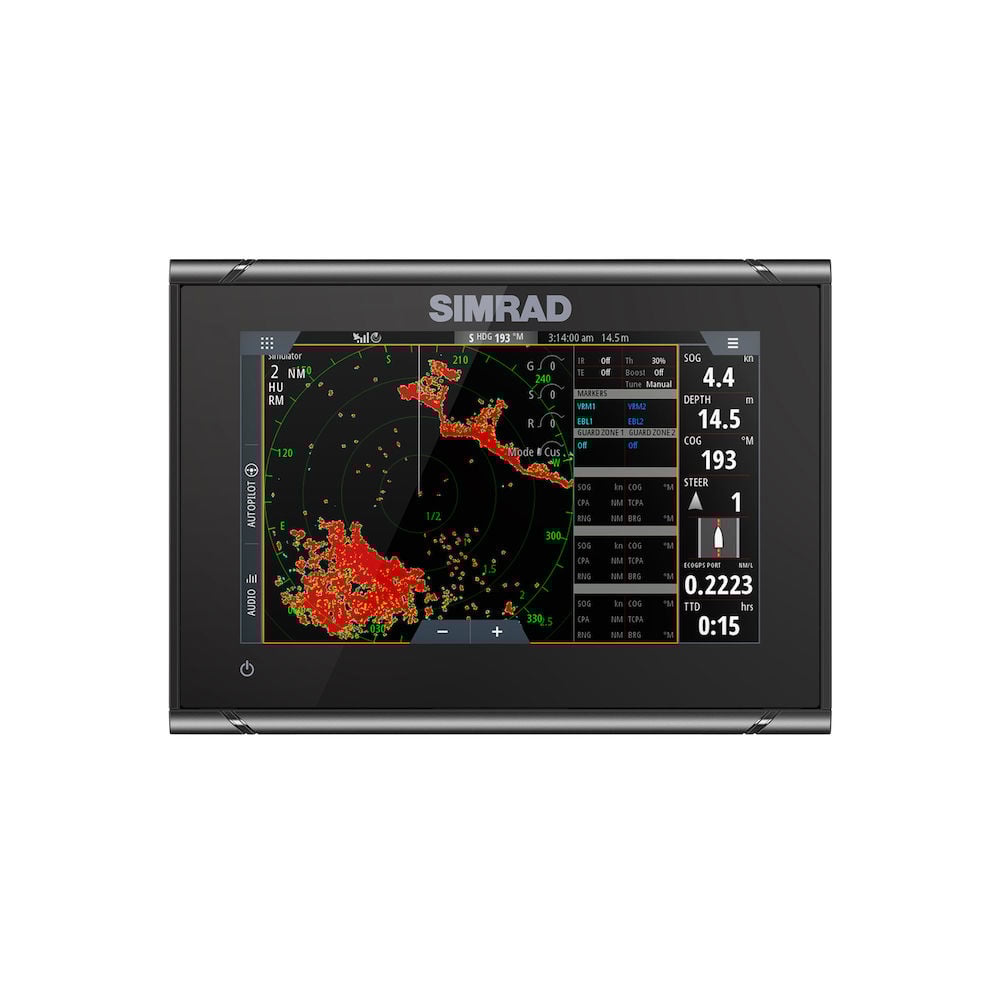

The Simrad GO7 XSR chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.
-Easy to use multi-touch interface
-Radar display for Simrad Broadband 3G™/4G™ and Halo™ Pulse Compression radar
-Supports the widest range of charts
-Widescreen with bright LED backlight
-Built-in Broadband Sounder™, CHIRP sonar, StructureScan® HD imaging or ForwardScan™ sonar support (transducer required)
-Compatible with the Simrad WM-3 SiriusXM satellite weather module (North America only)
Easy to Use Multi-Touch Display
The GO series offers true ease of use with intuitive touchscreen controls
that smartphone and tablet users will find instantly familiar. Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views.
Chartplotter Navigation & Waypoint Management
Simrad GO series displays are full-featured chartplotters with support for a wide range of cartography options including C-MAP®, Navionics®, C-MAP Genesis®, and NV Digital® Charts. Mark waypoints with a simple touch, and assign meaningful names that make them easy to find on your next trip.
Find fish with CHIRP & StructureScan® HD sidescan imaging
Add a suitable transducer and your GO series display works as a powerful fishfinder,
complete with CHIRP technology for clear detection of fish throughout the water column. Add an HDI or TotalScan transducer, and your display also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.
Expand Your View with a Simrad Radar Solution
The Simrad GO7 XSR is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.
(end of section)
Easier Navigation with Automatic Routing
Automatic routing brings the convenience of in-car navigation to boating, helping you to plot
a route and get underway with less delay. Simply select a destination, and your display will suggest the shortest, safest route. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Dock-to-dock Autorouting), and C-MAP MAX-N+ charts (C-MAP Easy Routing).
* Automatic routing features are unavailable in North America.
Navionics® SonarChart™ Live support
Enjoy the most up-to-date charts on the water with Navionics SonarChart Live. Available
exclusively with Navionics charts, this feature creates a depth-contour overlay using live sonar data from your display’s built-in sounder. The results are shown on your GO series display and updated in real-time as you fish or cruise.
Cruise Charting View
Designed with power boating in mind, the Simrad GO series offers a unique Cruise
Charting page that brings together crucial navigation data and charts in one easily readable display.
Simrad SonicHub®2 Compatible
The optional SonicHub®2 module is the perfect companion to your GO series display.
Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices with this black-box audio system that eliminates the need for a separate head unit.
Built-in Wireless Connectivity
The Simrad GO series provides access to online services including easy wireless map downloads and software updates via any wireless hotspot. On the water, connect your Simrad GO series display to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free Link app.
* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls.
- 7-inch widescreen with bright LED backlight.
- Easy to use with simple, intuitive touchscreen controls.
- Works as a display for Broadband 3G™/4G™ and Halo™ radar.
- Includes Navionics+ charts for Europe.
- TotalScan™ transducer delivers CHIRP sonar and StructureScan® HD imaging views.
|Compliance||CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1|
|Manouevres / Turn Patterns||U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking|
|Steering Modes||Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)|
|Charts Supported||Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)|
|NMEA 0183 Sentences supported||Exports NMEA0183 over WiFi|
|Ethernet||1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)|
|N2K PGNs||Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration|
|NMEA 2000||1 x NMEA 2000 Micro-C port, 1 LEN|
|Screen Brightness||1200 nits|
|Size and Type||7″ TFT Optically bonded|
|Viewing Angles||80° top/bottom, 80° left/right|
|Power Consumption, max.||20 W|
|Power Consumption, typical||12 W|
|Recommended Fuse Rating||3A|
|Supply Voltage||10 – 17 V DC|
|Operating Temperature Range||“-15°C to +55°C (5° F to 131° F)|
|Shock and Vibration||CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1|
|Storage Temperature Range||“-20°C to +60°C (4°F to 140°F)|
|Waterproof rating||IPX 6 and 7|
|Correction||WASS, MSAS, EGNOS, GLONASS|
|GPS Receiver Channels||32 Channels|
|Position Accuracy||Horizontal Accuracy 3 m (9.8 ft.)|
|Time to First Fix||Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec|
|Update rate||10 Hz|
|AIS||Receive AIS data over NMEA 2000 only|
|Autopilot||Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission|
|Cartography supported||Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)|
|Digital Switching||BEP C-Zone|
|External Storage||1 Micro SD slot, max. 32GB each. >32 GB format to NTFS|
|GPS||Internal, 10Hz, WASS, MSAS, EGNOS|
|Multimedia||via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)|
|Radar (inc. compatibility)||Halo, Broadband, HD Radars|
|Sonar (inc. compatibility)||Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector|
|Weather||SiriusXM via WM-3 (USA only), GRIB|
|Waypoints, Routes, Tracks||6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.|
|Dimensions (W x H x D)||197 mm x 141 mm x 82.7 mm (7.56″ x 5.55″ x 3.26″) (no bracket)|
|Mounting Type||Bracket or Panel|
|Weight||1.320 kg (2.91lb)|
|Warranty Period||2 Years|
|Interface||Touch screen, OP40 or OP50 controller via NEA 2000|
|Languages||Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian|
