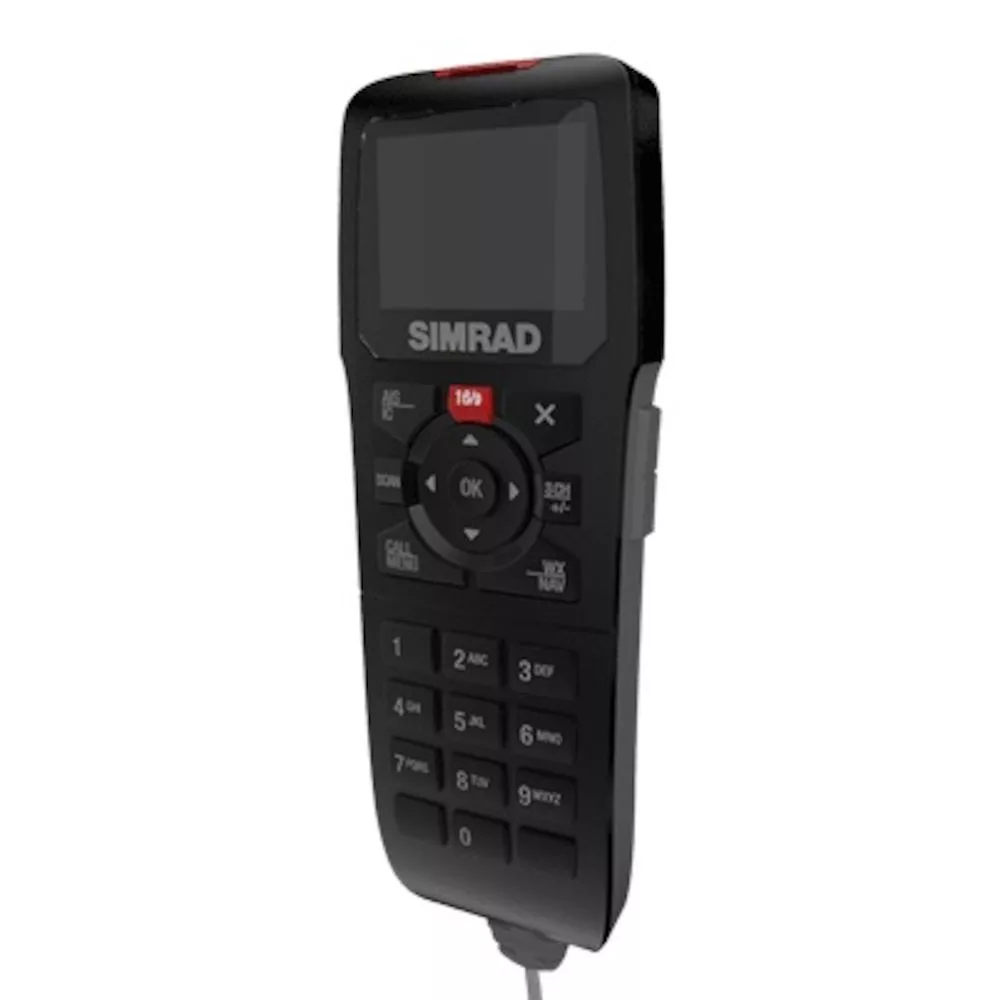

Simrad HS90 wired handset for the RS90 VHF

Stay In Touch with the HS90 Handset

A large graphical display and alphanumeric keypad offer easy one-handed operation, while shortcut keys provide direct access to advanced functions including AIS plot, waypoints, navigation, and MOB. All RS90 functions can be controlled from any handset, allowing you to maintain complete control as you move between stations. An integrated speaker lets you use the HS90 like a telephone handset or a conventional VHF radio; an external speaker is also available (sold separately).

Install Almost Anywhere

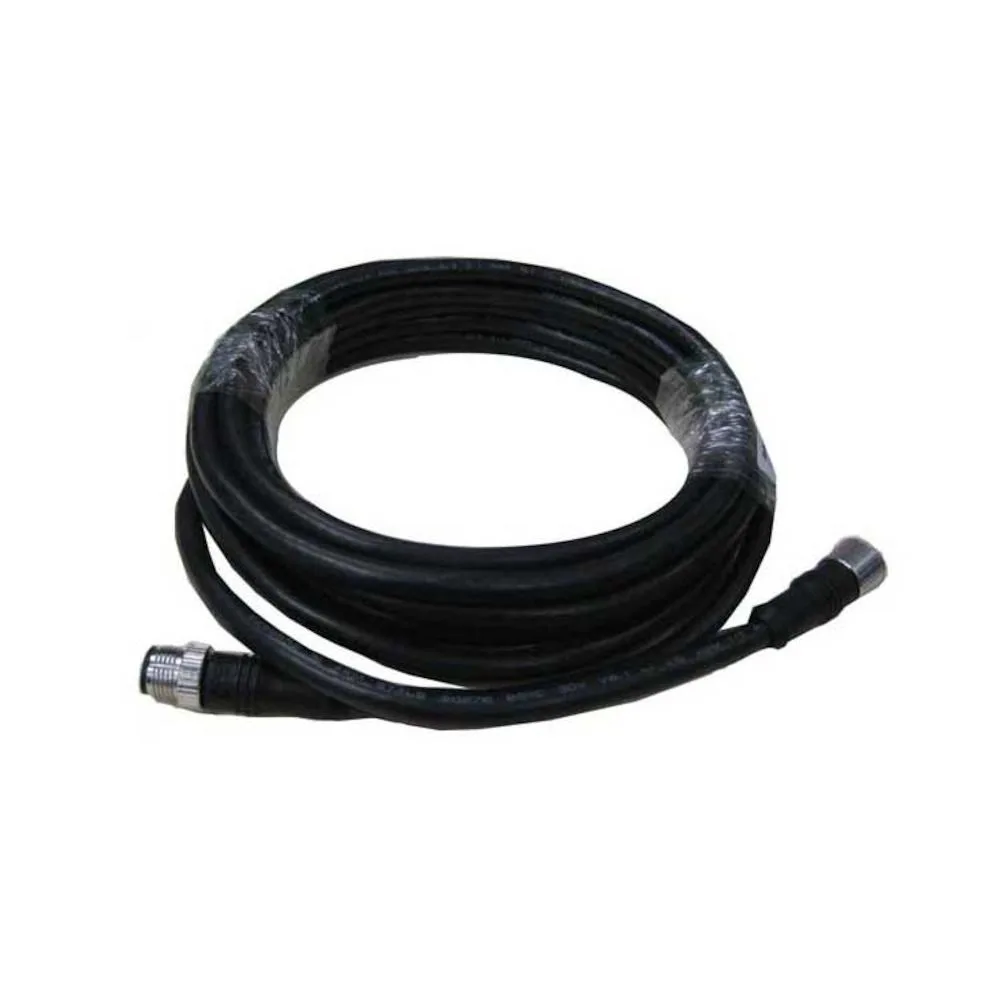

The HS90 handset is rated IPX7 waterproof, and features rubber-moulded sides to ensure a solid grip. Its rugged construction makes it suitable to install almost anywhere, from open cockpits and flybridges to enclosed pilothouses and cabins. A 5-metre (16.5-foot) handset cable is included, and an optional 20-metre (65-foot) cable is available to enable installation almost anywhere on board.

A Modular System to Fit Any Boat

The RS90 is a modular VHF system that’s expandable and customisable to suit any boat and any on-water communication needs. A single RS90 system can run up to six separate stations: four wired, and two wireless. Multiple stations can be used as a vessel-wide intercom system, keeping crewmembers in contact wherever they are on board. Every RS90 system requires at least one HS90 wired handset, which provides complete access to all functions and features.

• Wired handset for RS90 VHF radios.
• Add up to four wired handsets to one RS90 system.
• Large graphical display.
• Alphanumeric keypad with shortcut keys.
• Intercom function between handsets.
• Access advanced features including AIS plot, waypoints, navigation, and MOB.
• External headset support.

Communications

Handset type	Handset

Display

Backlight Color	Amber
Resolution	128x156px

Environment

Operating Temperature Range	-20ºC to +55ºC (-4ºF to 131ºF)
Waterproof rating	JIS-7

Physical

Dimensions (W x H x D)	69.0 x 200.5 x 50.0mm ( 2.72 x 7.97 x 2.0″ )
Mounting Type	Bracket
Weight	0.32kg ( 0.66lbs )

Other

Warranty Period	2 Years
Interface	Keypad controls

Weight	0,8 kg
Dimensions	15,2 × 23,5 × 6,3 cm
Brand	Simrad Yachting
Family	VHF -Fixed Mount
Model	Accessory
Class Type	VHF
Component	Controller/Keyboard/Remote
Item Type	Accessory
