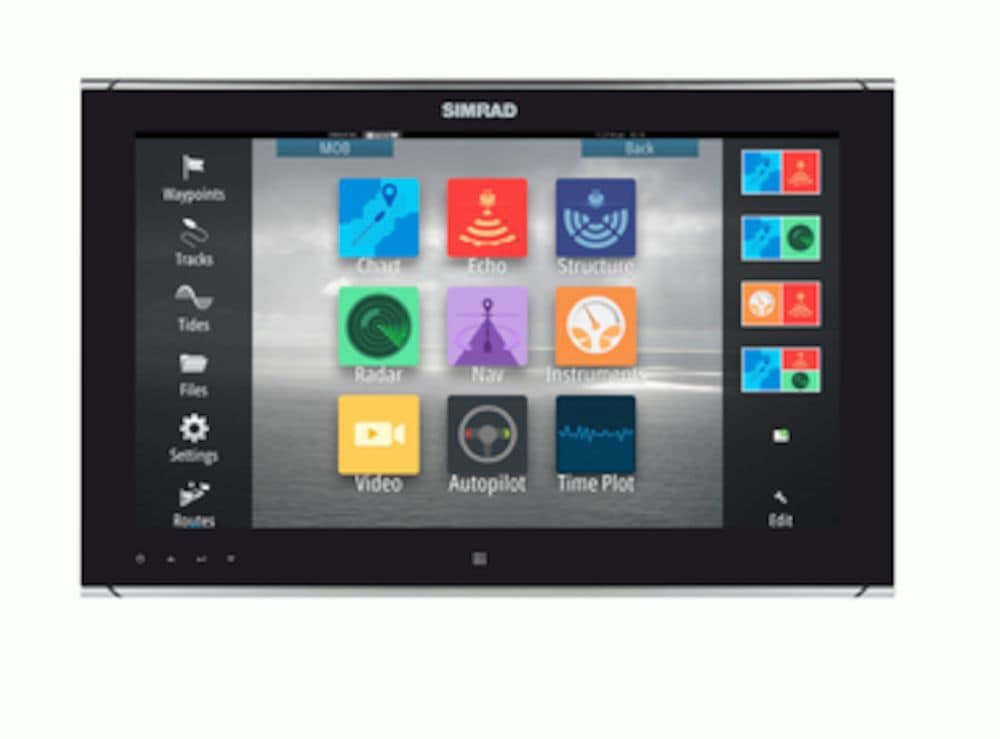

Simrad M5019 18.5” Widescreen High bright, multi-touch monitor

Optically bonded to eliminate fogging and provide maximum visibility, the M5019’s high-resolution display offers 300-nit brightness and flush mounting suitable for pilothouse or bridge installation.

-18.5” LCD panel in 16:9 widescreen format
-High-resolution 1366 x 768-pixel display
-Suitable for use as part of a type-approved Simrad radar system (IEC62388 ed.1 compliant)
-Optically bonded to eliminate fogging
-Low profile (8mm) flush-mount installation
-All-glass front panel with touch sensitive menu keys
-IP66 water resistant when flush mounted
-IEC60945 approved brackets are available separately.

• 300-nit brightness for pilothouse installation.
• 18.5-inch active viewing area.
• Thin bezel with a low profile 8 mm flush-mount design.
• Cost-effective installation with a ‘mount from front’ option.

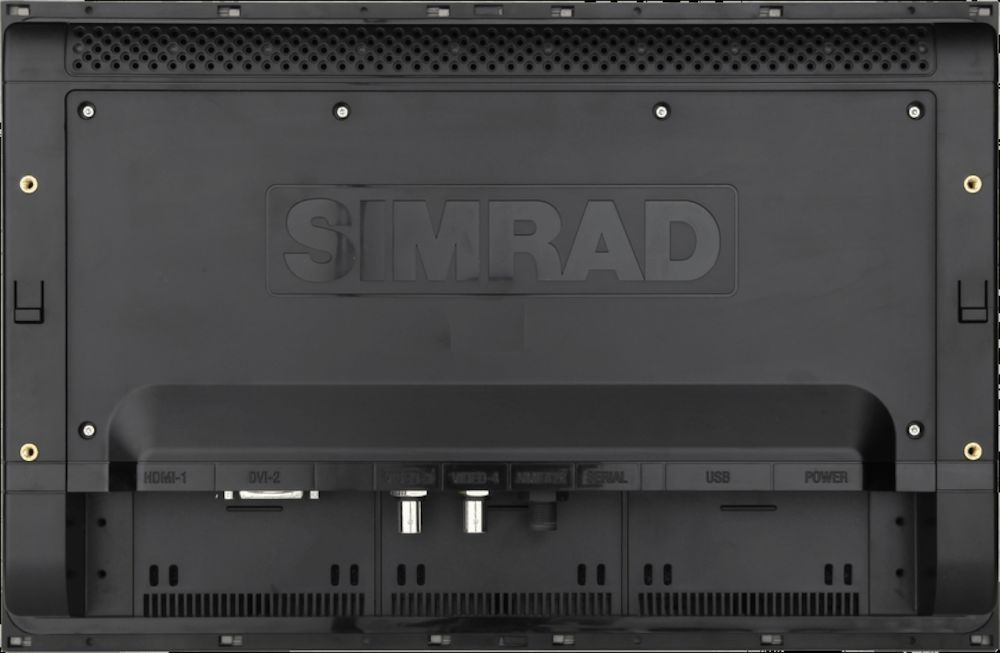

• Includes HDMI, DVI, and composite inputs.
• Customisable picture-in-picture support.
• Simple, touch-operated menu controls.

Weight	6.3 kg
Dimensions	17.8 × 59.7 × 43.2 cm
Brand	Simrad Yachting
Family	Monitors
Model	MO19-P
Class Type	Chartplotter – Multi-Function Display (MFD)
Component	Head/Display
Item Type	Main Product
