Simrad NSO evo2 Marine Processor Unit, . Embedded Insight Cartography (AMER)

NSO evo2 Key Features

-Large-Screen Navigation System
-Multi-TouchSensible (with compatible display)
-Dual Independent Video Output
-Full HD Video
-Performance Module compatibility
-Cartography Choice
-Smaller, lighter design
-Quad-Core Processing Power

Dual Independent Video Output

-Independent HDMI output ports allow different setups on each display
-2 x Quad core processors
– Dedicated processor per monitor gives superior speed and chart draw performance

GoFree

-Control both NSO evo2 monitors direct from your Ipad or Android Tablet.
-NSO evo2 Appears as 2 Separate MFD Displays within the GoFree Application.
Even if you only have 1 monitor connected to the NSO evo2 on the vessel you can
view and control the second output direct from your tablet…

Chartography Options

Choose from the many available Cartography options on offer to best suit your Location and usage
–C-MAP MAX-N
–Navionics
–Insight
–Insight Genesis
–NV Digital Chart

Control Options

OP-40 Remote
–Full NSO evo2 System control available with OP-40 Remote
–*Integrated NSO evo2 Autopilot control functions require OP-40 remote

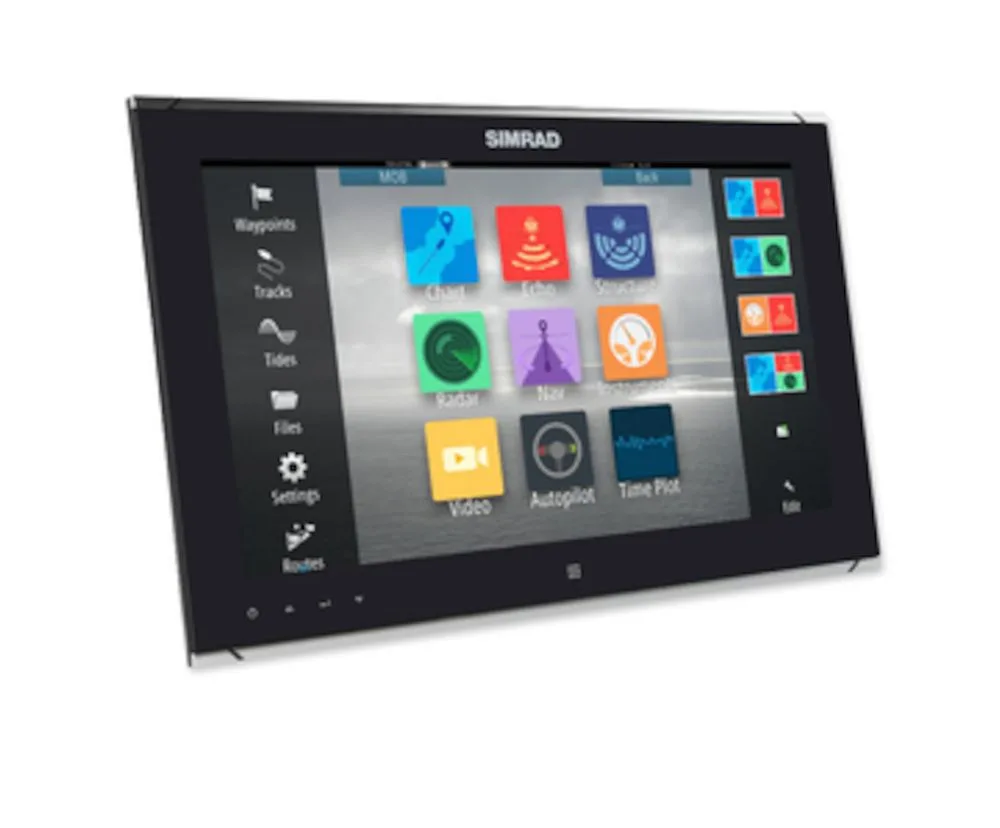

Touch screen Control
– NSO evo2 can be operated by multi-touch monitors provided by select partners. Currently KEP marine Glass bridge touch
screen monitors are certified for use on NSO evo2 and operate via USB cable connection. Multi touch gestures are supported for chart zoom / sonar zoom/ Radar range

New for NSO evo2

-Multi zoom touch gestures
-Naviconics Depth Highlight range
-Naviconics shallow water highlight
-AIS Sarts
-Fusion Link Audio Device Support
-Grib Weather
-Flir Camera integration
-GS25 Antenna Configuration
Wide screen display support

Language Packs

-Standard Language Pack:
English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch,Norwegian, Portuguese, Swedish

-Asian Language Pack:
English (US), Japanese, Korean, Thai, Chinese,

-Eastern European Language Pack:
English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish

-Russia/Ukraine Language pack:
English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian

Middle Eastern Language Pack:
English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

• Dual independent video outputs: whether installed with two monitors side-by-side or a monitor and a tablet, boaters can display a chart on one and sonar, radar, or any other panel on the other.
• Easily manage multiple displays with Bridge Control.
• Integrate with Simrad performance modules including 4G Broadband radar, BSM-3 CHIRP echosounder, StructureScan 3D, and more.
• GoFree™ wireless technology for online chart downloads, map creation, system-wide software updates, and smartphone/tablet integration (requires optional Wi-Fi module).
• Includes Insight charts (USA only) plus full support for C-MAP MAX-N and Navionics cartography.
• Bring the convenience of in-car navigation to boating with support for Navionics Dock-to-dock Autorouting and C-MAP Easy Routing.
• Easier trip planning with TripIntel™ technology.
• High-performance quad-core processor for rapid, responsive operation across both monitors.
• Simrad HEROiC user interface, optimized for widescreen monitors and multi-touch gesture control.
• Add traditional hands-on controls with the Simrad OP50 remote controller plus USB mouse, trackball, and keyboard support.
• Compact and lightweight design for ease of installation, even on smaller vessels.

Approvals

Compliance	CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1

Autopilot

Manouevres / Turn Patterns	U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes	Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)

Connectivity

NMEA 0183 Sentences supported	Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth	No
Ethernet	3 x RJ45 1 Mbit ports, max 3 MPU on network
N2K PGNs	Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
NMEA 0183	2 x Transmit, 2 x Receive NMEA 0183, One on each display head. Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-11247-001)
NMEA 2000	1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity	No
Video	Inputs: 2 x composite (BNC connectors) inputs. PAL or NTSC: Output 1 x HDMI
WiFi	Compatible with WIFI-1 external module

Display

Resolution	Output Resolutions 1366×768 (WXGA), 1920×1080 (Full HD 16:9), 1920×1200 (WUXGA 16:10), 1280×800 (16:10), 1280×1024 (SXGA 5:4)

Electrical

Power Consumption, max.	45W
Recommended Fuse Rating	5A
Supply Voltage	9 – 31.2 V DC

Environment

Operating Temperature Range	-15°C to +55°C (5° F to 131° F)
Storage Temperature Range	“-20°C to +60°C (4°F to 140°F)
Waterproof rating	IPX2

MFD

AIS	Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to both NMEA 0183 ports on the MPU)
Autopilot	Full auto pilot control and commissioning
Cartography supported	Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)
Digital Switching	BEP C-Zone
External Storage	1 SD slot, or optional USB reader. max. 32GB
Internal Storage	90 MB
Multimedia	via SonicHub, SonicHub2, FusionLink, *Sirius (*USA only)
Radar (inc. compatibility)	Broadband Radar, Halo Pulse Compression Radar, HD Pulse
Sonar (inc. compatibility)	No Internal echosounder. Compatible with: SonarHub, StructureScan, StructureScan3D, BSM-3, BSM-2, BSM1 network echo sounders
Weather	SiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks	6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Physical

Dimensions (W x H x D)	281 x 232 x 66 mm (11 x 9.1 x 2.5″)
Mounting Type	Bracket (Supplied) , panel, flush
Weight	1.06 kg (2.33 lbs.)

Other

Warranty Period	2 Years
Interface	Touch control on Moxx-T Monitors, USB Keyboard, USB Mouse OP40, OP50 remotes
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Weight	0,005 kg
Brand	Simrad Yachting
Family	NSO Evo 2
Model	MPU
Class Type	Chartplotter – Multi-Function Display (MFD)
Component	Packaged Systems
Item Type	Main Product
