Reliable Control in All Conditions
NSS evo3 displays let you take control your way. Switch seamlessly between intuitive touchscreen operation with multi-touch gestures, and a full-featured keypad with rotary control dial. SolarMAX™ HD display technology keeps everything in sight with ultra-wide viewing angles, and provides a clear view under any lighting conditions—even if you’re wearing polarised sunglasses. It’s easy to monitor and control all of your on-board electronics with simple menus, customisable split-screen layouts, and a user-programmable function key for one-button access to the features you use most.
More On Board Functionality
Every NSS evo3 system is equipped with a built-in GPS receiver to enable precise navigation, and a built-in echosounder to support a variety of sportfishing and powerboating activities. StructureScan® HD imaging provides picture-like views of fish-holding structure, while award-winning ForwardScan® sonar offers a safer cruising experience with a clear view of the bottom ahead. CHIRP-enabled sonar provides reliable bottom-tracking and fish-finding performance, including support for dual-channel CHIRP transducers that deliver coverage of multiple depth ranges from a single unit. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.
Expand and Integrate Vessel-Wide
Industry-standard connectivity makes it easy to create multi-display systems and link your displays to all of your on-board electronics. Monitor engines and fuel efficiency, control your on-board sound system, and so much more. Expand your system with Simrad modules and accessories: fish smarter with game-changing StructureScan® 3D imaging, see further with revolutionary Halo™ Pulse Compression radar, and free your hands from the wheel with a fully integrated Simrad autopilot. Built-in wireless connectivity lets you mirror your display to on-board smartphones and tablets, and enables easy online software upgrades through any wireless internet hotspot.

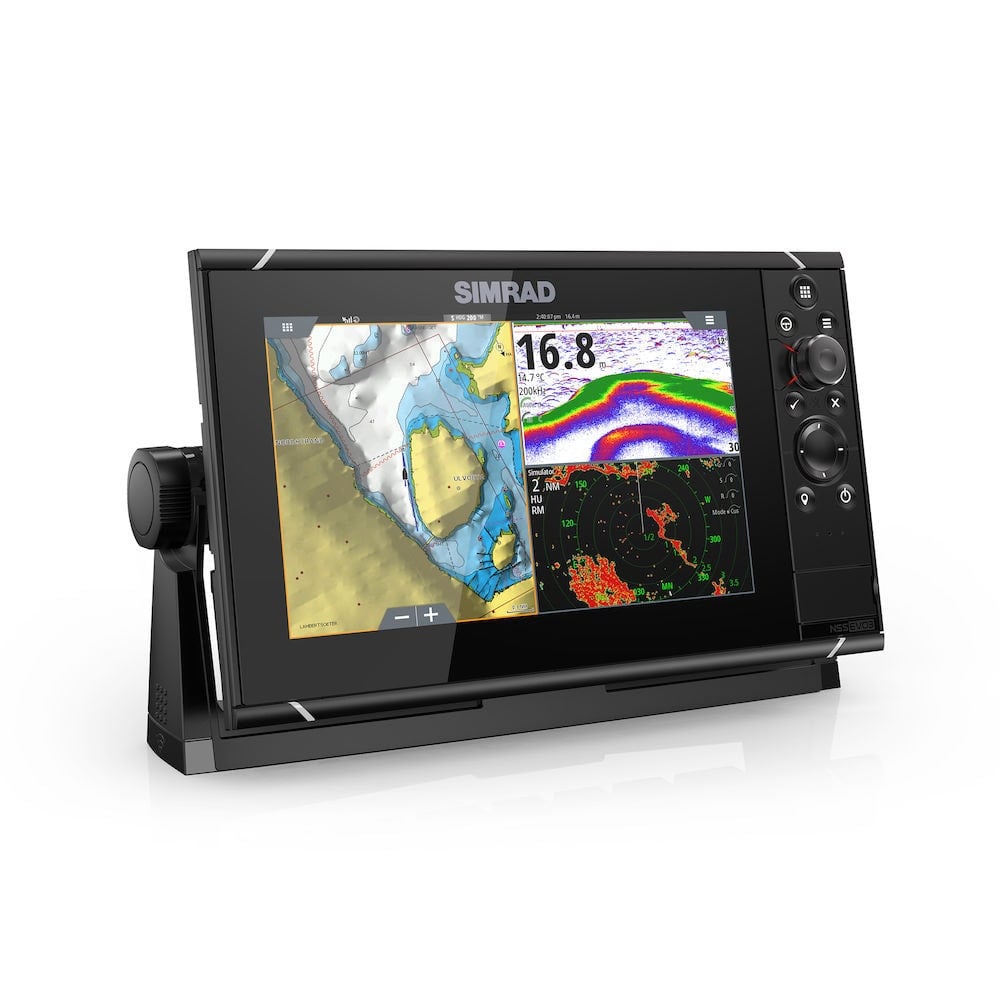

- 9-inch widescreen display with ultra-wide viewing angles.
- Switch seamlessly between touchscreen and keypad controls.
- Built-in GPS receiver, wireless connectivity, and echosounder.
- Control Simrad sonar, radar, autopilot, and other accessories.
- Industry-standard connectivity to engines, sound systems, and more.
- Easy trip planning and support for automatic routing (unavailable in North America).
- Choose low-profile flush mounting or convenient bracket mounting.
- Includes world basemap.
|Compliance||CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2|
|Manouevres / Turn Patterns||U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking|
|Steering Modes||Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)|
|NMEA 0183 Sentences supported||Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM|
|Ethernet||1 x 5 pin yellow connector x 1 Mbit|
|N2K PGNs||Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service – WP List – WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration|
|NMEA 0183||1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)|
|NMEA 2000||1 x NMEA 2000 Micro-C port, 1 LEN|
|Video||2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).|
|Resolution||720 x 1280|
|Size and Type||High Visibility SolarMax HD® IPS optically bonded TFT|
|Viewing Angles||80° top/bottom, 80° left/right|
|Power Consumption, max.||23 W|
|Recommended Fuse Rating||3A|
|Supply Voltage||10 – 31.2 V DC|
|Operating Temperature Range||-15°C to +55°C (5° F to 131° F)|
|Storage Temperature Range||-20°C to +60°C (4°F to 140°F)|
|Waterproof rating||IPX6 and 7|
|Correction||WASS, MSAS, EGNOS, GLONASS|
|GPS Receiver Channels||34 Channels|
|Position Accuracy||Horizontal Accuracy 3 m (9.8 ft)|
|Time to First Fix||Cold start 50 sec, Satellite Reacquisition 5 sec|
|Update rate||10 Hz|
|AIS||Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)|
|Autopilot||Full auto pilot control and commissioning|
|Cartography included||World basemap (no detailed charts)|
|Cartography supported||Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)|
|Digital Switching||BEP C-Zone, Naviop|
|External Storage||2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS|
|Internal Storage||16 GB|
|Multimedia||via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)|
|Radar (inc. compatibility)||Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar|
|Sonar (inc. compatibility)||Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders|
|Weather||SiriusXM via WM-3 (USA only), GRIB|
|Waypoints, Routes, Tracks||6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.|
|Dimensions (W x H x D)||287 x 166 x 90 mm (11.30 x 6.55 x 3.50″)with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)|
|Mounting Type||Bracket (Supplied) or panel mount|
|Weight||1.41 kg (3.11 lbs.)|
|Warranty Period||2 Years|
|Interface||Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers|
|Languages||Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi|
