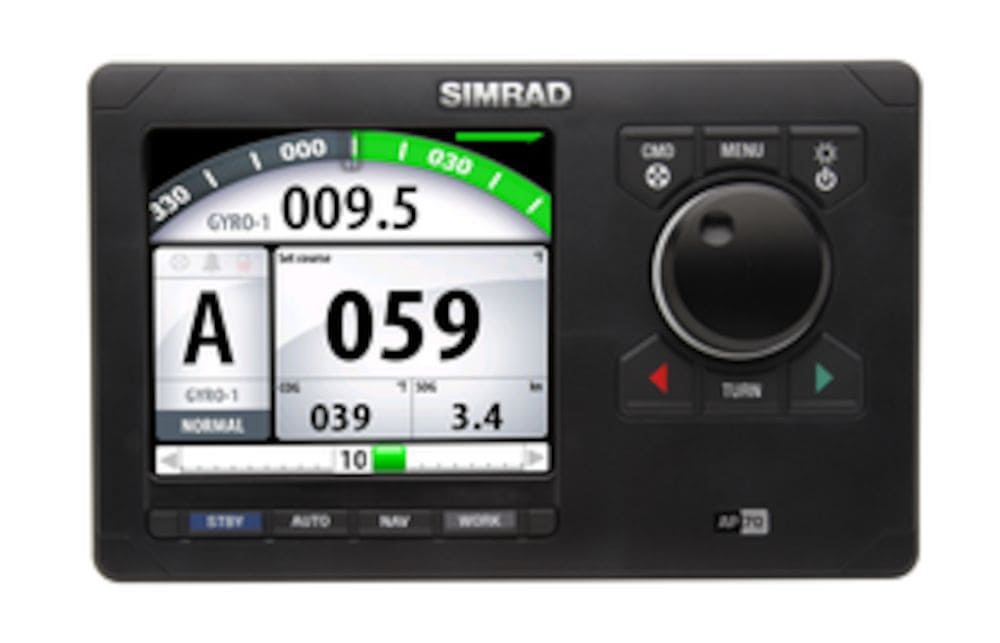

Simrad Pro AP70 Control unit

The AP70 is our flagship Pilot controller, embedded with the most comprehensive technology from over 60 years of experience. This state-of-the-art, commercial grade autopilot combines an unrivalled adaptive auto-steering system with a bright and clear, colour display and a user interface designed by captains for captains.

Key Features

-Large Colour Display
-Smooth Rotary Controller
-Easy To Use Interface
-Rudder Interface Options
-Thruster Integration
-Optional Remote Joystick
-Simrad Yachting Build
-Fully Waterproof
-Multiple Work profiles (3)
-Multiple drive support (2+1)
-5” Color display
-Bonded screen
-480 x 480 high resolution
-SolarMAX™ PLUS TFT
-Panel mounting (Flush)
-Optional bracket mount
-CAN Bus & NMEA0183®
-HCS approval (US coastguard, MED, CCS)approval pending
-HSC approval (US coastguard, MED, CCS)approval pending
-Share system components with AP80
-Turn patterns

The Simrad AP70 is ideal for both simple installations where IMO approval is not required but also can be configured (by matching with an approved computer) to meet the requirements for a Type Approved autopilot. Install as a stand-alone display or network as a second or third station for ultimate vessel control.
The AP70’s waterproof design, daylight viewable display, colour user interface, intuitive on-screen graphics and option of flush or bracket mount enable easy operation regardless of the installation requirements. Additionally, dedicated mode, command and turn
keys and rotary knob provide quick and unmistakable selection
of the required function when the situation calls for immediate response.
Integration with other on-board systems including interface to central alarm units is achieved by multiple NMEA0183 and NMEA2000 channels.

• Large Colour Display.
• Smooth Rotary Controller.
• Easy To Use Interface.
• Rudder Interface Options.
• Thruster Integration.
• CAN Bus & NMEA0183®.
• Optional Remote Joystick.
• Simrad Yachting Build.
• Fully Waterproof.

Approvals

Compliance	MED-B-7837-DNV, MED-B-7918-DNV, MED-D-Navigation Equipment
Type Approval	HCS, HSC, Wheelmark, US Coastguard, and CCS approved depending on autopilot computer

Autopilot

Compass sensor support	NMEA2000, NMEA0183
Engine Drive systems integration	Reversible pump, Solenoid valve on/off, Proportional valve, Analog, CAN (SG05Pro)
Manouevres / Turn Patterns	U-turn
Rudder sensor support	RF300, RF45X, RF25N, RF70, RF14XU
Steering Modes	Non Follow Up (NFU), Follow Up (FU), Auto, NoDrift, Nav

Connectivity

N2K PGNs	See SI80 Signal Interface
NMEA 2000	1x CAN Micro-C port, 1 LEN

Display

Backlight Color	White/Red
Resolution	480 x 480
Size and Type	5 in127mm, 16-bit color TFT
Viewing Angles	Any direction

Electrical

Power Consumption, max.	0.7A @12V, 0.4A @24V
Recommended Fuse Rating	2A
Supply Voltage	12/24VDC +30 -10%

Environment

Operating Temperature Range	-25C to +55C (-13F to +131F)
Storage Temperature Range	-30C to +70C (-22F to +158F)
Waterproof rating	IPx4

MFD

Compass Safe Distance – Metric, imperial	0,4m (15,75″)

Physical

Dimensions (W x H x D)	230 x 144 x 54mm (9,06 x 5,67 x 2,13 “)
Mounting Type	Flush, bracket
Weight	1,2 kg (2,7 lbs)

Other

Warranty Period	2 years
Interface	Keypad and rotary dial
Languages	English (UK), English (US), German, Spanish, French, Italian, Greek, Croatian, Hungarian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portugese, Russian, Swedish, Slovenian, Turkish, Asian

Weight	2 kg
Dimensions	22 × 30 × 11 cm
Brand	Simrad Pro
Family	AP60/70/80
Model	AP70
Class Type	Autopilot
Component	Head/Display
Item Type	Main Product
