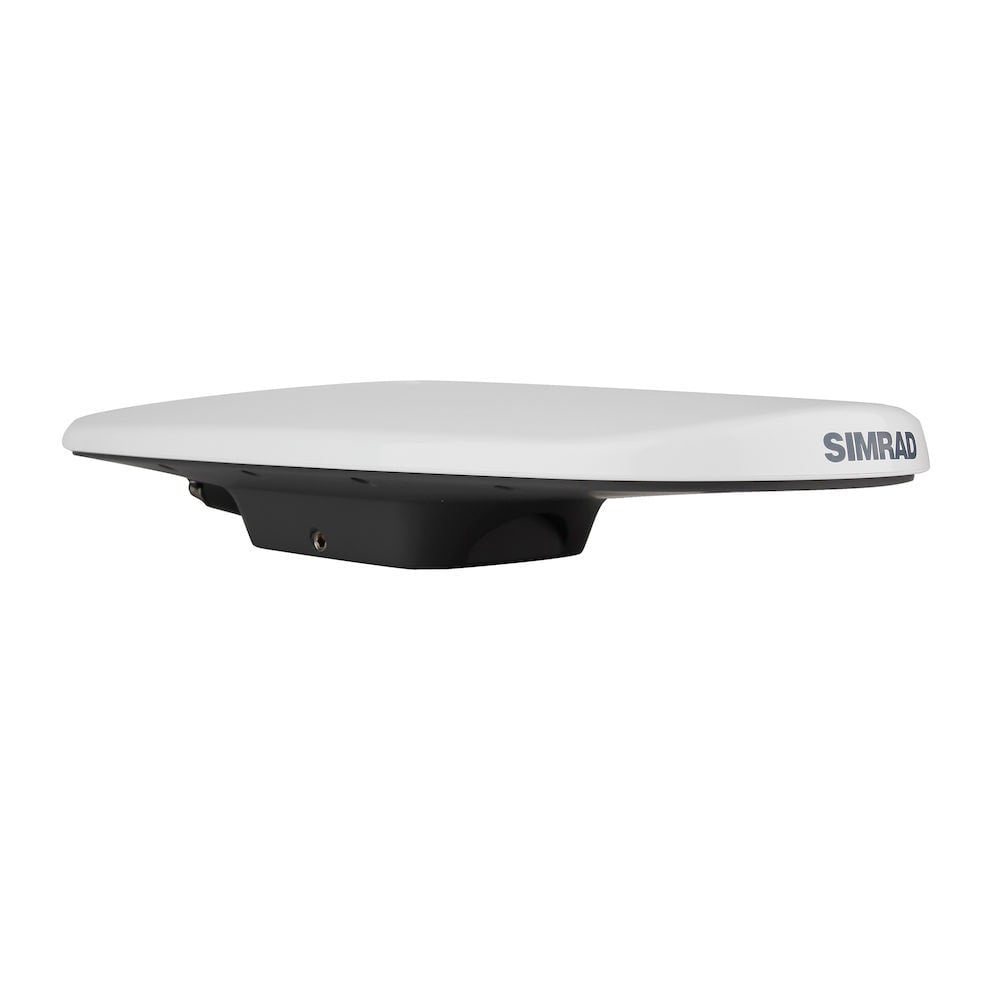

Simrad Pro HS70 GPS Compass. 10/20Hz rate. Provides heading, positioning, heave, roll and pitch

Experience superior navigation from the accurate heading and positioning performance available with the HS70 GPS compass. The HS70 uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning, providing a low cost and highly effective heading and position based smart antenna.

The rugged and low profile enclosure provides two multipath-resistant antennas for accuracy, portability and simple installation.
The smart antenna – measuring only a revolutionary 40cm/16” – mounts easily to a flat surface or pole.
The stability and maintenance-free design of the HS70 provides traditional GPS positioning and heading at a low cost.

Main Features

-Provides heading, positioning, heave, roll and pitch
-SimNet/NMEA2000 or NMEA0183 communication
-All in one antenna cable – No black box needed
-Excellent in-band and out-of-band interference rejection
-0.75 degree heading accuracy in amazingly small form factor
-Extremely quick time-to-first-fix
-Differential positioning accuracy of 1.0 m, 95% of the time
-Integrated gyro and tilt sensors deliver fast start- up times and provide heading updates
-during temporary loss of GPS
-SBAS compatible (WAAS, EGNOS, MSAS, etc.) and optional external differential input
-COAST™ technology maintains differentially- corrected positioning for 40 minutes after loss of differential signal.

• Simplicity of a compass and GPS receiver in one.
• Tracks heading, rate of turn, position, heave, roll, and pitch.
• Highly accurate heading based on GPS data, free from magnetic interference.
• Supports satellite-based augmentation systems (SBAS) for enhanced positional accuracy.
• Selectable 10 or 20 Hz position and heading updates.
• Flush-mount or pole-mounted design.
• Easy NMEA 2000® connectivity, with NMEA 0183® option.

Connectivity

NMEA 0183 Sentences supported	Output: GGA, HDG, HDT, HEV, ROT, VTG, ZDA
N2K PGNs	126992, 127250, 127251, 127257, 127258, 128259, 129025, 129026, 129027, 129028, 129029, 129033, 129539, 129540
NMEA 0183	2x Tx, 2x Rx NMEA0183 terminal, 4800, 9600, 19200, 38400, 57600, 115200 Baud (programable)
NMEA 2000	1x CAN Micro-C port, 5 LEN
PC Connectivity	Via RS232 port for programming

Electrical

Power Consumption, max.	320mA
Power Consumption, typical	240mA
Recommended Fuse Rating	2A
Supply Voltage	6-36 VDC external or 12-16V via CAN
Humidity	100% non-condensing

Environment

Operating Temperature Range	-30 to +70C (-22 to +158F)
Shock and Vibration	IEC 60945
Storage Temperature Range	-40 to +85C (-40 to +185F)
Waterproof rating	IEC 60945, Exposed

MFD

Compass Safe Distance – Metric, imperial	0,3m (11,8″)

Physical

Dimensions (W x H x D)	417 x 158 x 69 mm. (16,4 x 6,2 x 2,7″)
Mounting Type	Fixed/Flush mount or Pole mount
Weight	1,5kg (3,3 lbs)

Other

Warranty Period	2 years

Weight	2 kg
Dimensions	24,1 × 50,8 × 17,2 cm
Brand	Simrad Pro
Family	Sensor – Heading/Motion/Attitude
Model	HS70
Class Type	Autopilot
Component	Sensor/Transducer/Scanner/Antenna
Item Type	Main Product
