Simrad Pro IS70 ROT indicator RT70-30

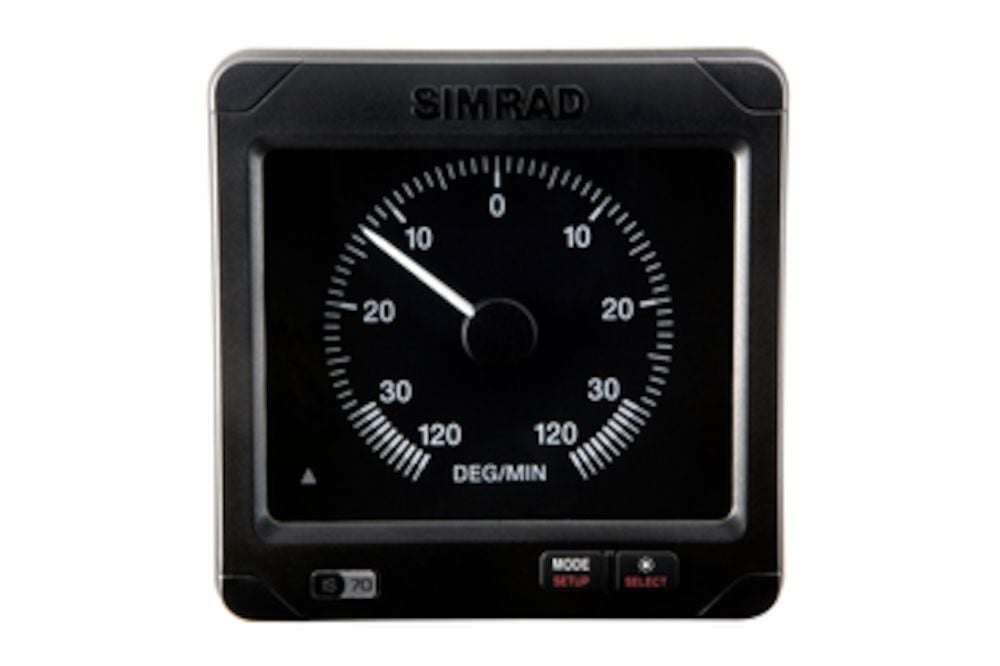

The IS70 Rate of Turn instrument is a standard 4.5-inch analog display. It shows the rate of turn of the vessel to either port or starboard in degrees per minute which is displayed in clear white numbers on a black background.

• 30 deg/min scale (120 and 300 deg/min options also available).
• Tough, shock-proof 4.5-inch casing.
• Multiple lighting levels with zone lighting.
• Analog (V) interface and SimNet compatible.
• IP66 rated (for front face sealing of a correctly installed instrument – rear case IP20).
• External mounting kit available for full IP66 in exposed external installations.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 2000	1 x NMEA2000 SimNet port, 1 LEN

Display

Backlight Color	Red

Electrical

Power Consumption, max.	5W
Recommended Fuse Rating	5A
Supply Voltage	12/24V DC (10-31V DC)
Humidity	Up to 95% RH

Environment

Operating Temperature Range	-15 to +70ºC (+5 to +158ºF)
Storage Temperature Range	-40 to +80ºC (-40 to +176ºF)
Waterproof rating	IP66

MFD

Compass Safe Distance – Metric, imperial	400mm (1.3′)

Physical

Dimensions (W x H x D)	115 x 115 x 68mm (4.5 x 4.5 x 2.7″)
Mounting Type	Flush
Weight	0.55 kg (1.2 lbs)

Other

Warranty Period	2 Years
Interface	keypad
Languages	English

Weight	0,853 kg
Dimensions	20,328 × 22,234 × 10,164 cm
Brand	Simrad Pro
Family	IS70/80
Model	RT70
Class Type	Instruments
Component	Head/Display
Item Type	Main Product
