Simrad Pro IS70 Rudder indicator RI70-90

A standard-sized analog display showing the angle of the rudder relative to the centre line in degrees both to port and starboard displayed in clear white numbers on a black background.

The entire IS70 range is specifically designed to meet the demands of the professional and coastal commercial user by offering tough easy-to-read instruments that give consistent performance day after day.

• 90 degree scale (45 degree option also available).
• Tough, shock-proof 4.5-inch casing.
• Multiple lighting levels with zone lighting.
• Analog (V) interface and SimNet compatible.
• IP66 rated (for front face sealing of a correctly installed instrument – rear case IP20).
• External mounting kit available for full IP66 in exposed external installations.

Approvals

Compliance	IEC/EN 60945

Connectivity

NMEA 2000	1 x NMEA2000 SimNet port, 1 LEN

Display

Backlight Color	Red

Electrical

Power Consumption, max.	5W
Recommended Fuse Rating	5A
Supply Voltage	12/24V DC (10-31V DC)
Humidity	Up to 95% RH

Environment

Operating Temperature Range	-15 to +70ºC (+5 to +158ºF)
Storage Temperature Range	-40 to +80ºC (-40 to +176ºF)
Waterproof rating	IP66

MFD

Compass Safe Distance – Metric, imperial	400mm (1.3′)

Physical

Dimensions (W x H x D)	115 x 115 x 68mm (4.5 x 4.5 x 2.7″)
Mounting Type	Flush
Weight	0.55 kg (1.2 lbs)

Other

Warranty Period	2 Years
Interface	keypad
Languages	English



Weight	0,658 kg
Brand	Simrad Pro
Family	IS70/80
Model	RI70
Class Type	Instruments
Component	Head/Display
Item Type	Main Product

The following products are already included on the shipment when you buy this one:

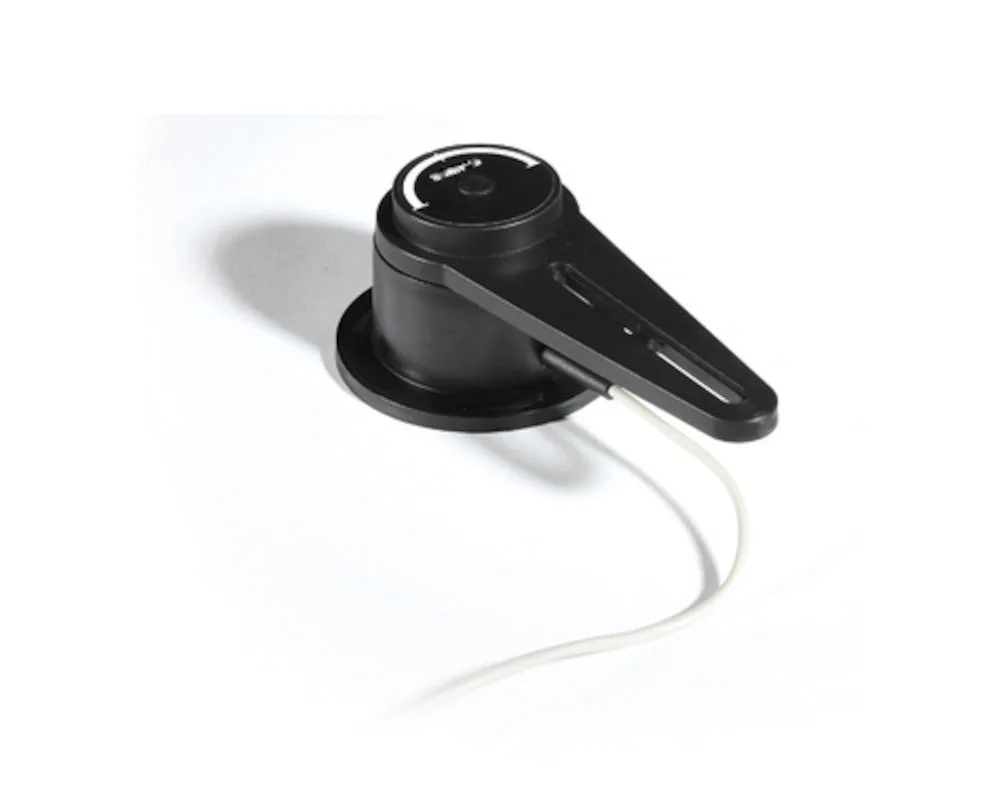

Consider the following accessories when buying this product:
