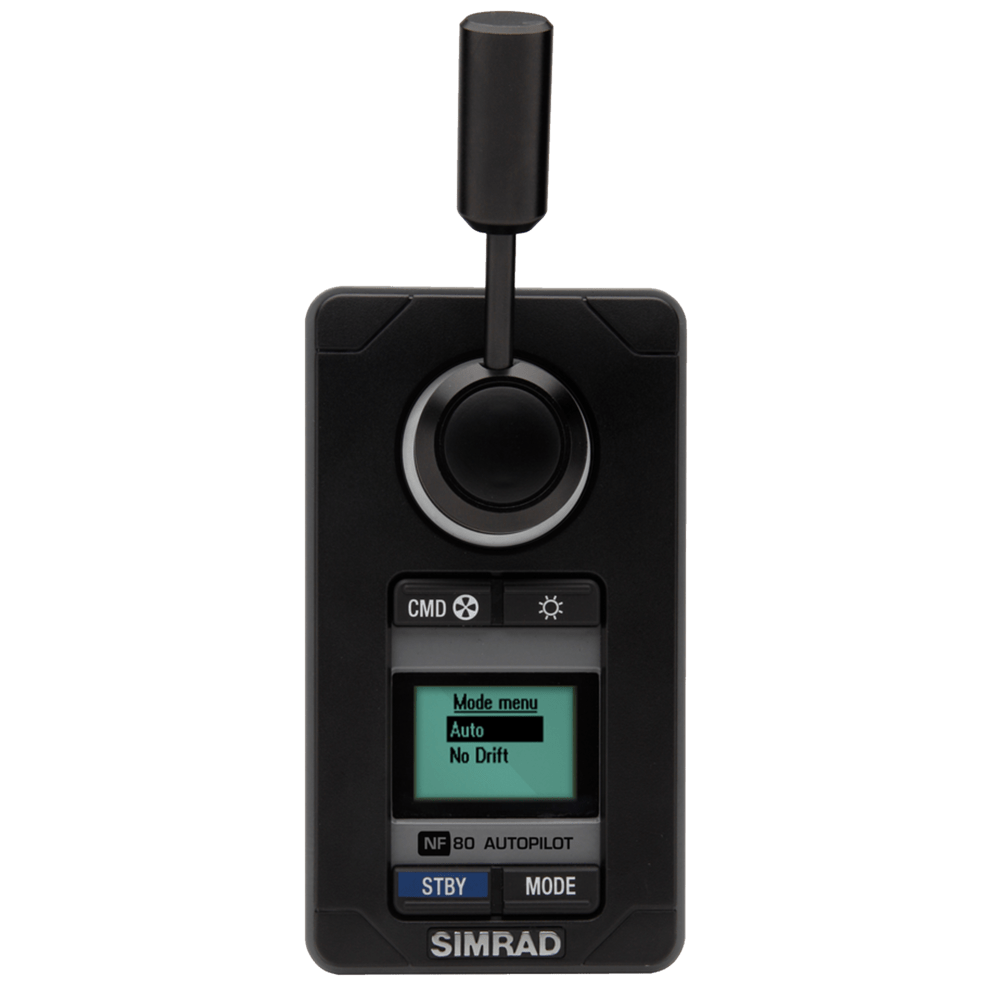

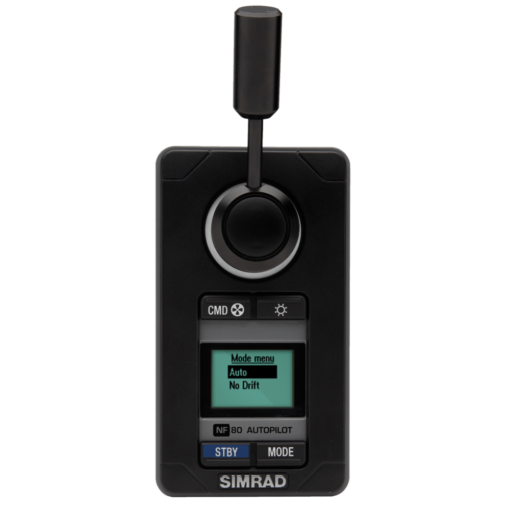

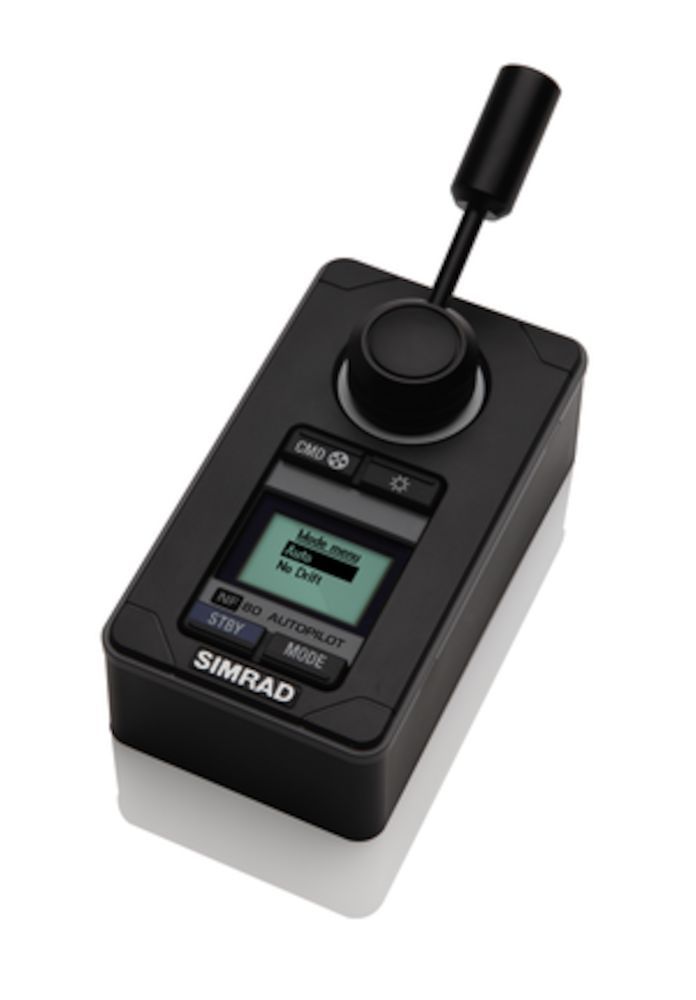

Simrad Pro NF80 Non Follow Up Remote Unit

Dedicated Autopilot Control

Our steering remotes offer intuitive controls and a 1.7-inch display that can be used to make course, heading, rudder angle, or autopilot mode changes from anywhere on board. Adding a remote to your system can provide dedicated steering controls for your fully integrated autopilot system, complementing the touchscreen controls on your multifunction display. Remotes can also enable autopilot control from multiple stations: perfect for fly-bridges and other dual-helm setups.

Direct Rudder Control with Non Follow Up Steering

Your Simrad autopilot not only keeps you on course, but lets you hand-steer from any autopilot station on board. The NF80 offers Non Follow Up steering, which puts you in direct control of your boat’s rudder. Move the spring-loaded steering lever to port or starboard, and the rudder will begin to turn in the same direction. The rudder will continue to turn until the lever is released, then hold its current angle until a new angle is set.

Easy Installation

This wired remote can be mounted almost anywhere. A simple design allows flush-mount installation using the included accessories, or external mounting to a desktop or bulkhead via an optional mounting kit. The remote connects to your Simrad autopilot system via a single NMEA 2000® cable into your existing network, offering plug-and-play installation with no complex wiring required.

• Non Follow Up steering (rudder turns while the lever is held to port or starboard).
• Rudder stops at its current position when the lever is released.
• Integrated 1.7-inch display enables remote autopilot control.
• Easy desktop/bulkhead or flush-mount installation.
• Simple plug-and-play NMEA 2000® connectivity.

Autopilot

Compass sensor support	n/a
Steering Modes	Non Follow Up (NFU), Auto, NoDrift, Nav

Connectivity

NMEA 2000	1x CAN Micro-C port, 1 LEN

Display

Backlight Color	White
Resolution	128 x 64
Size and Type	2″ Monochrome, Transreflective
Viewing Angles	12 o’clock

Electrical

Power Consumption, max.	110mA
Supply Voltage	12-16V via CAN

Environment

Operating Temperature Range	-25C to +55C (-13F to +131F)
Storage Temperature Range	-30C to +70C (-22F to +158F)
Waterproof rating	IPx6

MFD

Compass Safe Distance – Metric, imperial	0,4m (15,75″)

Physical

Dimensions (W x H x D)	80 x 144 x 40mm (3,15 x 5,67 x 1,55″)
Mounting Type	Flush, Bulkhead
Weight	0,5kg (1,1lbs)

Other

Warranty Period	2 years
Interface	Keypad and lever
Languages	English

Weight	0,8 kg
Dimensions	15 × 22 × 11 cm
Brand	Simrad Pro
SKU	000-10185-001
Family	Autopilot Remote
GTIN	9420024108147
Model	NF80
Class Type	Autopilot
Component	Controller/Keyboard/Remote
Item Type	Main Product
