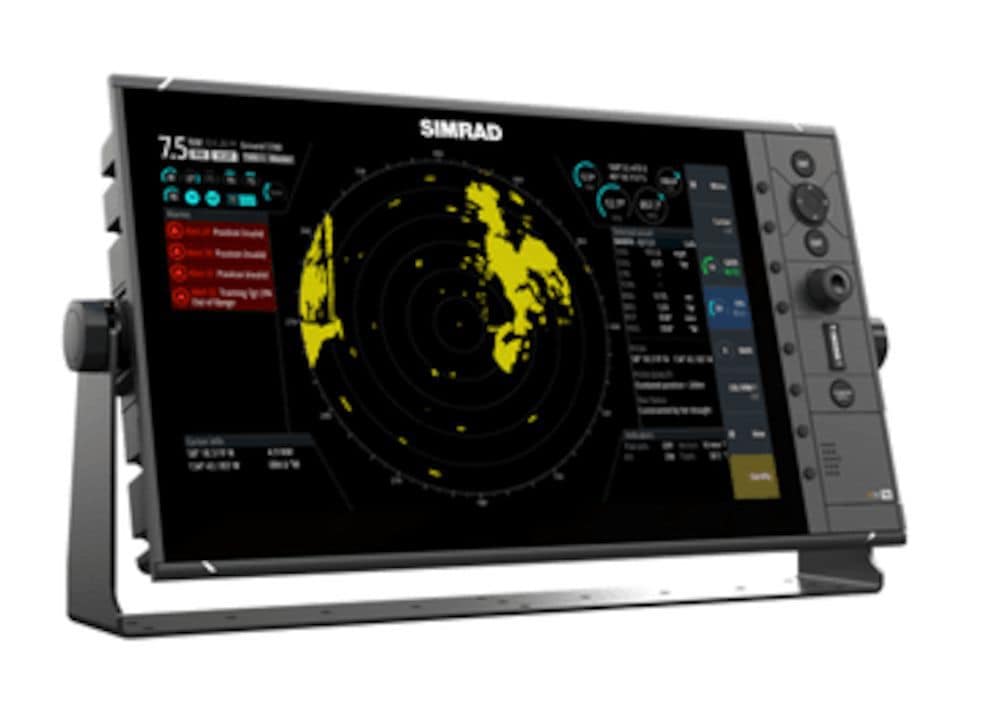

Simrad Pro R3016 dedicated Radar Control Unit compatible with Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar

Integrated CHIRP Echosounder

S2000 series displays feature a built-in echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer. Installation is simple thanks to a plug-and-play port for Simrad and Airmar transducers with blue seven-pin connectors, and a range of optional adapters to enable easy retrofit to other transducer types.

16-inch Widescreen Display

The S2016 offers a combination of excellent vertical detail and a lengthy on-screen echosounder history, with a high-definition 16-inch widescreen display. This reduces your need to zoom or scroll, while making it easy to backtrack to promising areas. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, enabling one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2016’s large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands. An HDMI output lets you mirror the built-in screen on a secondary display, delivering echosounder visibility at a second station without a second fish finder.

Networking & Expansion

It’s easy to share sonar data with other Simrad displays over an Ethernet network. S2000 series fish finders can also be used as dedicated displays for the built-in sonar module on Ethernet-connected Simrad multifunction displays, freeing your main display for other purposes such as navigation or radar. Other devices can be integrated via NMEA 2000® and NMEA 0183® connectivity, enabling additional functionality such as marking a waypoint on your chartplotter straight from the fish finder’s history in order to revisit a promising spot.

• Integrated 16-inch widescreen HD display.
• Dual-display mirroring option with HDMI output.
• High depth penetration and ping speed.
• Vertical heave compensation.
• Simple operation with 8 direct-access menu keys.
• Customise your view to highlight targets of interest.
• Bracket or flush-mount installation (bracket included).

Weight	4,08 kg
Dimensions	34,29 × 53,98 × 21,59 cm
SKU	000-12188-001
Brand	Simrad Pro
Family	R2000/R3000
GTIN	9420024136843
Model	R3016
Class Type	Radar
Component	Head/Display
Item Type	Main Product
