Simrad Pro TYPE APPROVED MONITOR FOR CAT3 IMO/SOLAS VESSELS

HD Widescreen

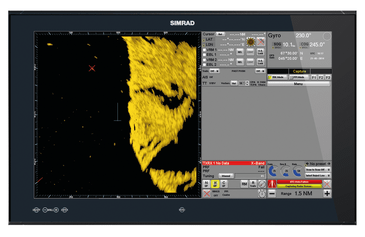

The M5016 marine monitor has a native resolution of 1366 x 768 pixels (WXGA), in 16:9 widescreen ratio suitable for use with widescreen-optimised Simrad radar systems.

Optically Bonded Display

The M5016’s LCD panel is optically bonded to the display’s glass front panel to eliminate fogging, while Anti-Reflective and Anti-Fingerprint coatings help to deliver optimal visibility in all conditions.

Flush-Mount Installation

Ideal for flush-mount installation in a pilothouse or bridge console, the M5016 has a low profile of just 8mm. Flush mounting is possible with the included rear brackets or front screws, and VESA mounting is supported with an optional bracket.

All-Glass Look

A seamless glass front panel incorporating capacitive touch-sensitive menu keys offering a clean and distraction-free look, and is suitable for side-by-side mounting of multiple displays without the interruption of raised bezels or controls.

• 15.6” LCD panel in 16:9 widescreen format.
• High-resolution 1366 x 768-pixel display.
• Suitable for use as part of a type-approved.
• Simrad radar system (IEC62388 ed.1 compliant).
• Optically bonded to eliminate fogging.
• Low profile (8mm) flush-mount installation.
• All-glass front panel with touch sensitive menu keys.
• IP66 water resistant when flush mounted.

Weight	5,5 kg
Dimensions	17,8 × 52 × 38,4 cm
SKU	000-12209-001
Brand	Simrad Pro
Family	Monitors
GTIN	9420024137291
Model	MO16-P
Class Type	Monitors
Component	Head/Display
Item Type	Main Product
