Simrad Pro V3100, Sotdma Class B AIS, w/GPS-500

Increased Transmission Frequency and Reliability
The V3100 Class B AIS incorporates the same SOTDMA technology found in Class A solutions. This self-organising transmission technology allows the system to negotiate a regular transmission timeslot with other AIS units in range, facilitating more frequent and reliable position updates in high-traffic areas. The V3100 transmits updates, based on vessel speed, up to once every five seconds; this provides up to six times the reporting frequency of standard Class B AIS.

Increased Transmission Range
The V3100 features a maximum transmission power of 5 Watts, 2.5 times the transmission power of standard Class B AIS solutions. This allows vessels equipped with the V3100 to be detected over AIS at a greater range, and provides more reliable transmission to satellite-based AIS receivers.

Integrated ‘Black-Box’ Solution

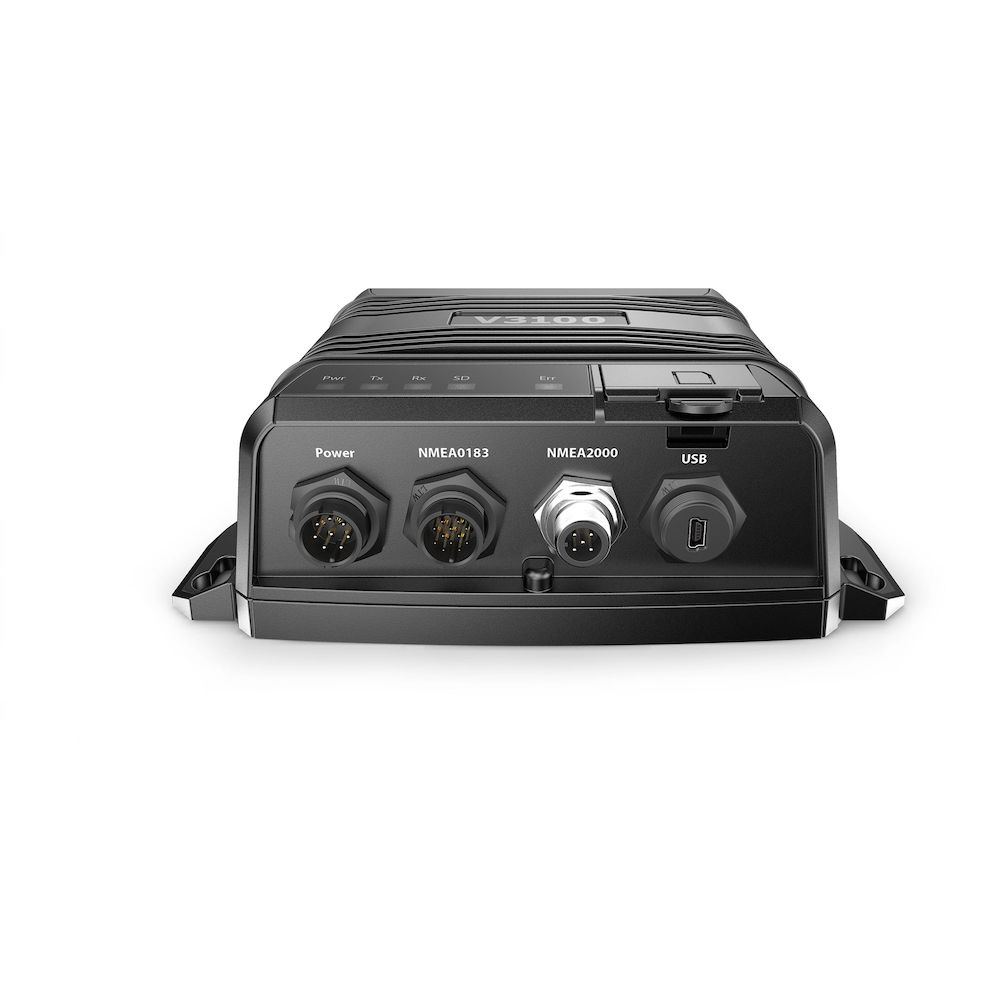

This ‘black box’ AIS solution is designed to work with Simrad and B&G multifunction displays, and other NMEA 2000® or NMEA 0183® connected marine electronics. Output to a standard PC is also supported via USB connectivity. The V3100 is contained in a compact IP67 water-resistant housing, and includes a built-in SD card slot for standalone AIS data logging.

Weight	1,7 kg

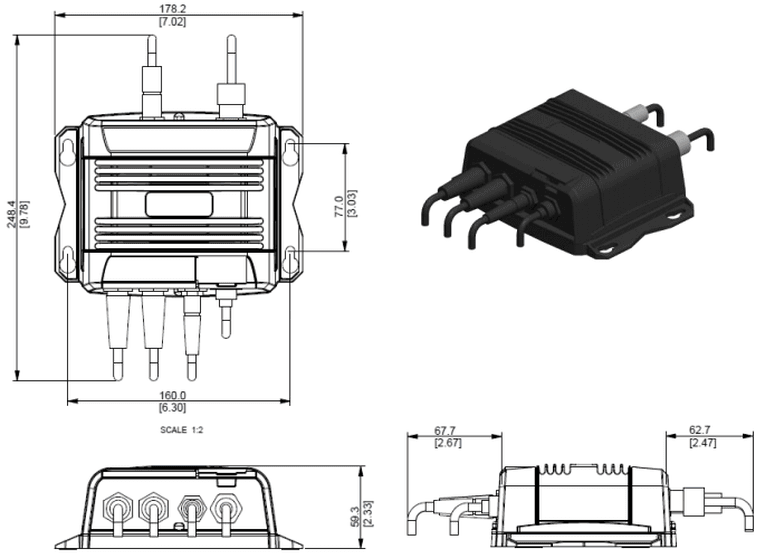

Dimensions	17 × 31 × 1,7 cm
SKU	000-14380-001
Brand	Simrad Pro
Class Type	AIS
GTIN	9420024171400
Component	Sensor/Transducer/Scanner/Antenna
Family	Simrad Pro AIS Family
Item Type	Main Product
Model	Simrad Pro V3100
