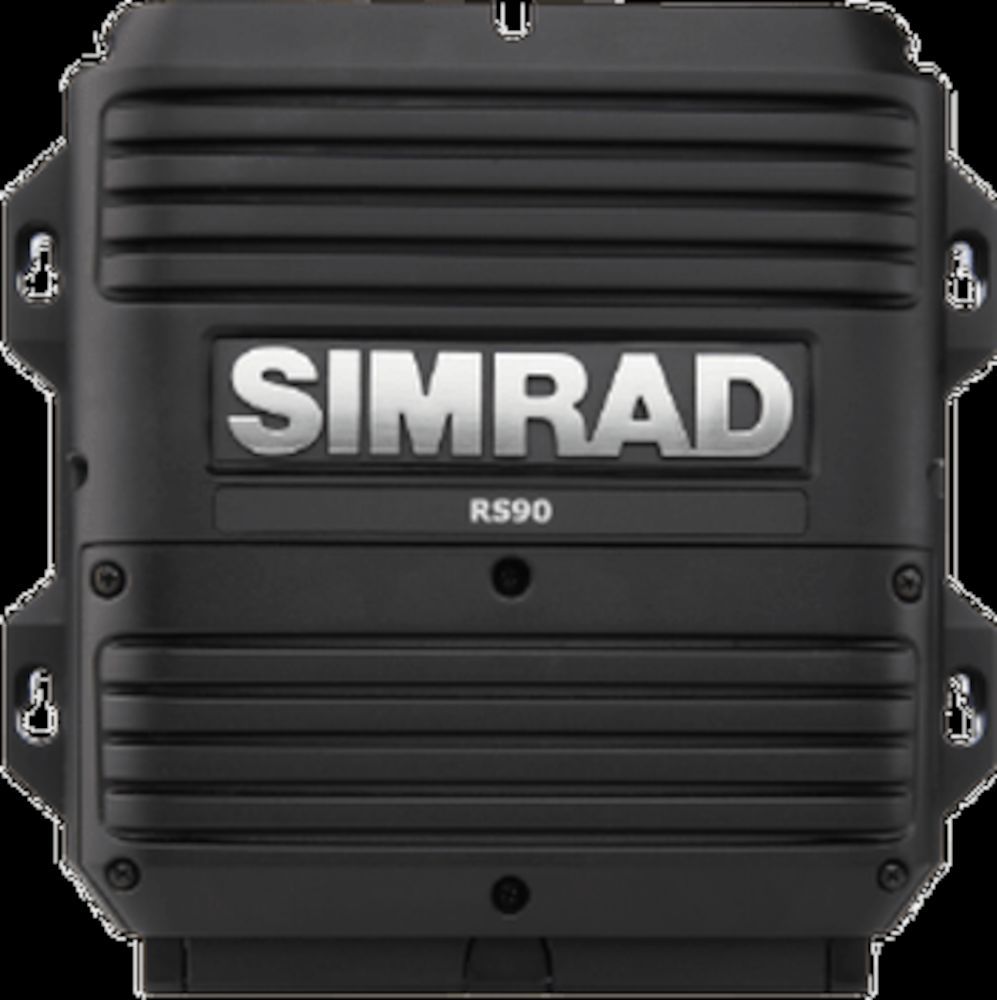

Simrad RS90 Blackbox VHF with AIS (receive only)

A Modular System to Fit Any Boat

The RS90 is a modular VHF system that’s expandable and customisable to suit any boat and any on-water communication needs. A single RS90 system can run up to six separate stations: four wired, and two wireless. Choose the right combination of handsets to suit your needs. Multiple stations can be used as a vessel-wide intercom system, keeping crewmembers in contact wherever they are on board.

Designed for Clear Communication

This Class D DSC approved radio can make and receive DSC distress signals including your current position, and supports direct calling to other DSC-equipped radios. Dual-channel watch lets you monitor the current channel and emergency channel 16 (in the USA, tri-channel watch monitors the current channel, emergency channel 16, and calling channel 9). A record and replay feature helps to ensure you never miss an important call. Outputs are provided for up to four optional speakers, and one optional loudhailer/foghorn.

Integrated AIS Receiver

A built-in AIS receiver lets you monitor the position of nearby AIS-equipped vessels, perfect for avoiding collisions in crowded harbours and busy waterways. AIS information can be viewed on a handset or a compatible Simrad multifunction display. The RS35 uses the same antenna for both VHF and AIS, simplifying installation and minimising wiring. AIS data is output over an industry-standard NMEA 2000® connection.

• Premium modular VHF radio.
• Up to 6 stations: 4 wired and 2 wireless handsets.
• Works with Simrad HS35 and HS90 handsets.
• Add up to four external speakers.
• Class D DSC functionality.
• Dual and tri-channel watch functions.
• Optional hailer and foghorn support.

Approvals

Compliance	ITU-R M493-13 US Models; EN300-338-3 EU Models

Communications

Channels	55 INT;53 USA; 61 CAN; 10 Weather
DSC Class	Class D
Frequency Range	Tx MHz 156.025 To 157.425 ; Rx MHz 156.025 To 163.275
Hailer Function	30W @ 4 Ohms
Handset type	Handset
Horn Function	30W
Intercom	4 Wired Stations 1 Wireless
Multiple Stations	4 Wired Stations with Additional 2 HS35 Wireless Remotes
Transmit Power	23 +/- 2 W

Connectivity

NMEA 0183 Sentences supported	Output:DSC,DSE,VDM Input:RMC,GGA,GLL,GNS
N2K PGNs	127250;127258;129025;129026;129029;129033;129038;129039;129040;129041;129283;129284;129285;129792;129793;129794;129795;129796;129797;129798;129799;129800;129801;129802;129803;129804;129805;129806;129807;129808;129809;129810;130074;130842
NMEA 0183	2x Tx, 1x Rx NMEA 0183, Baud Rate 4,800 -38400
NMEA 2000	1x NMEA 20000 Micro-C port, 1 LEN

Display

Backlight Color	Amber

Electrical

Battery	12V DC
Power Consumption, max.	78W
Recommended Fuse Rating	10A
Supply Voltage	12VDC

Environment

Operating Temperature Range	-20ºC to +55ºC (-4ºF to 131ºF)
Waterproof rating	JIS-7

MFD

Compass Safe Distance – Metric, imperial	0.5m (1.5′)

Physical

Dimensions (W x H x D)	211.2 x 6.50 x 195.7mm ( 8.31 x 2.56 x 7.7″ )
Mounting Type	Bracket
Weight	1.55kg ( 3.42lbs)

Other

Warranty Period	2 Years
Interface	Keypad controls

Weight	2,2 kg
Dimensions	15,5 × 26,8 × 12 cm
Brand	Simrad Yachting
Family	VHF -Fixed Mount
Model	RS90
Class Type	VHF
Component	Processor/Computer/Ethernet Module
Item Type	Accessory
