Simrad VHF HH36 Handheld VHF radio, with DSC, EU/UK

HH36 Handheld VHF Radio

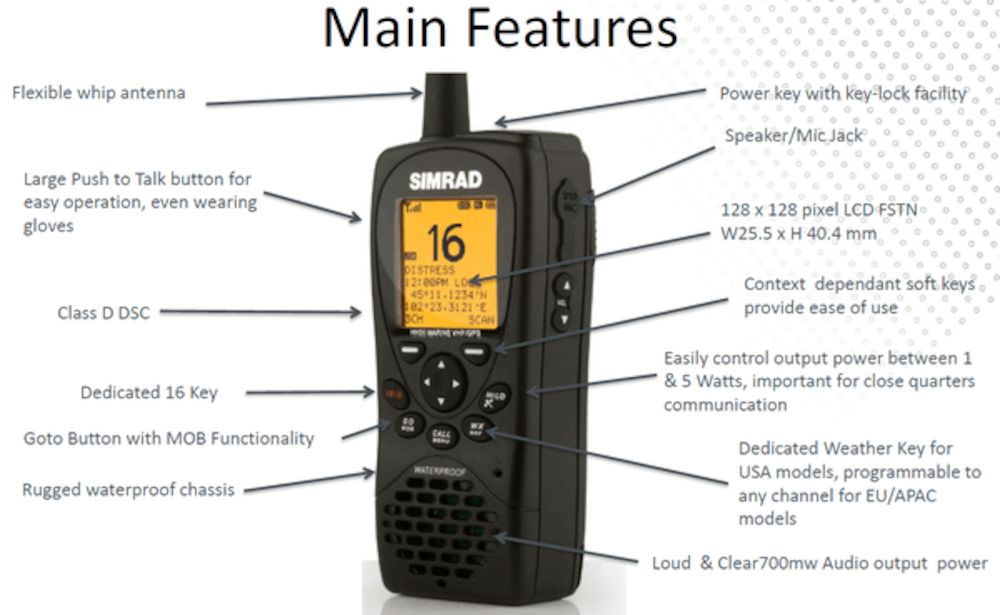

Unique Sales Proposition

-HH36 floats in sea water, thanks to its design to JIS-7 waterproofing standard & lightweight Li-Ion battery pack
-Loud 700mW Speaker, for clear communication in noisy environments
-The largest & clearest LCD of any VHF/GPS hand held on the market
-GPS equipped to give you real time position on your handheld radio, seeking assistance when you need it has never been more accurate and easy.
-Quality VHF radio fully Class-D DSC compliant with latest EU and US regulations

VHF/DSC features and functionality

-Receive Signal Strength Indicator (RSSI) displays strength of incoming/outgoing signals
-Selectable 5W/1W transmit power
-All International Channels
-Compliance ETSI EN 300 338-5 handheld VHF Class D DSC
-DSC calls supported include individual and Group Calls, Position Request etc.
-Volume, Channel and SQL control by up/down
-Normal and Priority Scan
-Memory Channel Scan
-PLL Controlled Circuitry
-Dual Watch

Built-in GPS Receiver with unique new track plotter screen feature

-Latitude, longitude and time display
-SOG/COG Display
-Navigation functions (setting waypoints and creating GOTO route)
-Great Circle waypoint navigation
-Storage of up to 500 waypoints
-Man Over Board functionality

General features and functionality

-Totally Waterproof to strict JIS 7 standards and it floats
-Man Over Board functionality
-Memory indicator plus 3-bar battery life gauge
-“Get Buddy” feature transmits the radio’s position by a simple push of a button
-Save a buddy list of up to 20 people
-Back-lighted LCD Display, 128*128 Segment Bitmapped
-Display size: W 25.5 x H 40.4 mm
-Program up to three favorite channels on a dedicated key
-Keylock
-Power Save Feature automatically switches to battery save mode automatically.
-SMA antenna connector
-Power Source:7.4V DC( 7.4V 1400mAh Li-Polymer Battery Pack )
-Battery Life (Audio 700mW, typical):
-8 hours (5W on 5-5-90% ratio, GPS ON); 13 hours (1W on 5-5-90% ratio, GPS OFF)

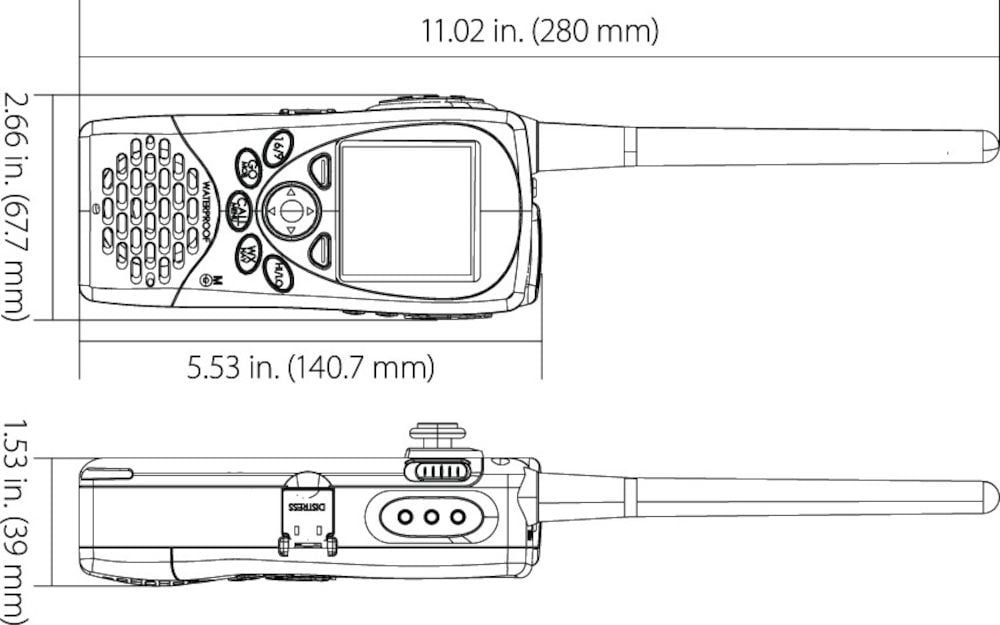

-Dimensions(WHD): 58 x 141 x 40 mm
-Weight: 295 g
-NMEA0183 output on cradle

• Large and clear backlit display.
• Class D DSC capable.
• Lightweight, waterproof, and floats in water.
• Integrated GPS receiver and plotter display.
• Dual-channel watch.
• Long battery life.

Weight	1,23 kg
Dimensions	22 × 26,5 × 7,5 cm
Brand	Simrad Yachting
Family	VHF – Handheld
Model	HH36
Class Type	VHF
Component	Head/Display
Item Type	Main Product
