Simrad Pro R3016 HALO-3 Kit. Dedicated 16" widescreen Radar Control Unit and HALO-3 Pulse
- Regulärer Preis
- CHF 6,234.00
- Verkaufspreis
- CHF 6,234.00
- Regulärer Preis
- CHF 7,334.00
B2B and VAT Deduction
If you are a business deducting VAT in the European Union, register here and enter your VAT Id before purchase to deduct it on checkout.
If you are a professional in the marine sector and want to explore a partnership contact us.
Artikelnummer:000-12198-001
Die Abholverfügbarkeit konnte nicht geladen werden
Description
Product Description
16-inch Portrait Radar Control Unit
Make the most of your Simrad radar system by adding a dedicated screen and controls. Our professional-grade radar control units are easy to use, and designed to complement the design of our glass bridge displays and instruments. The R3016 features a compact and ultra-bright 16-inch display that’s perfect for centre consoles, and maximises screen size where you have limited mounting space available. Choose from a clean flush-mount installation, or the convenience of bracket mounting to install almost anywhere.
Simple and Reliable Operation

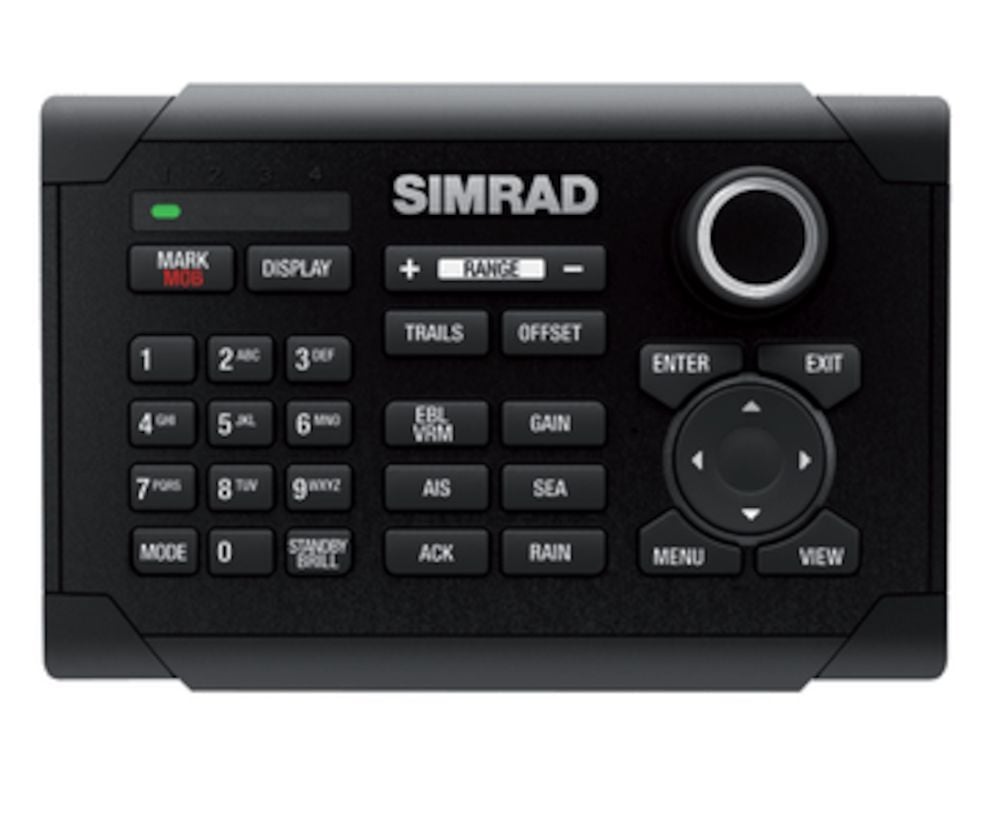

Take control of your radar system with the integrated keypad and rotary dial. Direct-access menu keys beside the display operate the corresponding on-screen menu options, for quick and intuitive access to key settings and features. Large, reliable buttons are suitable for use in any conditions, including the sort of wet weather and rough seas that make your radar system even more crucial to a safe journey home. Anti-sea clutter technology helps to deliver clarity in those adverse conditions, giving you the best possible view.
Includes a Halo™ Pulse Compression Radar System
Halo™ radar delivers an unprecedented mix of long and short detection range, with precise target definition and minimal clutter. Quick start-up and maximum ocean-going reliability ensure you have coverage when you need it, while low-power pulsed transmissions mean Halo Radar is even safe to run in anchorages and marinas. With its 3-foot open array, the HALO-3 system offers a range of up to 48 nautical miles.
Product Details
- 16-inch portrait display.
- High brightness for outside use.
- Anti-sea-clutter technology for optimal clarity in adverse conditions.
- MARPA target tracking.
- Keypad and rotary-dial interface with 8 direct-access menu keys.
- Bracket and flush-mount installation options.
- Includes a Halo™ Pulse Compression radar with 3-foot array.
Product Specifications
Approvals
| Compliance | FCC/IC/R&TTE Type Certifi cationFCC ID: RAYHALOIC ID: 4697A-HALOR&TTE: Emissions compliant to SM1541-4 (including -40dB/dec future design objectives) |
|---|
Connectivity
| NMEA 0183 Sentences supported | Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM |
|---|---|
| Ethernet | 1 x 5 pin Yellow, 1 Mbit |
| N2K PGNs | NMEA 2000 PGN (receive)59392 ISO Acknowledgement59904 ISO Request60928 ISO Address Claim126208 ISO Command Group Function126992 System Time126996 Product Info127237 Heading/Track Control127245 Rudder127250 Vessel Heading127251 Rate of Turn127257 Attitude127258 Magnetic Variation127488 Engine Parameters, Rapid Update127489 Engine Parameters, Dynamic127493 Transmission Parameters, Dynamic127503 AC input status127504 AC Output Status127505 Fluid Level127506 DC Detailed Status127507 Charger Status127508 Battery Status127509 Inverter Status128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129033 Time & Date129038 AIS Class A Position Report129039 AIS Class B Position Report129040 AIS Class B Extended Position Report129041 AIS aids to Navigation129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 AIS Class B Extended Position Report129794 AIS aids to Navigation129801 Cross Track Error129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 GNSS Sats in View129794 AIS Class A Static and Voyage Related Data129801 AIS Addressed Safety Related Message129802 AIS Safety Related Broadcast Message129808 DSC Call Information129809 AIS Class B “CS” Static Data Report, Part A129810 AIS Class B “CS” Static Data Report, Part B130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130313 Humidity130314 Actual Pressure130576 Small Craft Status130577 Direction DataNMEA 2000 PGN (transmit)126208 ISO Command Group Function126992 System Time126996 Product Info127237 Heading/Track Control127250 Vessel Heading127258 Magnetic Variation128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129283 Cross Track Error129284 Navigation Data129285 Route/Waypoint Data129539 GNSS DOPs129540 GNSS Sats in View130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130577 Direction Data |
| NMEA 0183 | 2 x 8 pin connectors. 4 x NMEA0183 listeners 2 x NMEA0183 talkers, baud rates 4800, 9600, 19200, 38400. Optional 000-12393-001 cable required |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| Video | 1 x HDMI for MO16 only |
Display
| Resolution | 1366 x 768 |
|---|---|
| Screen Brightness | 400 cd/m2 |
| Size and Type | 16" LED Backlit colour TFT LCD |
| Viewing Angles | 160 x 110 |
Electrical
| Power Consumption, max. | 200 W (peak) at maximum wind velocity |
|---|---|
| Power Consumption, typical | 70 W (average) at zero wind velocity |
| Recommended Fuse Rating | 3A for display, 25A for Antenna |
| Supply Voltage | 12/24VDC (10.8 - 31.2 VDC) |
| Humidity | IEC60945 Exposed product |
Environment
| Operating Temperature Range | -15 - 55 deg C (5 - 131 deg F) |
|---|---|
| Shock and Vibration | IEC60945 Exposed product and 20G, 100,000 cycle |
| Storage Temperature Range | -25 - 55 deg C (-13 - 131 deg F) |
| Waterproof rating | IPX7 |
MFD
| Compass Safe Distance - Metric, imperial | 0.65 m (25.6") |
|---|
Physical
| Dimensions (W x H x D) | 456 x 260 x 61 mm (19.9 x 10.2 x 2.4 in) |
|---|---|
| Weight | 4 kg (8.8 lbs) |
Radar
| Beam width | 2.4°+/-10% (-3 dB width) – 1.7 deg with Beamsharpening mode on. Vertical: 25° +/-20 % (-3 dB width) |
|---|---|
| Max Range, scale | 48 NM |
| Max Operating Wind Speed | 70 kn |
| Min Range, scale | 75 m (300') |
| Radar Modes | True Motion, Relative Motion, Head Up, North Up |
| Radar Technology | Pulse Compression |
| SART/RACON Trigger | Yes – trigger distance: about 1nm max – weather, seastate, and SART position dependent |
Other
| Warranty Period | 2 years |
|---|---|
| Interface | Ethernet |
| Languages | Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish |
