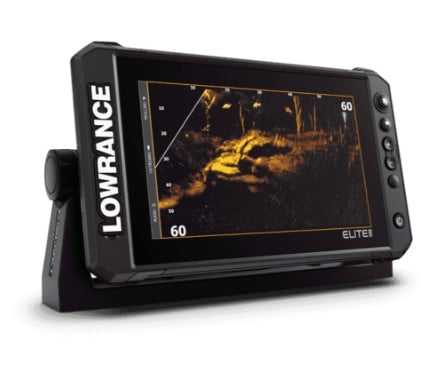

Lowrance Elite FS 9 Black Edition with No Transducer (ROW (International version))
- Regular price
- Rp 12.127.000,00
- Sale price
- Rp 12.127.000,00
- Regular price
- Rp 13.472.000,00
B2B and VAT Deduction
If you are a business deducting VAT in the European Union, register here and enter your VAT Id before purchase to deduct it on checkout.
If you are a professional in the marine sector and want to explore a partnership contact us.
SKU:000-16366-001
Couldn't load pickup availability
Description
The new Elite Fishing System Black Edition (FS) gives you access to the full range of Lowrance sonar technologies and features, including real-time ActiveTarget™ sonar, Active Imaging™, FishReveal™, and compatibility with a wide variety of mapping options, allowing you to make the most of your time on the water.
Features
- Compatible with ActiveTarget™ real-time sonar
- Compatible with Active Imaging 3-in-1
- FishReveal™
- Comes with basic world map, plus a wide range of chart options, including C-MAP, Navionics®, and more
- C-MAP® Easy Routing and Navionics® Autorouting functions
- C-MAP Genesis Live mapping on screen
- High-resolution multitouch display
- Wireless connectivity, NMEA 2000®, and integrated Ethernet
- Full control of Power Pole® anchors and Ghost® electric motor via touchscreen
It provides a maximum output power of 1 kW RMS, with sonar connections for Active Imaging SideScan, DownScan, and CHIRP. With a wide range of frequencies available, including low/medium/high CHIRP, 50/83/200 kHz broadband, and 455/800 kHz SideScan/DownScan imaging, this device offers excellent fish and underwater structure detection capabilities.
Additionally, it features depth and surface alarms, temperature readings, and a versatile transducer type with options for Lowrance® and Airmar® transducers. With a screen resolution of 800 x 480 pixels and a high-quality multitouch touchscreen, the sonar offers clear and detailed information display.
It is rugged and durable, with an IPX6 and IPX7 waterproof rating and an operating temperature range from -15°C to +55°C. With connectivity options like NMEA 2000, data card reader, Ethernet, internal WiFi, and Bluetooth, this sonar offers a wide range of options for efficiently sharing and storing data.
SONAR
| Feature | Specification |
|---|---|
| Power Output | Max 1 kW RMS |
| Sonar Connections | One connector for Active Imaging SideScan, DownScan and CHIRP |
| Active Imaging 3-in-1 | DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m; SideScan Imaging at 455 kHz: Max 300 ft / 91 m to each side |
| CHIRP Sonar High Range | (160-240 kHz)/200 kHz: 1000 ft / 305 m |
| CHIRP Sonar Med Range | (60-100 kHz)/83 kHz: 1000 ft / 305 m |
| CHIRP Sonar Low Range | (40-60 kHz)/50 kHz: 3000 ft / 900 m |
| Available Sonar Frequencies | Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging |
| Depth Alarm | Yes |
| Shallow Alarm | Yes |
| Temperature Readings | Yes |
| Transducer Type | Single 9-pin Connection; Multiple Transducer Selections from Lowrance® and Airmar® |
ENVIRONMENT
| Feature | Specification |
|---|---|
| Operating Temperature Range | -15°C to +55°C (5°F to 131°F) |
| Storage Temperature | -20°C to +60°C (4°F to 140°F) |
| Waterproof Rating | IPX6 and IPX7 |
ELECTRICAL
| Feature | Specification |
|---|---|
| Supply Voltage | 12 V DC (10 – 17 V DC min – max) |
| Recommended Fuse Rating | 3 A |
| Power Consumption (Maximum) | 28 W (2 A at 13.8 V DC) |
SCREEN
| Feature | Specification |
|---|---|
| Resolution | 800 x 480 pixels |
| Viewing Angles in Degrees | 50° top, 60° bottom, 70° left and right |
| Brightness | > 1200 nits |
| Touch Screen | Multitouch |
PHYSICAL
| Feature | Specification |
|---|---|
| Weight (Display Only) | 1.2 kg (2.7 lbs.) |
| Compass Safe Distance | 0.5 m (1.6 ft.) |
INTERFACE/CONNECTIVITY
| Feature | Specification |
|---|---|
| NMEA 2000® | 1 port (Micro-C connector) |
| Data Card Reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFi Internal | 802.11b/g/n: No wireless networking between units |
| Bluetooth® | 4.0 with support for Bluetooth® Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
