Airmar

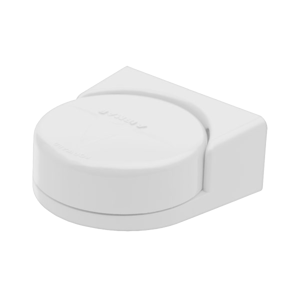

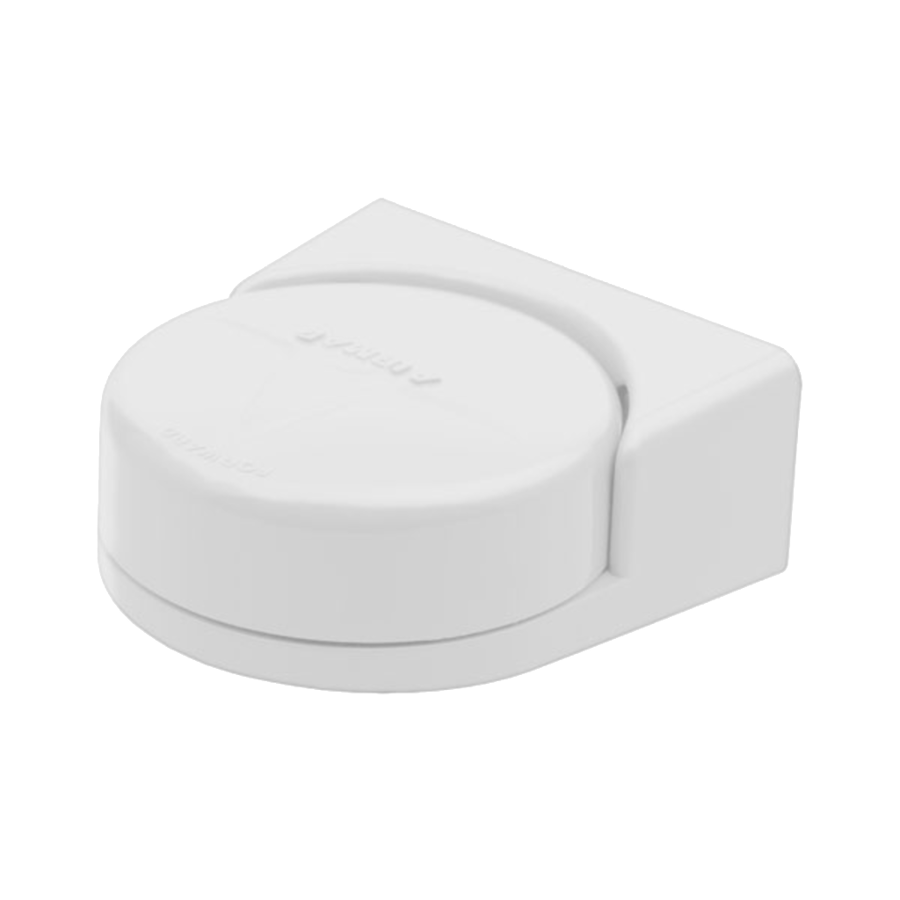

Airmar H2183 Heading Sensor (NMEA Edition)
- Regular price
- €1.030,59
- Sale price
- €1.030,59
- Regular price
- €1.157,97
B2B and VAT Deduction
If you are a business deducting VAT in the European Union, register here and enter your VAT Id before purchase to deduct it on checkout.
If you are a professional in the marine sector and want to explore a partnership contact us.
SKU:44-727-1-01
Full Warranty
Buy with confidence.
SailRACE.com only sells new products with full official manufacturer warranty.
If you have any issues after purchase, please contact us at team@sailrace.com to determine together with the manufacturer the best solution.
Couldn't load pickup availability
Description
Overview
Whether you are offshore fishing or just enjoying time on the water, feel confident and comfortable that the patented H2183 is your reliable source for heading information. The three-axis, solid-state compass combined with Airmar’s advanced sensors and software provide unparalleled performance.
Specifications
| Boat Alignment | Yes using software |
|---|---|
| Certs And Standards | CE, IPX6, RoHS, IEC60945 |
| Connector | Airmar 10-Pin (WS) |
| Data-output Protocol | NMEA 0183 and NMEA 2000 data simultaneously |
| NMEA 2000 LEN | 1 |
| Operating Temp Range | -25 to 55°C (-13 to 131°F) |
| Pitch and Roll Data-output Update Rate - NMEA 0183 | 2 Hz (adjustable up to 10 Hz) |
| Pitch and Roll Data-output Update Rate - NMEA 2000 | Adjustable up to 20 Hz |
| Pitch and Roll Display Resolution | 0.1° |
| Pitch and Roll Dynamic Accuracy | <3° |
| Pitch and Roll Range | ±50° |
| Pitch and Roll Static Accuracy | <1° |
| Power Supply Current | <30mA At 12 VDC |
| Power Supply Voltage | 9 to 40 VDC |
| Rate of Turn Accuracy | 1°/S |
| Rate of Turn Data-output Update Rate - NMEA 0183 | 2 Hz (adjustable up to 10 Hz) |
| Rate of Turn Data-output Update Rate - NMEA 2000 | Adjustable up to 20 Hz |
| Rate of Turn Range | 0 to 70°/S |
| Temperature Storage Range | -30 to 70°C (-22 to 158°F) |
| Three-axis Compass Data-output Update Rate - NMEA 0183 | 10 Hz |
| Three-axis Compass Data-output Update Rate - NMEA 2000 | Adjustable up to 20 Hz |
| Three-axis Compass Display Resolution | 0.1° |
| Three-axis Compass Dynamic Accuracy | 2° Rms (Best-in-Class) |
| Three-axis Compass Settling Time | 1 s (adjustable) |
| Three-axis Compass Static Accuracy | 1° RMS when level |
FAQs
How accurate is the heading data under dynamic motion?
The H2183 maintains 2° RMS heading accuracy even under dynamic conditions such as steep heeling and rough seas.

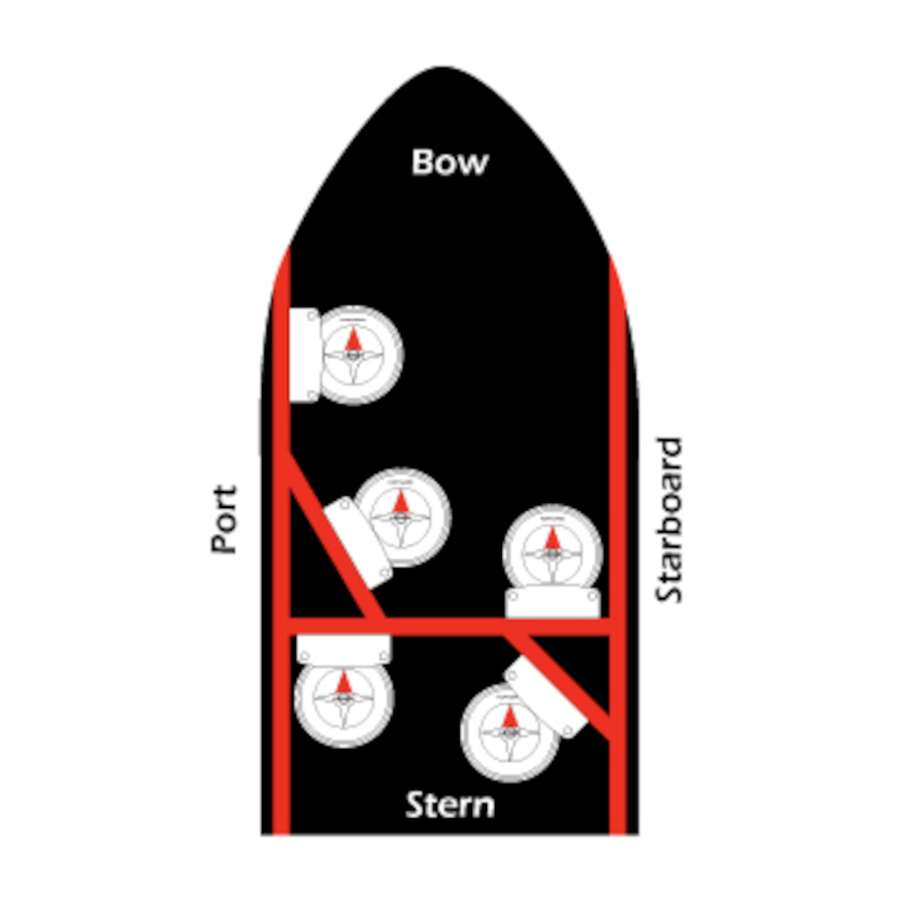

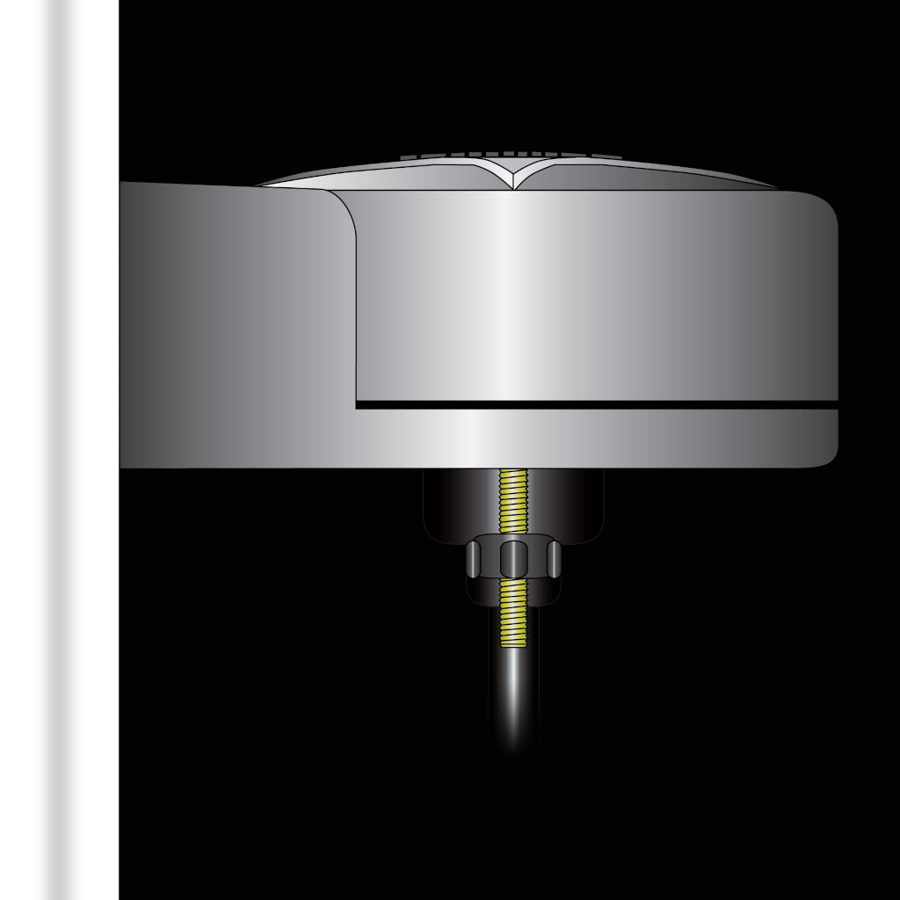

How is the H2183 Heading Sensor mounted on a boat?
The innovative circular design and adjustable bracket allow mounting and alignment on any angled bulkhead or surface.
What network protocols does the H2183 output?
The H2183 outputs both NMEA 0183 and NMEA 2000 data simultaneously for integration with compatible systems.
How is the H2183 heading sensor mounted?
The H2183 features an innovative circular design that easily mounts and aligns on any angled bulkhead.
How quickly does the H2183 Heading Sensor settle and provide accurate data?
Settling time for the H2183 is 1 second, and this can be adjusted depending on requirements.
Is the H2183 waterproof?
The H2183 has an IPX6 waterproof enclosure, suitable for marine environments.
What is the device’s enclosure rating?
It is rated to IPX6, meaning it can withstand powerful water jets for marine use.
What is the storage temperature range for the H2183 sensor?
The storage temperature range is -30°C to 70°C (-22°F to 158°F).
