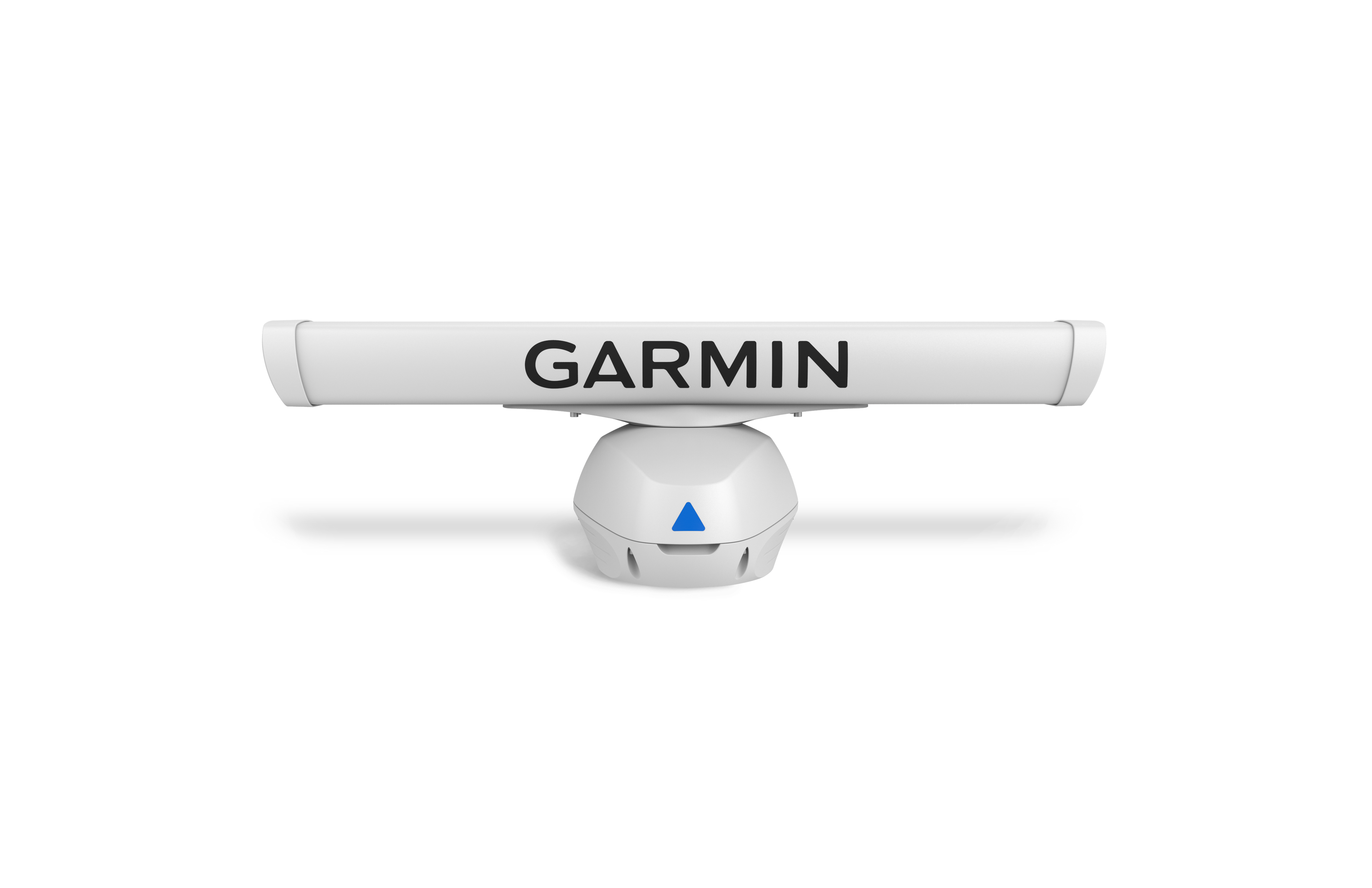

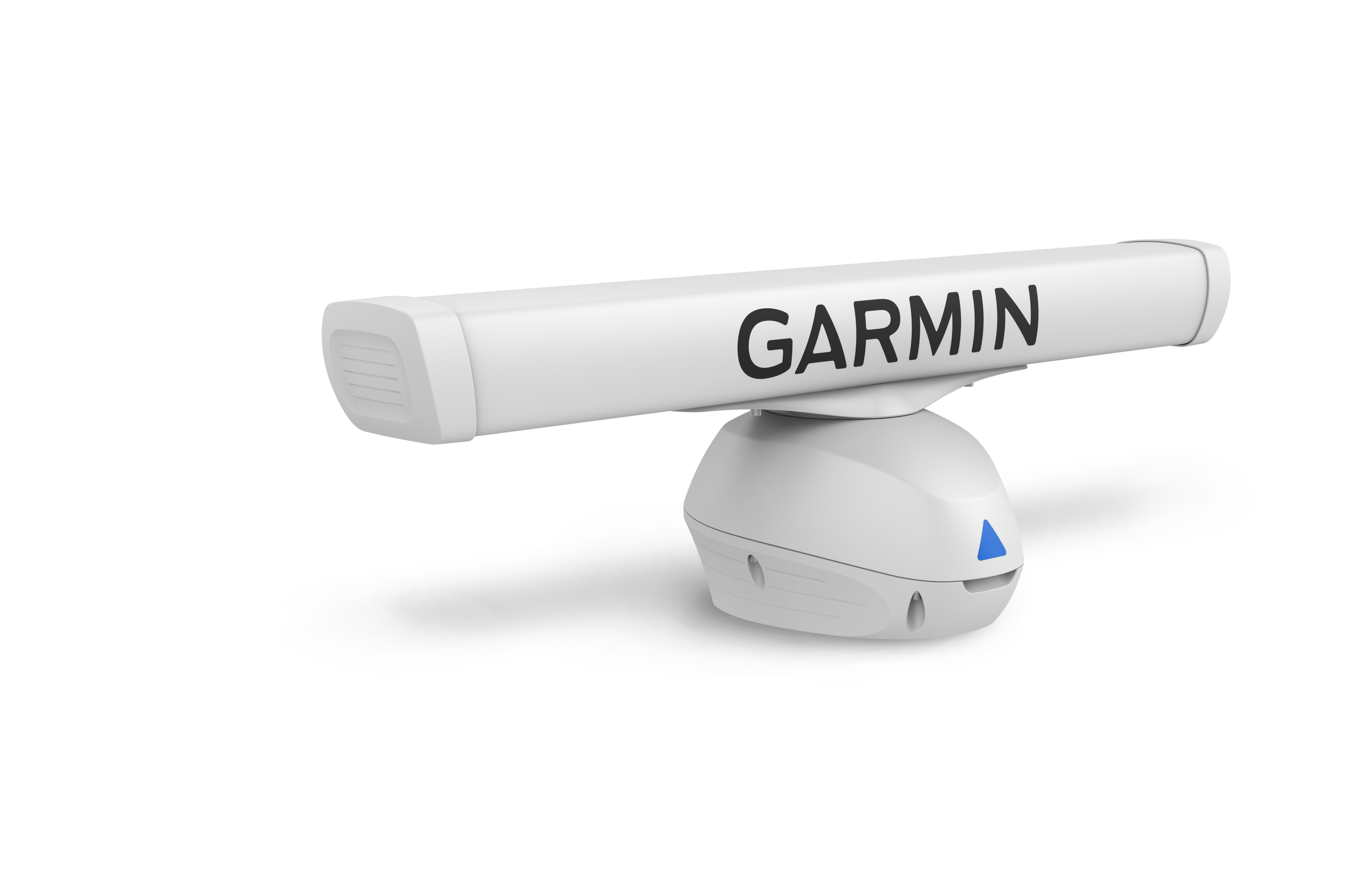

Garmin GMR Fantom 256, open antenna and pedestal, white
- Regular price
- €12.353,13
- Sale price
- €12.353,13
- Regular price
- €14.199,00
B2B and VAT Deduction
If you are a business deducting VAT in the European Union, register here and enter your VAT Id before purchase to deduct it on checkout.
If you are a professional in the marine sector and want to explore a partnership contact us.
SKU:K10-00012-22
Couldn't load pickup availability
Description
This open antenna radar signals moving targets in different colors and provides excellent target detection at both short and long-range distances, even in fog or rain.
HIGH-POWER RADAR
This 50-watt radar has a range ranging from 6 meters to 133 km (72 nautical miles), even with fog or rain. It offers rotation speeds of 24 RPM to reduce power consumption and 48 RPM so that the screen updates quickly.
HIGH-RESOLITY RADAR
The horizontal beam width of 1.25 degrees provides a high-resolution image and the high antenna gain allows even weak targets to be detected at a considerable distance.
MOTIONSCOPE TECHNOLOGY
MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so that you can surround other boats or navigate in adverse weather conditions, or towards fishing points where the birds feed on the surface.
INTUITIVE OPERATION
This radar does not have any complex user configuration to deal with, so it is easy to install it and start using it.
SIZE OF THE OBJECTIVES
Adjust the size of the objects that appear in the radar image.
AUTO BIRD GAIN
It locates flocks of birds on the surface of the water, where schools of fish are likely to be found.
ECHO TRACKING
A historical "track" is reflected on the screen that helps to quickly and easily identify moving targets and possible collision threats.
DUAL SCALE
The simple radar antenna has the ability to provide split-screen images on the plotter, both short- and long-range.
COMPATIBILITY WITH DUAL RADARS
Using a dual radar provides redundancy and the possibility of extracting data from one of the two different radar sources in each display unit of the boat.
DYNAMIC AUTOMATIC GAIN
The gain levels are automatically adjusted to the optimal configuration for ports, areas near the coast and the high seas.
DYNAMIC SEA FILTER
The gain automatically adjusts the sea filter to calm, medium or chopped sea conditions.
RADAR OVERLAY
Overlay radar images on the plotter map page. You can add an optional autopilot or course sensor to get the best results (sold separately).
TRACKING OF MARPA OBJECTIVES
Mini Automatic Radar Plotting Aid (MARPA) tracks up to 10 selected targets, which helps track other boats and avoid collisions.
GUARD ZONE
You can adjust the security zone and receive an alarm when an object enters it.
VRM AND EBL
Variable range markers (VRM) and electronic heading lines (EBL) allow you to quickly measure distance and direction with respect to boats and land.
Specifications:
| Physical And Performance Characteristics | |
|---|---|
| DIMENSIONS OF THE UNIT (WIDTH/HEIGHT/DEPTH) | Pedestal: 42.1 x 36.4 x 27.1 cm
Complete set: 40.3 cm in height x 190,9 cm in diameter |
| WEIGHT | Antenna: 7.3 kg
Pedestal: 15.7 kg |
| WATER RESISTANCE CLASSIFICATION | IPX6 |
| MAXIMUM WIND LOAD | 80kt |
| LENGTH OF THE ANTENNA | 182,9 cm |
| RANGE OF THE ANTENNA | 24 and 48 rpm (high speed is only available in Single Scale mode, with MotionScope disabled, and with a range configuration of 12 NM or lower)) |
| ANCHURA DEL HAZ | 1.25° horizontal, 23° vertical |
| MAXIMUM SCALE | 96 m |
| MINIMUM SCALE | 6 m |
| TYPE OF RADAR | Open matrix |
| Electric | |
|---|---|
| FEEDING INPUT | 10-32 V |
| TRANSMISSION POWER | Output power of 250 W, the approximate equivalent of a 15 kW magnetron |
| Radar Functions | |
|---|---|
| DUAL SCALE | Yes |
| SUPERIMPOSITION | Yes |
| COMPATIBILITY WITH DUAL RADARS | Yes |
| AUTO BIRD GAIN | Yes |
| AUTOMATIC PROFIT | Dynamic |
| TARGET TRACKING MARPA (TO AVOID COLLISIONS) | Yes (requires a course sensor, sold separately)) |
| ECHO TRACKING | Yes |
| MOTIONSCOPE | Yes |
| PROGRAMMABLE ANTENNA PARKING | Yes |
| TARGET SIZE | Yes |
| EXPLORATION MEDIA | Yes |
| Additional | |
|---|---|
| ADDITIONAL FEATURES |
|
