Lumishore

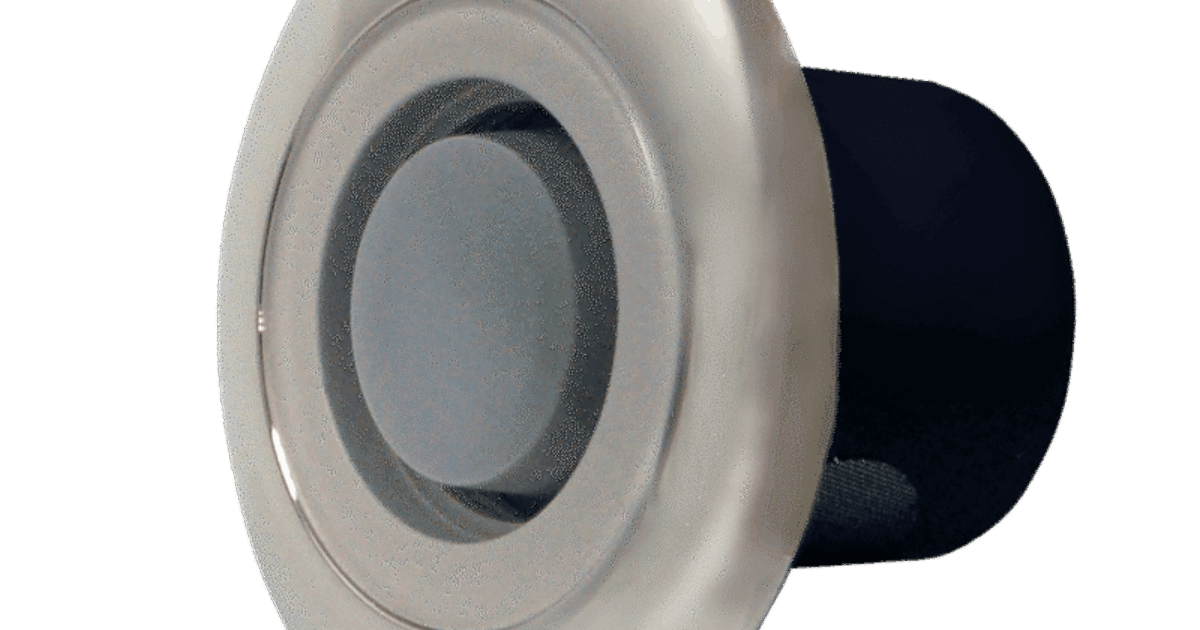

Lumishore Lux CL25 (Bezel)
- Regular price
- €70,61
- Sale price
- €70,61
- Regular price
- €79,33
B2B и вычет НДС
Если вы являетесь компанией, имеющей право на вычет НДС в Европейском союзе, зарегистрируйтесь здесь и укажите свой идентификационный номер НДС до покупки, чтобы НДС был вычтен при оформлении заказа.
Если вы являетесь специалистом в морской отрасли и хотите рассмотреть возможность партнерства, свяжитесь с нами.
SKU:010-04441-00
Полная гарантия
Покупайте с уверенностью.
SailRACE.com продаёт только новые товары с полной официальной гарантией производителя.
Если после покупки у вас возникнут какие-либо проблемы, пожалуйста, свяжитесь с нами по адресу team@sailrace.com , чтобы вместе с производителем определить оптимальное решение.
Couldn't load pickup availability
Описание
LUX Courtesy Lights are perfect for lighting external walkways, stairs and architectural elements of a boat, while at the same time creating a warm and comfortable atmosphere.
The CL25 offers full spectrum CRGBW (cold white, red, green, blue, warm white) and white color temperature tuneable (from 2700k to 6500k) in a single courtesy light unit.
Completely sealed and IP68 rated, the CL25 is suitable for interior and exterior installation. Control by a momentary switch, or upgrade to full integration with your compatible MFD and/or Lumishore Display.
Dimmable as standard and powered by the LUX Light Control Module.
Features
- LUX Collection
- Full Color - Full Color CRGBW
- Warranty
Specifications
| Specification | Value |
|---|---|
| Available colors | Full Spectrum CRGBW and white color temperature tuneable from 2700K to 6500K |
| Ingress Protection | IP68 |
| Supply Voltage Range | 10.5 – 31V DC |
| Max Current Draw | 0.1A / 0.05A |
| Front diameter (Bezel) | 45mm |
| Hole diameter for fitting | 25mm |
| Mechanical installation | Screw fixings |
| Number of Courtesy Lights per control module | 16 |
| Control options | Momentary switch with option to upgrade to full MFD and optional Lumishore Display |
Downloads
FAQs
What should I do with the boat’s power/battery before installation?
Disconnect or isolate the vessel’s power source and battery before starting the installation.
Can sealant touch the O-rings during installation?
No. The guide states: “ensure no sealant contacts O-rings.”
When assembling, do I need to ensure O-rings are installed?
Yes. The mechanical installation instructions state to “Ensure both O-Rings are in place before fitting.”
What is the power rating per CL25 light?
The installation guide states a power rating of 0.5 watts per light.
How should I clean excess adhesive/sealant during install?
Clean using a soft cloth with soap and water; the guide warns not to use chemical cleaners.
Is “soft start” electronics protection included on the CL25?
Yes. The CL25 datasheet lists “Soft Start” electronics protection.
Is reverse polarity protection included in the CL25?
Yes, reverse polarity protection is listed as included.
What is the bezel/body construction material?
The datasheet lists: “Stainless Steel (316L) Bezel with Black ABS Body.”
Does the CL25 include surge protection?
Yes—surge protection is listed as “Yes” in the datasheet.
Is the CL25 rated for ignition protection (ISO 8846)?
The datasheet indicates “ISO 8846 (Ignition Protection) Yes.”
What type of driver is built into the CL25?
The datasheet specifies a multi-channel internal driver.
Who do I contact for help with installation, servicing or advice?
Contact the SailRACE team — as certified marine experts we're happy to help with product selection, installation and after-sales servicing, before and after your purchase.
