Lumishore

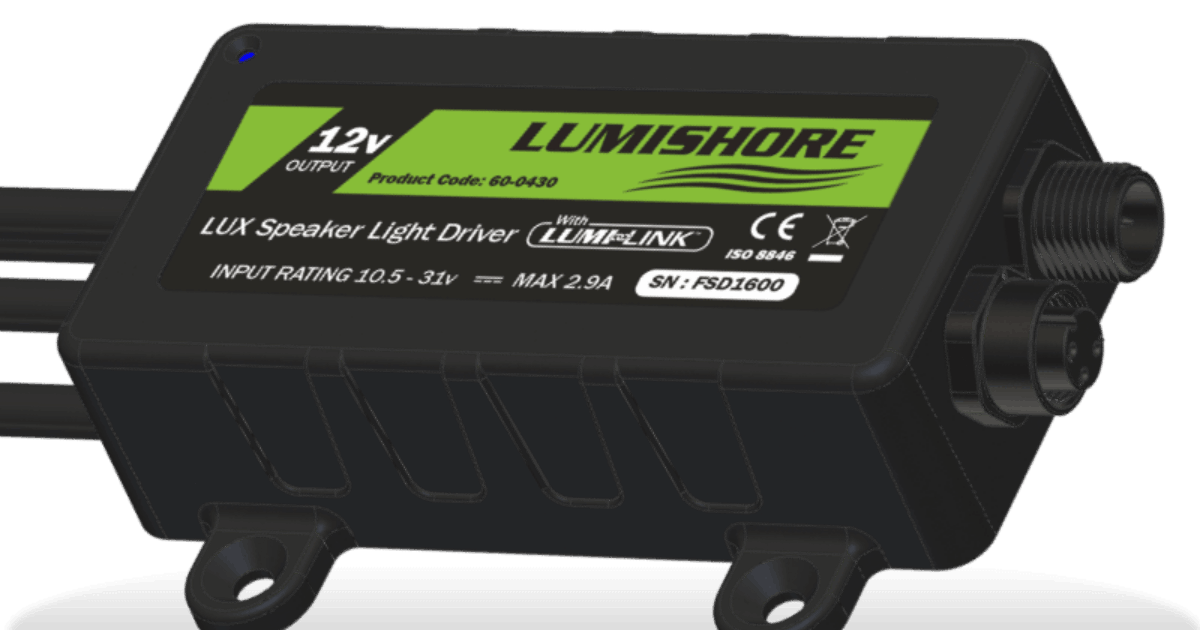

Lumishore Lux Speaker Light Driver
- Regular price
- €176,52
- Sale price
- €176,52
- Regular price
- €198,34
B2B и вычет НДС
Если вы являетесь компанией, имеющей право на вычет НДС в Европейском союзе, зарегистрируйтесь здесь и укажите свой идентификационный номер НДС до покупки, чтобы НДС был вычтен при оформлении заказа.
Если вы являетесь специалистом в морской отрасли и хотите рассмотреть возможность партнерства, свяжитесь с нами.
SKU:010-04448-00
Полная гарантия
Покупайте с уверенностью.
SailRACE.com продаёт только новые товары с полной официальной гарантией производителя.
Если после покупки у вас возникнут какие-либо проблемы, пожалуйста, свяжитесь с нами по адресу team@sailrace.com , чтобы вместе с производителем определить оптимальное решение.
Couldn't load pickup availability
Описание
Plug in your audio system via the EOS-LUX Command Center’s mini jack and enjoy Lumishore’s unique sound-to-light experience.
By analyzing music signals and splitting them into 3 frequency bands, the Speaker Light Driver allows you to select colors for each frequency - a dynamic lighting experience, from one song to the next! Pulse your Lumishore lights to the frequency of the music, in any color, cycle, or oscillating pattern.
For use with CRGBW (cold white, red, green, blue, warm white) and RGB (red, green, blue) LED Marine Speakers.
Easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.
Controls up to 16 speakers and is finished with powder coated marine grade aluminium.
Features
- LUX Collection
- Full Color - Full Color CRGBW
- Warranty
Specifications
| Specification | Value |
|---|---|
| For Use | With CRGBW (Cold white, Red, Green, Blue, Warm white) and RGB (Red, Green, Blue) LED Marine Speakers |
| Ingress Protection | IP68 |
| Supply Voltage Range | 10.5 - 31 V DC |
| Max Current Draw | 5.6A / 2.8A |
| Surge Protection | Yes |
| ATRB (Automatic Thermal Roll Back) | Yes |
| Low Voltage Protection | Yes |
| Reverse Polarity Protection | Yes |
| In Rush Current Protection | Yes |
| Max Cable Length to First Speaker | 5m (16.8’) |
| Number of Speakers per Driver | 16 |
| Size | Not Including Cable Glands or cables (LxWxH) - 113mm x 79mm x 27mm |
| Case Construction | Powder Coated Marine Grade Aluminium |
| Control options | Momentary switch or upgrade to full MFD and optional Display |
Downloads
FAQs
What warranty period is stated in the documents?
The datasheet lists “2 years”, while the installation guide text states “a period of three years” from purchase.
Should each Speaker Light Driver be fused or on a circuit breaker?
Yes. The guide states each driver should be individually fused and/or connected to a suitable circuit breaker.
Where should the LUX Speaker Light Driver be mounted?
Mount it on a flat surface in a cool, dry, well-ventilated location.
Is there power line noise suppression built in?
Yes, power line noise suppression is listed as included.
Any guidance on waterproofing when splicing extension cables?
Yes. The instructions say to ensure the connections are insulated and made waterproof when splicing.
How can I tell from the status LED that an EOS-LUX Command Center is connected?
A rapid flashing status LED indicates the EOS-LUX Command Center is connected.
Is it ignition protected to ISO 8846?
The datasheet lists ISO 8846 (ignition protection) as “Yes”.
When using 6-core extension cables, what’s the max total extension length allowed?
Multiple extensions can be joined, but the overall extension length should not exceed 15 m.
