Lumishore
Lumishore THX1604 EOS
- Regular price
- €4.828,06
- Sale price
- €4.828,06
- Regular price
- €5.424,78
B2B и вычет НДС
Если вы являетесь компанией, имеющей право на вычет НДС в Европейском союзе, зарегистрируйтесь здесь и укажите свой идентификационный номер НДС до покупки, чтобы НДС был вычтен при оформлении заказа.
Если вы являетесь специалистом в морской отрасли и хотите рассмотреть возможность партнерства, свяжитесь с нами.
SKU:010-04522-00
Полная гарантия
Покупайте с уверенностью.
SailRACE.com продаёт только новые товары с полной официальной гарантией производителя.
Если после покупки у вас возникнут какие-либо проблемы, пожалуйста, свяжитесь с нами по адресу team@sailrace.com , чтобы вместе с производителем определить оптимальное решение.
Couldn't load pickup availability
Описание

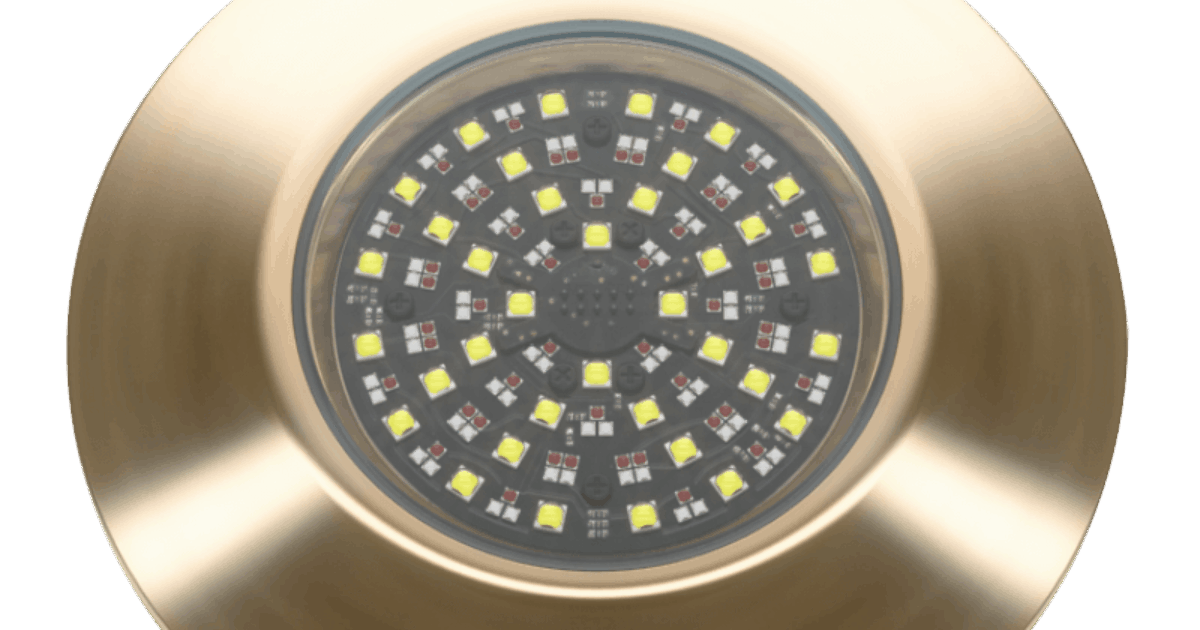

Lumishore's THX1604 delivers a powerful 17,500 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
THX models feature a standard 1" fitting and an external driver. Flush-fit in design, with extremely low profiles.
Features
- Full Color - Full Color
- 17,500 Fixture Lumens
- 110° Beam Angle
- Warranty
Specifications
| Specification | Value |
|---|---|
| Available LED Colors | EOS Full Color Change (Rgbw) |
| Lumens | 39,375 |
| Verified Fixture Lumens (White) | 17,500 |
| Number and Type of LED | White - 36 x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W |
| LED Power - Hicob Array | Yes |
| Typical LED Life | 50,000+ Hours |
| Beam Angle (Degrees) | 110° |
| Driver | Multi-Channel External Driver |
| Supply Voltage | 24 V DC |
| Max Current Draw | 6.5A |
| Housing Type | Marine Grade Aluminum Bronze |
| User Control Options | From your MFD and/or optional Lumishore Display |
| Lights Synchronized | Yes |
| Color Cycle w/SPEED Adjust | Yes |
| Color Sweep w/SPEED Adjust | Yes |
| Customizable Favorites | Yes |
| Fixed & Random Strobes | Yes |
| Programmable Scenes | Yes |
| WI-FI Control (APP) | Yes |
| SOUND-TO-LIGHT | Yes |
| Brightness Adjust | Yes |
| Auto Light Discovery & Setup | Yes |
Downloads
FAQs
When is an isolation kit required for the hull material?
An isolation kit is required for wooden hull, metal hull, or carbon fibre installations.
What safety step should I take before starting installation?
Disconnect or isolate the vessel’s power source and battery before installation.
Are the electrical connections plug-and-play?
Yes. The datasheet lists the electrical installation as plug-and-play connections.
Can I install or remove the light while the boat is in the water?
No. The installation guide explicitly says never to install or remove the light with the vessel in the water.
Are there mounting location constraints (curved hulls, etc.)?
Yes. It must be installed on a flat (not curved) surface, mounted on transom or side hull only.
Any cautions about cleaning the mounting area or sealant compatibility?
Yes. The guide says not to use an alcohol-based solvent, as it may adversely affect the sealant.
Do electrical connections need to be waterproof?
Yes. The wiring diagram notes all connections must be made waterproof, using a suitable junction box or waterproof connectors.
What warranty period is stated for the THX1604?
The datasheet lists a 3-year warranty.
How tight should the retaining bolts be torqued?
Do not overtighten. The guide states a force of 3Nm / 26 in-lbs on each bolt should not be exceeded.
What is the water ingress protection rating?
The datasheet lists the water ingress protection rating as IP68.
Who do I contact for help with installation, servicing or advice?
Contact the SailRACE team — as certified marine experts we're happy to help with product selection, installation and after-sales servicing, before and after your purchase.
