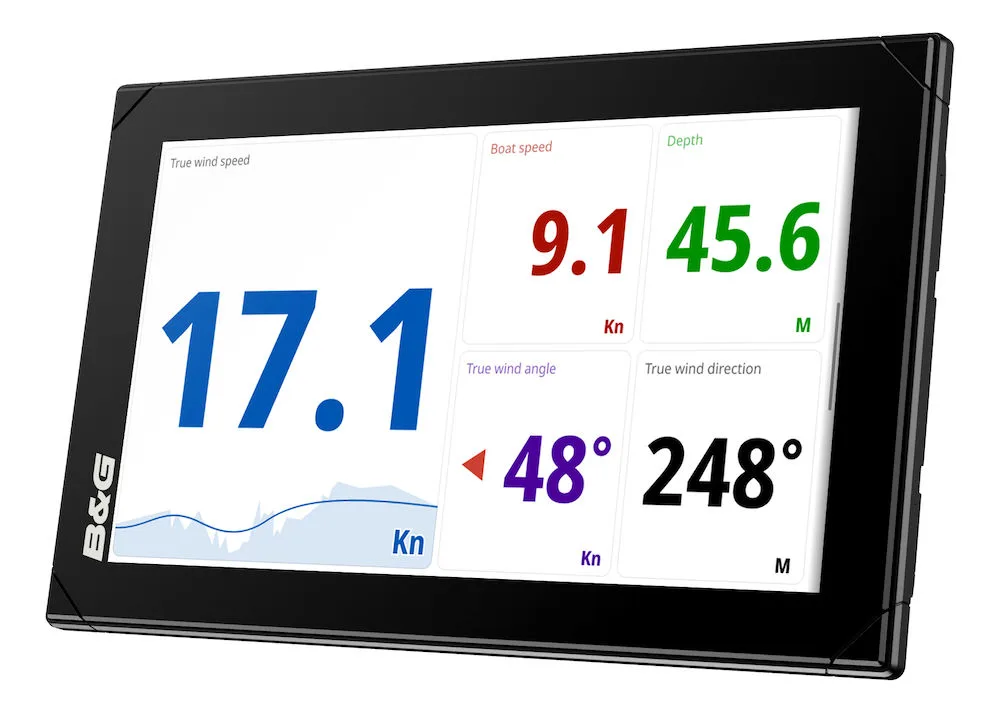

B&G Nemesis 9″ Sailing Data Display

Nemesis™ 9 is the perfect solution for displaying all the crucial sailing data you need either on the mast, in the cockpit or at the helm station; as a single or as multiple screens via the Nemesis Hub. The super bright touch screen, with adjustable data sizes, palettes and backlight provides outstanding visibility, from wherever you are on the boat and in all conditions. The Nemesis display is also completely customisable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own – you can view your trusted sailing data and unique software from your network the way you want to, ensuring you get the most accurate data right in front of you, all the time.

Visibility & Versatility
A bright touch screen, with super-wide viewing angles and the ability to view with polarised sunglasses at all angles and from any distance on-board, with adjustable data sizes, palettes and backlighting, this display offers optimal viewing in all conditions, whether on the mast or in the cockpit.

Complete Customisation

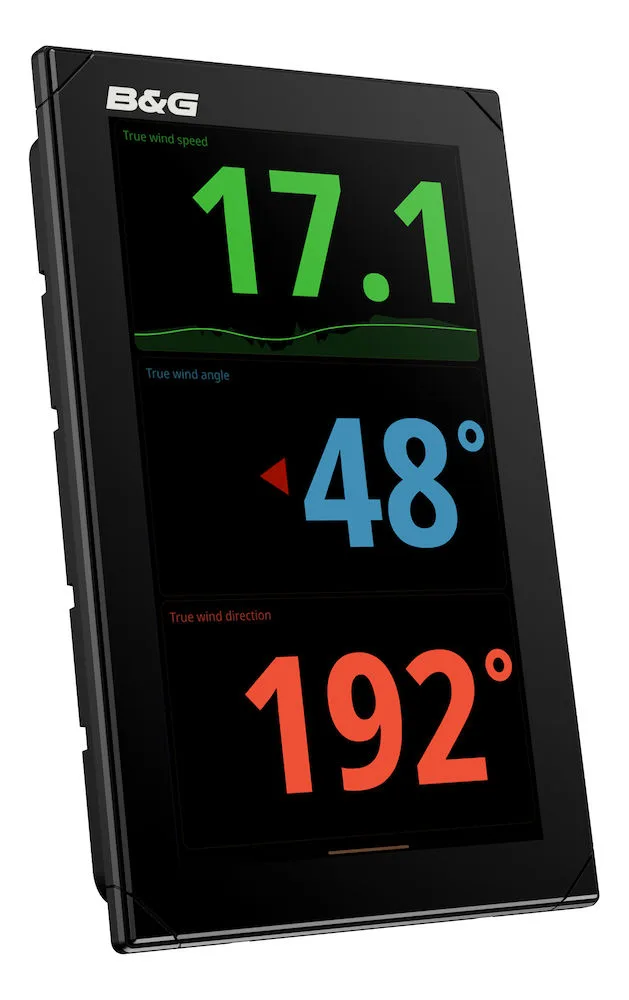

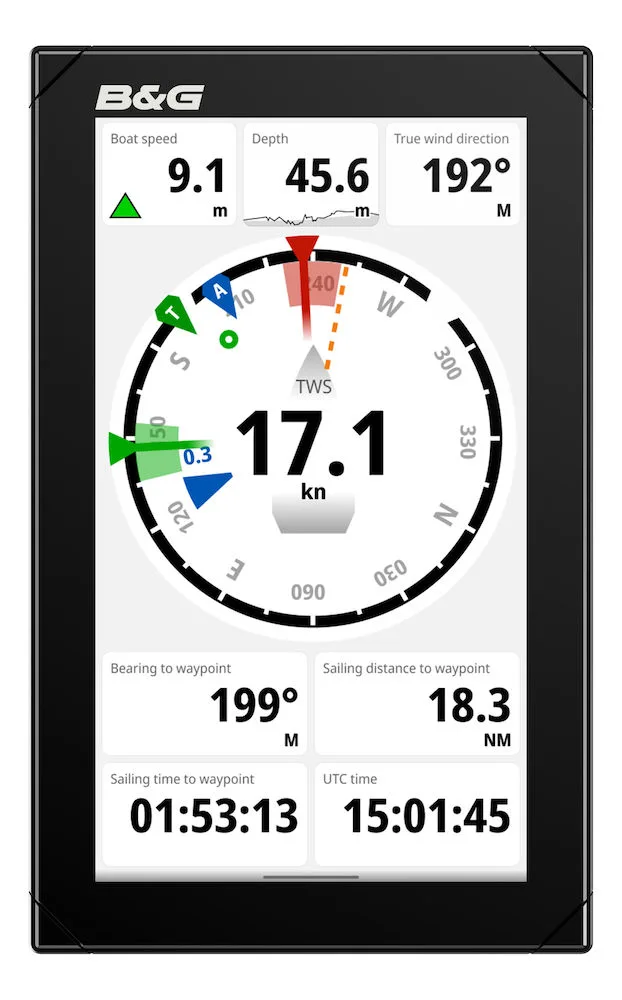

This all-in-one customisable display can be mounted in both portrait or landscape, whilst the easy to use drag & drop editor allows full customisation with a wide choice of graphical gauges, SailSteer™, tank levels, digital data, IP camera views, histograms and images. With this, you have the freedom to select the data, visualisation and set size and position that you want, or you can simply choose from a choice of pre-selected built-in B&G dashboards and templates.

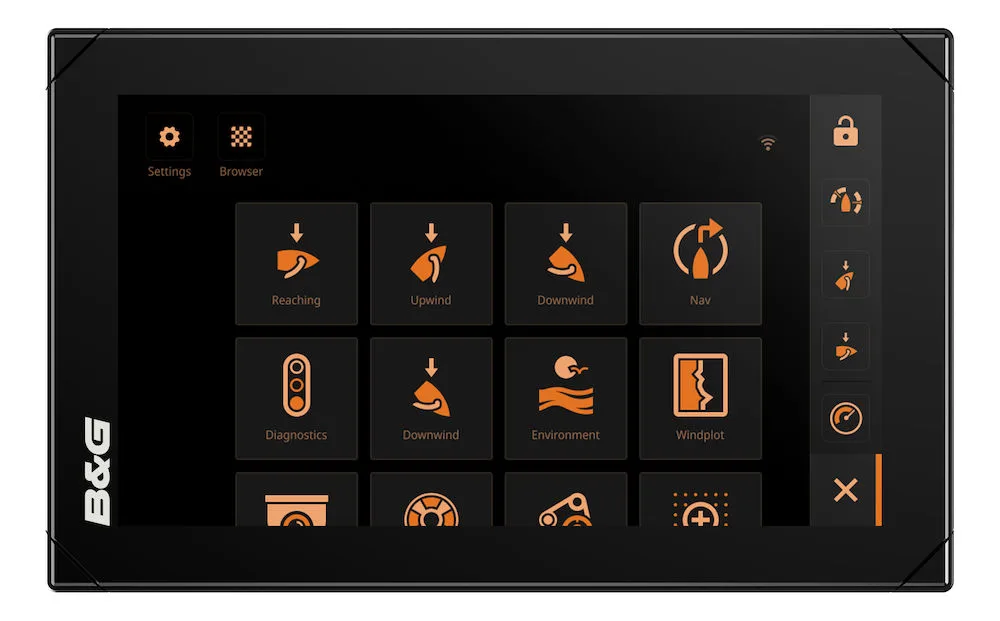

Additional automatic context modes allow you to choose the sailing data you want to display based on your point of sail or sailing mode: Upwind, Reaching, Downwind, Pre-start or Motoring.

Integration
The use of commercial grade components, and hours of testing and development by sailors in all conditions, combined with the most accurate sailing data available from your B&G network and instruments, will ensure you can have complete trust in Nemesis. The reliability and accuracy of both the data and the display, will give you the confidence you need to make the right decision, when you need to.

Conectividad

Ethernet	1 x 100 Mbit
NMEA 2000	1 x puerto NMEA 2000 Micro-C, 1 LEN
WiFi	802.11 b/g

Pantalla

Resolución	1280 x 720
Brillo de la pantalla	1300 nits
Tamaño y tipo	9″ IPS SolarMAX™ HD
Ángulos de visión	80 top/bottom, +/ 80 left/right

Eléctrico

Consumo de energía, máximo.	13W
Clasificación de los fusibles recomendada	2 Amp
Voltaje de suministro	10 - 32 V DC

Medio Ambiente

Rango de temperatura de funcionamiento	-15ºC to +55ºC (-5ºF to 131ºF)
Rango de temperatura de almacenamiento	-20ºC to +60ºC (-4ºF to 140ºF)
La clasificación de la impermeabilidad	IP67

MFD

Distancia de seguridad de la brújula - Métrico, imperial	300mm (12″)

Físico

Dimensiones (Anchura x Altura x Profundidad)	239 x 149 x 69mm (9.4 x 5.6 x 2.7″)
Tipo de montaje	Flush, Panel

Otros

Período de garantía	2 años
Interfaz	Touch Screen
Idiomas	Chinese[simplified], Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish, Swedish

Peso	2,2 kg
Dimensiones	25 × 32 × 2,2 cm
SKU	000-15611-001
Marca	B&G
Tipo de clase	Instrumentos
GTIN	9420064115648
Componente	Cabeza/Display
Familia	B&G Nemesis
Tipo de artículo	Producto principal
Modelo	B&G 9
