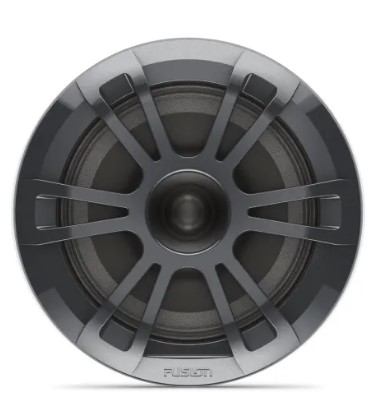

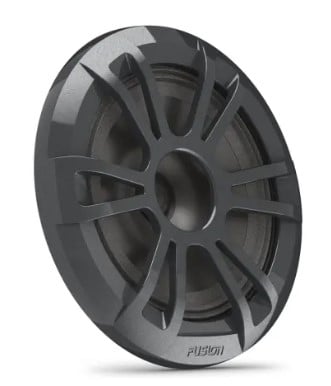

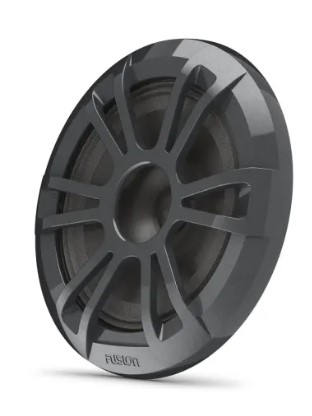

Garmin Fusion® EL Series Marine Speakers 6.5″ Grey

DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT

The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.

MATERIALES DE CALIDAD E INGENIERÍA ACÚSTICA

The EL Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.

INJECTION-MOLDED POLYPROPYLENE (IMPP) CONE

By using a water-resistant IMPP cone it improves the robustness of the speaker, allowing for clean, clear audio reproduction.

LIGHTWEIGHT VOICE COIL

The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.

OPEN BASKET CONSTRUCTION

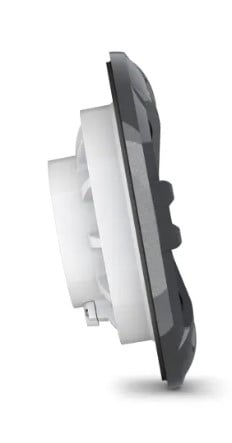

The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

ILUMINACIÓN LED RGB MULTICOLOR

The sports style EL Series speakers with RGB LED lighting provide bright and even LED illumination in a wide range of colors, letting you choose any color to match the mood and enhance your audio entertainment experience.

CONTROLLING THE RGB LIGHTING

Control the color (static or dynamic), brightness, light mode and speed by using the MS-RGBRC wireless remote control (sold separately).

Content:

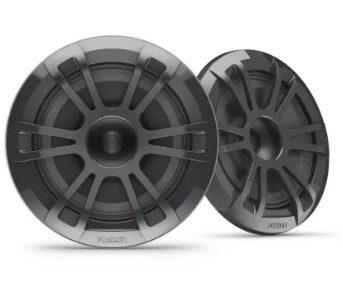

• One pair of speakers
• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
• Two 20 ft (6 meter) speaker cables
• Documentation

Especificaciones:

General

Physical dimensions (Diameter x Depth)	6.93” x 2.32” (176 x 59 mm)
Peso	1.26 lbs (0.57 kg)
Water and dust rating	IP65
Configuración	Full range
Speaker size	6.5″
Peak power (Watts)	80 W
RMS power (Watts)	20 W
Sensitivity (1 W / 1 m)	88 dB
Respuesta en frecuencia	45 Hz-16 kHz
Nominal impedance	4 ohms
Potencia de amplificador recomendada (RMS)	20-40 W/Ch
Iluminación LED	yes, RGB (sports gray with RGB model only)
LED supply voltage	10.8-16 VDC (sports gray with RGB model only)
LED load current @ 16 VDC	150 mA (sports gray with RGB model only)
Temperatura de funcionamiento	32° to 122° F (0° to 50° C)
Voice coil diameter	0.79″
Cone material	Polypropylene cone with cloth surround
Compass-safe distance	100″ (254 cm)
Warranty	1 year

Mounting Dimensions

Mounting diameter clearance	5.12″ (130 mm)
Mounting depth clearance	1.69″ (43 mm)
