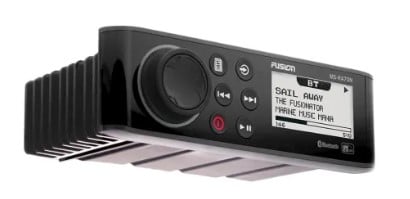

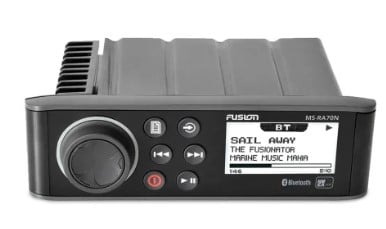

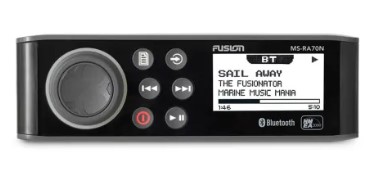

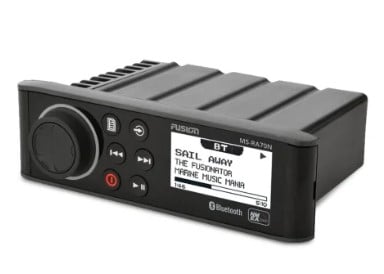

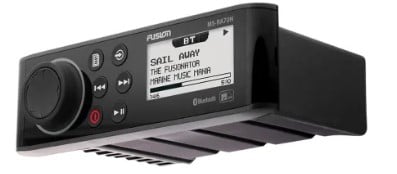

Garmin Fusion® RA70 Series Marine Stereos

Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion^®. The RA70 Series includes three marine stereos — MS-RA70 and MS-RA70N.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the many source options available, including BLUETOOTH^® technology, DAB+ radio, AM/FM radio, AUX and USB connections.

Content:

• DIN mounting plate
• Four 8-gauge, self-tapping screws
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• Documentation

MS-RA70N and MS-RA70NSX also include 6 ft (2 meters) NMEA 2000^® drop cable

Especificaciones:

General
Dimension	7.4″ x 2.36″ x 4.87″ (188 x 60 x 123.5 mm)
Peso	1.23 lbs (556 g)
Water rating	IPX7 (front panel only, when properly installed)
Pantalla	2.6″ optically bonded monochrome LCD
Operating temperature	32° to 122° F (0° to 50° C)
Current (max)	15 A



Red
NMEA 2000® LEN	see Additional
BLUETOOTH® wireless range	up to 30 ft
ANT® wireless range	Up to 10 ft
Wireless frequencies/protocols	BLUETOOTH®: 2.4 GHz @ +1.9 dBm nominal ANT®: 2.4 GHz @ +1.9 dBm nominal



Audio
Amplifier	Class-AB (4 ohm)



Electrical Features
Power Input	10.8 – 16 VDC
Compass-safe distance	5.9″ (150 mm)



Stereo Features
Peak power	200 W
Rated power output (4 ohm)	26 watts RMS x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control	yes (see Additional)
Multi-Zone™ technology	2 zones
BLUETOOTH® wireless technology	Sí
ANT® wireless technology	Sí
Multi-language interface	Dutch, English, French, German, Italian, Spanish
Software updates	USB
Warranty	1year



Sources
Supported sources	AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x1, AOA MS-RA70NSX: SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) MS-RA70 and MS-RA70N: DAB+ ready (available in Europe and Australia only)



Conexiones
Auxiliary inputs (RCA)	1
NMEA 2000® ports	1 (MS-RA70N and MS-RA70NSX only)
USB 2.0 ports	1
SiriusXM ports	1 (MS-RA70NSX only)
AM/FM ports (Motorola antenna connector)	1
Speaker connections	4 (2 zone amplified)
RCA pre-out (left, right and subwoofer)	2 zones (requires external amplification)
Line out	2 (L + R per zone, requires external amplification)
Subwoofer out	Zone 1 (mono output, requires external amplification)



Más información en
Más información en	NMEA 2000® LEN: 1 (50 mA), MS-RA70N and MS-RA70NSX only Fusion-Link™ control: MS-RA70: smart device and Garmin watch; MS-RA70 and MS-RA70NSX: MFD, smart device and Garmin watch SiriusXM-Ready: MS-RA70NSX only DAB+ Ready: MS-RA70 and MS-RA70N only Supports NRX wired remote: MS-RA70N and MS-RA70NSX only

Marca	Garmin
