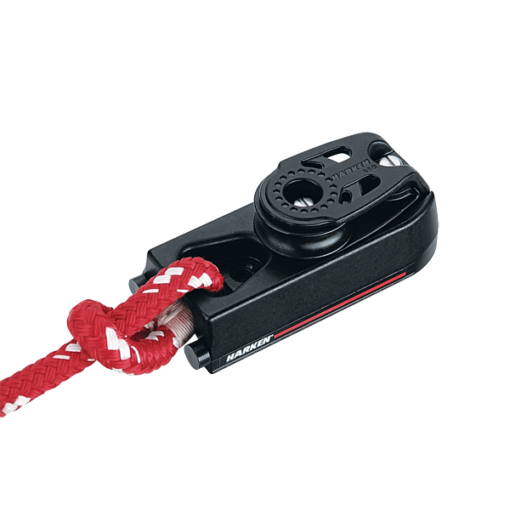

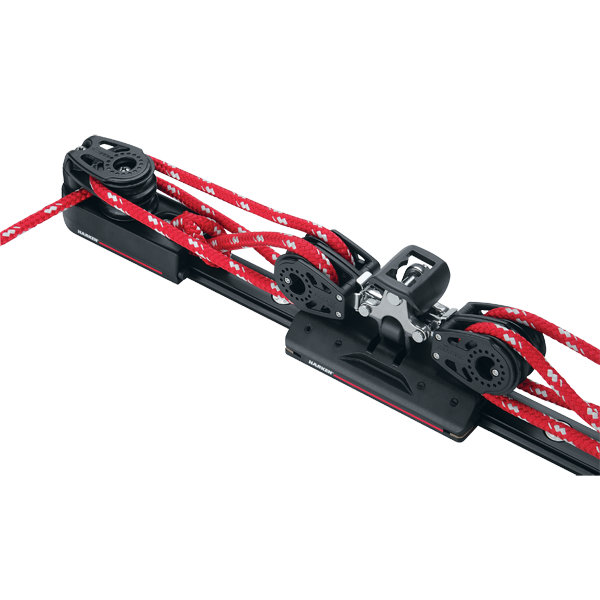

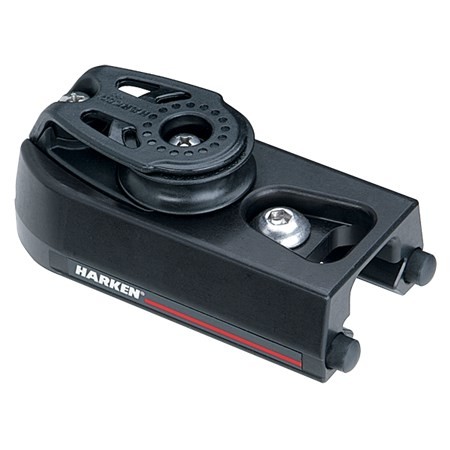

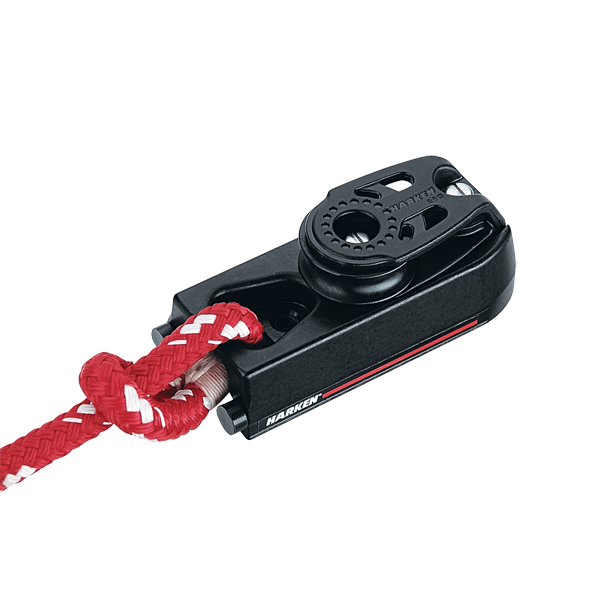

Harken 32mm End Control — Set of 2

High-performance end controls allow the installation of 2:1 to 6:1 purchases. Designed for high-performance, free-running systems, Carbo control blocks with Delrin® ball bearings let cars instantly adjust and release under load. Assemblies secure to track, eliminating additional holes. Tough one-piece bases and cam arms are machined from a single piece of aluminum. Compact, low-friction block components combined with Cam-Matic cleats keep weight minimal. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates. Ø de la polea (mm) 40 mm
Ø polea (pulg.) 1 9/16 pulg.
Length (mm) 122 mm
Length (in) 4 13/16 in
Anchura (pulg.) 2 1/4 pulg.
Anchura (mm) 57 mm
Height above track (mm) 36 mm
Height above track (in) 1 7/16 in
Weight for pair (g) 767 g
Weight for pair (oz) 27 oz
Ø máximo de la línea (mm) 10 mm
Ø máximo de la línea (pulg.) 3/8 pulg.
Maximum working load (kg) 204 kg
Maximum working load (lb) 450 lb
Breaking load (lb) 1600 lb
Breaking load (kg) 725 kg
Purchase 1:1 / 2:1
Fasteners (mm) 10 RH mm
Footnote Fasteners included

Marca	HARKEN
SKU	3168
GTIN	097653144687
Marca	Harken
