Harken
Harken Flat Winder
- Regular price
- 284,100.00؋
- Sale price
- 284,100.00؋
- Regular price
- 319,200.00؋
B2B and VAT Deduction
If you are a business deducting VAT in the European Union, register here and enter your VAT Id before purchase to deduct it on checkout.
If you are a professional in the marine sector and want to explore a partnership contact us.
SKU:FW250EA24H
Couldn't load pickup availability
Description
Key details
- Product type: Flat Winder
- Options: Capacity, Voltage, Drive
- Available variants: 9
Overview

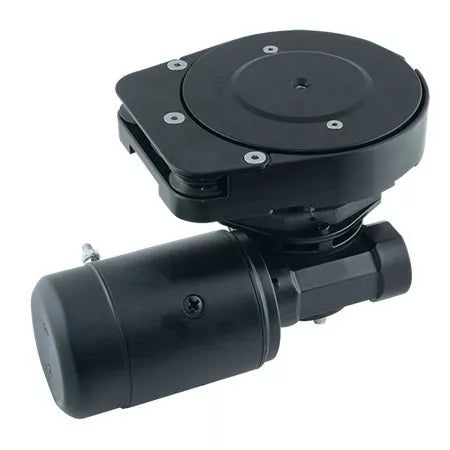

The Harken FlatWinder powered block is a self-contained, low-profile electrically-powered system for mainsheet traveler adjustment. This powerful block is easy to use and offers sailors huge benefits in mainsail control, giving them the means to quickly depower the rig, and delay reefing when the wind picks up. Like a compact captive winch for the traveler, the FlatWinder is completely self-contained. It operates in both directions, allowing the car to move anywhere on the track while also keeping the traveler line off the cockpit floor. Harken recommends installing two space-saving, dual-function Digital System Switches, one button to port, the other to starboard, for activation from both sides of the boat. The block’s wide-diameter drive sheave mounts on a sloped base, forming an angle with the sheave top to contain the line so it doesn’t push against the block walls. This progressive grip exerts just the right amount of friction to keep wear on the line and components minimal. Plus, the FlatWinder eliminates the need for winches, making the deck cleaner and easier to navigate. The compact horizontal motor is housed neatly belowdeck and has a maximum working load of 250 kg (551 l…
Specifications
Specifications vary by the selected variant. Use the variant table below to compare the available configurations and part numbers.
Variant details
Select the option combination that matches the required part number.
| Capacity | Voltage | Drive | Part No. |
|---|---|---|---|
| 250 | 24 V | Electric | FW250EA24H |
| 250 | 12 V | Electric | FW250EA12H |
| 500 | 12 V | Electric | FW500EA12H |
| 500 | 24 V | Electric | FW500EA24H |
| 1000 | 24 V | Electric | FW1000EA24H |
| 250 | N/A | Hydraulic | FW250HA |
| 500 | N/A | Hydraulic | FW500HA |
| 1000 | N/A | Hydraulic | FW1000HA |
| 1000 | 48 V | Electric | FW1000EA48H |
FAQs
Who should undertake installation and maintenance of the FlatWinder?
All installation, disassembly, and maintenance should be performed by specialized personnel or expert users. Inexperienced personnel may cause serious damage.
Is marine sealant needed during installation?
Mounting holes and the central hole should be filled with suitable marine sealant for proper sealing.
What maintenance does the Harken FlatWinder require?
The FlatWinder should be regularly washed and inspected as detailed in the included maintenance table of the manual. Specific disassembly and maintenance steps are also provided within the manual.
What equipment is required for mechanical installation?
For the FlatWinder 250, you will need a number five hex key and two number thirteen wrenches. Torque specifications are provided in the manual.
Is the control box mandatory for installation?
Yes, for each FlatWinder model, installing the Dual Function Control Box is mandatory for safety and longevity.
Are mounting bolts supplied with the FlatWinder?
Mounting bolts are not supplied; the installer must select the correct screws based on deck thickness and material.
What should be checked before drilling for installation?
Check below-deck space for flange and motor clearance prior to drilling the deck.
How can the motor be oriented during installation?
To facilitate installation, the gearmotor can be coupled to the FlatWinder in different positions, rotated each 30°.
What should be done before drilling the deck for installation?
Check the space available below deck for the flange and the motor before drilling.
Where should the FlatWinder be mounted on the boat?
The FlatWinder must be installed on a flat, reinforced area of the deck to bear at least twice its maximum working load.
Where should the Dual Function Control Box be installed?
Mount the control box containing solenoids on a bulkhead or wall as described in its manual. For full instructions, see the dedicated manual.
How is the rope installed in the FlatWinder?
Insert rope between pulley and peeler, then activate the motor in the proper direction to load the rope.
Can mounting screws be substituted with non-original parts?
Never substitute any device part with a non-original part; this may not be suitable and voids the warranty.
Who should install the Harken FlatWinder?
The FlatWinder should be installed by specialized personnel or expert users to ensure proper and safe operation.
Where should the motor be installed?
Install the motor below deck in a dry, protected place that allows visual inspection of its condition.
What kind of fasteners should be used for mounting?
Use only A4 stainless steel bolts (DIN 267 part11) to ensure strength and corrosion resistance.
Can countersunk bolts be used for mounting?
No, do not use countersunk bolts for mounting the FlatWinder.
Can the direction of FlatWinder travel be reversed electronically?
If the direction does not match the Digital System Switch arrow, invert the M1-M2 cables on either the motor or Dual Function Control Box.
What precautions must be taken regarding deck reinforcement?
The deck must be reinforced if necessary to bear a load at least twice the maximum working load of the FlatWinder.
What sequence of hardware is used for electrical contact?
The correct electrical contact sequence is: Nut – Cable Terminal – Self-Locking Washer – Lock Nut.
What care should be taken regarding rope specifications?
Do not use rope bigger than 10mm in diameter and do not insert rope with a splice. Only specified rope diameter is recommended.
