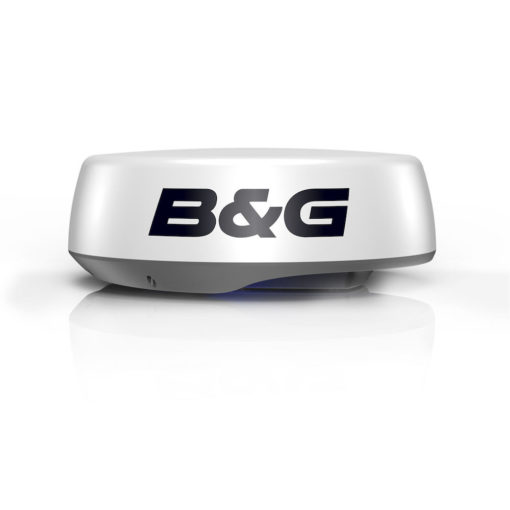

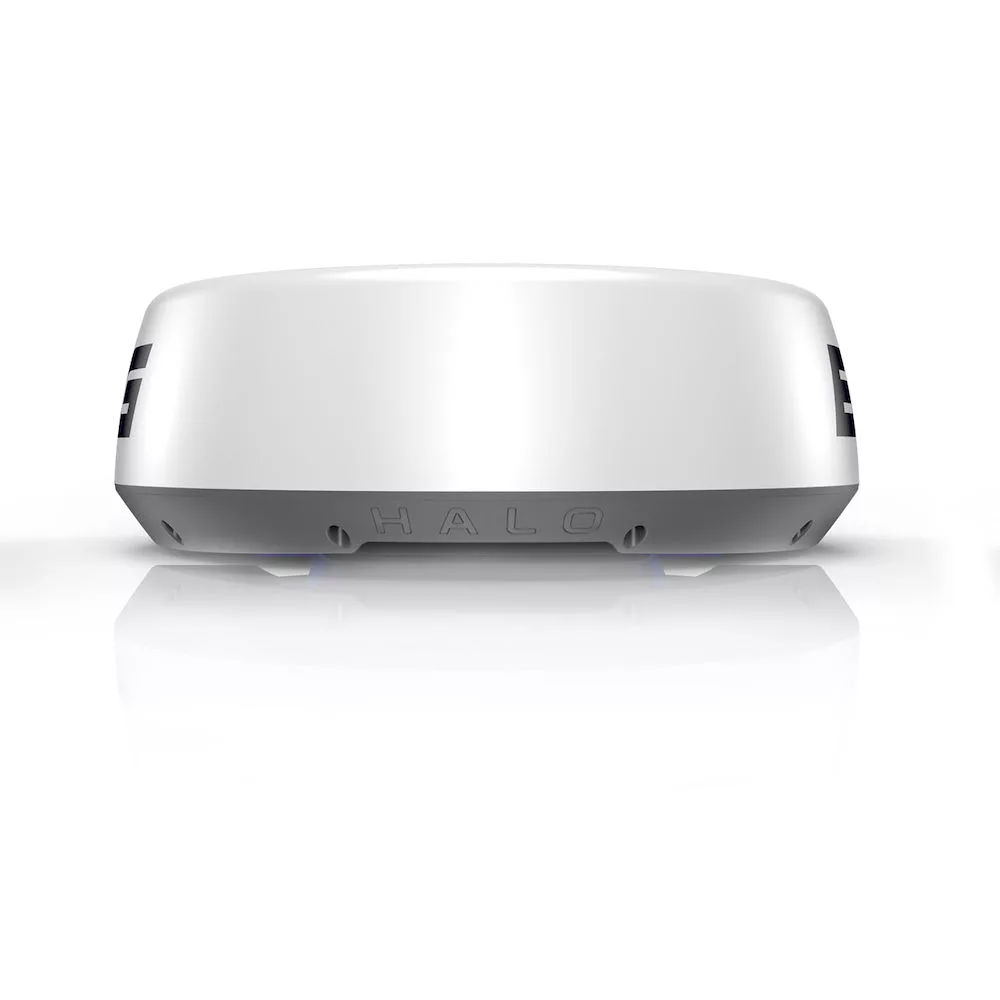

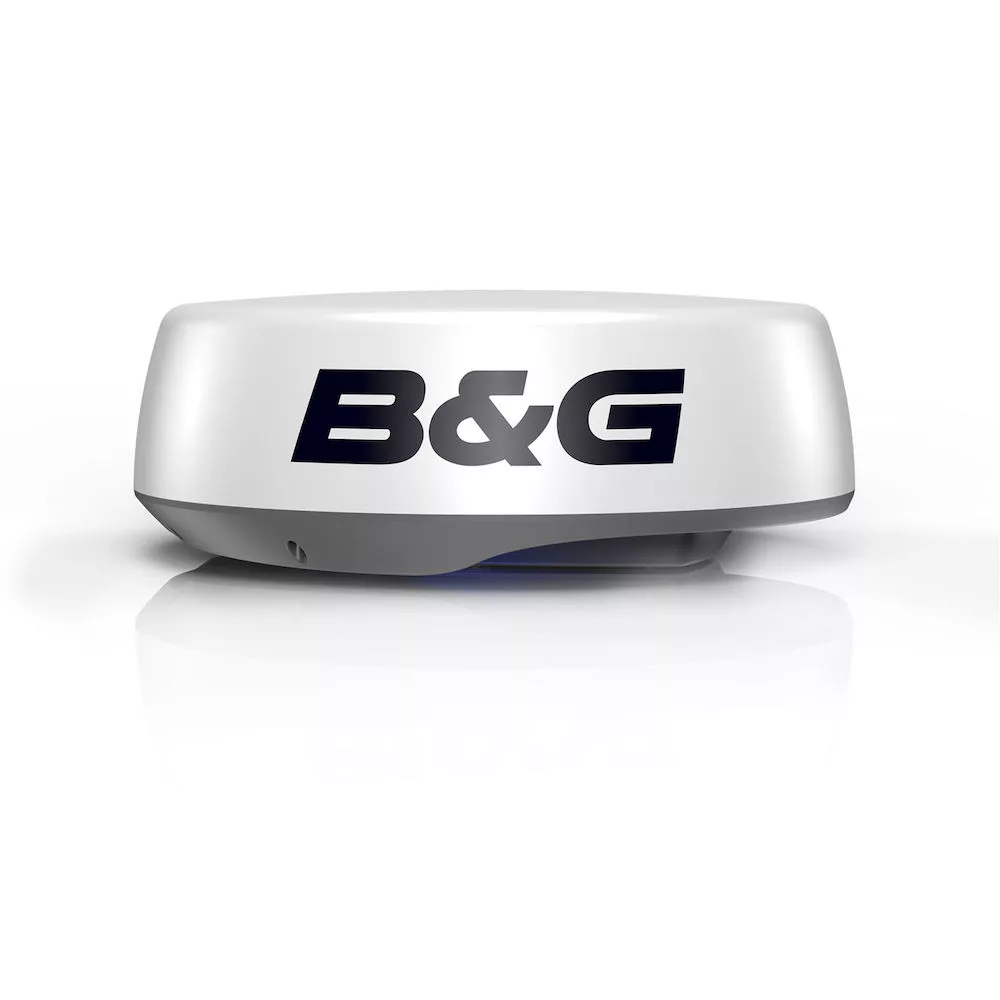

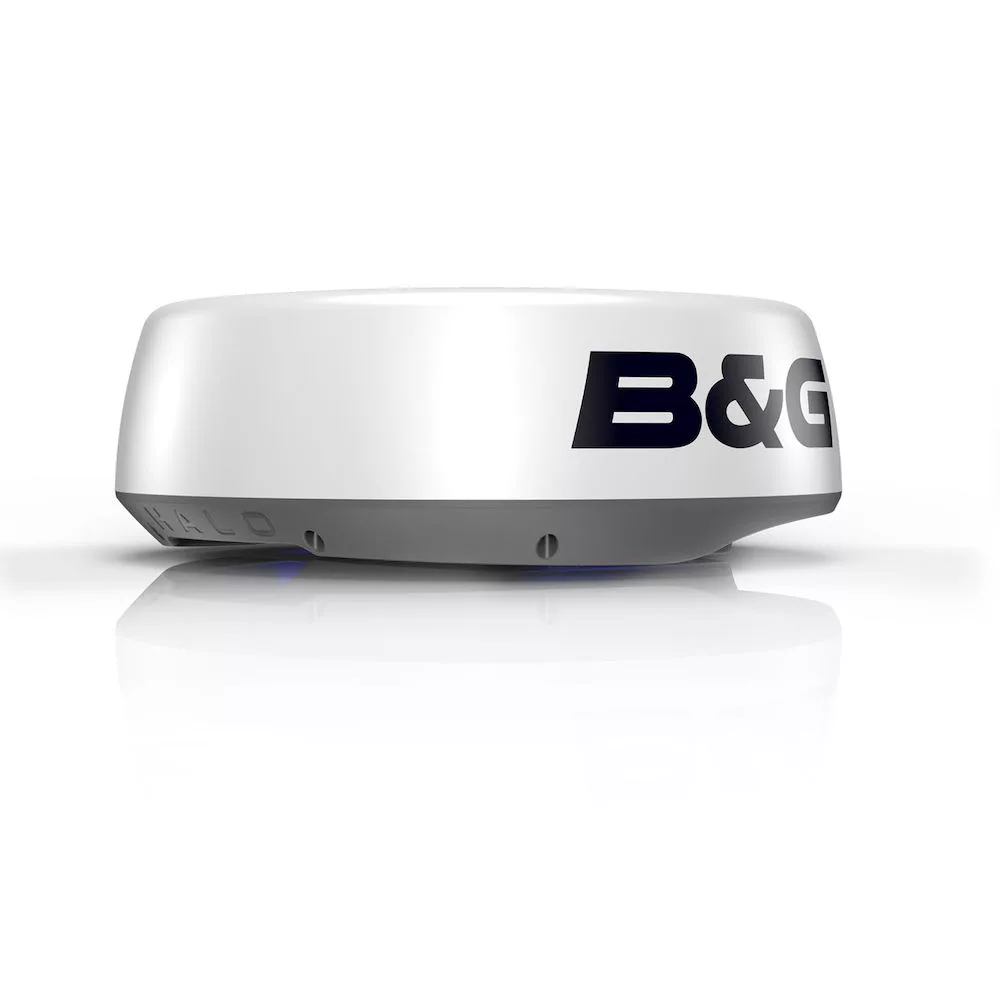

B&G Halo 24″ Pulse Compression Dome Radar, with Industry-first 60 RPM Operation

See Near and Far with One Compact Dome
Perfect for mid-sized to large sailboats, HALO24 comes in a compact dome antenna and offers high-quality short, mid and long-range detection. Display two ranges at once in our patented Dual Range mode, which enables you to keep an eye on far away weather cells, while watching for collision dangers up close. HALO24 radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

The Ultimate View for Collision Avoidance
HALO24 radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, helping you prevent any collision hazard.

VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple colour coding highlights potential dangers, improving your situational awareness and further reducing your risk of collision. HALO24 radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.

Ready When You Are
HALO24 radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO24 radar is completely powered down, start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO24 radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.

The Lightest 24’’ Radar for Enhanced Performance
HALO24 lightweight compacted design –6.75kg, 14.9lb- minimizes the inclination of the boat to maximize your boat’s performance when every second counts.

Approvazioni

Conformità	FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

Connettività

Ethernet	100 Base T

Elettrico

Consumo di energia, max.	29W
Consumo di energia, tipico	20W
Valutazione del fusibile raccomandata	5A
Tensione di alimentazione	10.5 – 31.2 VDC (12/24V systems)
Umidità	95% RH at 35°C (95°F)

Ambiente

Intervallo di temperatura di esercizio	-25° to + 55°C (-13° to +130°F)
Valutazione dell'impermeabilità	IPX6

Fisico

Dimensioni (L x A x P)	610mm dia x 225 mm H. (24″ dia x 8.9″ H)
Peso	6.75 kg (14.9 lbs) without cable

Radar

Larghezza del fascio	3.9° H nonminal (-3dB) 2° with target separation on high x 22° V
Portata massima, scala	48 NM
Velocità massima operativa del vento	100 knots (51 m/s)
Portata minima, scala	50 m / 200 ft / 50 yd
Modalità radar	Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion
Tecnologia radar	Compressione ad impulsi
Velocità di rotazione	Up to 60 RPM (Range Dependent)

Altro

Periodo di garanzia	2 anni
Interfaccia	B&G MFD

Peso	13 kg
Dimensioni	67 × 67 × 13 cm
SKU	000-14538-001
Marchio	B&G
Tipo di classe	Radar
GTIN	9420024173800
Componente	Sistemi confezionati
Famiglia	B&G Radar-Halo Dome
Tipo di articolo	KIT
Modello	B&G Halo24
