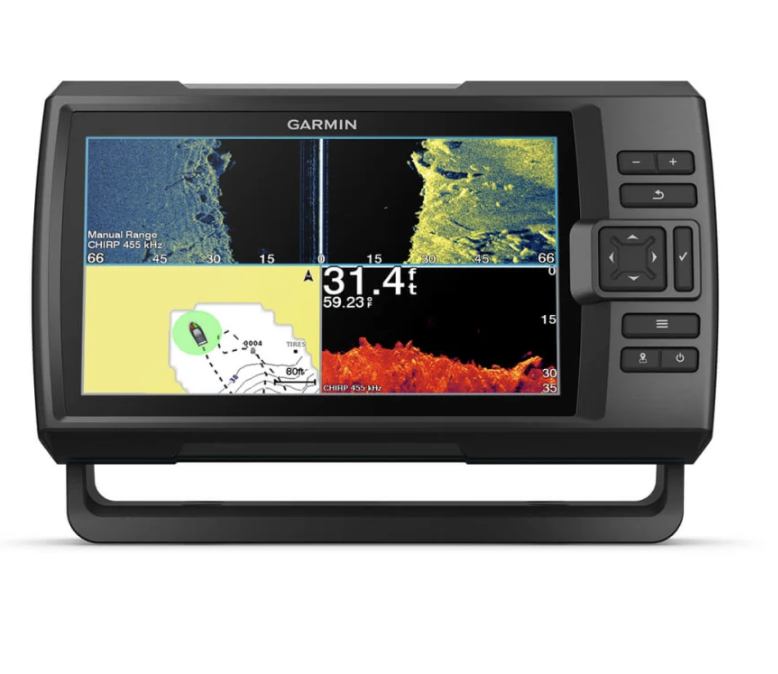

Garmin STRIKER™ Vivid

Name: Garmin STRIKER™ Vivid
SKU: 010-0255
Availability: InStock

173,55 € – 586,79 €
You save

Observe the fish and structures with the highest level of detail after choosing the color of the screen, the location and the probe for your day in the water with the STRIKER Vivid Probe

Dimensioni dello schermo

Includes transducer

Type of probe

Libero

Total:

Richiedi un preventivo

SKU: 010-0255 Categories: Garmin, STRIKER™ Vivid series
Brand: Garmin

SCONTO SUL 1° ORDINE

Richiedete lo sconto iniziale del 5% sul vostro primo ordine.
Richiedilo qui!

GARANZIA DI PREZZO

Se nelle prossime 72 ore troverete un prezzo più conveniente, lo uguaglieremo.

GARANZIA UFFICIALE

Siamo Rivenditori Autorizzati per tutte le marche. Sarete completamente coperti.

Termini e condizioni

FAQ e termini

OPZIONI DI CONSEGNA LOCALI

Consegna standard di solito 3-7 giorni.
Consegna espressa di solito 2-4 giorni.

Abbuono

GARANZIA DI PREZZO

Se nelle prossime 72 ore troverete un prezzo più conveniente, lo uguaglieremo.

Registrati

SCONTO SUL 1° ORDINE

Richiedi lo sconto iniziale del 5% sul tuo primo ordine registrandoti alla community SailRACE.

Contattaci

SUPPORTO CERTIFICATO

Ottenete il supporto di esperti ufficialmente certificati. Illustrateci le vostre esigenze di refitting e vi aiuteremo a determinare la soluzione migliore.

Informazioni dettagliate

Observe the fish and structures with the highest level of detail after choosing the color of the screen, the location and the probe for your day in the water with the STRIKER Vivid Probe.

PROBE OF GREAT CLARITY AND COLOR

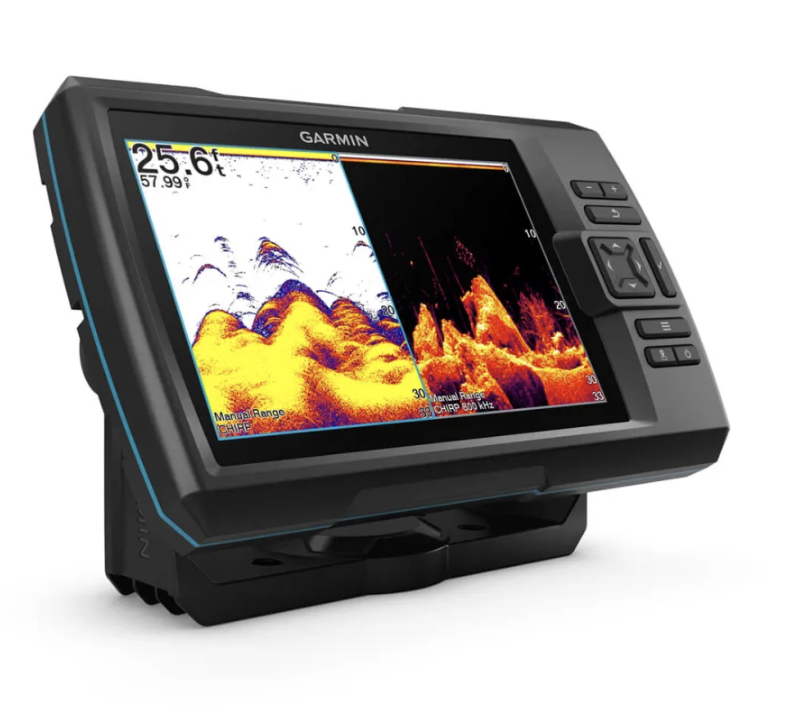

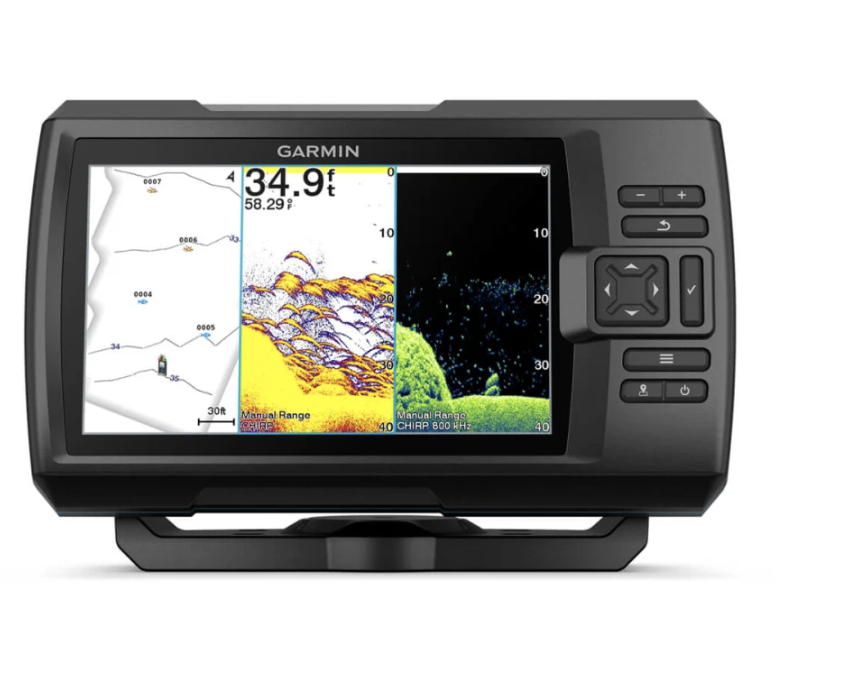

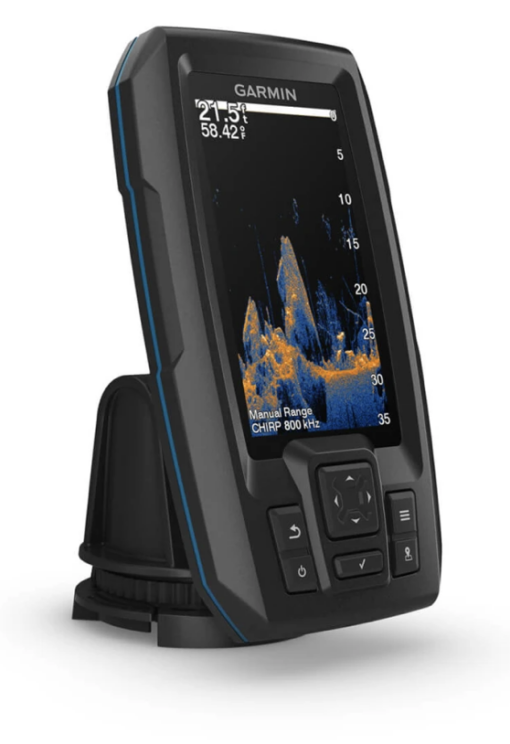

Choose from 7 new intense color options to see both fish and structures with the highest level of contrast and clarity in your 4-inch probe.

INTEGRATED PROBE

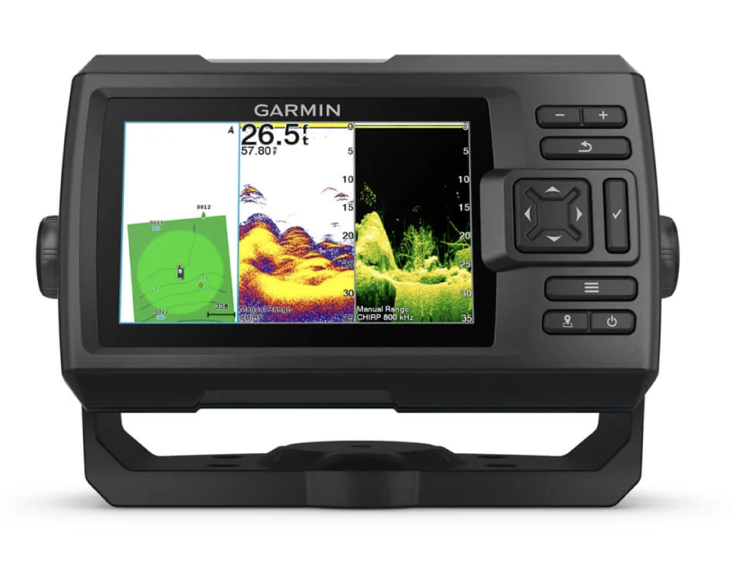

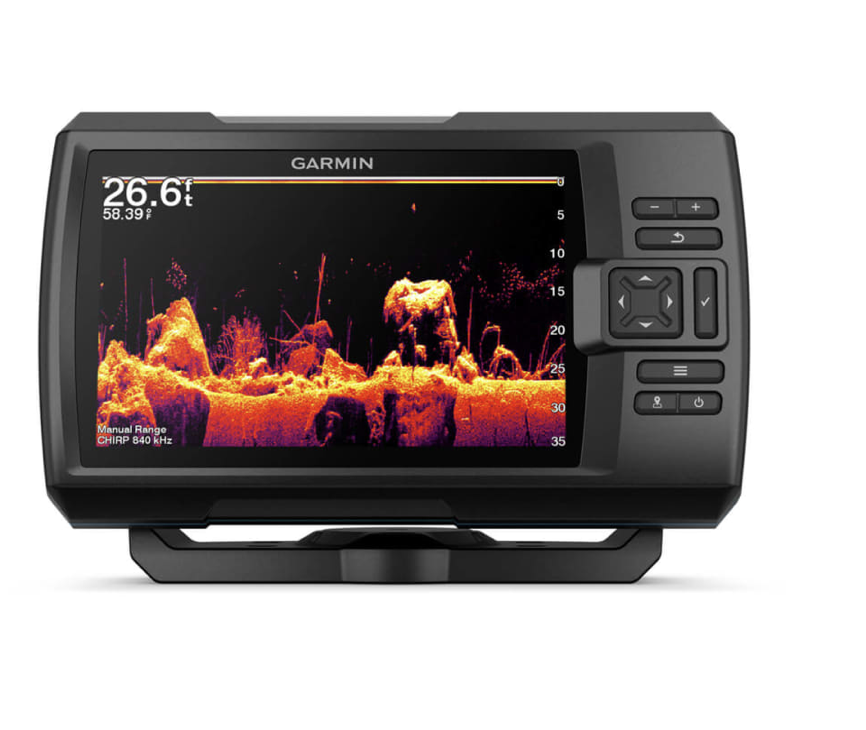

Use the included GT20 transducer to obtain the traditional CHIRP probe and the Garmin CHIRP ClearVü scanning probe.

MARKING OF WAYPOINTS

To catch more fish, you need to know the best locations. Use the waypoint marking to easily find the best fishing points again.

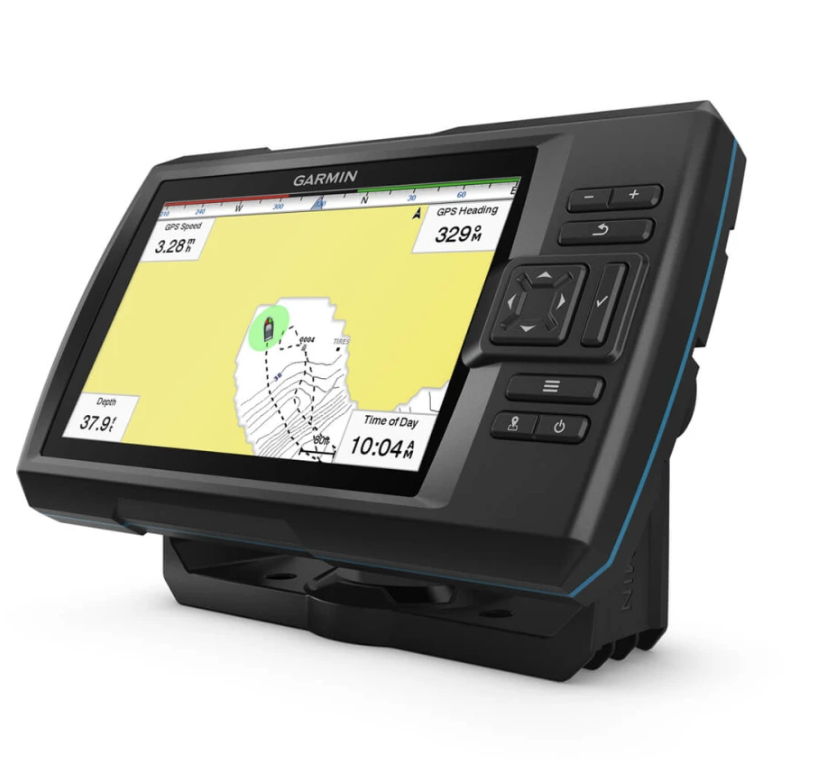

HIGH SENSITIVITY GPS

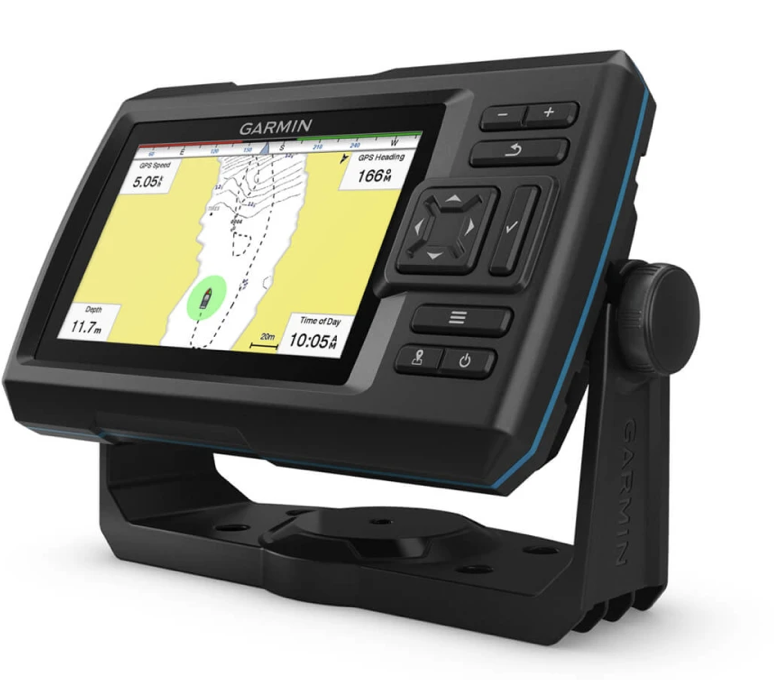

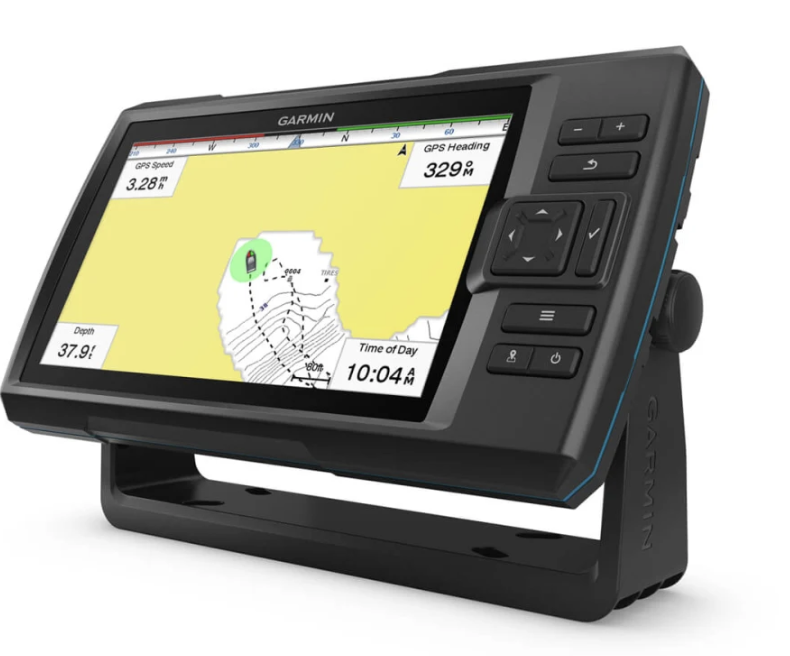

Plan and create routes, and visualize the speed of your boat on the probe using the high-sensitivity GPS.

QUICKDRAW CONTOURS

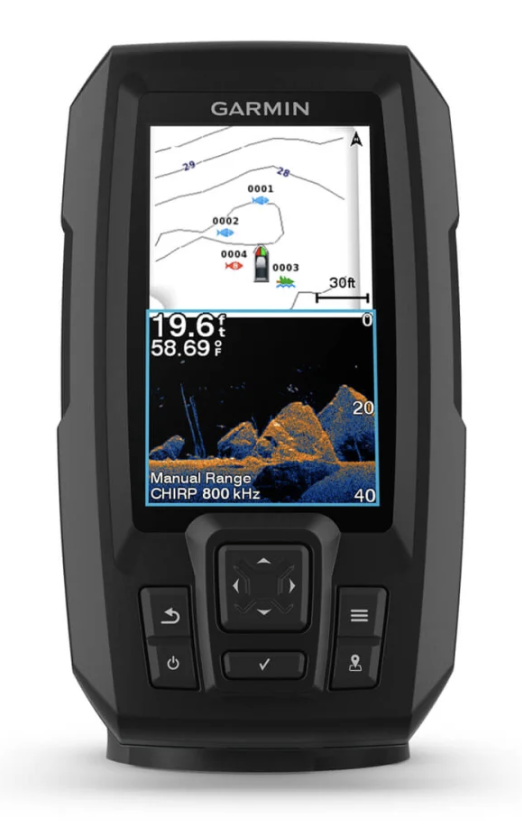

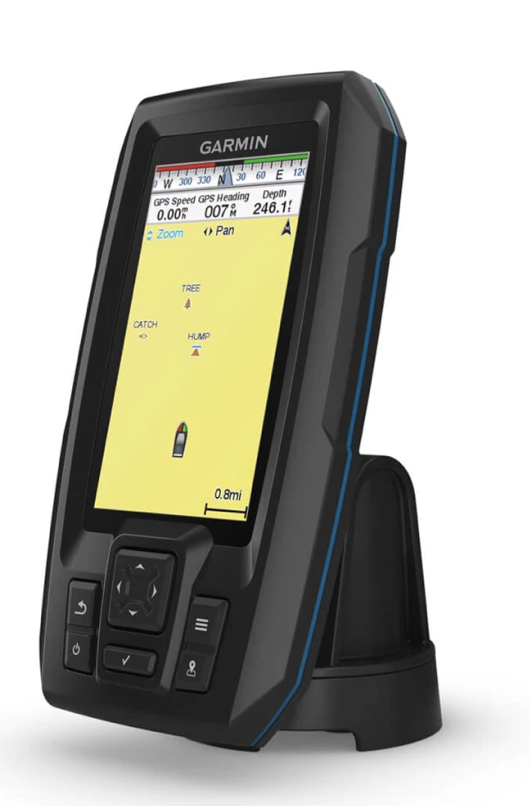

No one knows the waters in which you fish better than you do. With the STRIKER Vivid 4cv probe, you can store up to 8,000 square kilometers of maps with contours of 30 centimeters.

MOUNTING COMPONENTS INCLUDED

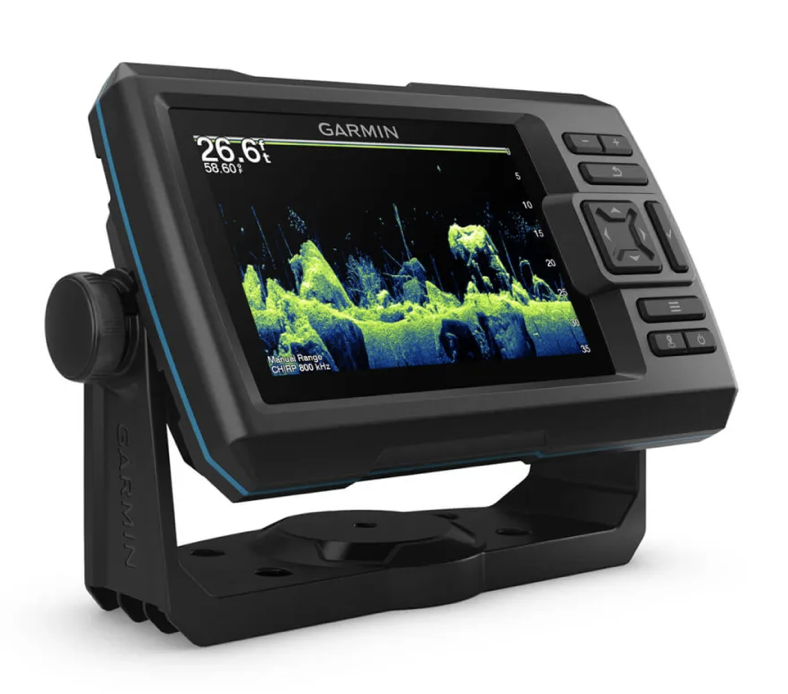

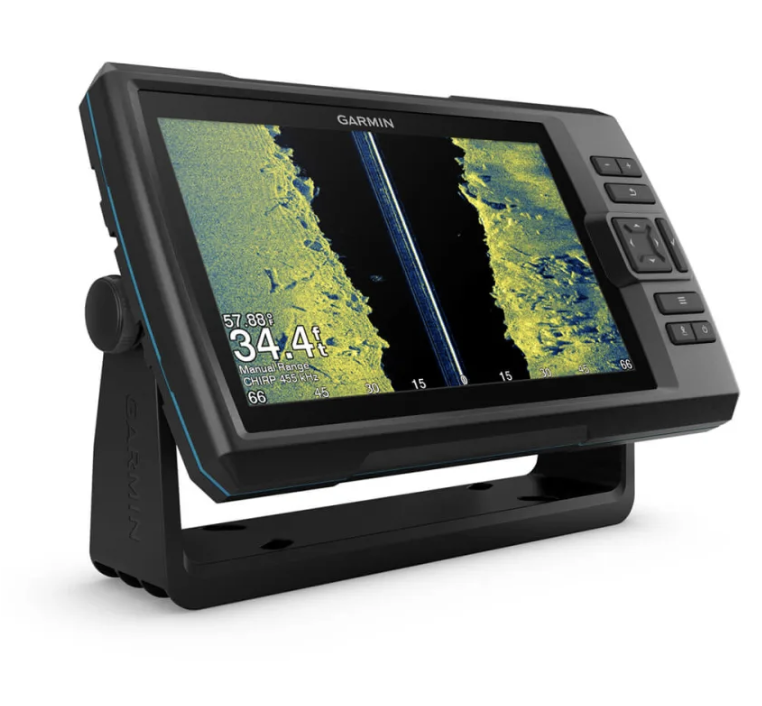

The STRIKER Vivid 4cv probe includes a rotating/tilting support in addition to components and a mounting cable for stern mirror and motor for trolling fishing.

Specifiche:

Caratteristiche fisiche e prestazionali
DIMENSIONI DELL'UNITÀ (LARGHEZZA/ALTEZZA/PROFONDITÀ)	4CV: 9,8 x 17,4 x 4,5 cm (3,9” x 6,9” x 1,8”) 5CV: 18,8 x 11,6 x 5,4 cm (7,4” x 4,5” x 2,1”) 7CV: 9,3” x 5,5” x 2,3” (23,5 x 14,0 x 5,8 cm) 9CV:11,1” x 6,5” x 2,4” (28,2 x 16,5 x 6,0 cm)
PESO	4CV: 0,3 kg (0,7 lb) 5CV: 0,5 kg (1,0 lb) 7CV: 0,8 kg (1,7 lb) 9CV: 1,1 kg (2,4 lb)
CLASSIFICAZIONE DI RESISTENZA ALL'ACQUA	IPX7
TIPO DI SCHERMO	4CV: QSVGA 5CV, 7CV, 9CV: WVGA in color
DIMENSIONI DELLO SCHERMO (LARGHEZZA/ALTEZZA)	4CV: 2.1″ x 3.7″ (5.4 x 9.5 cm); 4.3″ diag, (10.9 cm) 5CV: 2.6″ x 4.3″ (6.5 x 10.8 cm); 5.0″ diag (12.8 cm) 7CV: 3.4″ x 6.1″ (8.6 x 15.4 cm); 7.0″ diag (17.8 cm) 9CV: 4.4″ x 7.8″ (11.2 x 19.8 cm); 9.0″ diag (22.8 cm)
RISOLUZIONE DELLO SCHERMO (LARGHEZZA/ALTO)	4CV: 272 x 480 pixels 5CV: 800 x 480 pixels 7CV: 800 x 480 pixels 9CV: 800 x 480 pixels
ASSEMBLY OPTIONS	flush, tilt/swivel
SCREEN KEYS	With keys

Mappe e memoria
PUNTI DI RAGGIUNGIMENTO	5000
TRACK POINTS	50,000
TRACCE	50
PERCORSI	100

Sensori
GPS	Sì
BUILT-IN RECEIVER	Sì
COMPATIBLE WITH WAAS	Sì

Optional Map Support
GARMIN QUICKDRAW CONTOURS	Sì

Elettrico
FEEDING INPUT	12 to 20 Vdc
TYPICAL CURRENT CONSUMPTION	4CV – 5CV: 0.40 A 7CV: 0.67 A 9CV: 0.75 A
MAXIMUM CURRENT CONSUMPTION	1.5 A
ENERGY CONSUMPTION	4CV: 4.8 5CV: 4.8 7CV: 8.0 9CV: 9.0

Probe Specifications And Functions
SHOW THE PROBE	Sì
TRADITIONAL PROBE (DUAL PROBE/DUAL FREQUENCY)	Built-in
CLEARVÜ	Sì
FREQUENZA	Traditional: 50/77/200 kHz CHIRP (high and medium frequency) ClearVü: 260/455/800 kHz
TRANSMISSION POWER	4CV: 300 W (RMS) 5CV, 7CV, 9CV: 500 W (RMS)
BLOCKING IN THE BACKGROUND (SHOWS THE SIGNALS YOU RETURN FROM THE BACKGROUND TO THE SURFACE)	Sì
GRAPH AND RECORD OF WATER TEMPERATURE	Sì

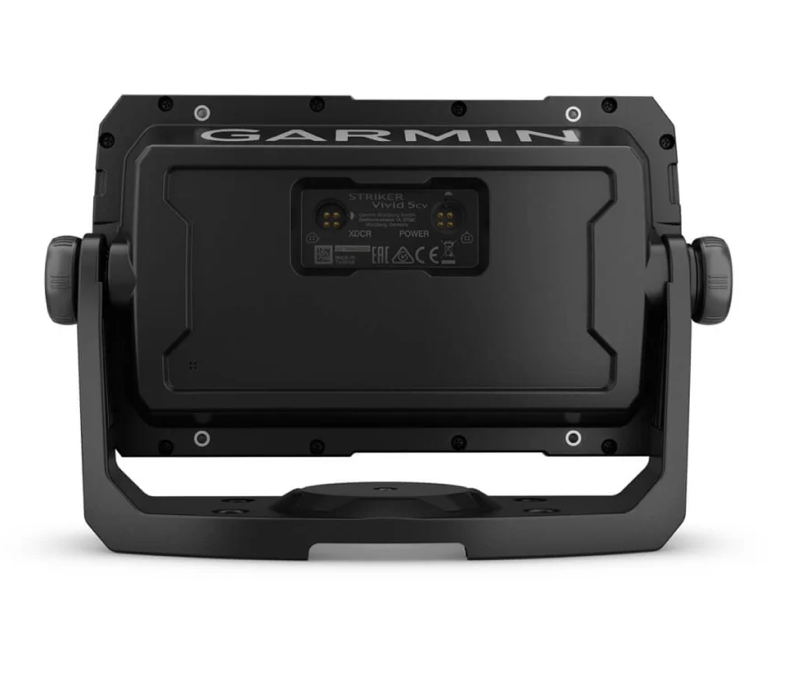

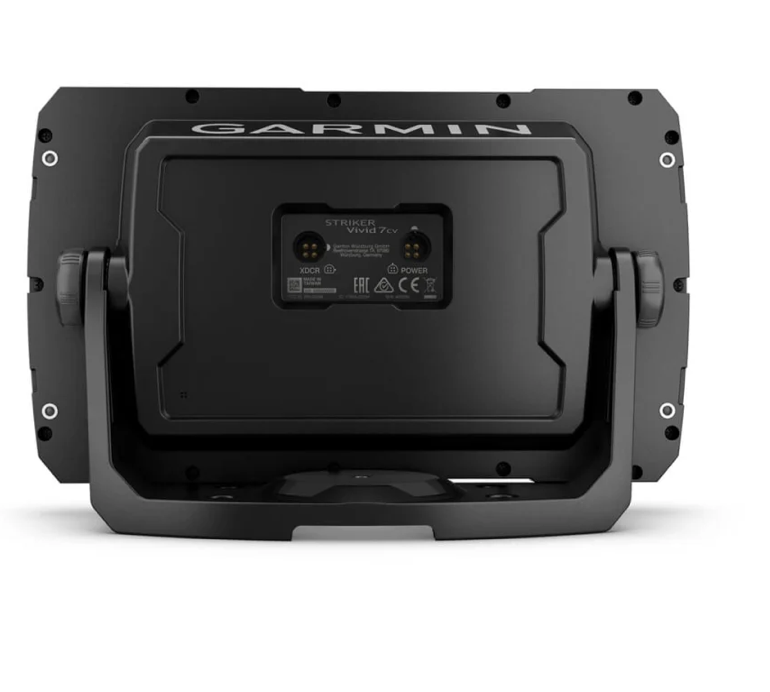

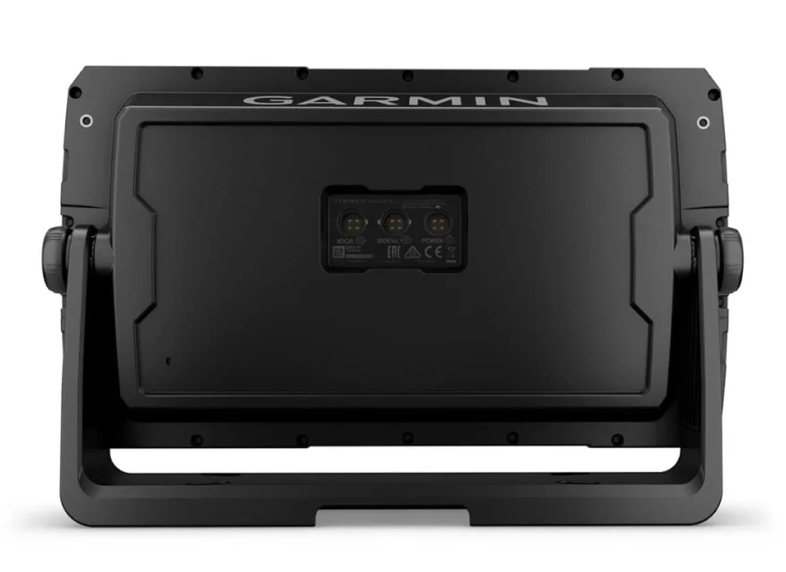

Connections

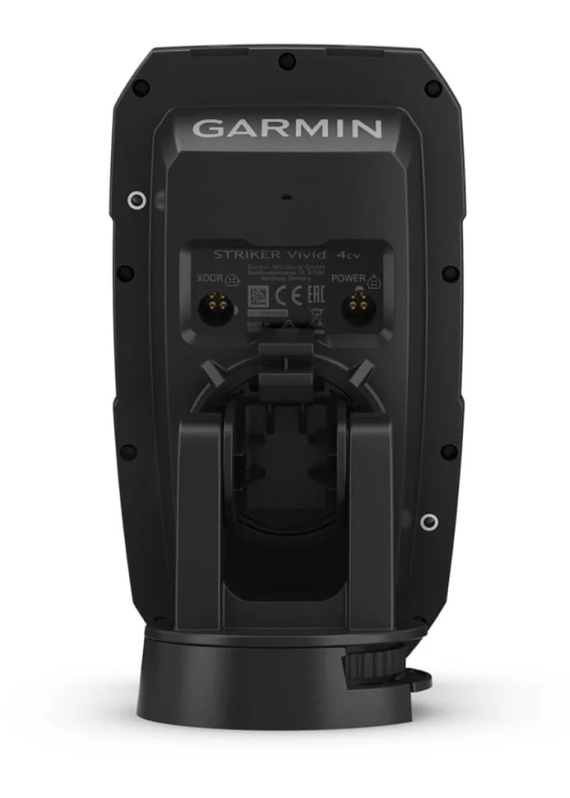

PORTS FOR 4-PIN TRANSDUCER

4CV: 1

CV:1

7CV: 1

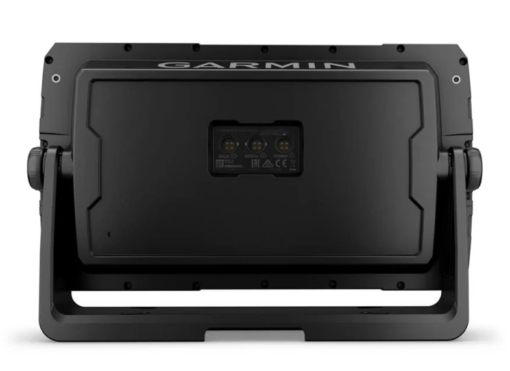

9CV: 2

GARMIN’S WI-FI® NETWORK (LOCAL CONNECTION)

4CV: No

5CV: No

7CV: Yes

9CV: Yes

Functions Of Fishfinder
SPLIT-SCREEN ZOOM	Sì
FISH SYMBOL (HELPS TO IDENTIFY FISH)	Sì
AUTOMATIC GAIN TECHNOLOGY (ALLOWS YOU TO OBTAIN DETAILED IMAGES OF STRUCTURES AND DENSITIES OF THE BACKGROUND)	Sì
ADJUSTABLE DEPTH LINE (MEASURES THE DEPTH OF OBJECTS UNDERWATER)	Sì
A-SCOPE (SHOWS IN REAL TIME THE FISH THAT PASS THROUGH THE BEAM TRANSDUCER)	Sì
TEMPERATURE SENSOR INCLUDED	Sì
CUSTOMIZED DEPTH SCALE	Sì

Additional

ADDITIONAL FEATURES

4CV:

A port for a 4-pin transducer
Contornos de dibujo rápido
GPS Integrated
Marking waypoints
GPS Direction (COG)
Current consumption at 12 V: 0.40 A

5CV:

A port for a 4-pin transducer
Quickdraw Contours
Integrated GPS
Marking waypoints
GPS Direction (COG)
Current consumption at 12 V: 0.40 A

7CV:

A port for a 4-pin transducer

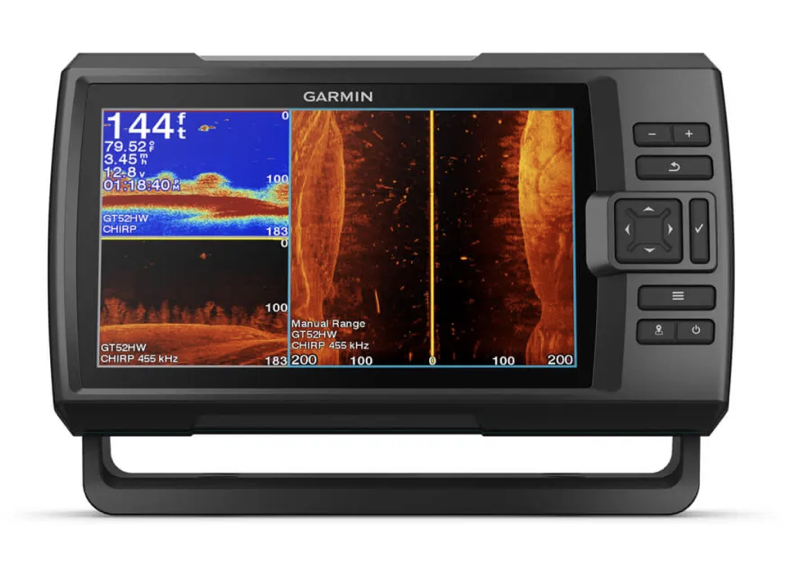

A port for 4-pin SideVü transducer
Wireless connectivity: yes
Quickdraw Contours
Integrated GPS
Marking waypoints
GPS Direction (COG)
12 V current consumption: 0.67 A

9CV:

A port for a 4-pin transducer
A port for 4-pin SideVü transducer
Wireless connectivity: yes
Quickdraw Contours
Integrated GPS
Marking waypoints
GPS Direction (COG)
Current consumption at 12 V: 0.75 A

Ulteriori informazioni

Dimensioni dello schermo	4", 5", 7", 9"
Includes transducer	Yes, No
Type of probe	CLEARVÜ AND TRADITIONAL CHIRP, SIDEVÜ, CLEARVÜ AND TRADITIONAL CHIRP
Marchio	Garmin
