JL Audio
JL Audio
- Prezzo regolare
- €699,97
- Prezzo di vendita
- €699,97
- Prezzo regolare
- €786,49
B2B and VAT Deduction
If you are a business deducting VAT in the European Union, register here and enter your VAT Id before purchase to deduct it on checkout.
If you are a professional in the marine sector and want to explore a partnership contact us.
SKU:010-03093-00
Impossibile caricare la disponibilità del ritiro
Description

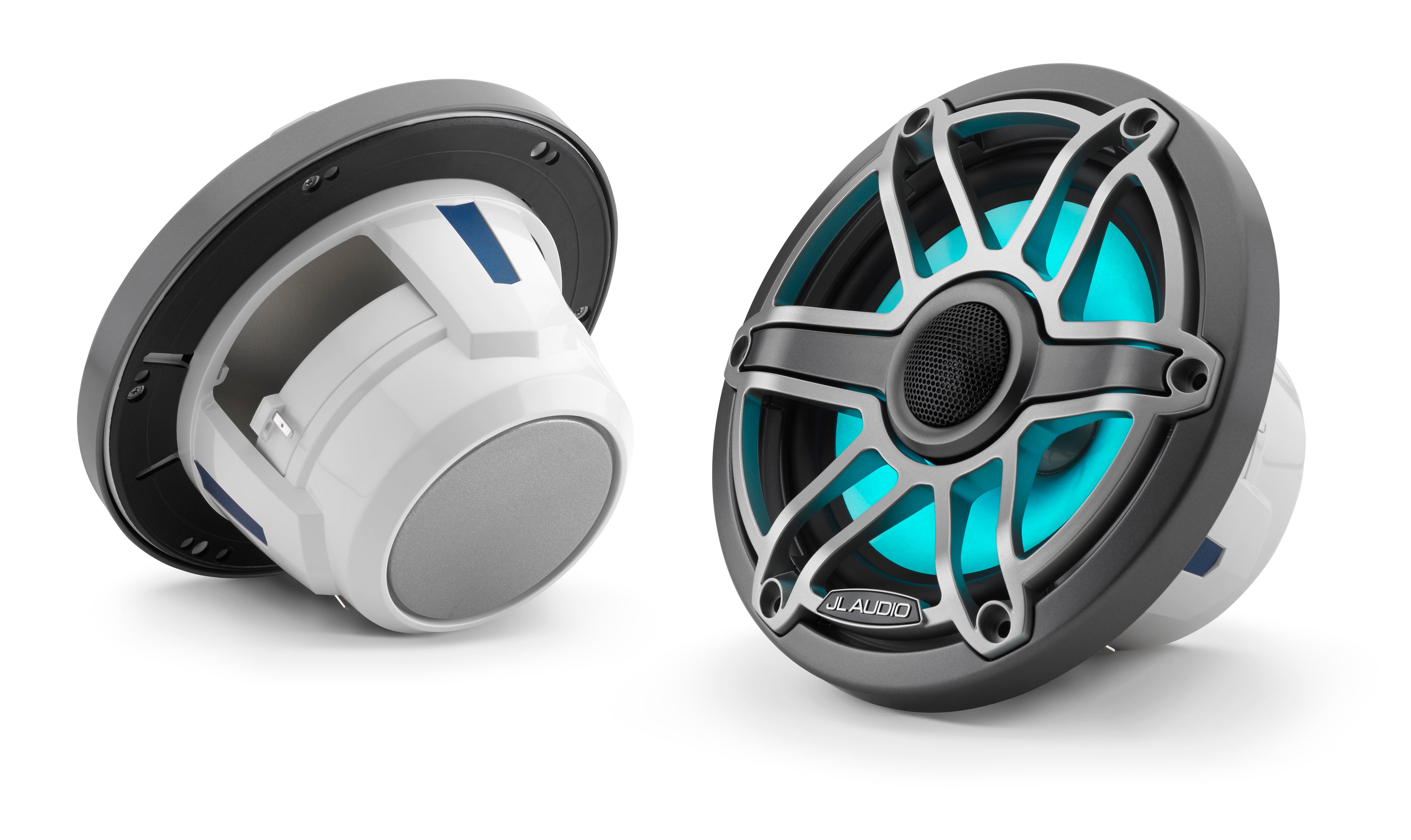

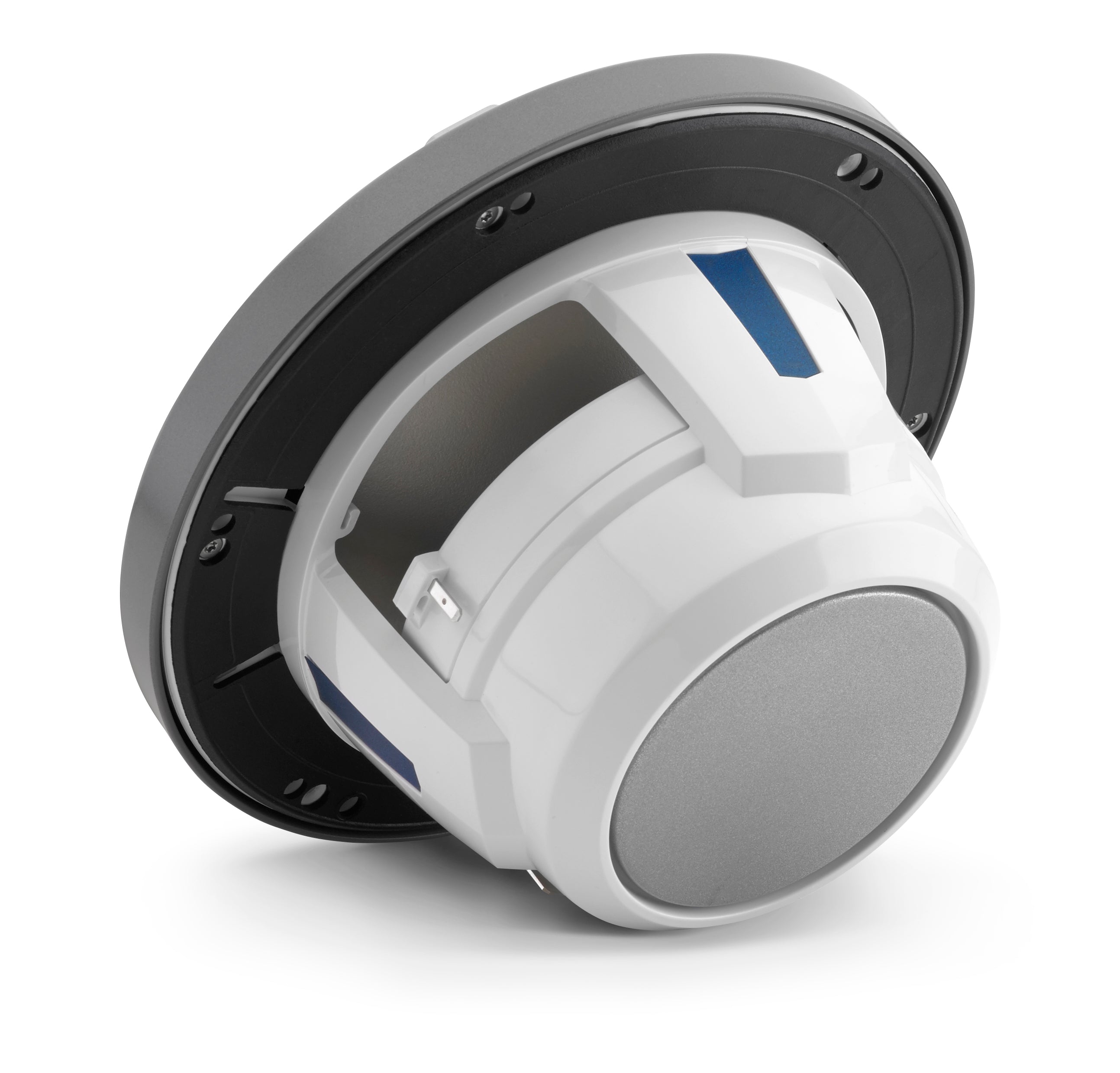

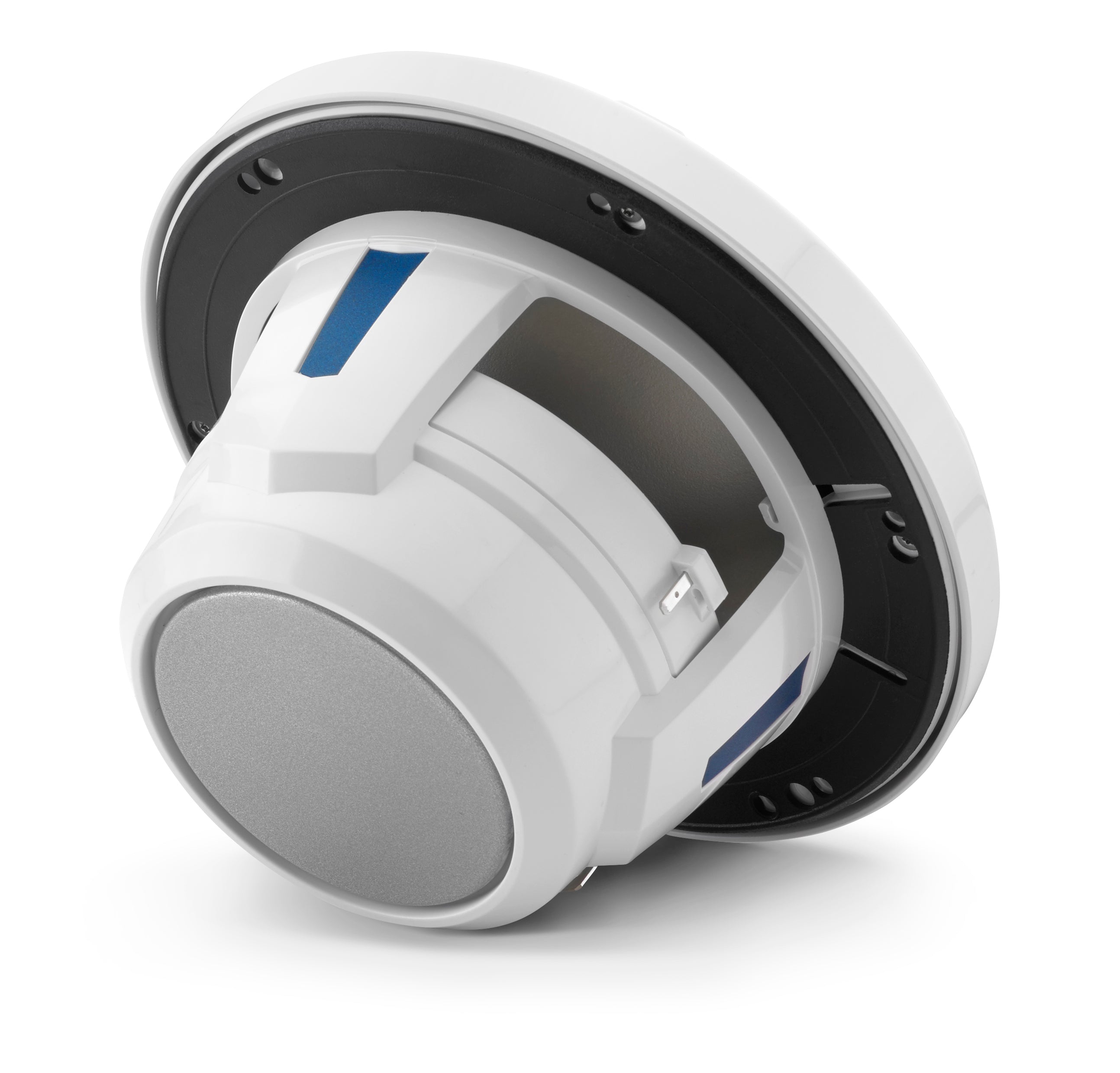

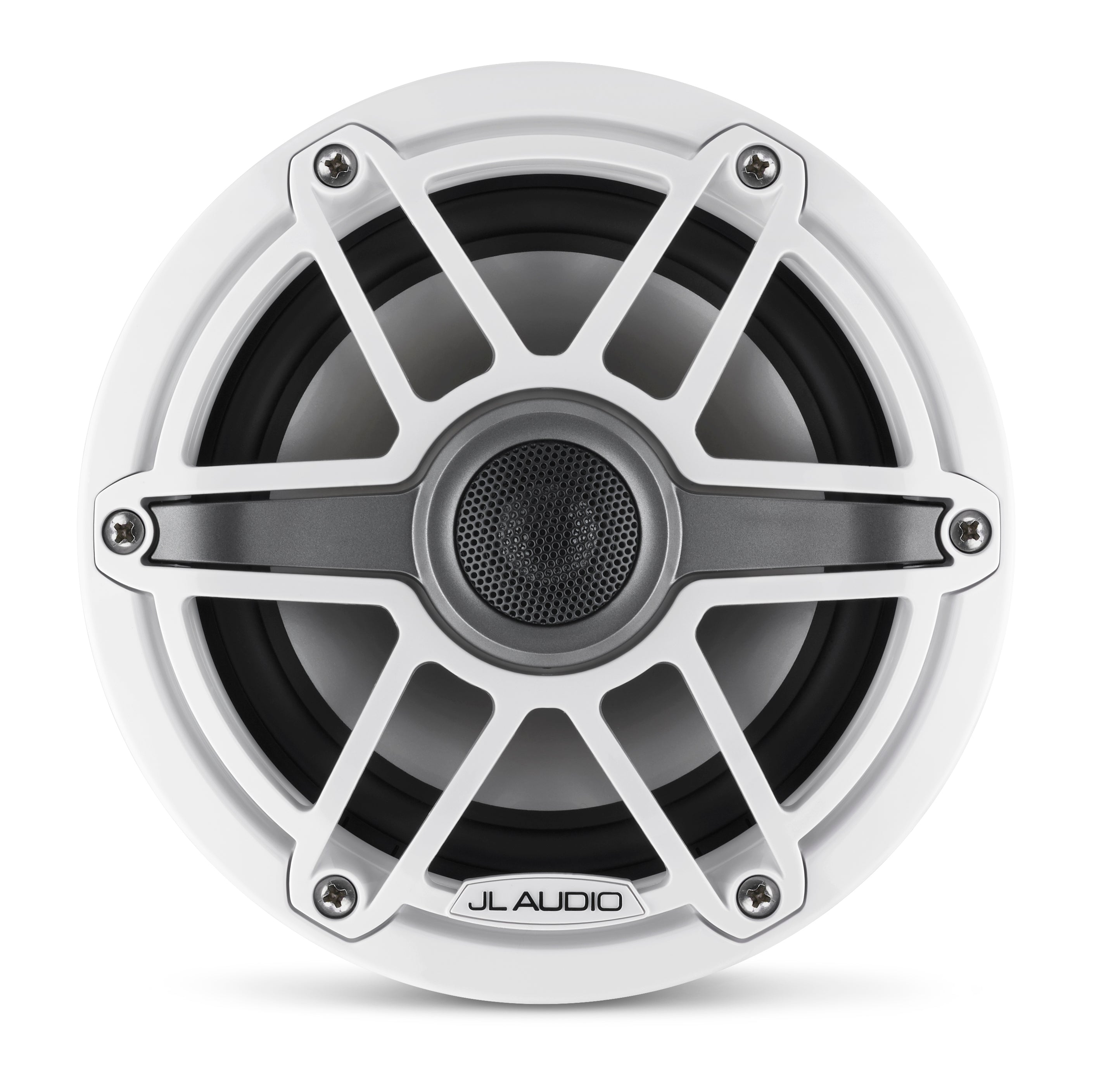

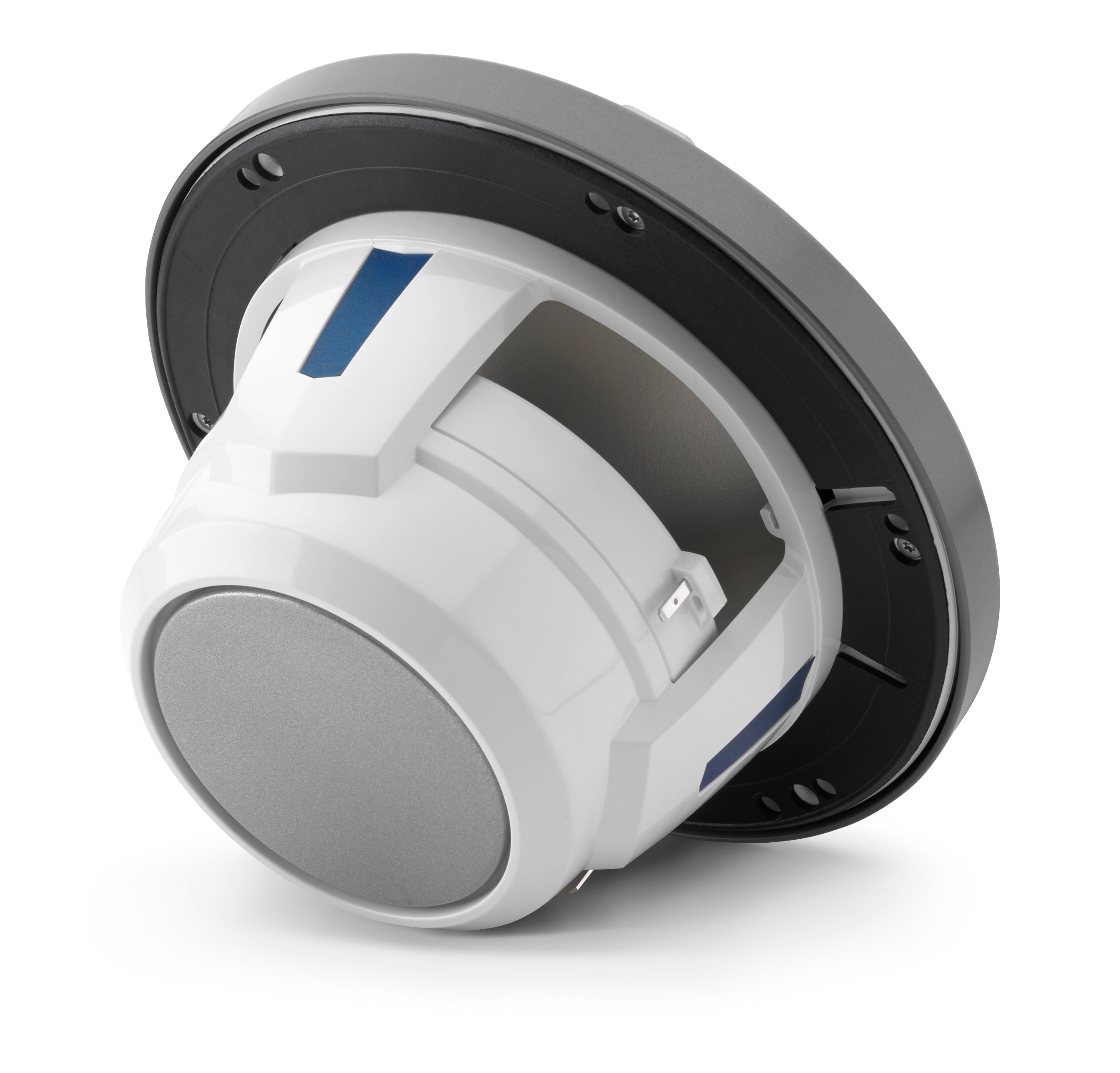

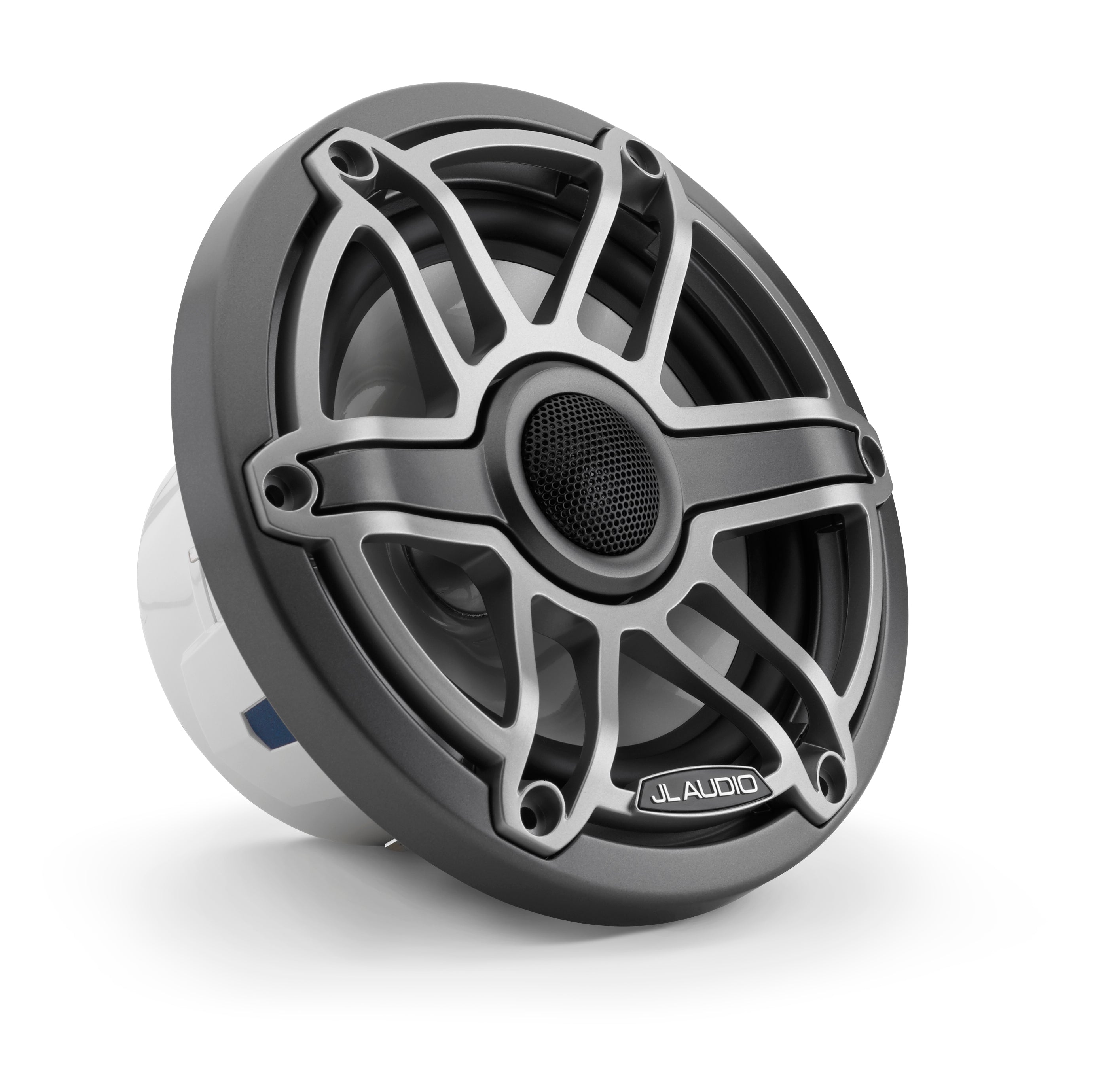

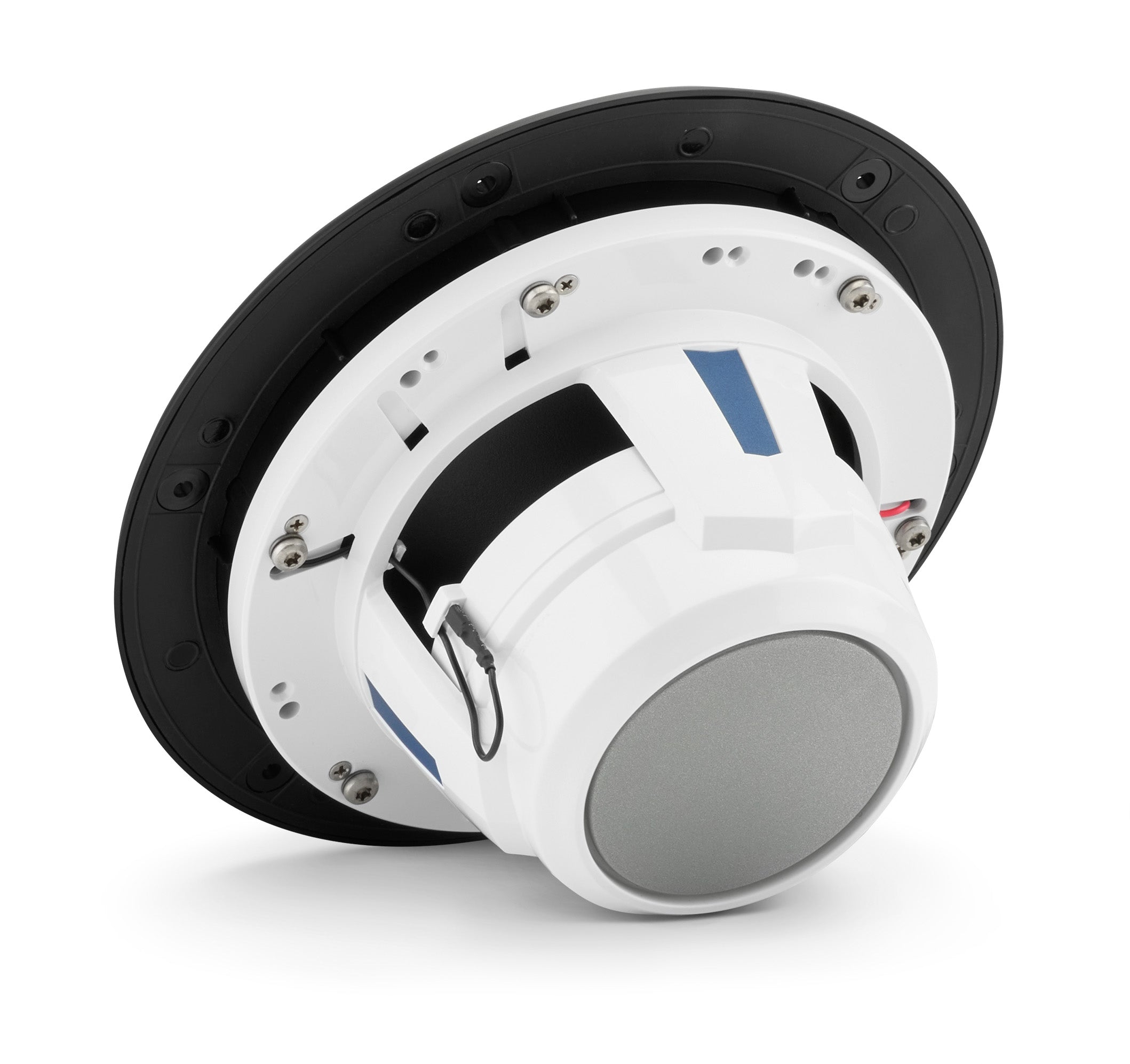

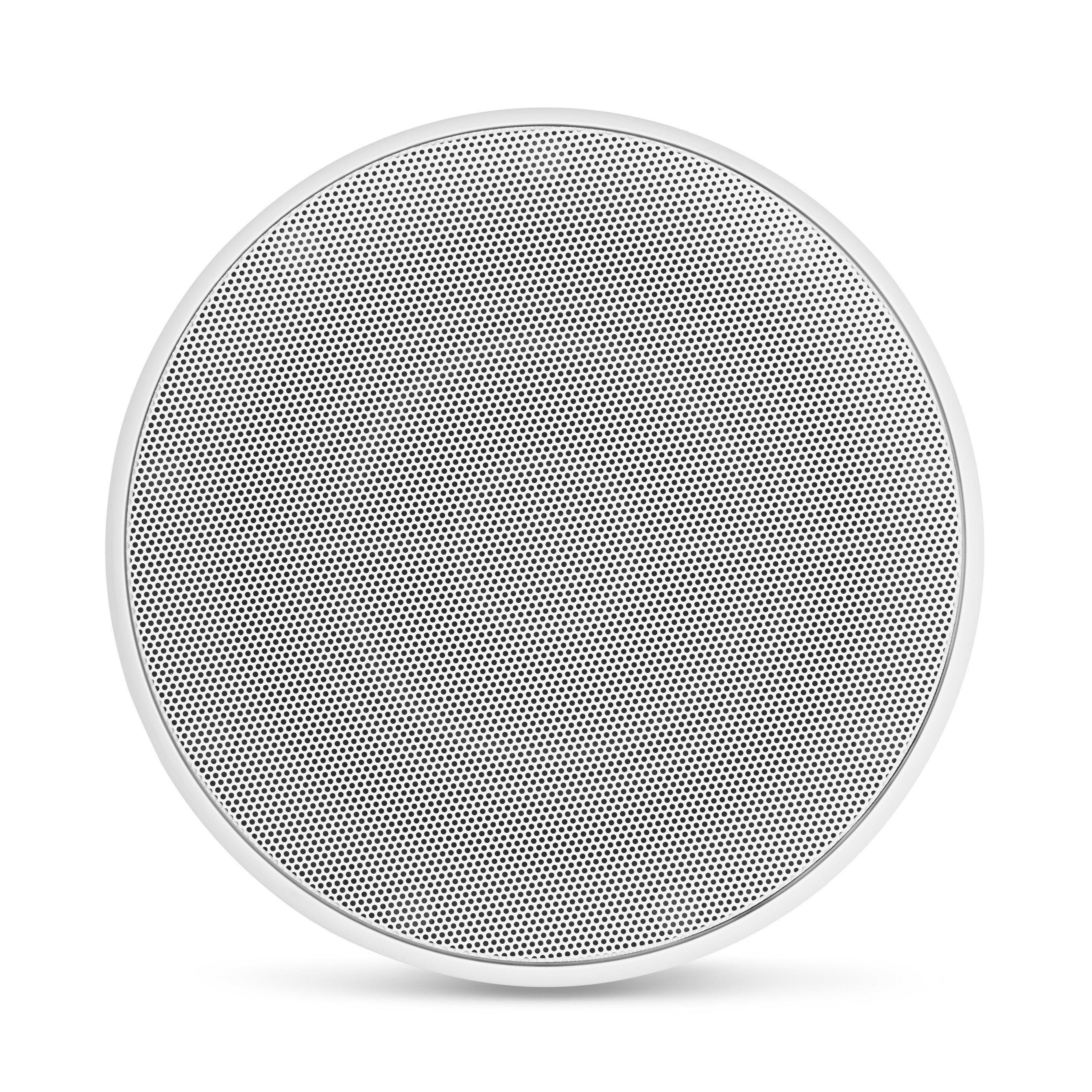

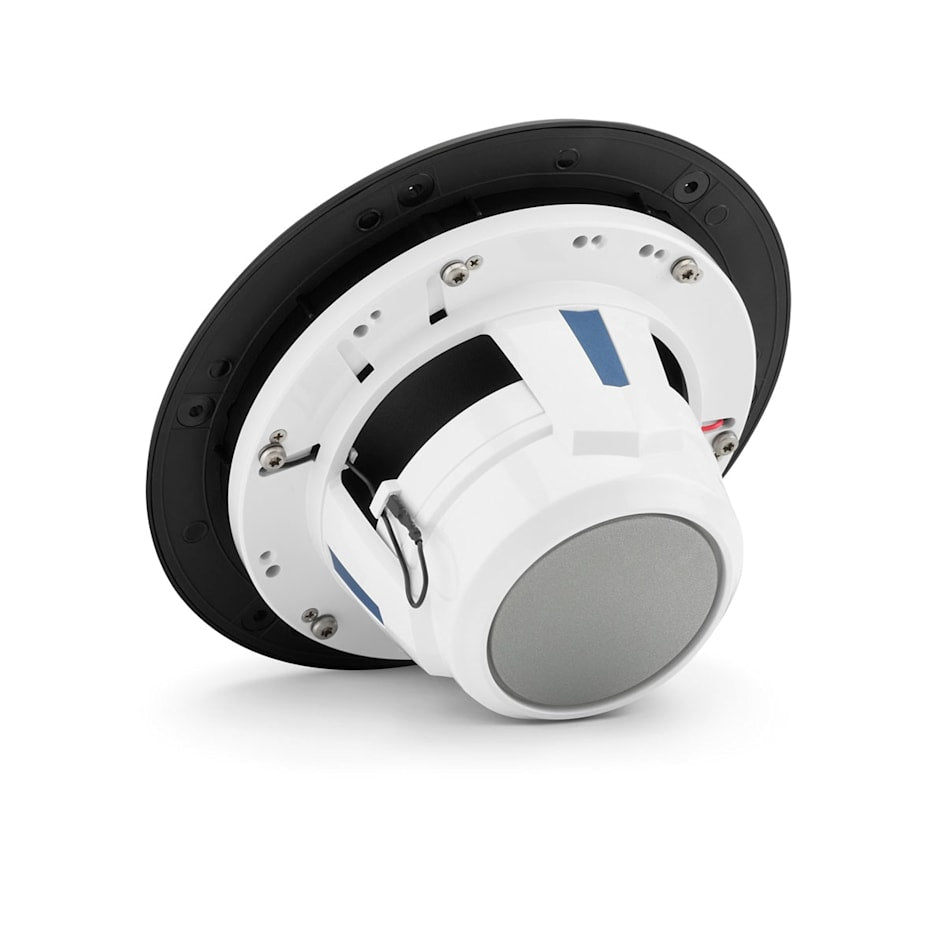

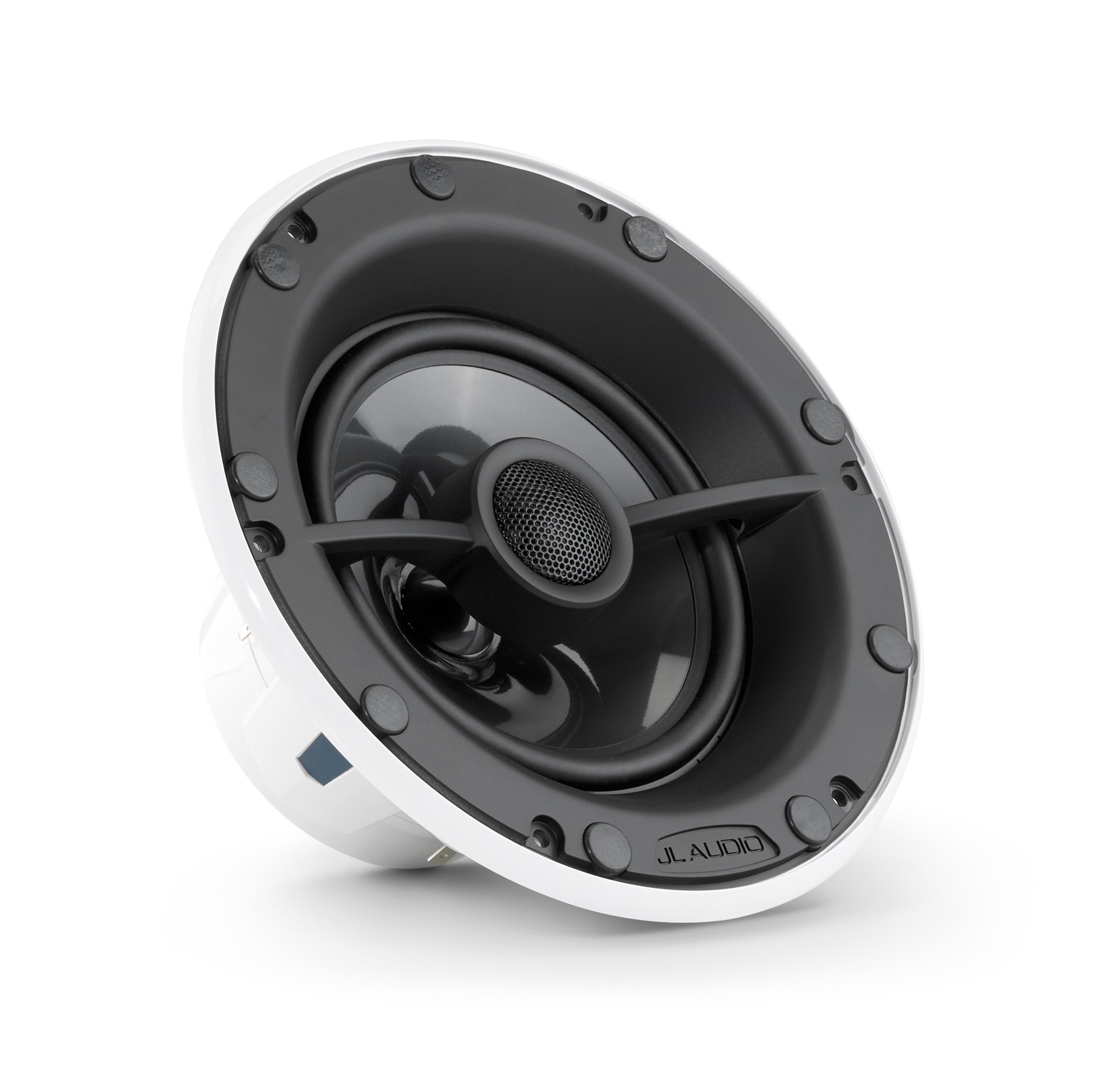

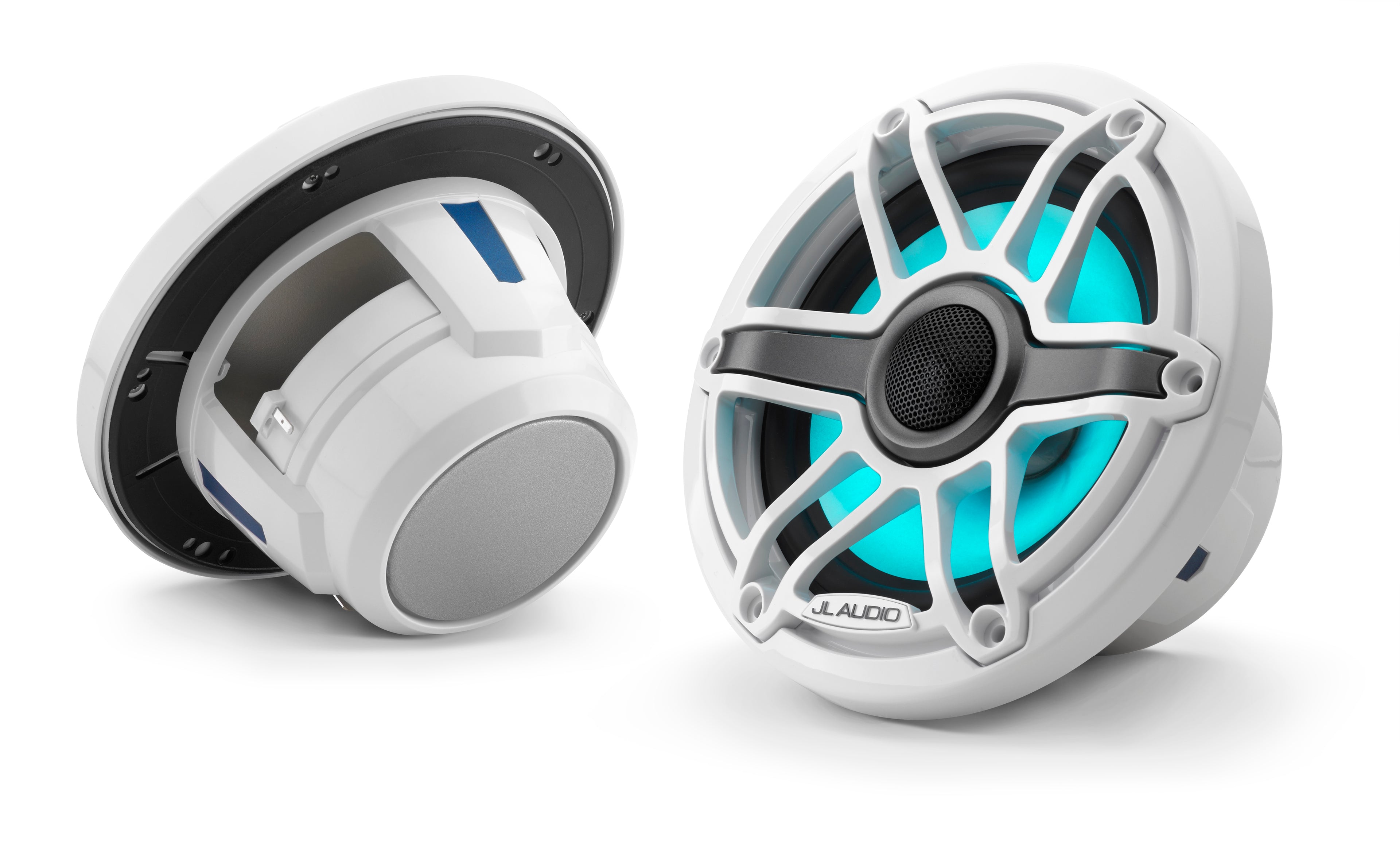

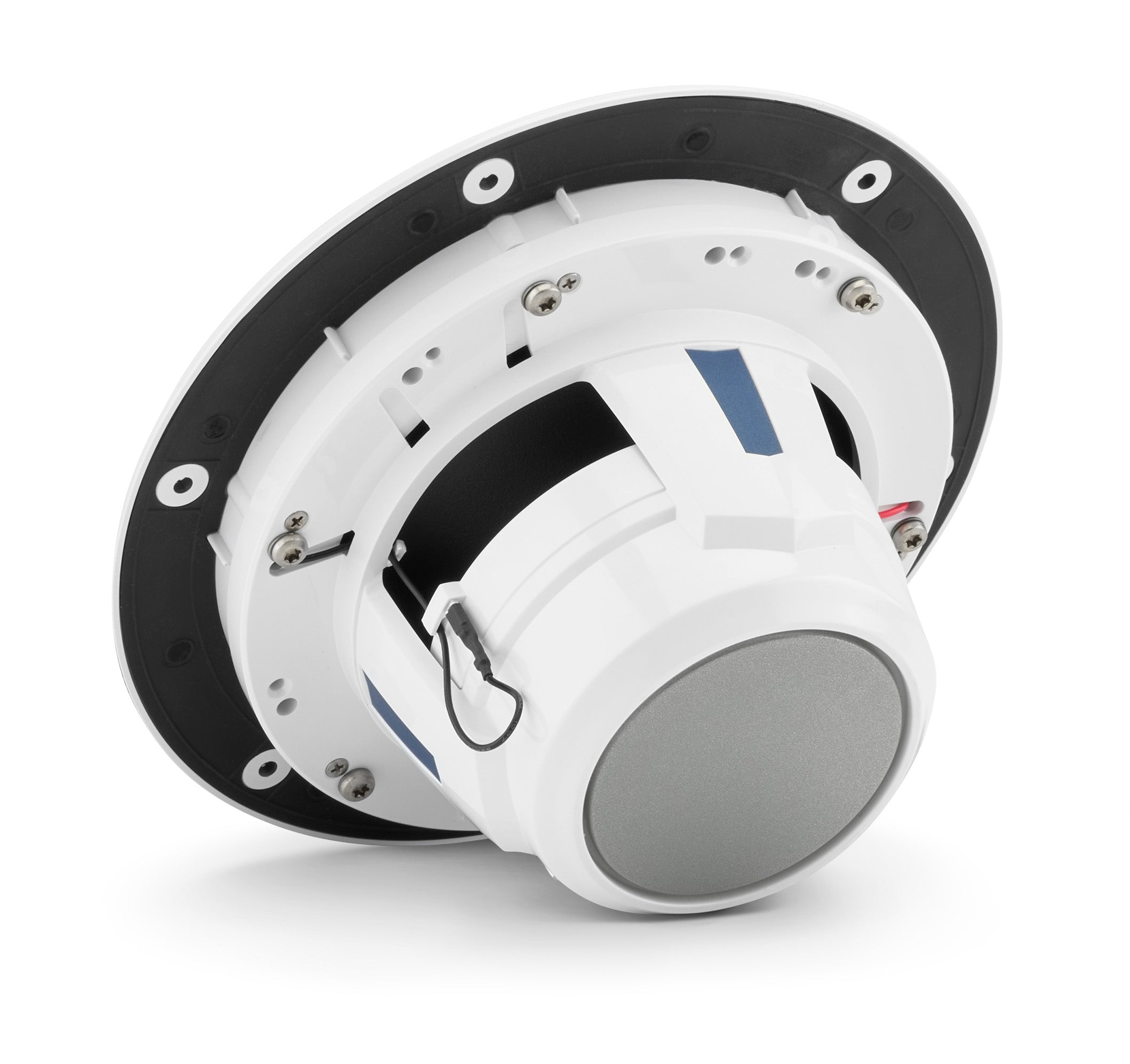

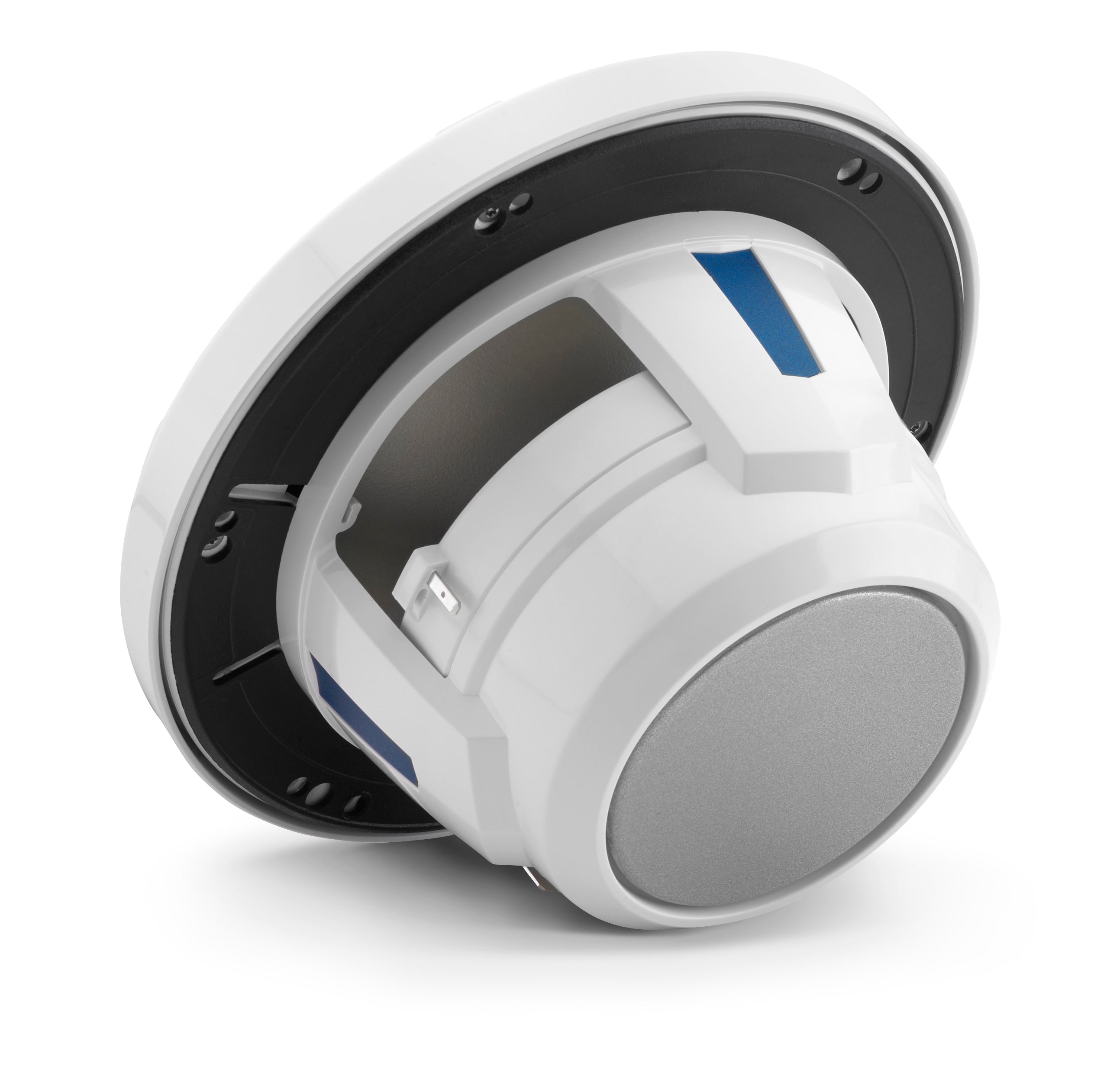

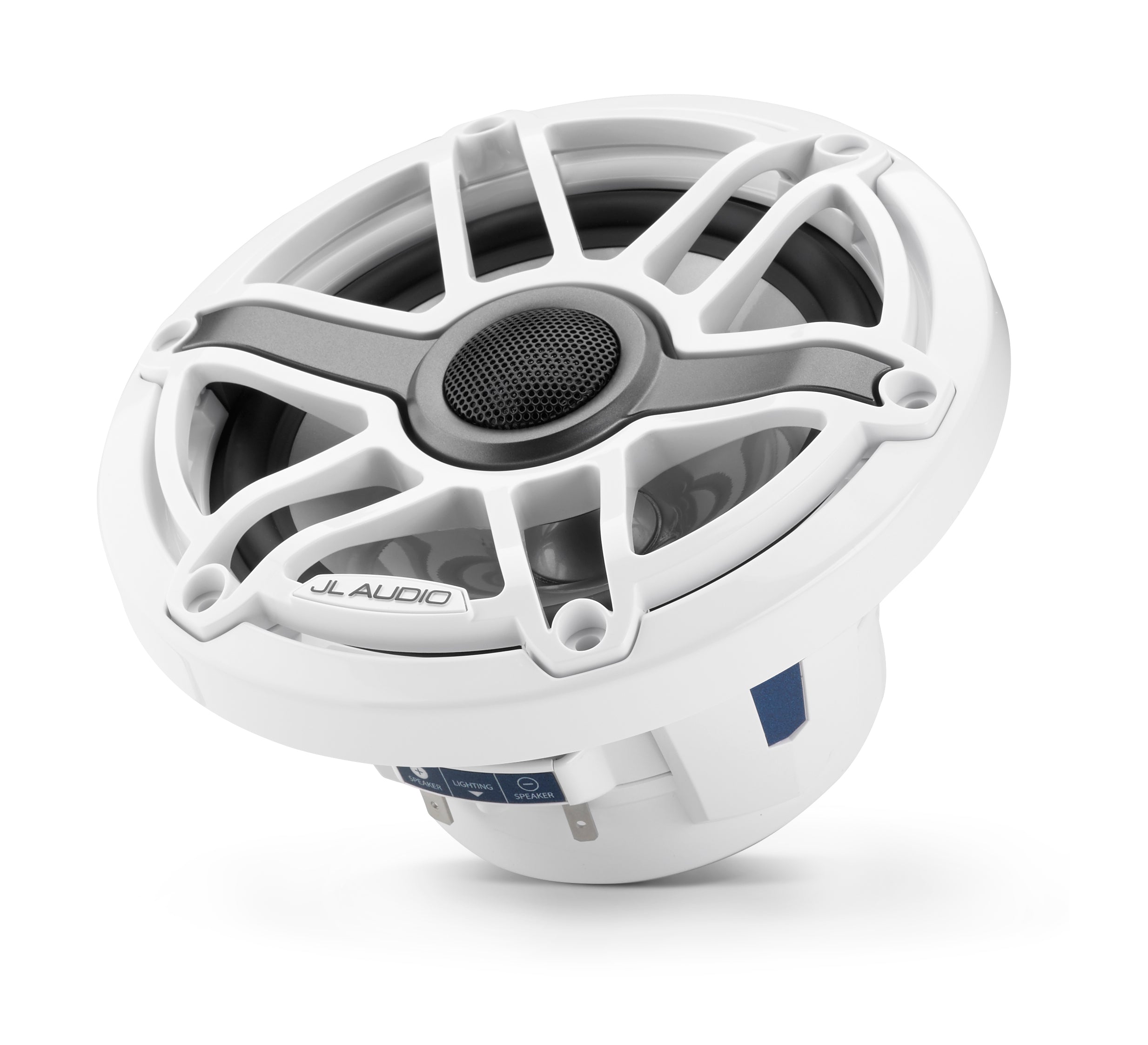

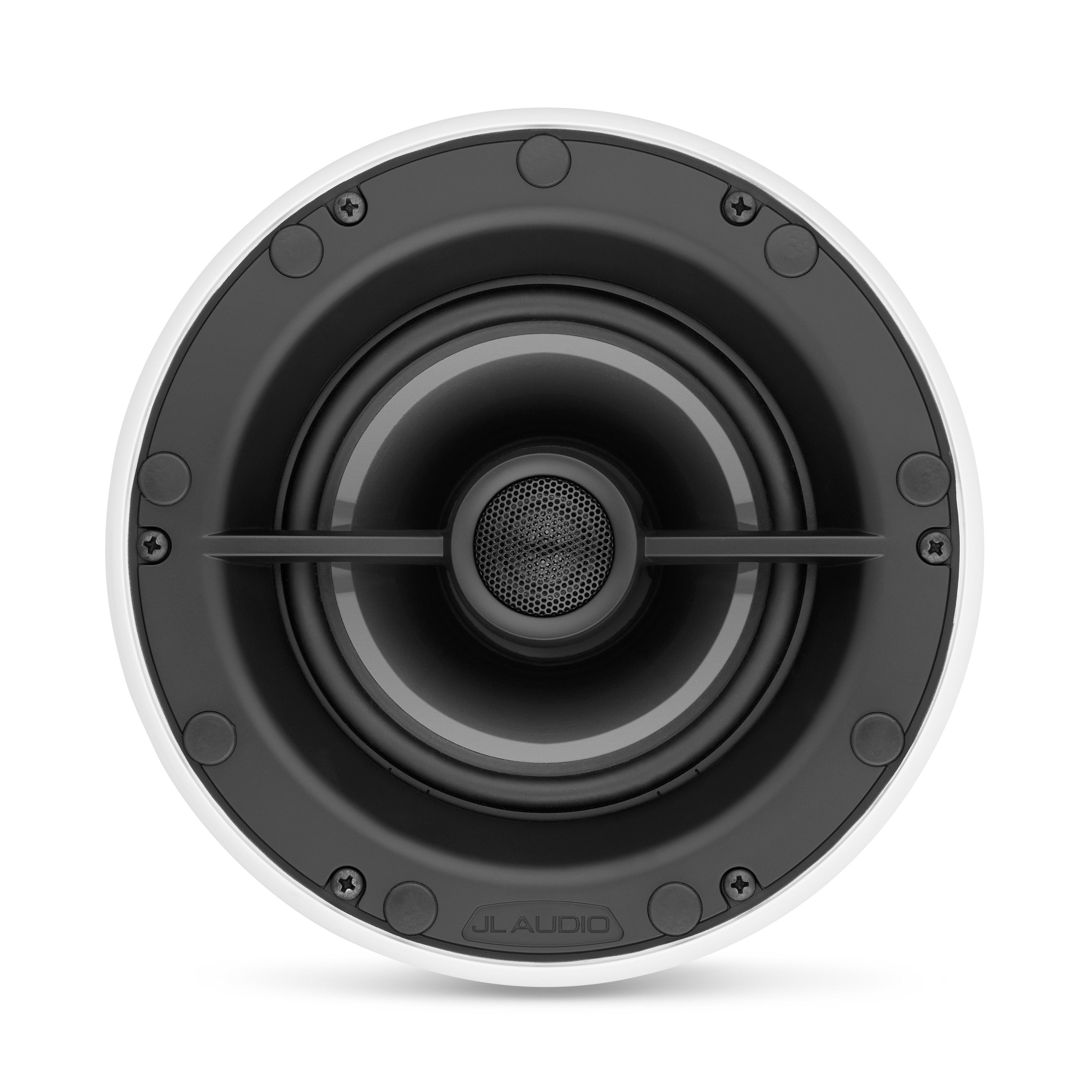

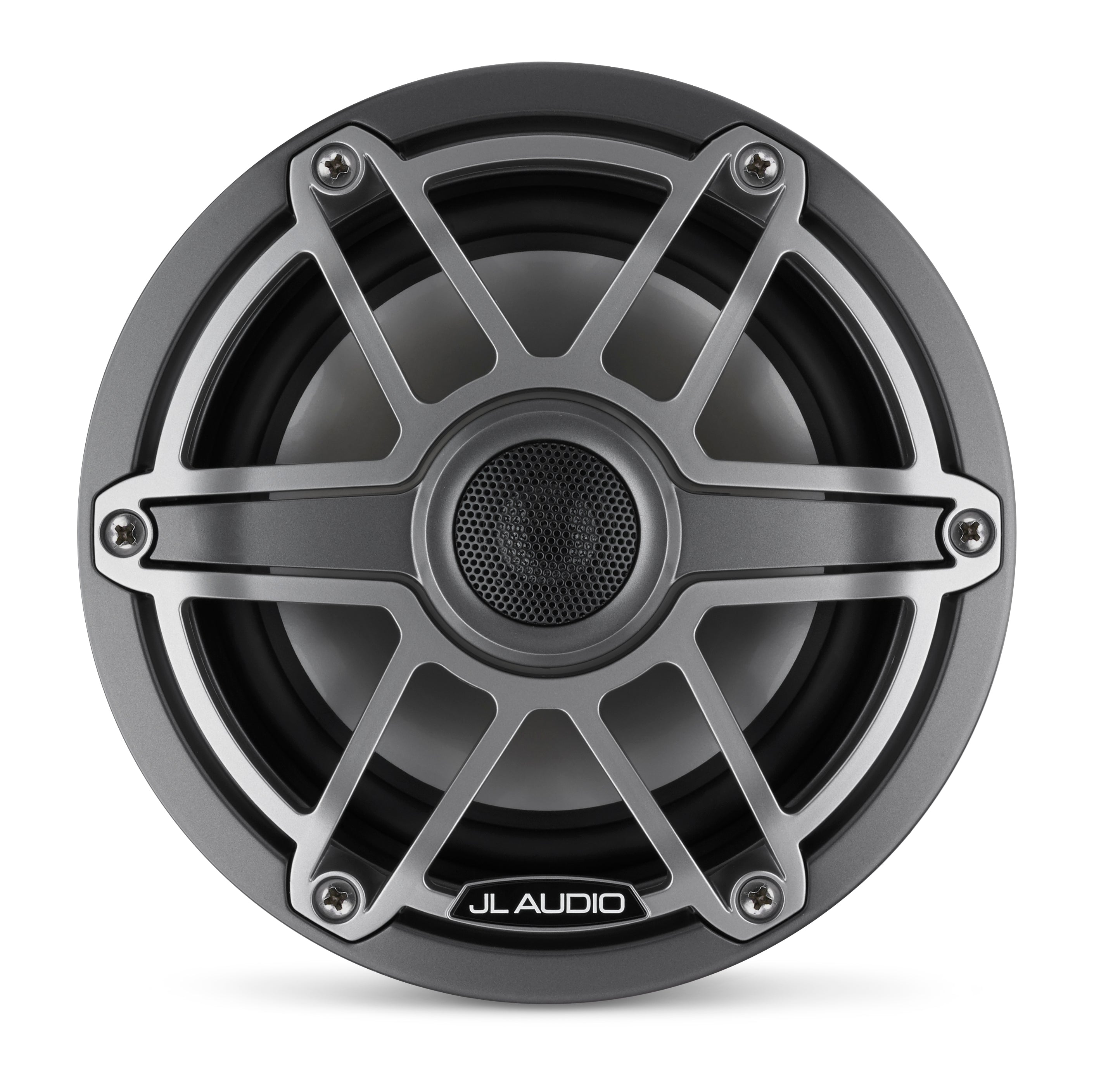

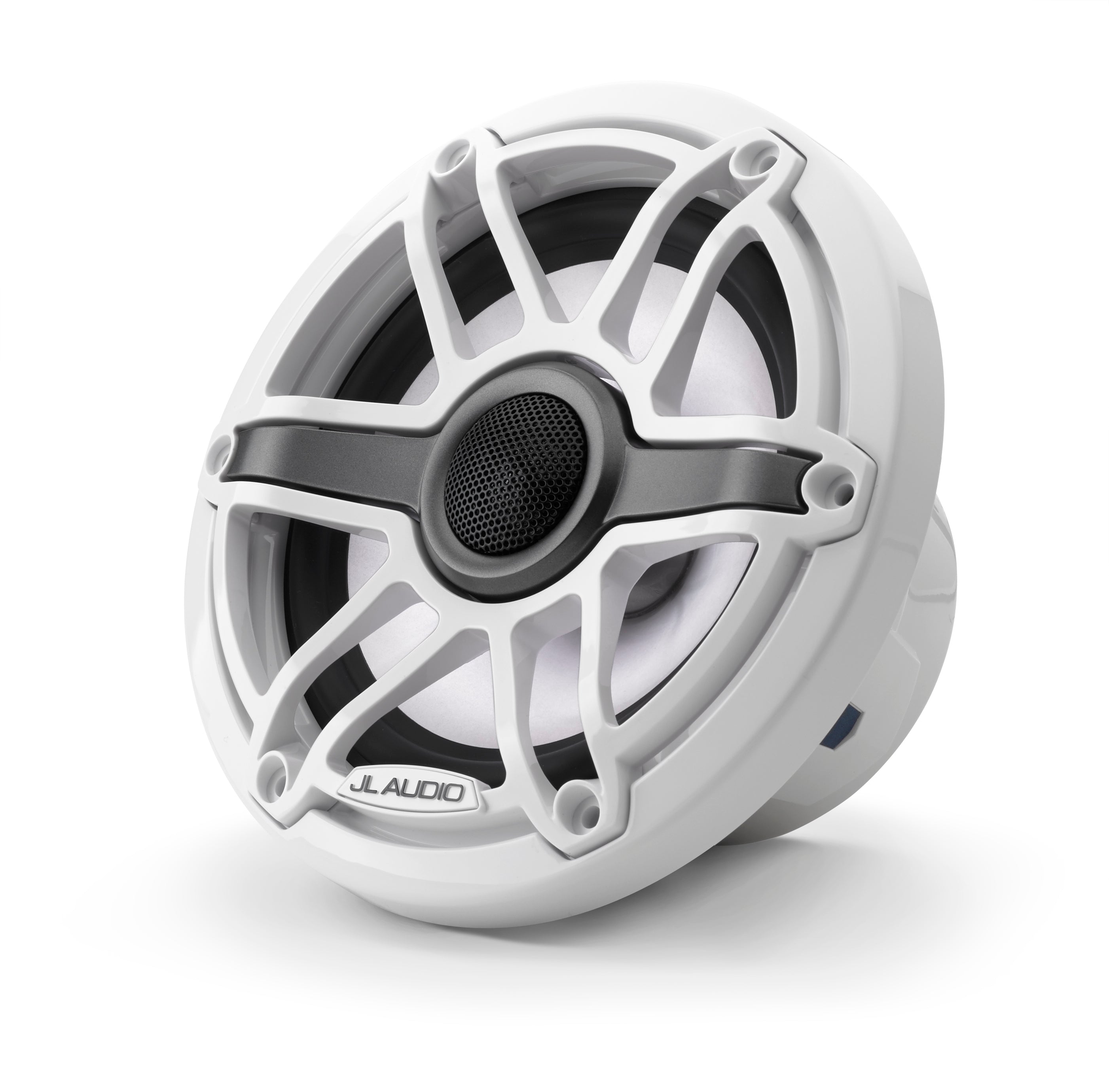

Dotati di un woofer a lunga escursione abbinato a un tweeter sospeso, gli altoparlanti marini M6 sono progettati per offrire una risposta in frequenza senza pari e prestazioni lineari a tutti i livelli di ascolto.
Caratteristiche
- Output superiore e dettaglio a tutti i livelli di ascolto

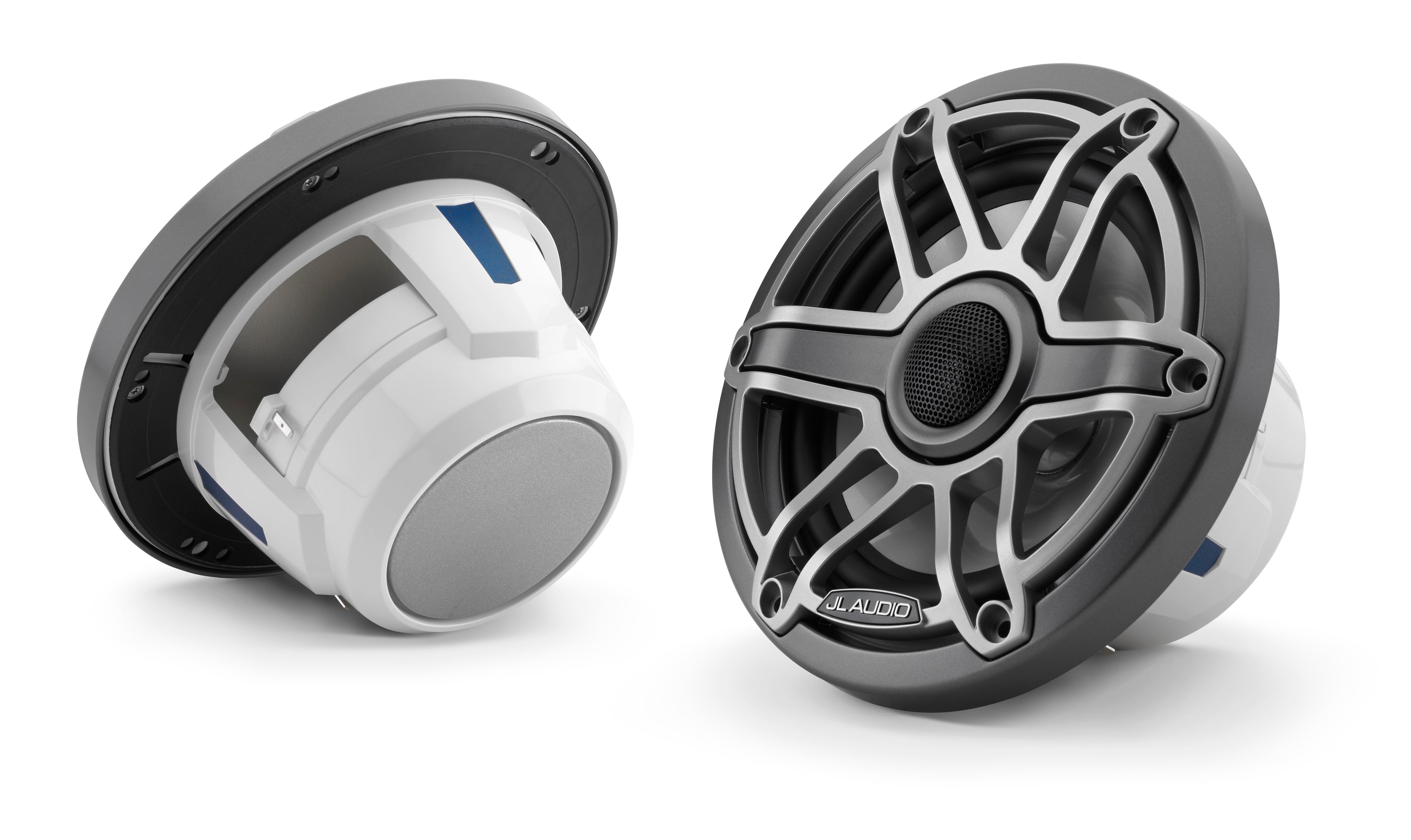

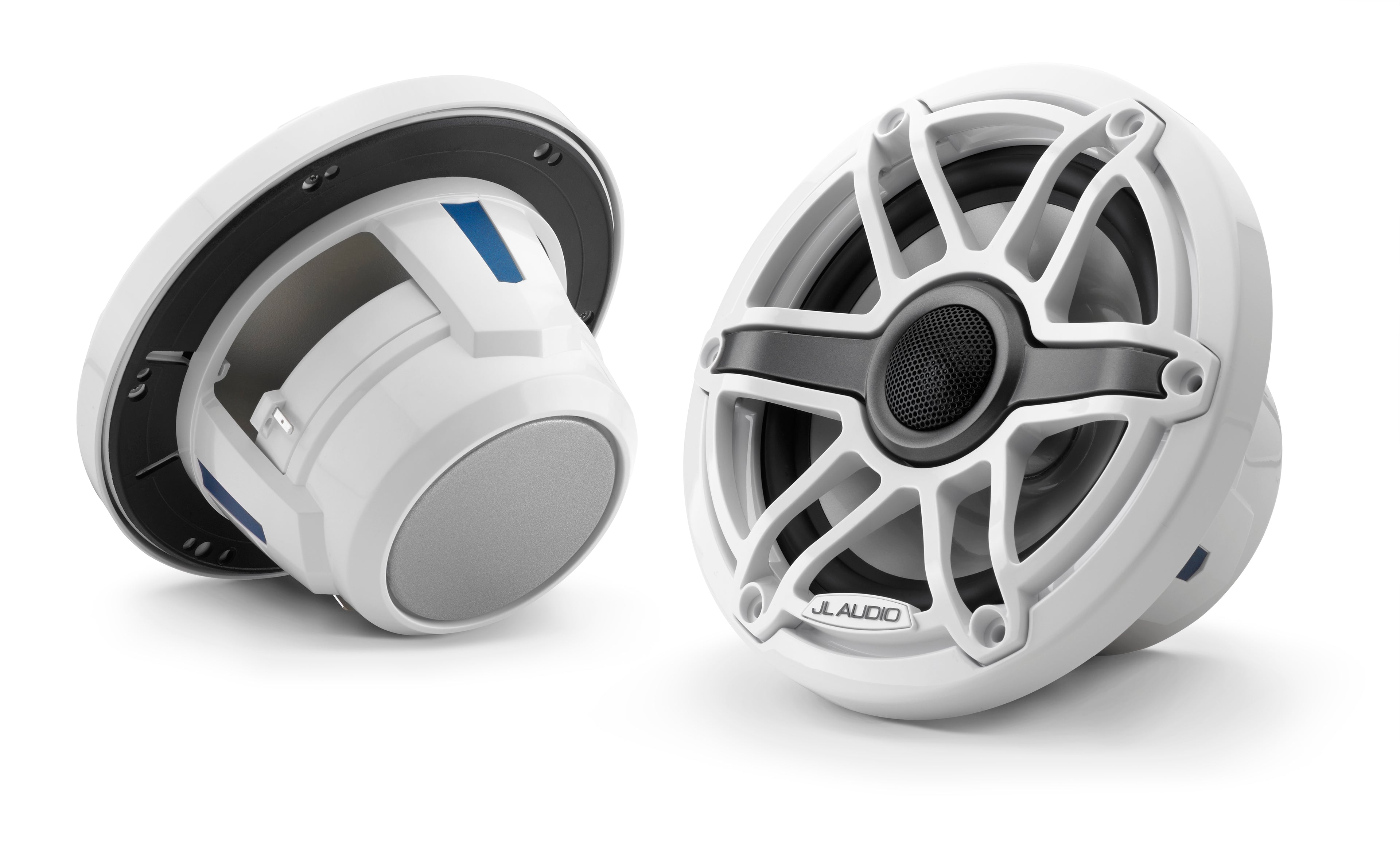

- Disponibili in 3 DIMENSIONI e 7 FINITURE per adattarsi al tuo stile
- Griglia e anello di finitura facilmente rimovibili per la verniciatura

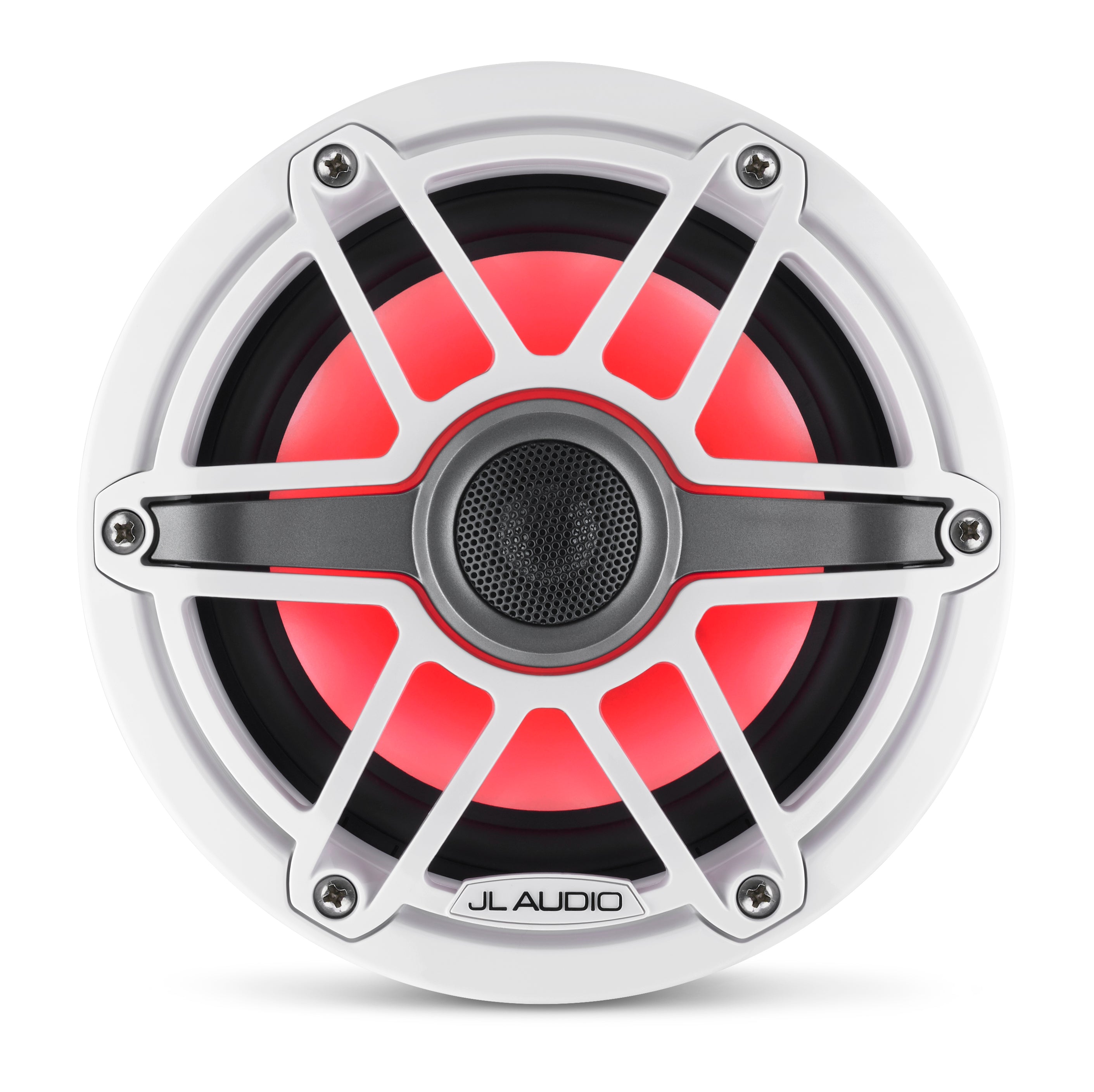

- Modelli disponibili con illuminazione led brevettata
- Supera gli standard internazionali per esposizione a nebbia salina e raggi UV
- Garanzia di 3 ANNI

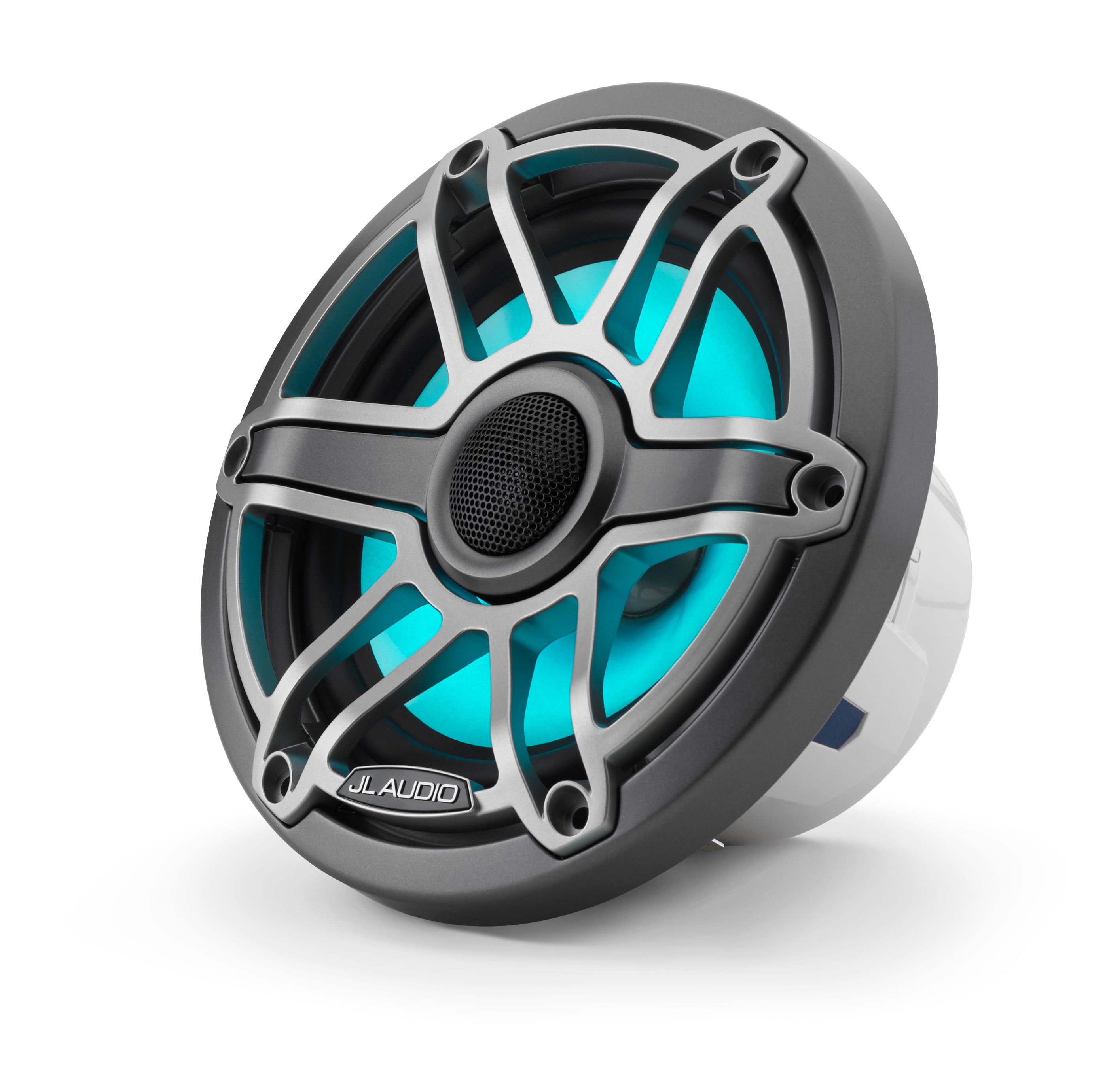

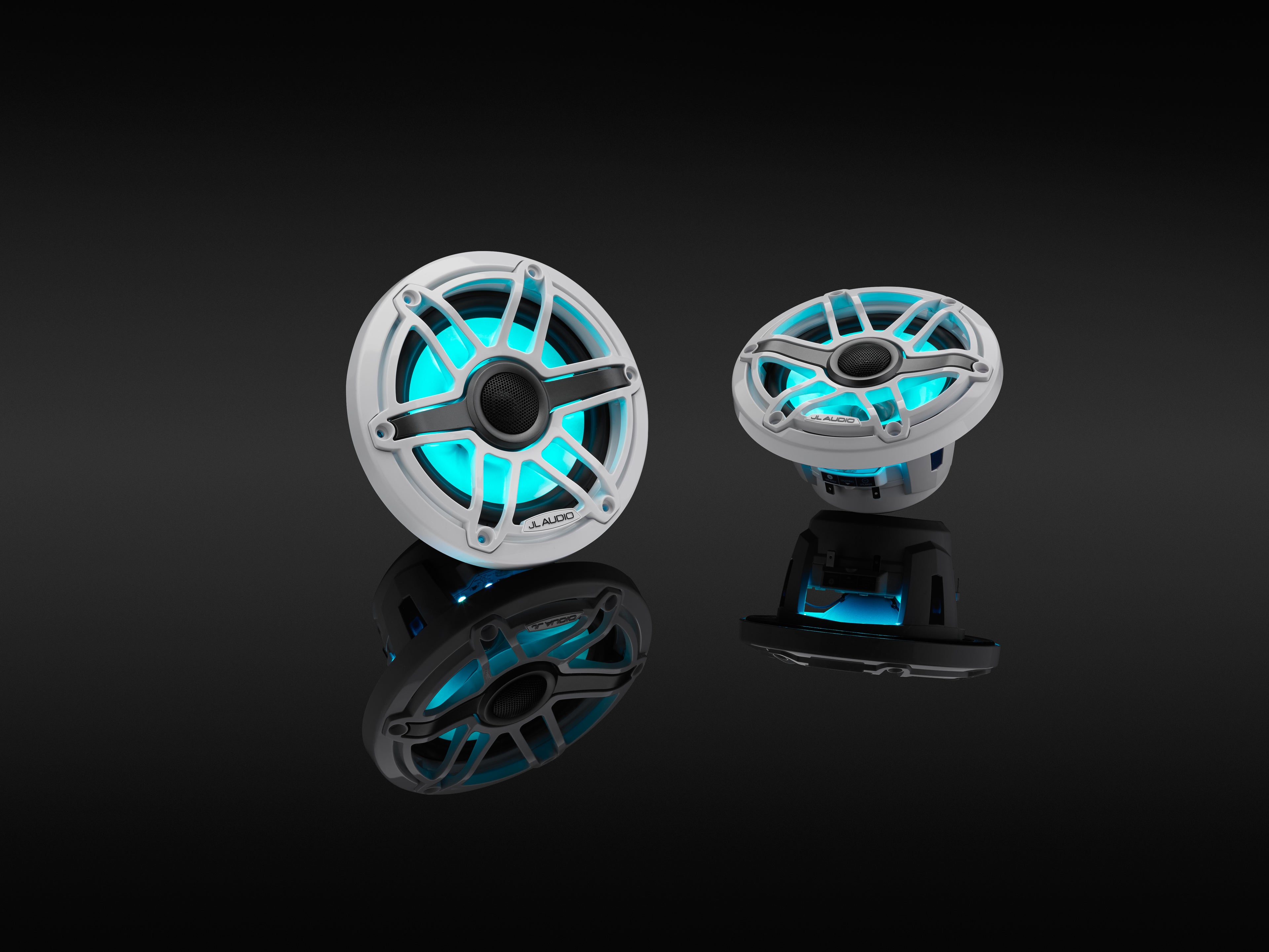

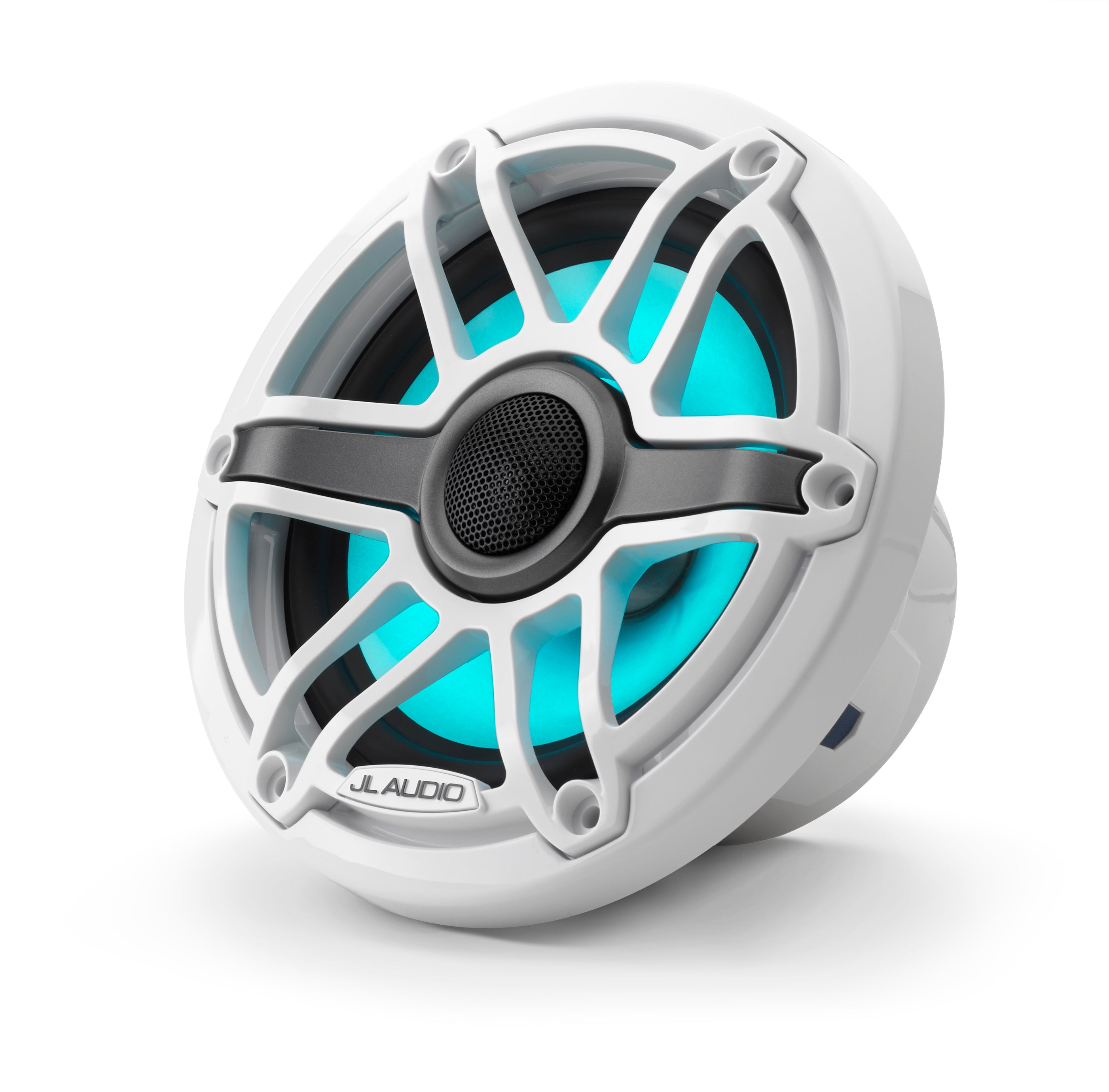

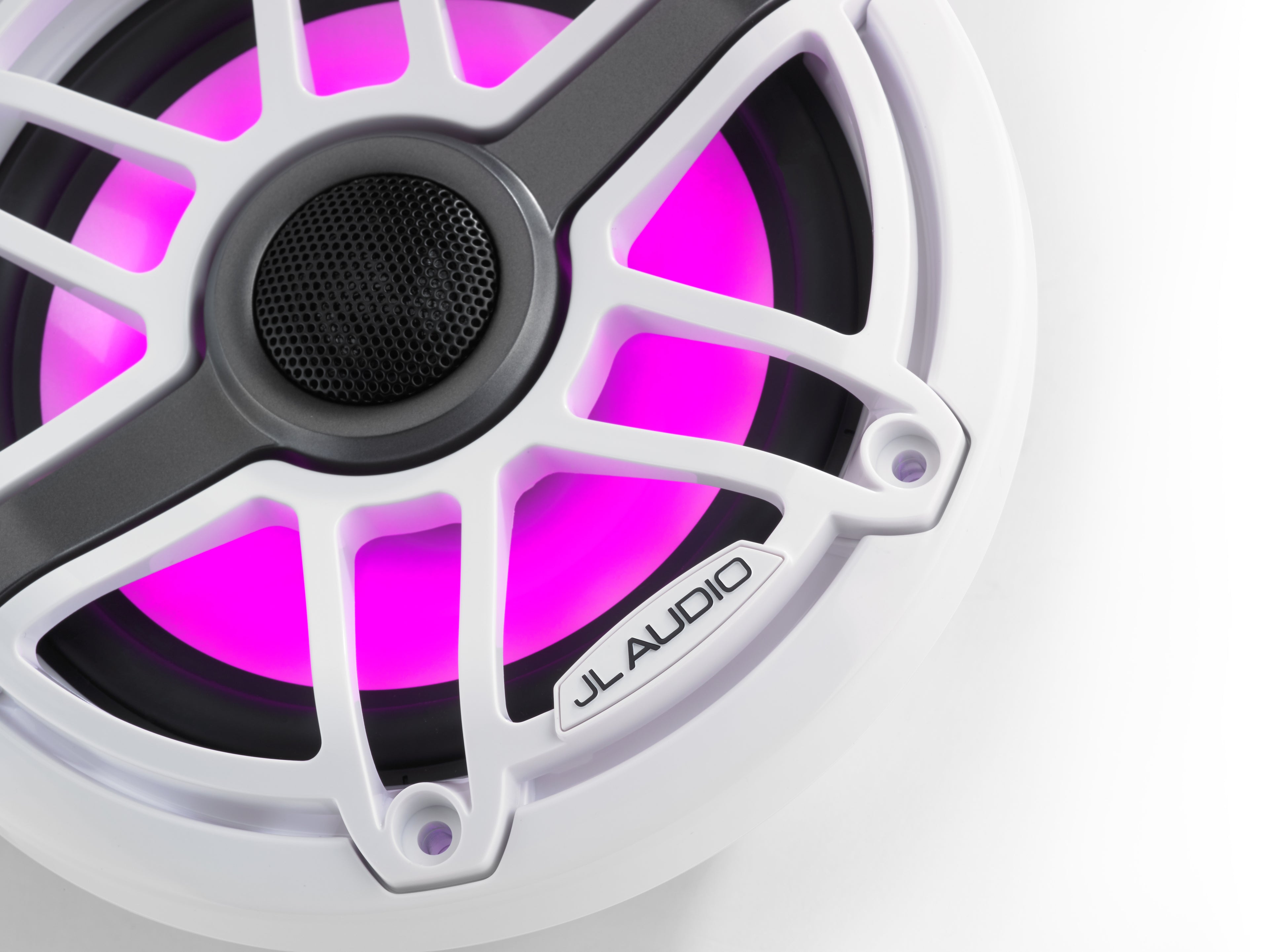

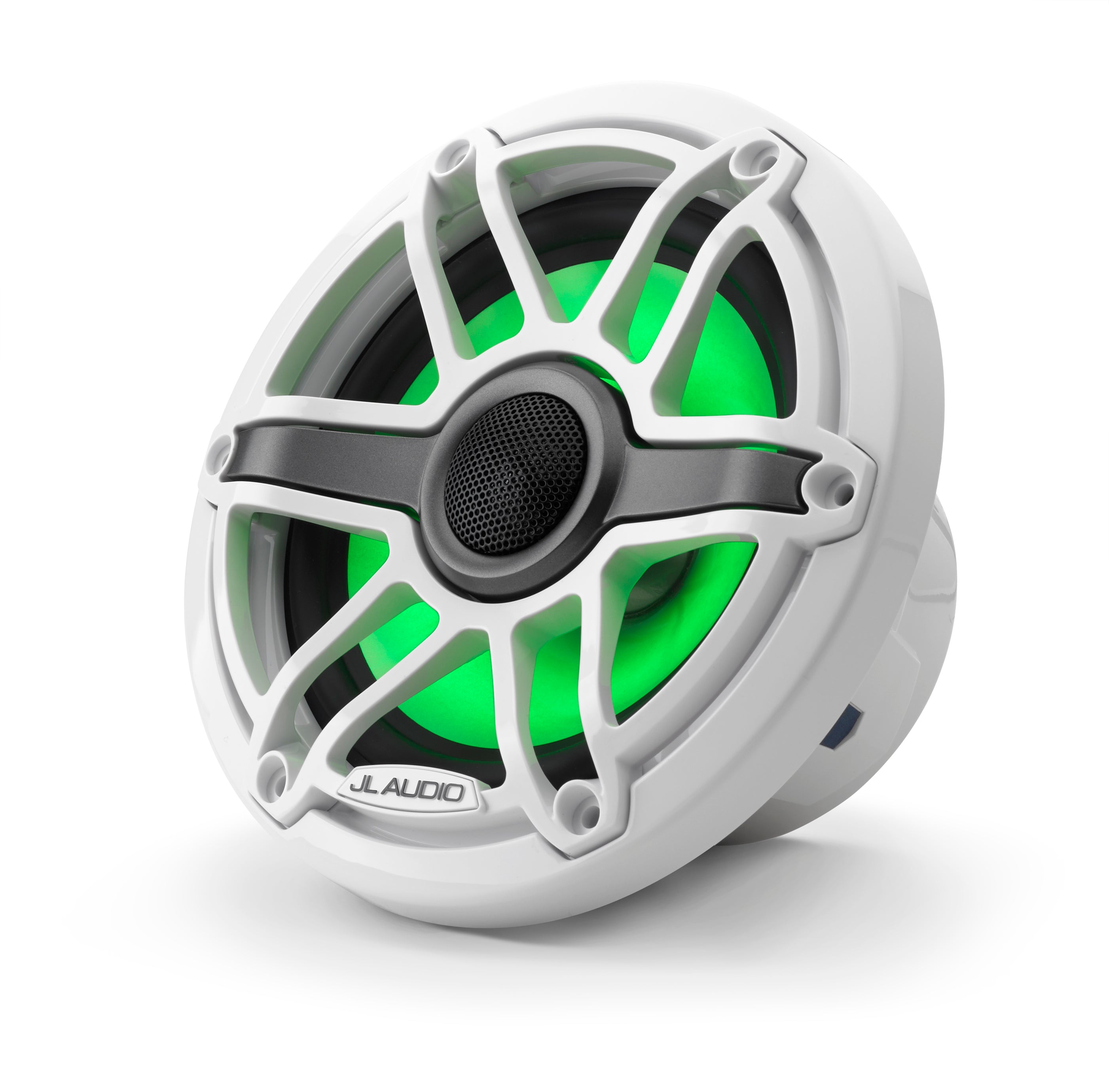

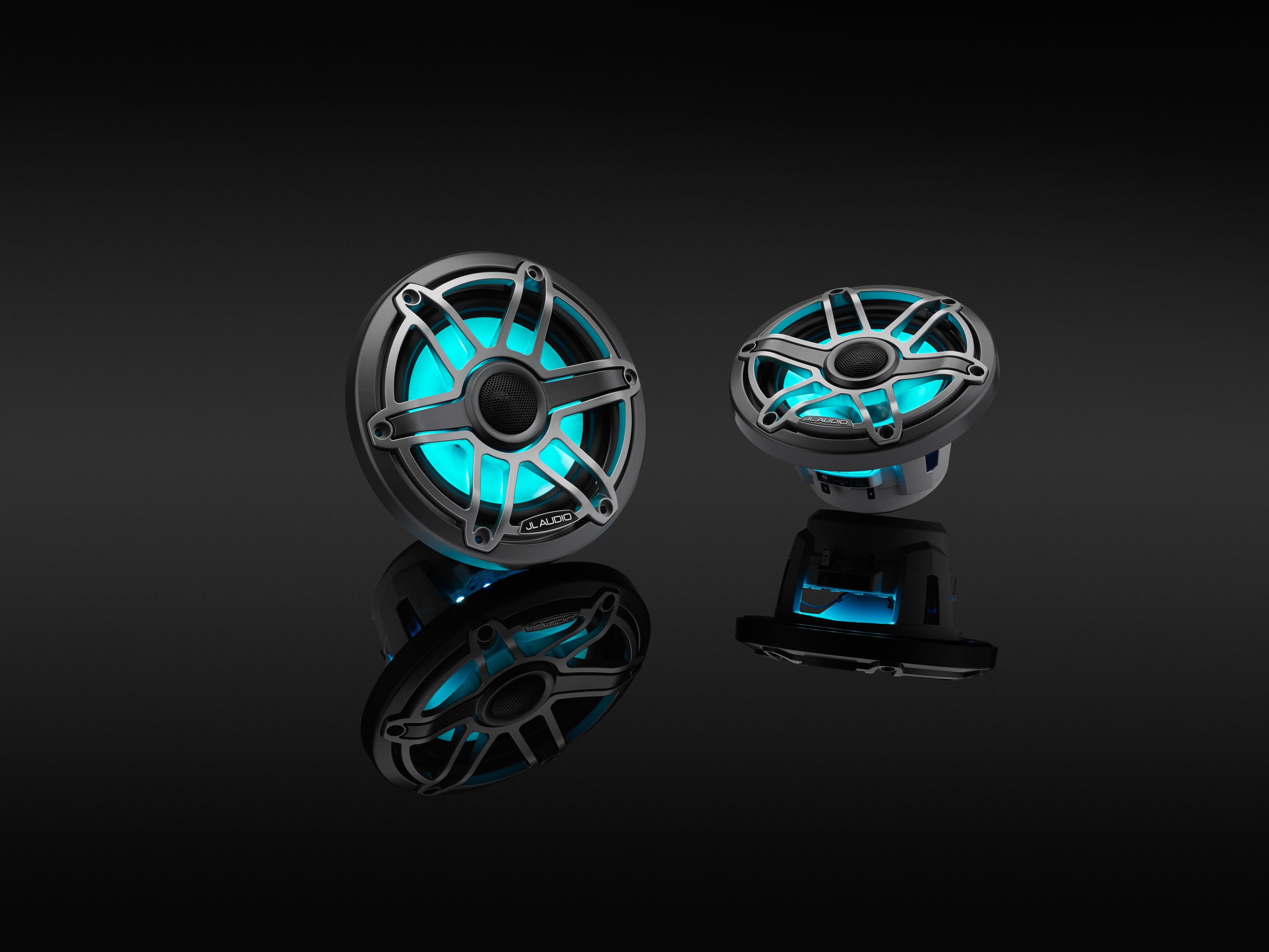

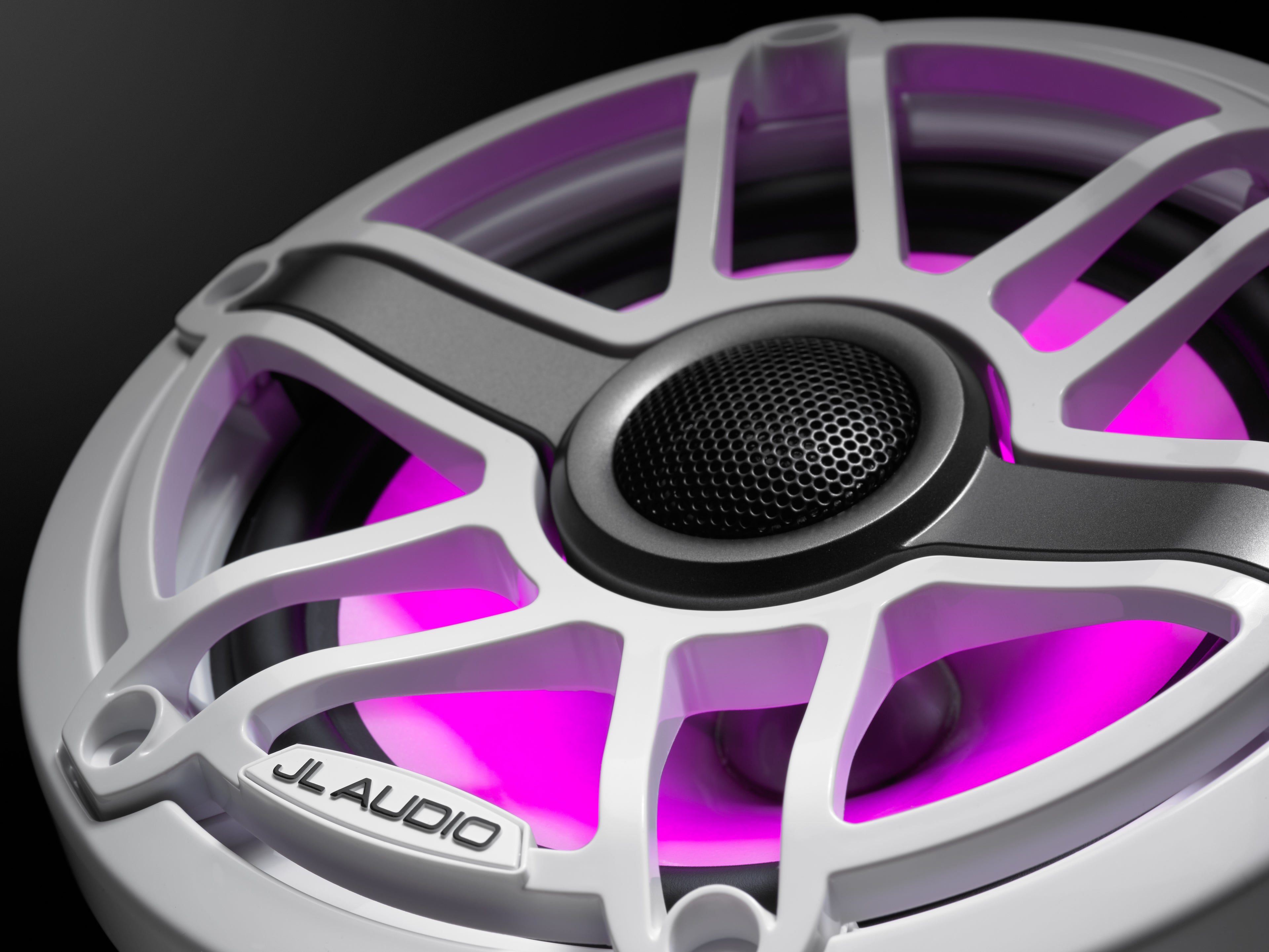

- Illuminazione LED RGB Transflective™: Sistema brevettato sui modelli Sport per un'illuminazione uniforme senza punti caldi o riflessi.
- Woofer DMA-OPTIMIZED: Sistemi proprietari di modellazione di motore, sospensione e cono, per una distorsione ridotta, migliore risposta ai transienti e qualità sonora dei bassi eccezionale.
- Tweeter a cupola in seta abbinati: Tweeter regolati con precisione, dimensionati specificamente per il diametro di ciascun woofer, producono un dettaglio brillante e un'eccellente risposta fuori asse per una copertura bilanciata nell'intera area di ascolto.
- Reti di filtri avanzate: Ogni chassis woofer integra un crossover reale a due vie multi-ordine ottimizzato per ciascuna dimensione di altoparlante e circuito elettronico di protezione del tweeter per minimizzare il rischio di guasto del tweeter.

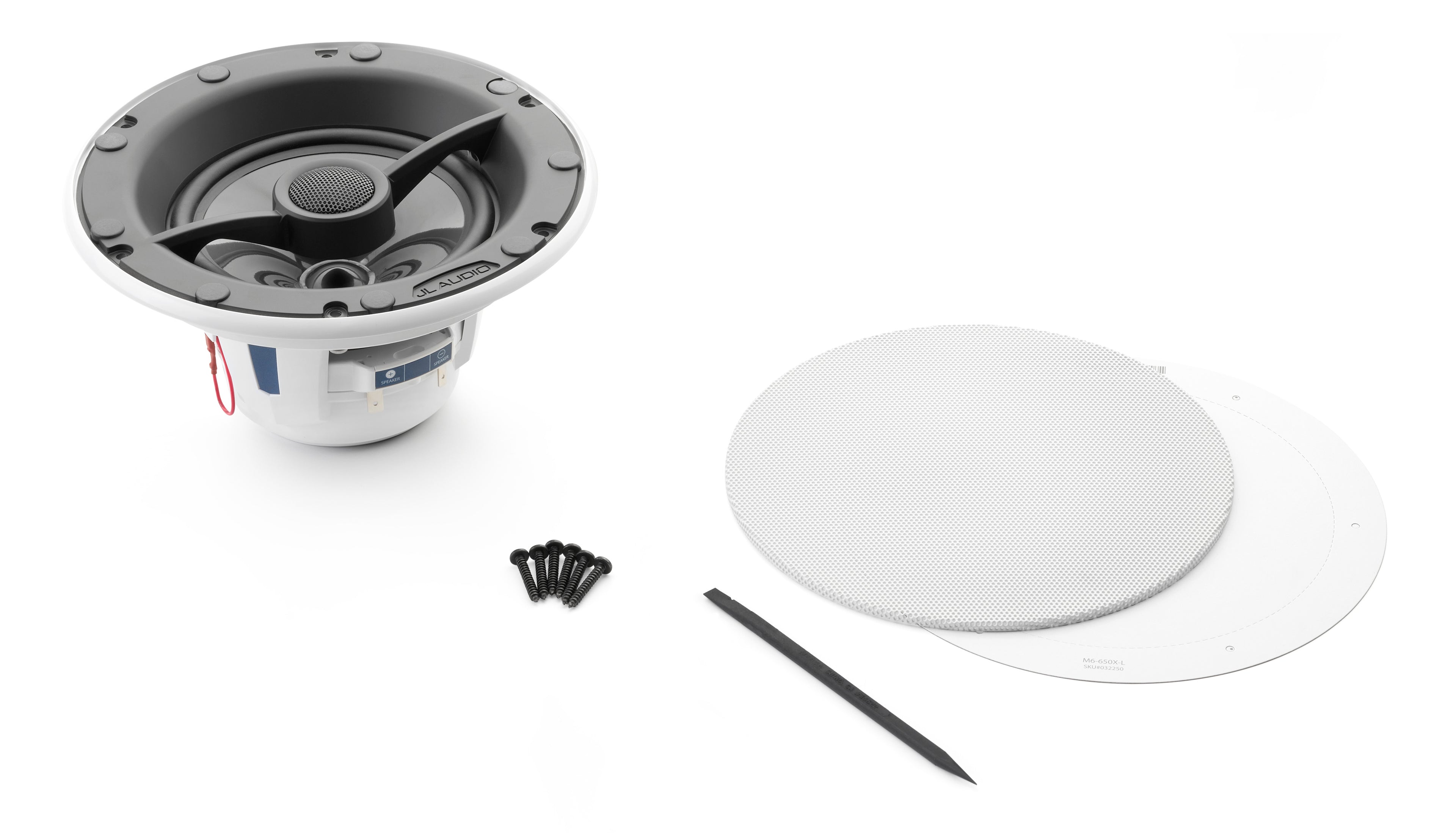

Contenuto della confezione

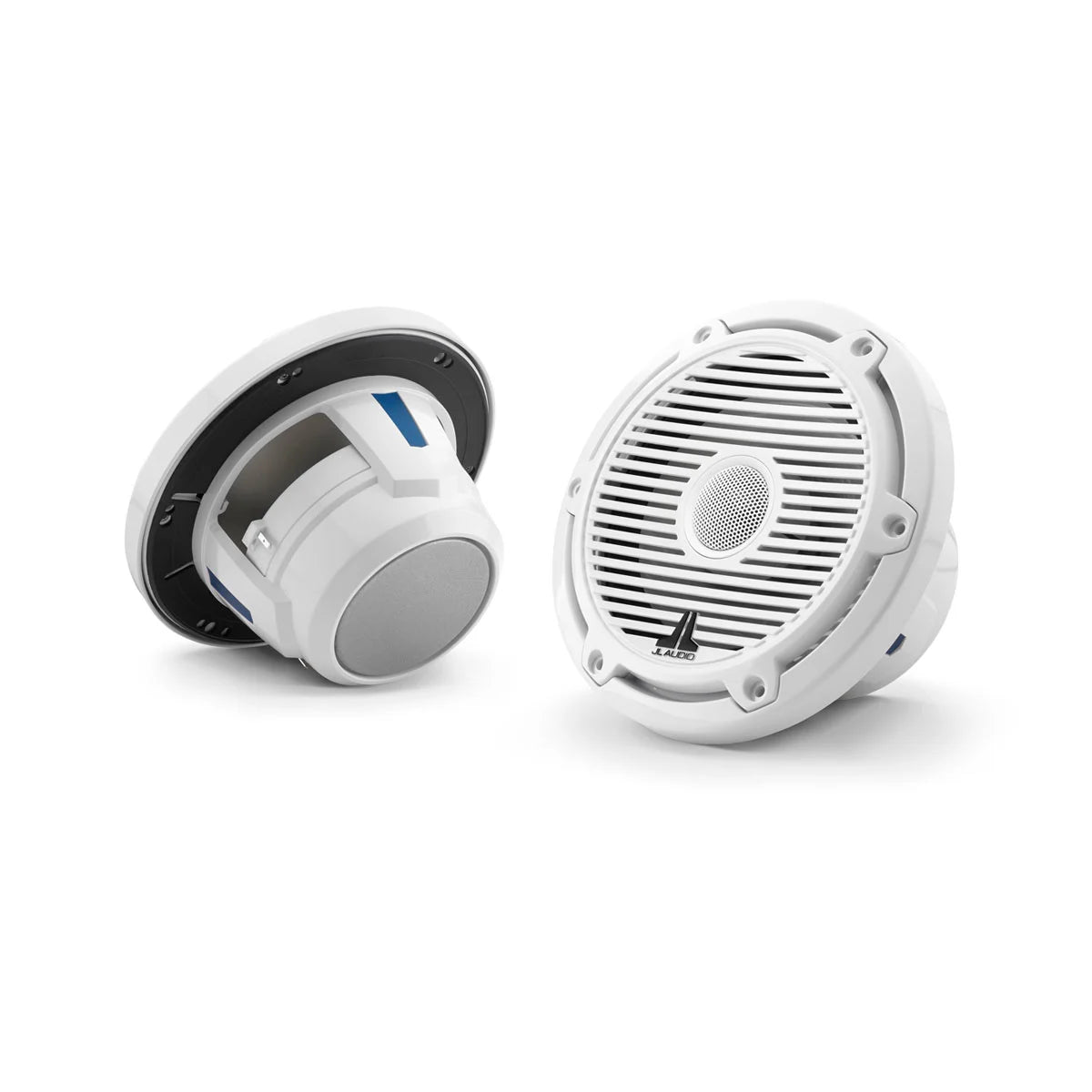

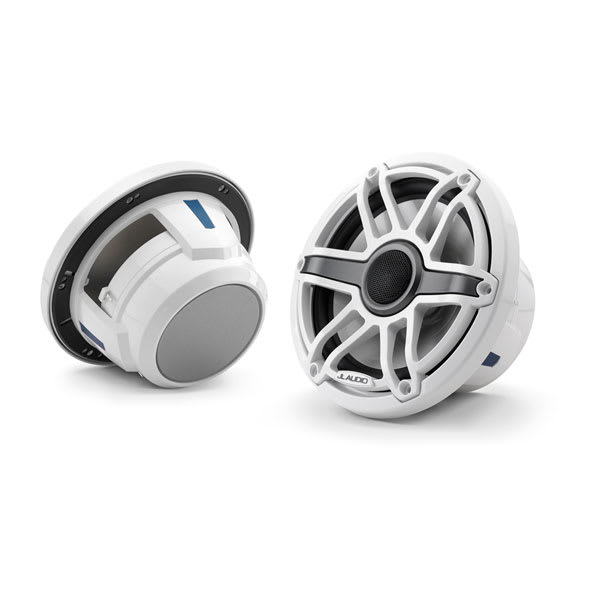

- Due altoparlanti coassiali marini*

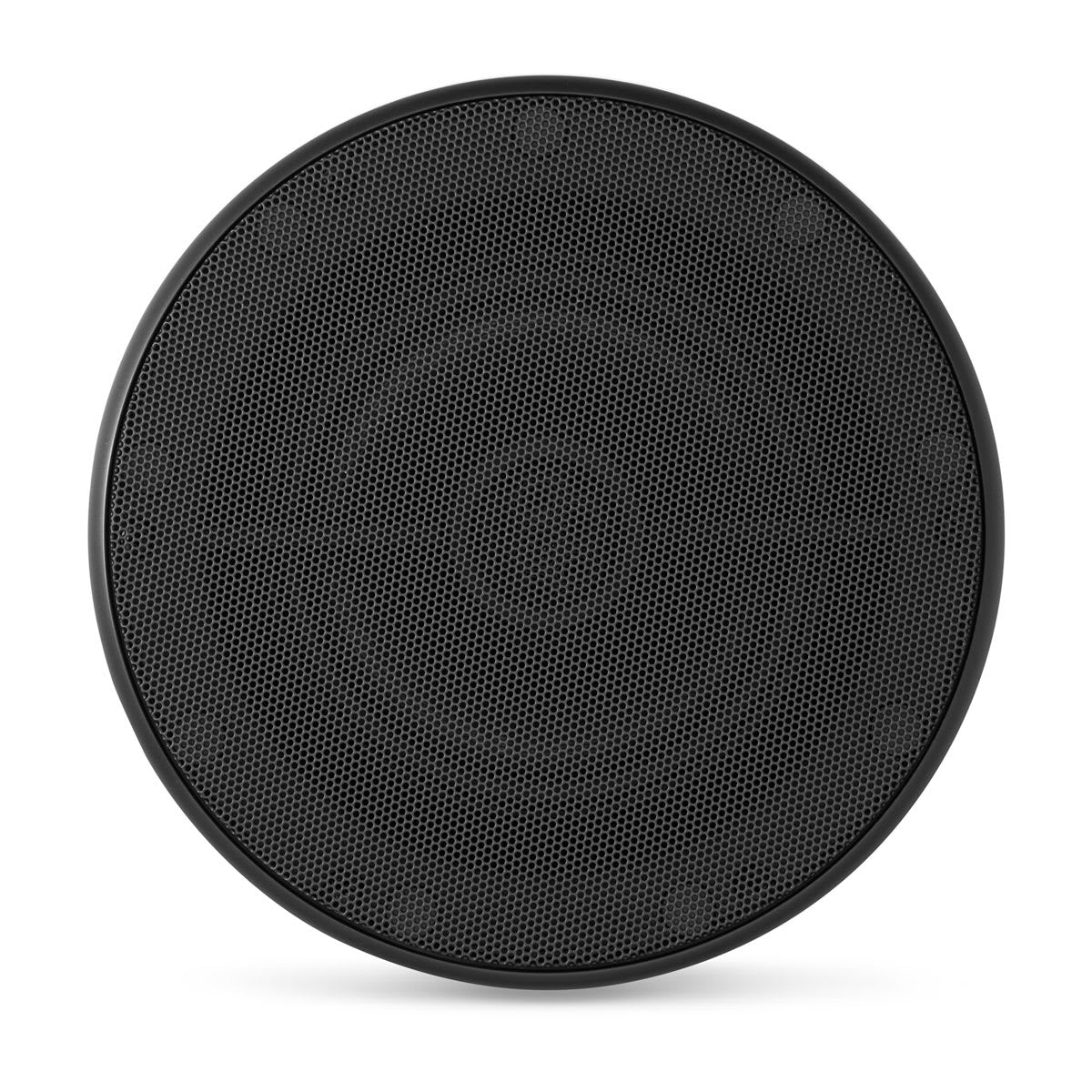

- Due griglie*
- Dodici viti di montaggio in acciaio inox*
- Dodici rondelle per viti in acciaio inox*

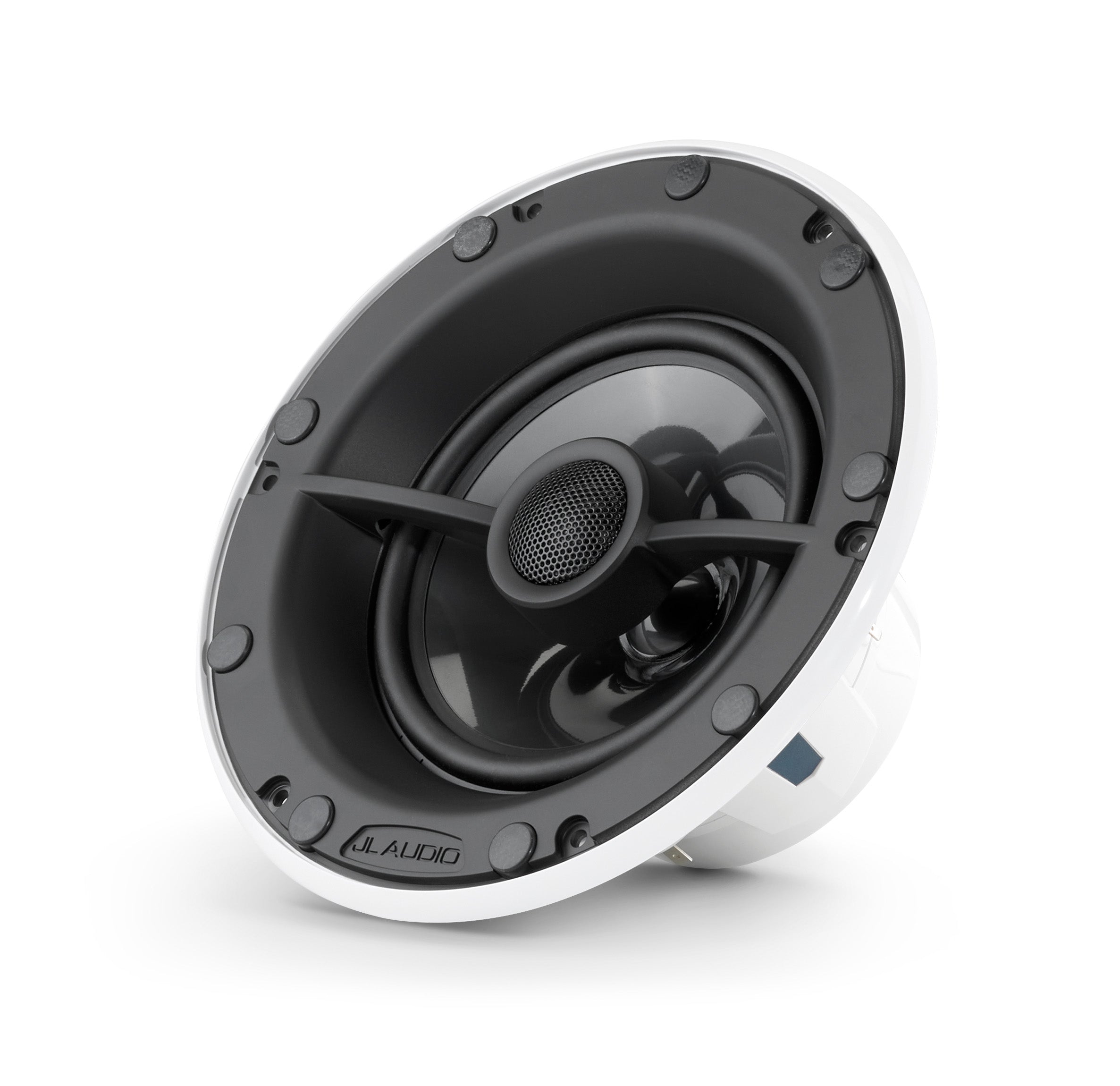

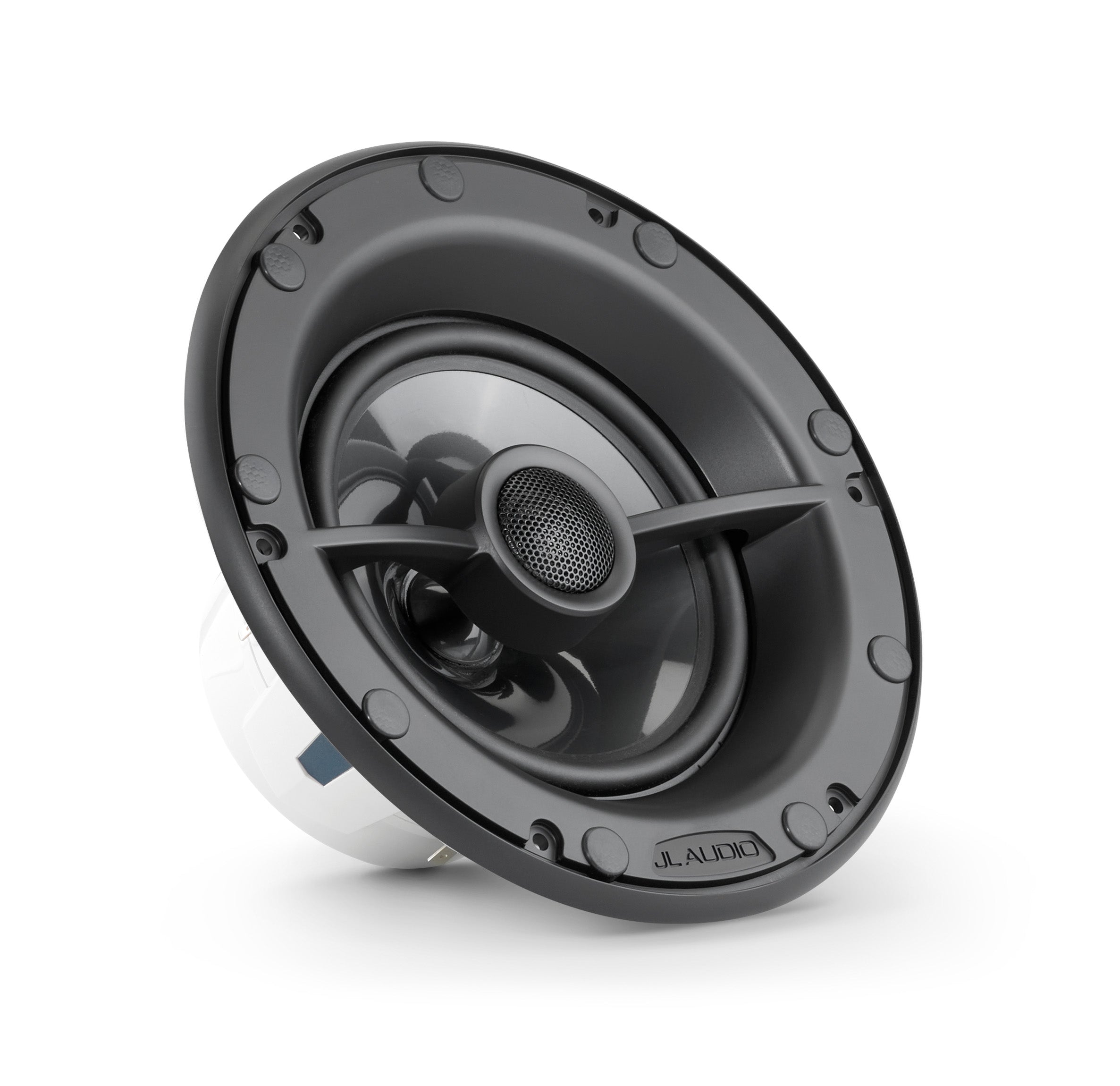

- Strumento per rimozione griglia (solo modelli Luxe)
- Dima di montaggio
Specifiche
| Dimensioni | 6.5"/7.7"/8.8" |
|---|---|

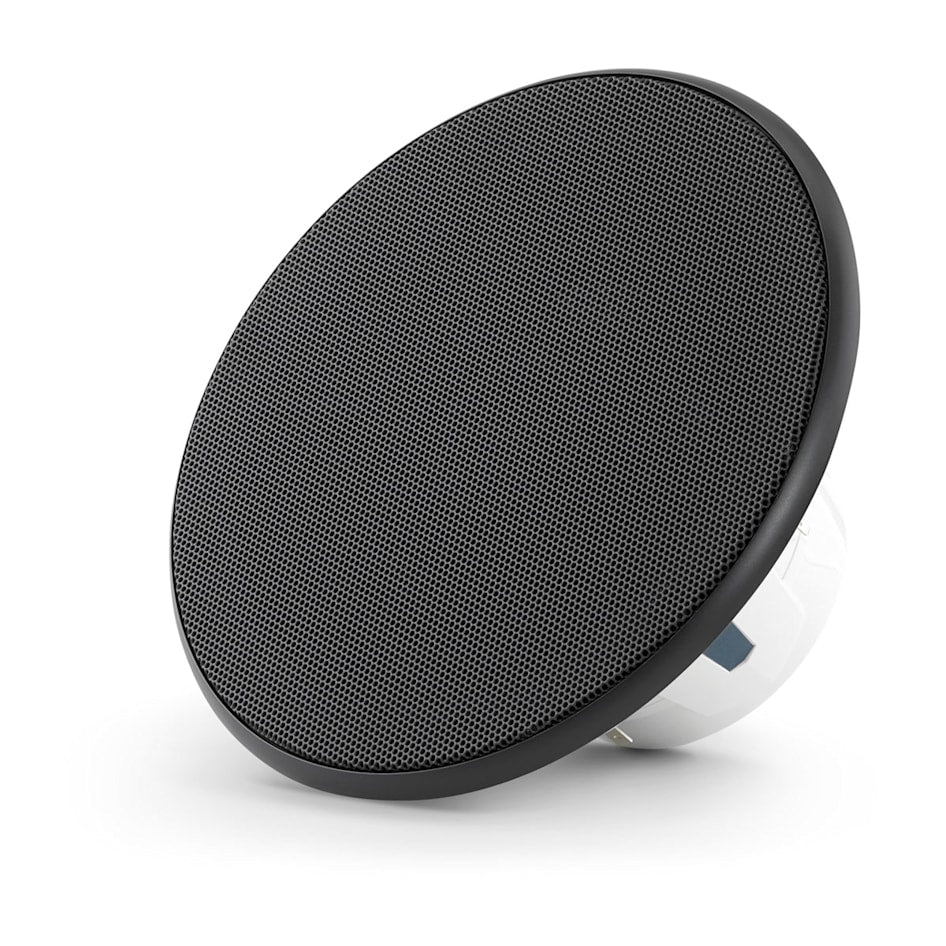

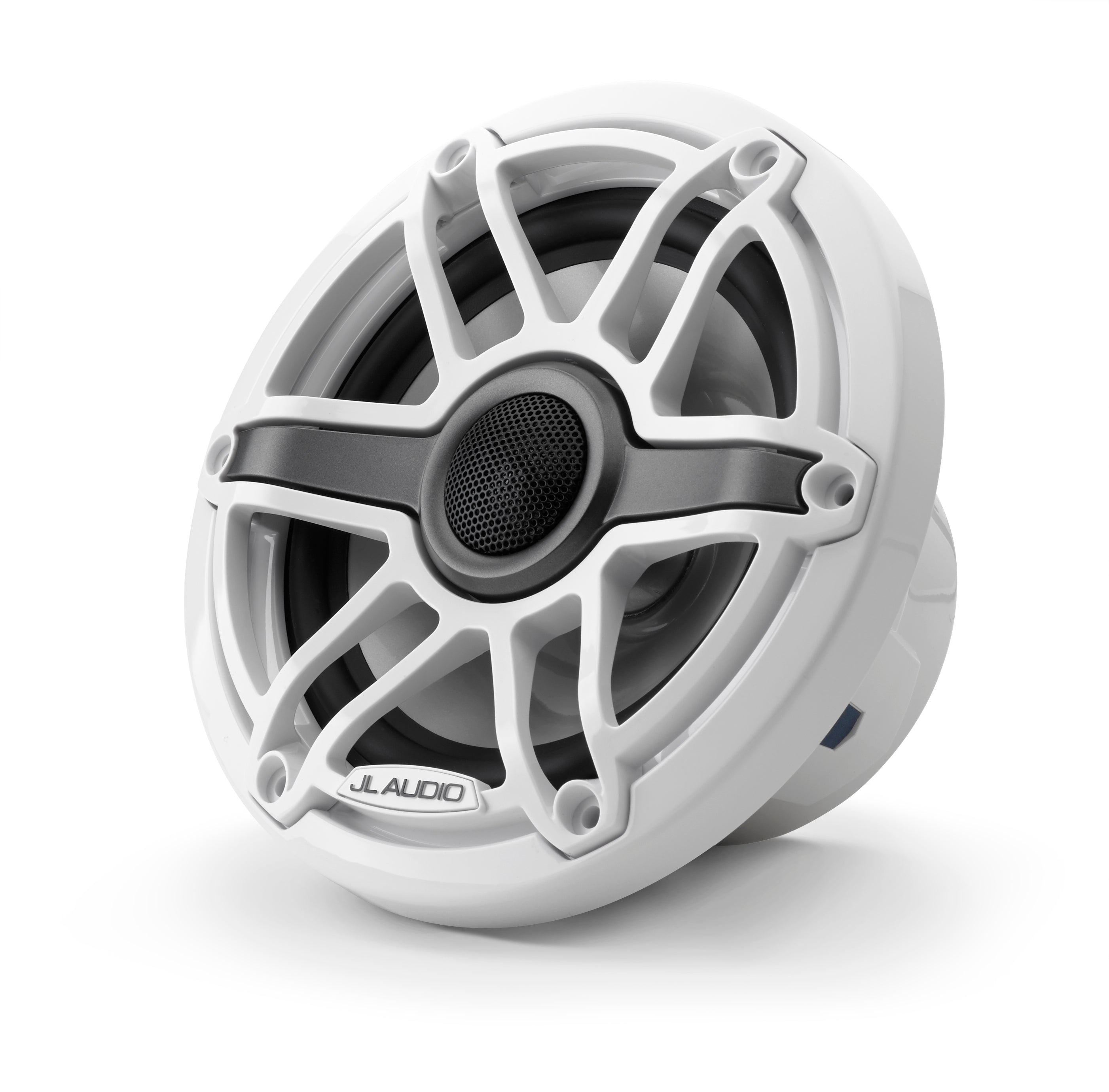

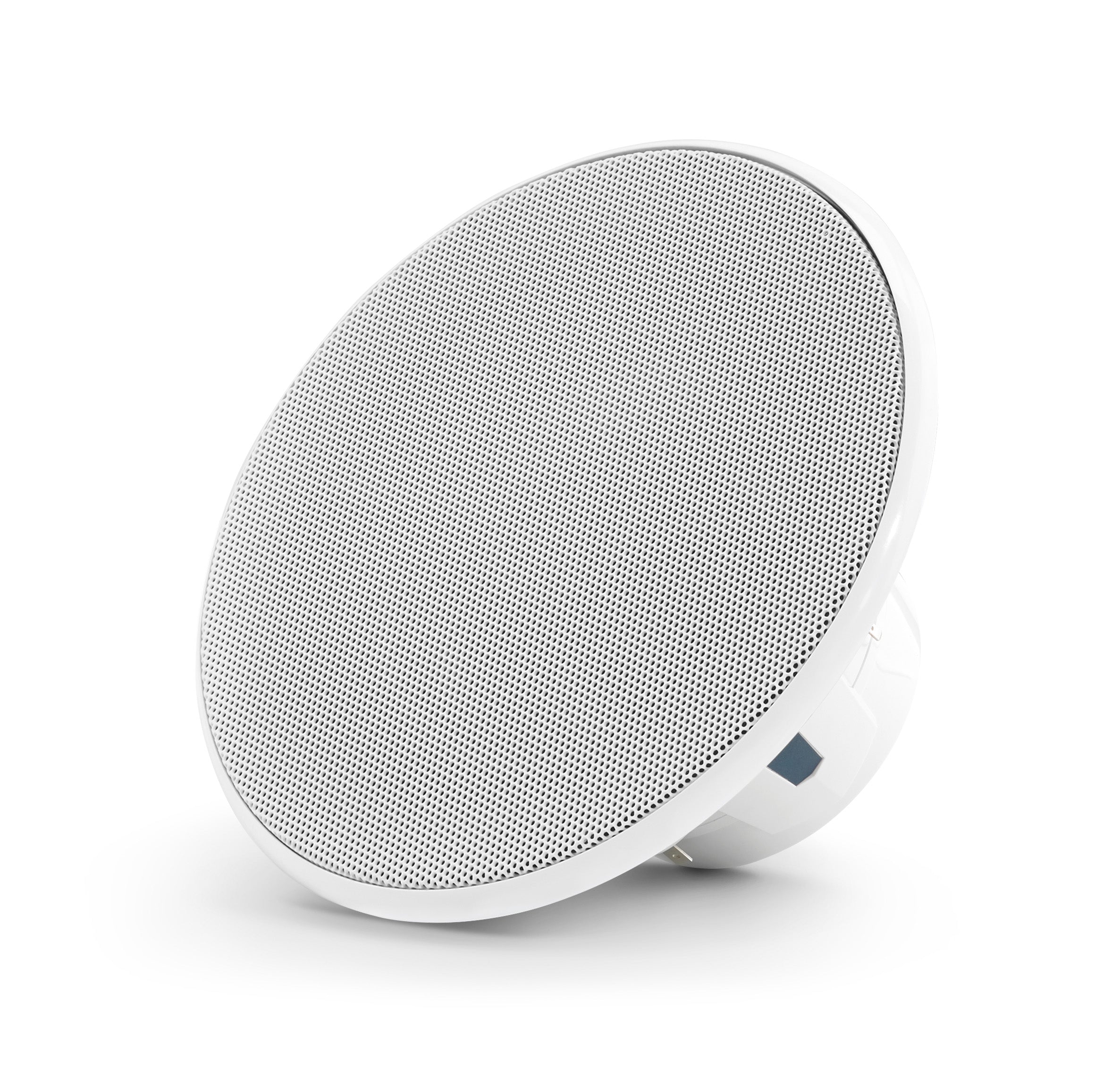

| Colore | White Classic, White Sport oppure Titanium Sport o Luxe Satin Black o Luxe Satin White |
| Dimensioni fisiche (Diametro) | 6.5" (Classic/Sport): 6.90" (175 mm) 6.5" (Luxe): 8.34" (212 mm) 7.7" (Classic/Sport): 7.70" (196 mm) 7.7" (Luxe): 9.13" (232 mm) 8.8" (Classic/Sport): 8.80" (224 mm) 8.8" (Luxe): 10.25" (260 mm) |
| Dimensioni fisiche (Profondità) | 6.5" (Classic): 3.94" (100 mm) 6.5" (Sport/Luxe): 4.02" (102 mm) 7.7" (Classic): 4.35" (110 mm) 7.7" (Sport/Luxe): 4.4" (112 mm) 8.8" (Classic): 6.37" (162 mm) 8.8" (Sport/Luxe): 6.45" (164 mm) |
| Tipo di altoparlante | Coassiale |
| Gestione potenza continua (RMS) | 6.5": 75 W 7.7": 100 W 8.8": 125 W |
| Sensibilità (SPL @ 1 W/1 m) | 6.5": 89.5 dB 7.7": 91.0 dB 8.8": 90.5 dB |
| Risposta in frequenza (+/- 3 dB) | 6.5": 55 Hz-25 kHz 7.7": 45 Hz-25 kHz 8.8": 38 Hz-25 kHz |
| Impedenza nominale | 4 Ω |
| Potenza amplificatore raccomandata (RMS) | 6.5": 25-150 W/Canale 7.7": 40-200 W/Canale 8.8": 50-250 W/Canale |
| Illuminazione LED | sì - Transflective™ (solo su alcuni modelli Sport) |
| Tensione di alimentazione LED | 10-14.4 VDC |
| Corrente di carico LED @ 14.4 VDC (max) | 6.5"/7.7": 324 mA 8.8": 486 mA |
| Materiale del cono | Polipropilene stampato a iniezione, caricato con mica |
| Tipo di tweeter | Cupola in seta |
| Dimensione tweeter | 6.5": 0,8" (20 mm) 7.7": 1" (25 mm) 8.8": 1,25" (32 mm) |
| Garanzia | 3 anni |

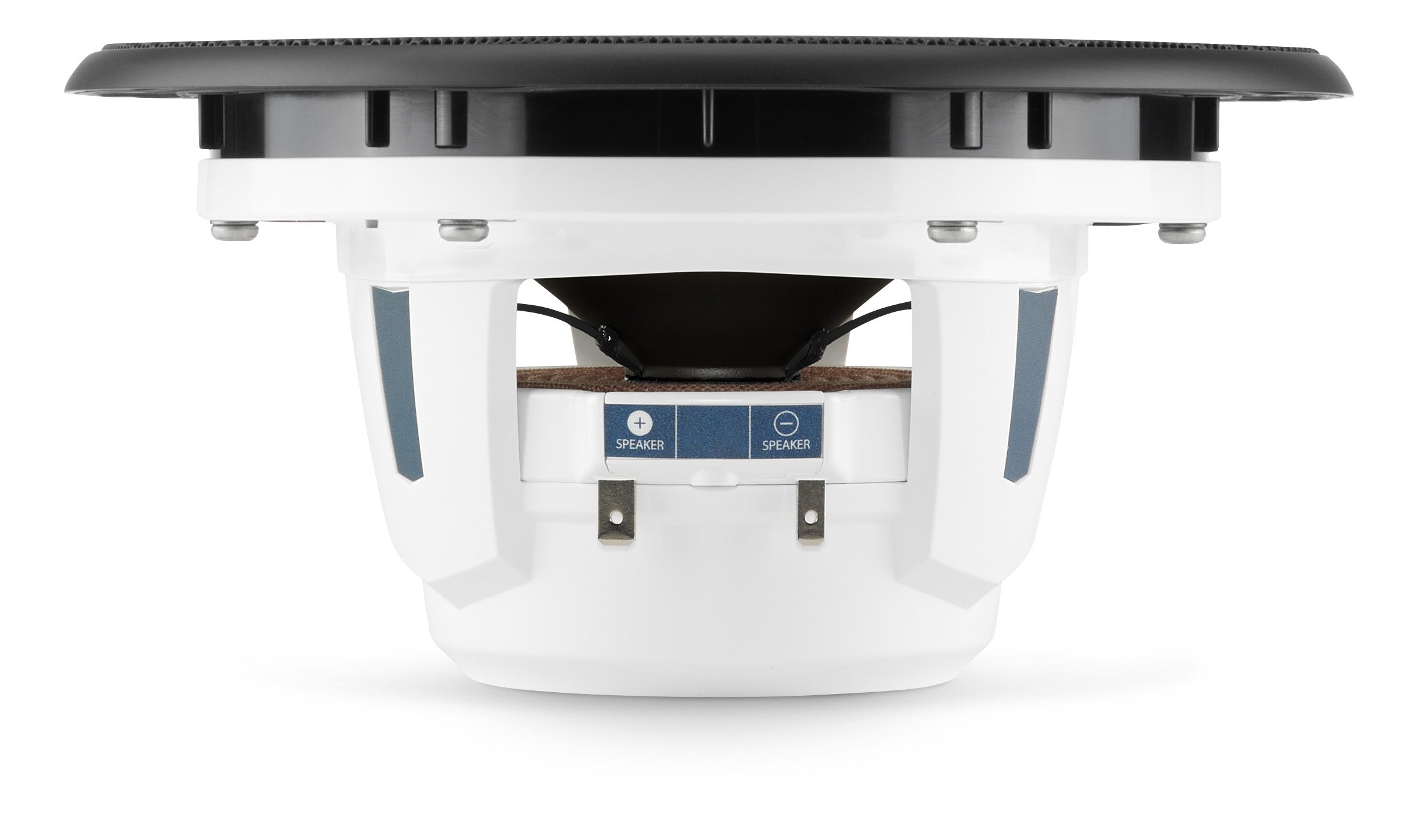

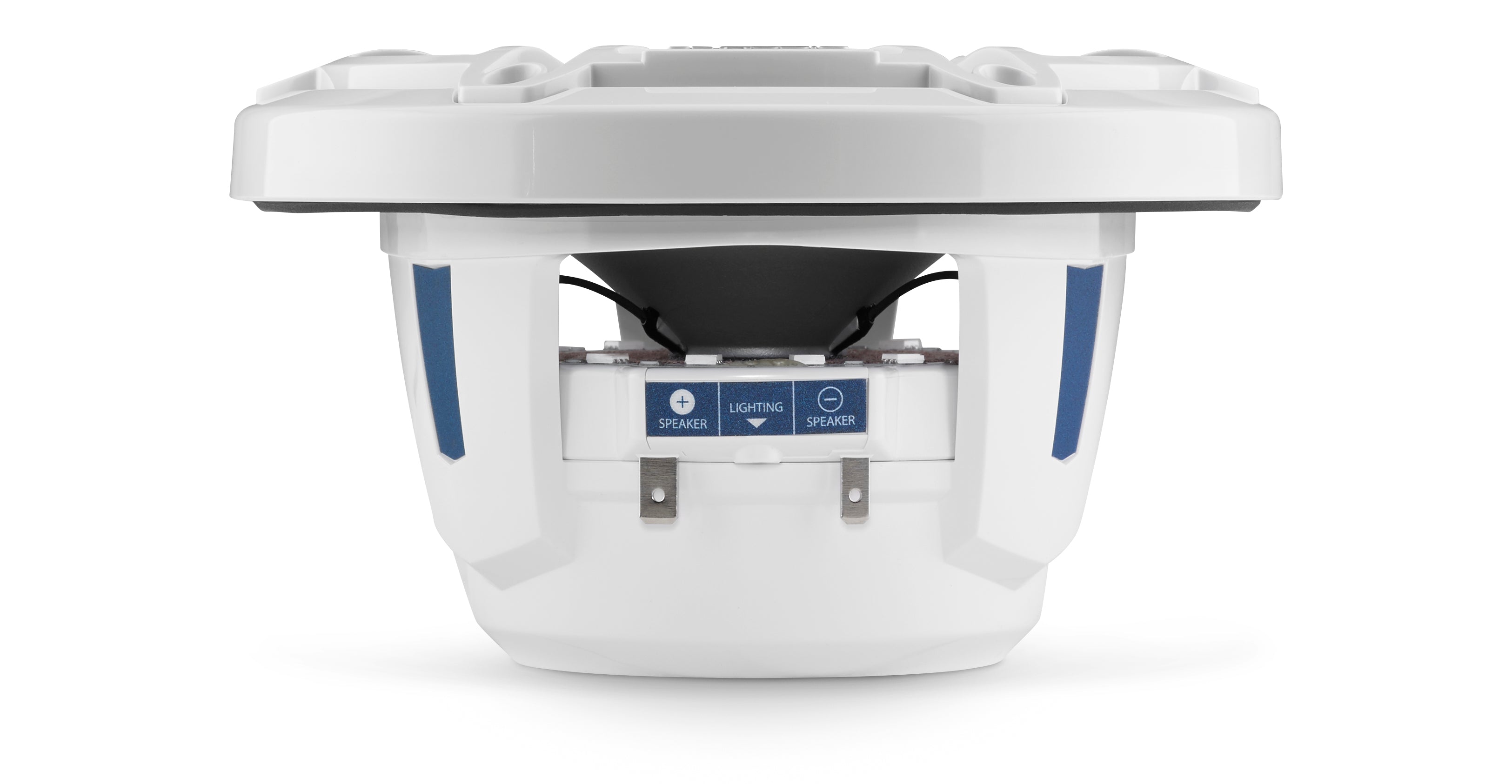

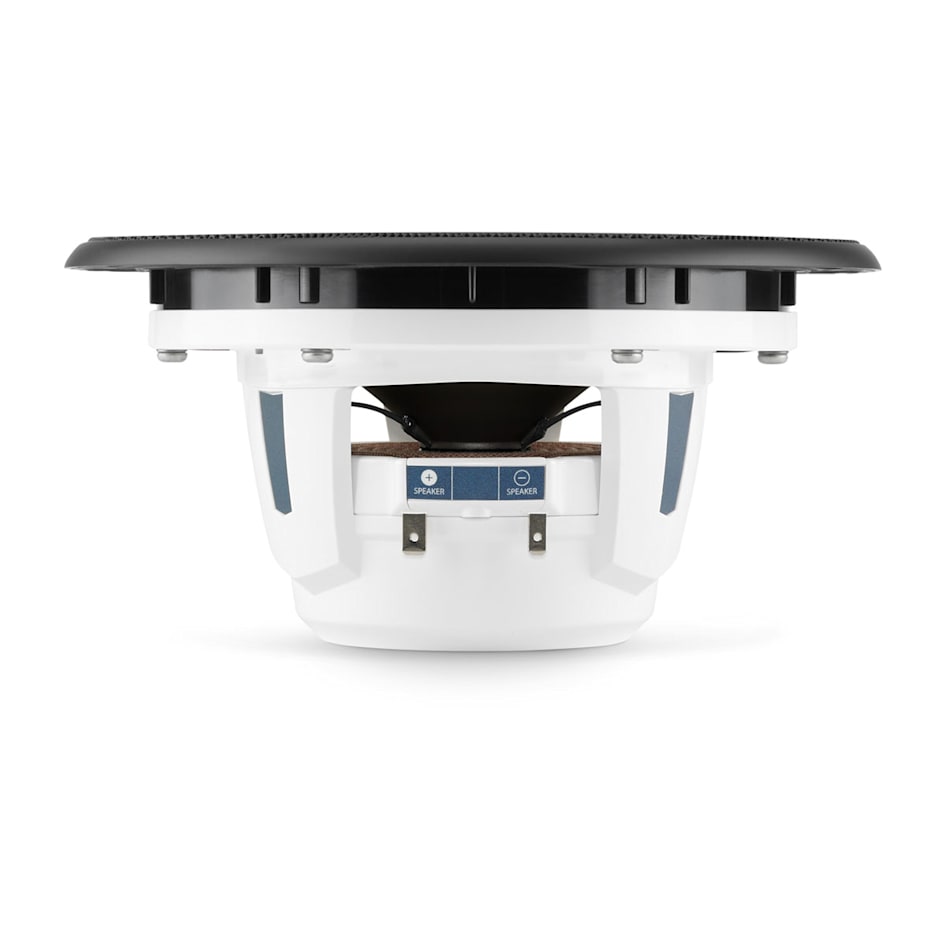

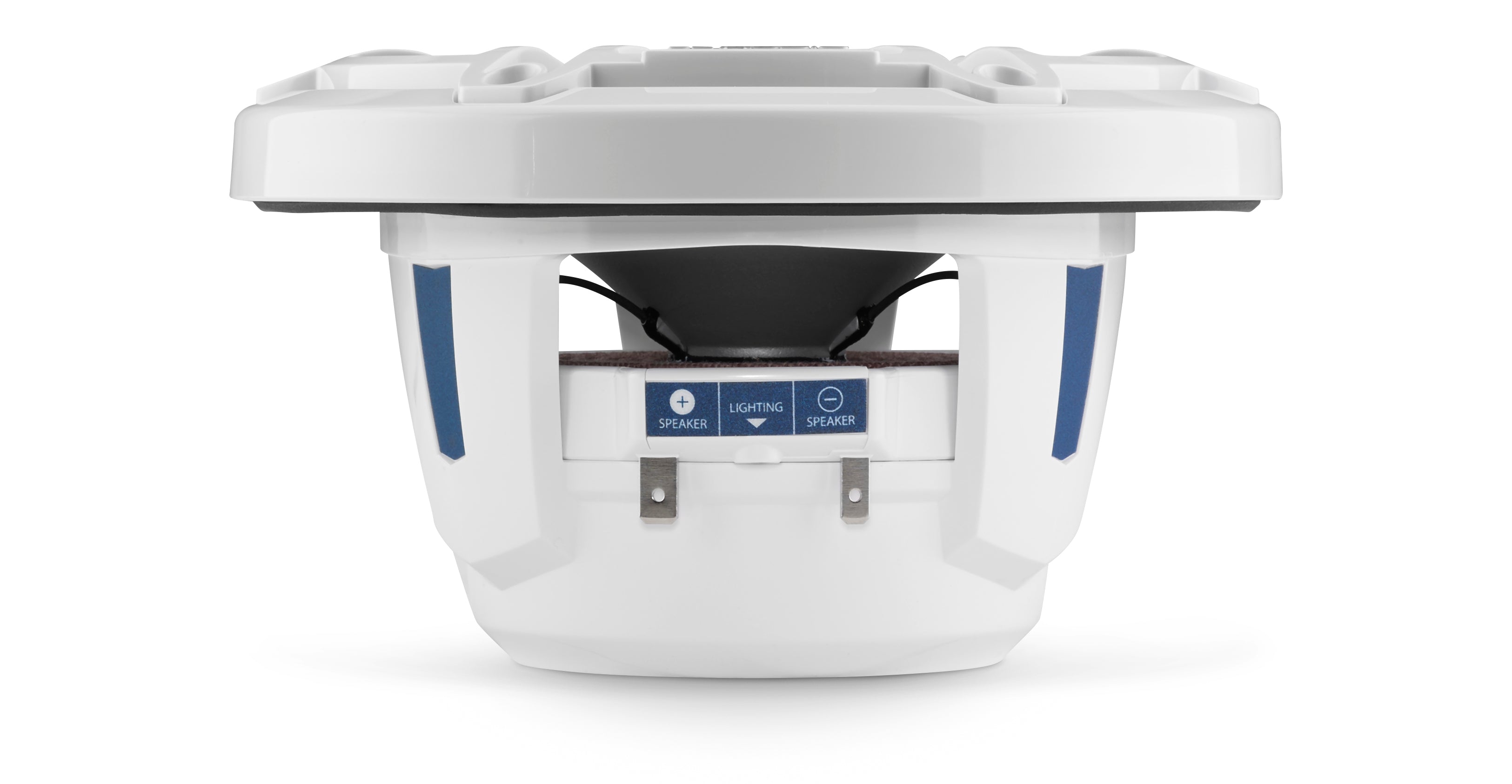

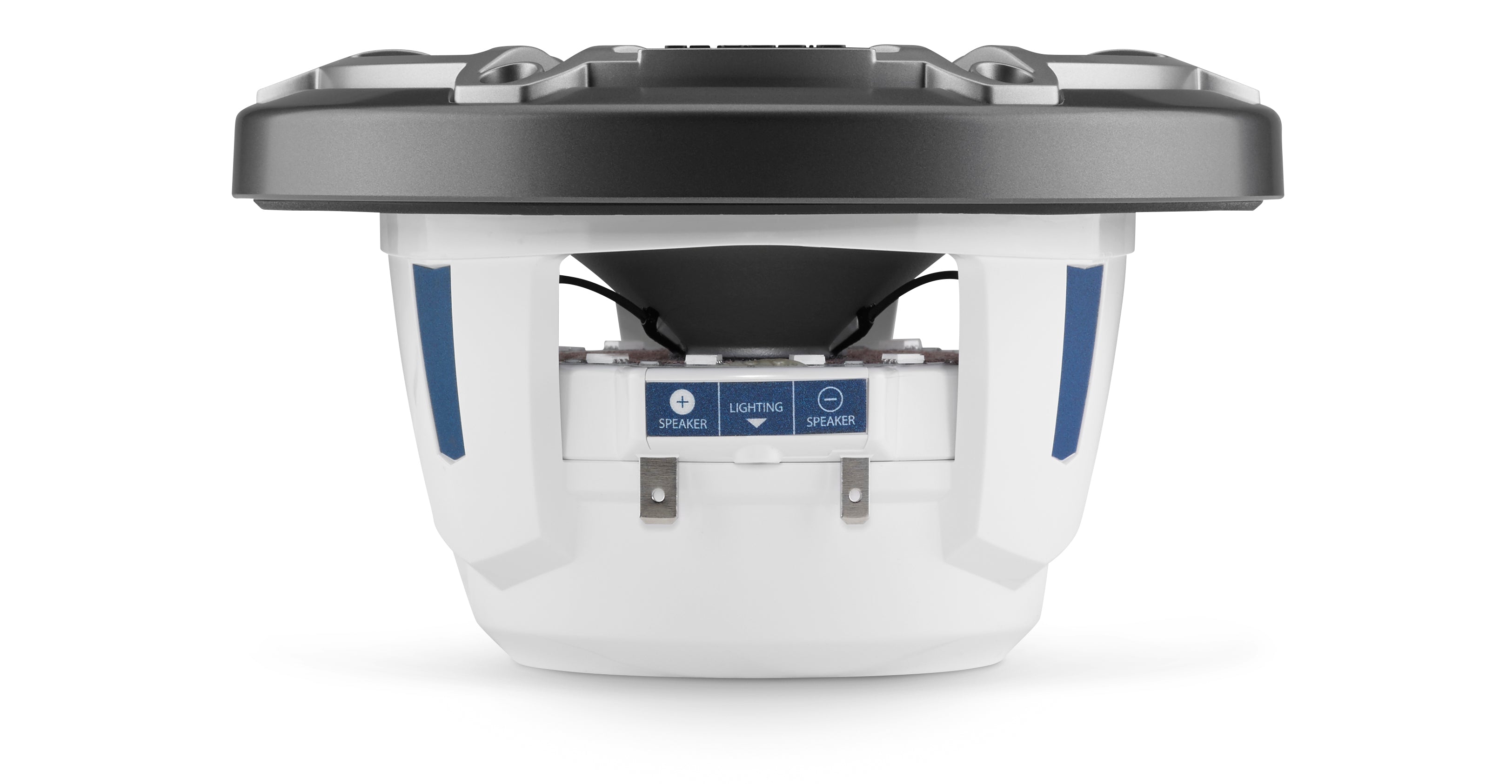

| Connessioni altoparlante | Connettori a faston |
| Connessione LED | Cavo volante con filo a 4 conduttori 20 AWG (solo su alcuni modelli Sport) |
| Profondità di montaggio | 6.5" (Classic/Sport): 3" (76 mm) 6.5" (Luxe): 3,87" (98 mm) 7.7" (Classic/Sport): 3,32" (84 mm) 7.7" (Luxe): 4,26" (108 mm) 8.8" (Classic/Sport): 5" (127 mm) 8.8" (Luxe): 6,30" (160 mm) |
| Sporgenza griglia frontale | 6.5": 0,94" (24 mm) 6.5" (Sport): 1,02" (26 mm) 6.5" (Luxe): 0,37" (9 mm) 7.7": 1,03" (26 mm) 7.7" (Sport): 1,08" (27 mm) 7.7" (Luxe): 0,38" (10 mm) 8.8": 1,37" (35 mm) 8.8" (Sport): 1,45" (37 mm) 8.8" (Luxe): 0,48" (12 mm) |
| Foro di montaggio | 6.5" (Classic/Sport): 5"-5.25" (127-133 mm) 6.5" (Luxe): 6.75" (172 mm) 7.7" (Classic/Sport): 6.25" (159 mm) 7.7" (Luxe): 7.50" (191 mm) 8.8" (Classic/Sport): 7.375" (187 mm) 8.8" (Luxe): 8.625" (219 mm) |
| Cerchio dei fori di fissaggio | 6.5" (Classic/Sport): 6.13" (156 mm) 6.5" (Luxe): 7.39" (188 mm) 7.7" (Classic/Sport): 6.92" (176 mm) 7.7" (Luxe): 8.18" (208 mm) 8.8" (Classic/Sport): 7.97" (202 mm) 8.8" (Luxe): 9.27" (235 mm) |
| Informazioni aggiuntive | Le raccomandazioni per i box indicate sopra si riferiscono a dimensioni esterne che presuppongono l'uso di materiale spesso 0,75" (19 mm). Se si utilizza materiale spesso 0,625" (16 mm), sottrarre 0,25" (6,5 mm) da ciascuna dimensione. Non utilizzare materiale con spessore inferiore a 0,625" (16 mm) poiché ciò potrebbe compromettere la rigidità del box. Tutti i volumi dei box indicati sopra sono volumi interni netti! Per ottenere il volume interno lordo finale è necessario aggiungere lo spostamento del driver, dello sfogo e delle traverse. Tutte le dimensioni dei box sopra riportate tengono già conto di questi fattori. Se si utilizzano più componenti in un unico box, sarà necessario ricalcolare le dimensioni del box e dello sfogo. Per assistenza, si prega di contattare il proprio rivenditore autorizzato JL Audio o il Supporto Tecnico JL Audio. Si raccomanda l'uso di questo prodotto in un sistema bi-amplificato con satelliti di alta qualità e un amplificatore di alta qualità. Non si consiglia l'uso con crossover passivo (bobina), poiché questo tipo di dispositivo comprometterà le prestazioni. |
