Garmin
Airmar Mounting transducer through the bronze helmet with depth and temperature sensors (Garmin Edition)
- Preço regular
- R$ 1.549,75
- Preço promocional
- R$ 1.549,75
- Preço regular
- R$ 1.741,31
B2B e dedução do IVA
Se você é uma empresa que deduz IVA na União Europeia, cadastre-se aqui e informe seu número de IVA antes da compra para deduzi-lo na finalização da compra.
Se você é um profissional do setor náutico e deseja explorar uma parceria, entre em contato conosco.
SKU:010-10182-21
Garantia completa
Buy with confidence.
SailRACE.com only sells new products with full official manufacturer warranty.
If you have any issues after purchase, please contact us at team@sailrace.com to determine together with the manufacturer the best solution.
Não foi possível carregar a disponibilidade para retirada
Description

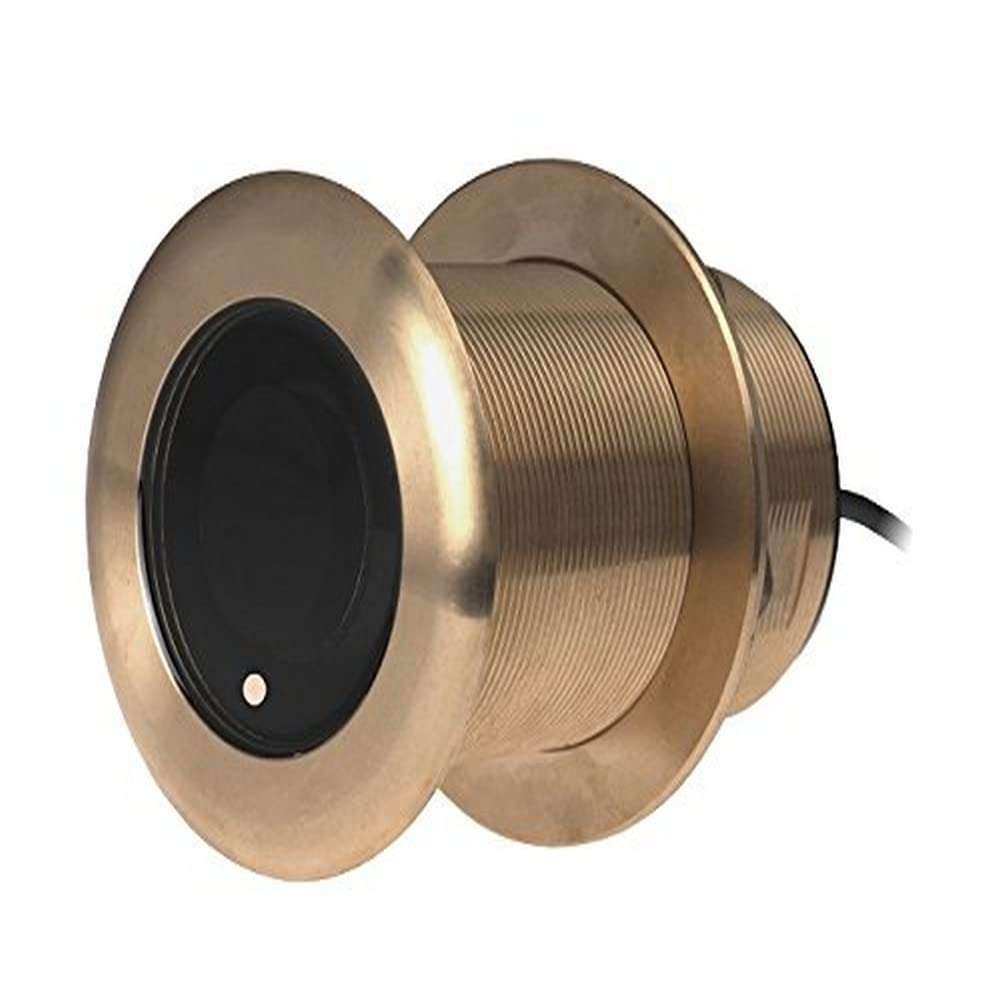

Our bronze thru-hull transducer offers excellent performance at high speeds.
An excellent choice for fiberglass and wooden hulls, this narrow-beam 600 W, 8-pin transducer provides a depth range of 800 m to 1,200 ft, an operating frequency of 50 to 200 kHz, a beam angle of 45° to 12°, and a deadrise angle between 0 and 7°.
The transducer kit is supplied with installation instructions. Please follow the instructions carefully to avoid damage to the vessel.
*Do not use with metal hulls.
Specifications:
| Physical and Performance Characteristics | |
|---|---|
| Frequency | 50/200 kHz |
| Power | 600 W |
| Beam width | 45°/12° |
| Maximum depth | 800–1,200 ft |
| Cable length | 33 ft |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 8-pin |
| Transom/deadrise angles supported | 0°–7° deadrise |
| Transducer Compatibility | |
|---|---|
| Frequency | 50/200 kHz |
| Legal and Safety Information | |
|---|---|
| EU Data Act information – Marine chartplotters, sounders and transducers | Yes |
FAQs
Can the transducer be serviced while the vessel is in water?
In-hull installations can be serviced with the vessel in the water, but thru-hull installations generally require haul-out for servicing or replacement.
What is important for getting the best performance from transducers?
To obtain best performance, install all transducers according to the included installation instructions.
What do you do if you have installation difficulties?
If you experience difficulty during the installation, contact Garmin Product Support or seek the advice of a professional installer.
Should the installation instructions be followed exactly?
Yes, carefully follow the supplied installation instructions to avoid damage and ensure best performance from your transducer.
What is the impact of improper placement of the transducer?
Incorrect placement can reduce performance, so install all transducers according to the included instructions to ensure optimal results.
Is special placement required for external thru-hull transducers?
External thru-hull transducers usually require a fairing to aim the sound beam vertically and are installed forward of propellers and running gear.
Which vessels benefit most from flush thru-hull transducers?
Flush thru-hull transducers are recommended for smaller boats with a minimum deadrise angle and are often installed on sailing vessels because they produce minimum drag.
When should a thru-hull pair be used?
A thru-hull pair is recommended when mounting a SideVü transducer at a location with deadrise greater than 5 degrees.
Why might a fairing block be required?
External thru-hull transducers usually require a fairing to aim the sound beam vertically for maximum energy on the target.
Are there different styles of thru-hull transducers?
Yes, thru-hull transducers come in two styles: flush and external. Each is recommended for different boat types and deadrise angles.
