Garmin

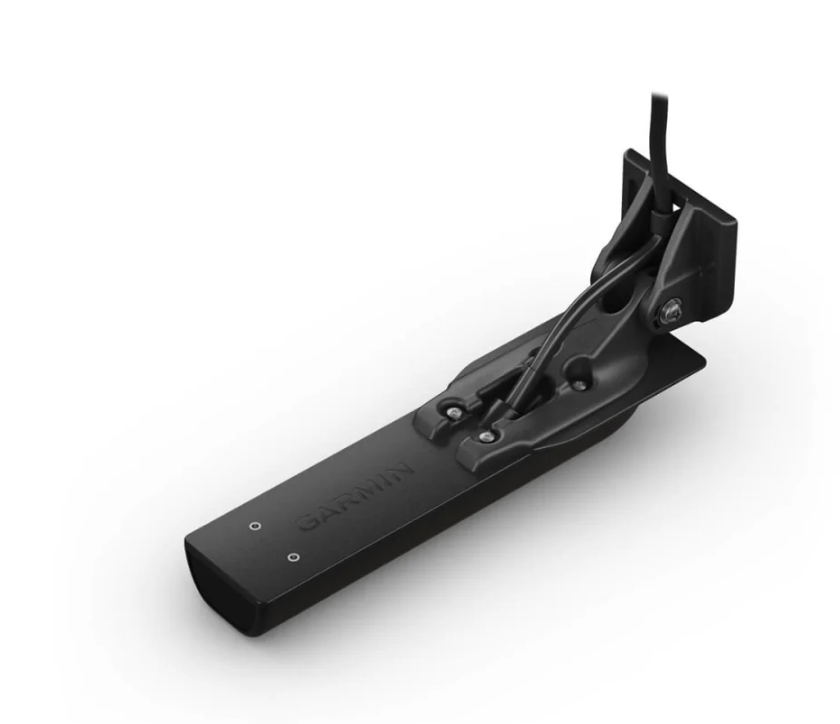

Garmin GT36UHD-TM
- Regular price
- Rp 6.414.000,00
- Sale price
- Rp 6.414.000,00
- Regular price
- Rp 7.206.000,00
B2B และการหักภาษีมูลค่าเพิ่ม
หากคุณเป็นธุรกิจที่หักภาษีมูลค่าเพิ่มในสหภาพยุโรป ลงทะเบียนที่นี่และกรอกหมายเลขภาษีมูลค่าเพิ่มของคุณก่อนซื้อ เพื่อหักภาษีดังกล่าวในขั้นตอนชำระเงิน
หากคุณเป็นผู้เชี่ยวชาญในอุตสาหกรรมทางทะเลและต้องการสำรวจความเป็นไปได้ในการเป็นพันธมิตร ติดต่อเรา
SKU:010-13072-00
การรับประกันเต็มรูปแบบ
ซื้อได้อย่างมั่นใจ
SailRACE.com จำหน่ายเฉพาะ สินค้าใหม่ พร้อม การรับประกันอย่างเป็นทางการจากผู้ผลิตเต็มรูปแบบ
หากคุณพบปัญหาใด ๆ หลังการซื้อ โปรดติดต่อเราที่ team@sailrace.com เพื่อพิจารณาร่วมกับผู้ผลิตถึงแนวทางแก้ไขที่ดีที่สุด
Couldn't load pickup availability
รายละเอียด
Thanks to the ClearVü and SideVü high-definition exploration probes, which provide totally sharp images of fish and structures, this transducer offers the ultimate in versatility, so you can spend more time fishing.
CLEARVÜ HIGH-DEFINITION Scanning Probe
Get totally sharp images of the structures and fish under the boat at greater depths than any other high-frequency exploration probe. A downward-facing element increases the power for the detection of targets.
SIDEVÜ HIGH-DEFINITION Exploration Probe
Observe everything the first time with incredibly sharp images of the structures and fish that are on the sides of the boat. Now, the SideVü probe has 20% more range at 1000 kHz, so you can see even further than before.
Various Exploration Probe Frequencies
Use the perfect frequency for the waters you are in. The transducer provides 455 kHz, 800 kHz and 1000 kHz to ensure maximum performance at any depth.
Intense Color Ranges
Thanks to the intense and high-contrast color ranges of the exploration probes, distinguishing objectives and structures has never been easier.
Assembly Options
We all have our preferences. Hence, we have included mounting components for both the aft mirror and the electric motor.
Traditional CHIRP Probe Optional
Use a Y-cable (sold separately) to link it with a Garmin GT8HW-IH or GT15M-IH transducer (sold separately) and add a traditional high-frequency band CHIRP probe to obtain an extraordinarily clear lens separation.
Specifications:
| Physical And Performance Characteristics | |
|---|---|
| Frequency | ClearVü/SideVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz) y 1000 kHz (940-1100 kHz) |
| Energy | ClearVü/SideVü: 500 W |
| Beam Width | ClearVü 0,52 X 52 a 1000 kHz 0,64 X 35 a 800 kHz 1,1 X 52 a 455 kHzSideVü 0,52 X 52 a 1000 kHz |
| Maximum Depth | ClearVü: 122 m; SideVü: 152 m |
| Cable Length | 7,62 m |
| DEPTH/SPEED/TEMPERATURE | Depth and temperature |
| Number of Sideburns | 12 pin |
| Aft Mirror Angles Allowed | Stern mirror angle of 0°-70° |
FAQs
Should the transducer be installed with the boat out of water?
Transom and trolling motor mounts generally require the boat to be out of water for safe, correct installation.
Are there specific installation instructions I should follow?
Install all transducers according to the included installation instructions for best performance.
Can this transducer be installed in-hull?
In-hull mounting is not a recommended option for this model; mounting options include transom (aft mirror) or trolling motor.
Does the transducer require hole drilling for mounting?
Transom and trolling motor mounts generally do not require drilling through the hull; refer to specific instructions included.
What is the function of the transducer's 12-pin connector?
The 12-pin connector provides interface to compatible sonar/chartplotter devices for data and power connection.
For which sonar technologies is the GT36UHD-TM designed?
The GT36UHD-TM supports Ultra High-Definition ClearVü and SideVü scanning sonar technologies for detail below and off to the sides.
Who do I contact for help with installation, servicing or advice?
Contact the SailRACE team — as certified marine experts we're happy to help with product selection, installation and after-sales servicing, before and after your purchase.
