Harken 40 Self-Tailing Radial White Winch — 2 Speed

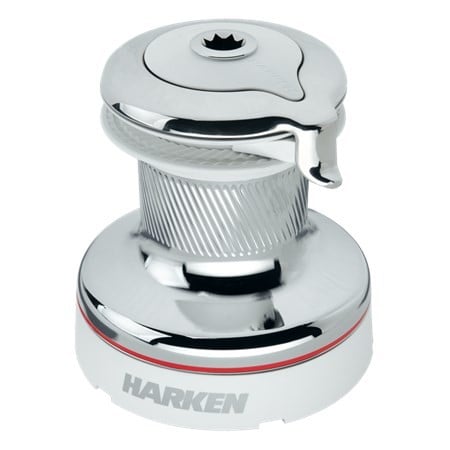

The Radial White is designed for boatbuilders, designers, and sailors looking for a winch that combines bold contemporary styling with the technical excellence Harken is known for. Winches feature mirror-finished chrome drums with white composite tops, self-tailing jaws, and skirts to provide an aesthetic option on any boat. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Material Chrome
Configuration Autovidage
Vitesse 2
Ø du tambour (mm) 80 mm
Ø du tambour (po) 3 1/8 po
Ø de la base (mm) 157 mm
Ø de la base (po) 6 3/16 po
Hauteur (mm) 175 mm
Hauteur (po) 6 7/8 po
Weight (kg) 5.4 kg
Weight (lb) 11.9 lb
Hauteur d'entrée de ligne (mm) 82 mm
Hauteur d'entrée de ligne (po) 3 1/4 po
Ø minimal de la ligne (mm) 8 mm
Ø minimum de la ligne (in) 5/16 in
Ø maximal de la ligne (mm) 12 mm
Ø maximum de la ligne (in) 1/2 in
Cercle de fixation (mm) 123 mm
Cercle de fixation (po) 4 7/8 po
Fixations (mm) M6 SH mm
Fixations (po) 1/4 SH po
Nombre de fixations 5
Rapport de démultiplication - 1 2.13
Rapport de démultiplication - 2 6.28
Rapport de force - 1 13,50
Rapport de force - 2 39,90
Puissance disponible Manuel

MPN	40.2STCW
GTIN	097653603511
Marque	Harken
SKU	HKN-40.2STCW
