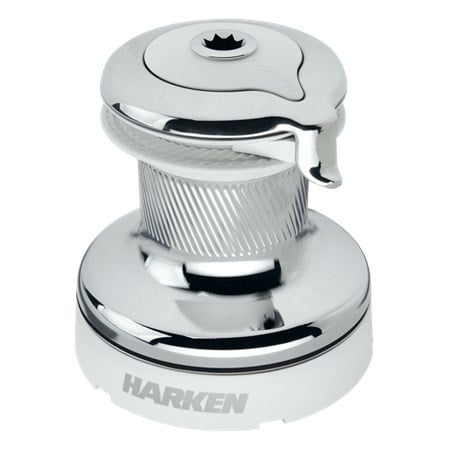

Harken 70 Self-Tailing Radial White Winch — 3 Speed

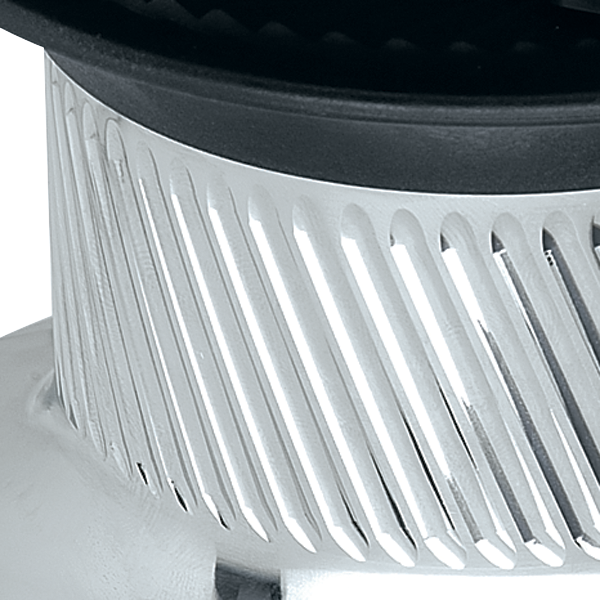

The Radial White is designed for boatbuilders, designers, and sailors looking for a winch that combines bold contemporary styling with the technical excellence Harken® is known for. Winches feature mirror-finished chrome drums with white composite tops, self-tailing jaws, and skirts to provide an aesthetic option on any boat. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Material Chrome
Configuration Autovidage
Speed 3
Ø du tambour (mm) 130 mm
Ø du tambour (po) 5 1/8 po
Ø de la base (mm) 240 mm
Ø de la base (po) 9 7/16 po
Height (mm) 264 mm
Height (in) 10 3/8 in
Weight (kg) 16.6 kg
Weight (lb) 36.6 lb
Hauteur d'entrée de ligne (mm) 115 mm
Hauteur d'entrée de ligne (po) 4 1/2 po
Ø minimal de la ligne (mm) 10 mm
Ø minimum de la ligne (in) 3/8 in
Ø maximal de la ligne (mm) 18 mm
Ø maximal de la ligne (po) 11/16 po
Cercle de fixation (mm) 205 mm
Cercle de fixation (po) 8 1/8 po
Fixations (mm) M8 SH mm
Fixations (po) 5/16 SH po
Nombre de fixations 6
Rapport de démultiplication - 1 2.30
Gear ratio – 2 5.70
Gear ratio – 3 18.50
Power ratio – 1 9.00
Power ratio – 2 22.20
Power ratio – 3 72.00
Puissance disponible Manuel

MPN	70.3STCW
GTIN	097653603573
Marque	Harken
SKU	HKN-70.3STCW
