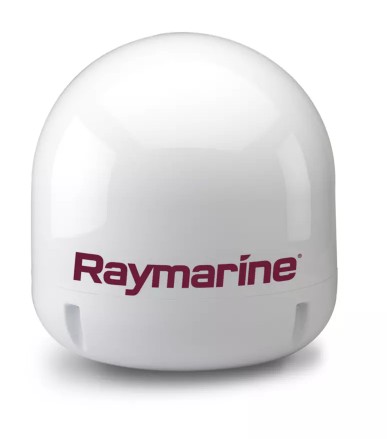

RAYMARINE | 60STV

The Raymarine 60STV expands satellite coverage with enhanced satellite tracking in regions prone to receiving weaker satellite signals. The Raymarine 60STV offers all the benefits of the Raymarine 45STV, and more.

Worldwide Satellite Service Compatibility
The Raymarine 60STV provides maximum convenience for accessing thousands of free-to-air and paid TV programs, both standard and high definition, worldwide, with an LNB module that incorporates multiple local oscillator frequencies.

WorldView™ LNB Module with Hands-Free Operation
The second-generation, patent-pending WorldView LNB module is Raymarine’s latest innovation. Unlike other TVRO LNB systems with a stability of ±1000 kHz, the Raymarine WorldView LNB module offers superior stability of ±10 kHz, providing 100 times greater accuracy and improved signal sensitivity.

In addition, this LNB module receives multiband and multipolarized satellite TV services globally. This means sailors do not need to manually change the LNB inside the antenna dome every time the boat enters a region with a different satellite service.

DVB-S2 Digital TV Reception
Some HD TV services have migrated to DVB-S2, and more will in the future. Thanks to Raymarine’s innovative DVB-S2 digital TV technology, sailors can now enjoy their favorite DTH (direct-to-home) entertainment at sea, just as they would at home.

Global Satellite Library
The 60STV includes a pre-programmed global satellite library, allowing sailors to select the desired satellite as they travel from one region to another. Once the satellite is selected, the WorldView LNB module automatically switches to the corresponding local frequency to receive the signal.

Wireless Connectivity and Aptus Mobile
The built-in Wi-Fi enables wireless connectivity to the ACU. PCs, laptops, and smartphones can be used to connect to the ACU and monitor, control, and change system settings wirelessly. The Intellian Aptus Mobile app can be downloaded to access the ACU via Wi-Fi and operate the antenna from an iPhone, iPad, or other network devices. iPhone and iPad are trademarks of Apple Inc.

Caractéristiques :

• Worldwide TV service compatibility
• Integrated WorldView LNB module
• DVB-S2 signal identification
• Integrated GPS and automatic polarization control LNB system
• Pre-programmed global satellite library

Spécifications :

Physical Features

• Dome height: 72 cm / 28.3″
• Dome diameter: 70 cm / 27.5″
• Reflector diameter: 60 cm / 23.6″
• Weight: 21 kg / 46.3 lbs

Environmental Specifications

• Operating temperature range: -25 °C to +55 °C / -13 °F to +131 °F
• Storage temperature range: -40 °C to +80 °C / -40 °F to +176 °F
• Water ingress: IPX6
• Approvals: CE / FCC
• Warranty: 3 years for parts, 2 years for labor

Performance

• Reception frequency: Ku-band (10.7~12.75 GHz)
• Polarization: Circular and linear
• Minimum EIRP: 46 dBW
• Azimuth range: 680º
• Elevation range: +5º to +90º
• Boat movement: Roll ±25º, Pitch ±15º
• Roll and pitch response rate: 45º / s
• Rotation speed: 45º / s
• RF output: Quad output

Antenna Control Unit

• Dimensions (W x D x H): 17.8 x 21.7 x 5.4 cm / 7″ x 8.5″ x 2.1″
• Weight: 1.2 kg / 2.6 lbs
• Display: 2-line, 20-character VFD module
• GPS Interface: Built-in (NMEA 0183 GPS)
• Required power: 9.0~30.0 V DC
• Power consumption: Normal 30 W, Max. 50 W

LNB LO Frequencies

• 11.250 GHz (Polarization: Dual Circular) – Area: North America, Russia
• 10.500 GHz (Polarization: Dual Circular) – Area: Latin America
• 10.750 GHz (Polarization: Single Circular) – Area: Korea
• 10.750 GHz (Polarization: Dual Circular) – Area: China
• 10.678 GHz (Polarization: Single Circular) – Area: Japan
• 11.300 GHz (Polarization: Dual Circular) – Area: Southeast Asia
• 10.700 GHz (Polarization: Dual Circular) – Area: Australia
• Universal Low: 9.75 GHz High: 10.6 GHz (Polarization: Quad Linear) – Area: Europe, Middle East, Africa, some countries in Asia

Box Contents

1 RG6 (Antenna – ACU RF Cable) 15 m
1 RG6 (ACU – IRD Cable) 3 m
1 Power cable 10 m
1 Serial cable for PC 1.8 m
1 NMEA connector 1.5 m
1 Power connector
1 Mounting hardware
1 Aptus software CD
1 Documentation
2 ACU brackets
