Airmar

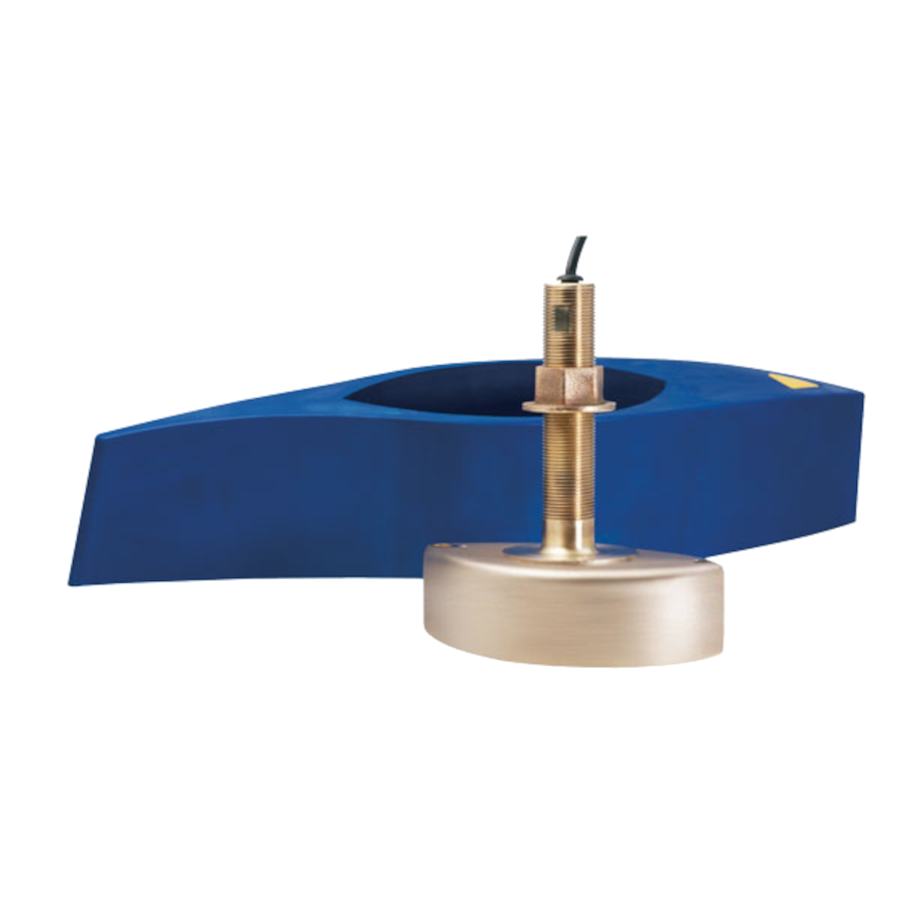

Airmar B285M Chirp-ready Thru-hull
- Regular price
- 22.066,00 kr
- Sale price
- 22.066,00 kr
- Regular price
- 24.793,00 kr
B2B og MVA-fradrag
Hvis du er en virksomhet som trekker fra mva i EU, registrer deg her og oppgi mva-ID-en din før kjøp for å trekke den fra i kassen.
Hvis du er en profesjonell aktør i maritim sektor og ønsker å utforske et partnerskap, kontakt oss.
SKU:B285M F1
Full garanti
Kjøp trygt.
SailRACE.com selger kun nye produkter med full offisiell produsentgaranti.
Hvis du har problemer etter kjøpet, vennligst kontakt oss på team@sailrace.com for å finne den beste løsningen sammen med produsenten.
Couldn't load pickup availability
Beskrivelse
Overview
1 kW The B285M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths up to 457 m (1500') and gives ultra-clear target resolution. This model is also ideal for single-channel sounder applications where operating in Chirp mode provides a greater opportunity to see what is in the water column. Simply create pre-sets for 85 and 135 kHz and toggle between wide and narrow beams for scouting an area and then pinpointing structure. The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH). This transducer is available in two options: one with an OEM connector designed specifically for your fishfinder, and another as a Mix and Match™ Transducer version. The Mix and Match™ transducer has a 9-meter (29.5’) cable with a standard connector, plus a 1-meter (3’) adapter cable to connect it to your fishfinder. When placing your order, make sure you know which connector type your fishfinder requires.
Specifications
| Acoustic Window | Urethane |
|---|---|
| Common Use | Fishing, Commercial Fishing |
| Frequency | Medium |
| Functions | Depth, Temperature |
| Hole Size | 30 mm (1-3/16") |
| Housing | Bronze |
| Hull Material | Fiberglass or wood |
| Max Deadrise | Up to 26° with fairing |
| Max Deadrise Angle | 26° |
| Max Depth | 457 m (1500') |
| Max Vessel LOA | 8 m (25') and above |
| Medium Frequency | 85-135 Khz |
| Medium Frequency Beamwidth | 16°-11° |
| Mounting Style | Thru-Hull with Fairing |
| Power Rating | 1 kW |
| Product Family | Marine |
| Retractable housing | No |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Tilted Element | No |
| Usable Shaft Length | 121 mm (4.75") |
| Weight | 4.2 kg (9.2 lb.) |
FAQs
What care should be taken when ordering for connector compatibility?
Make sure you know which connector type your fishfinder requires before ordering.
How should the B285M F2 be mounted on the hull?

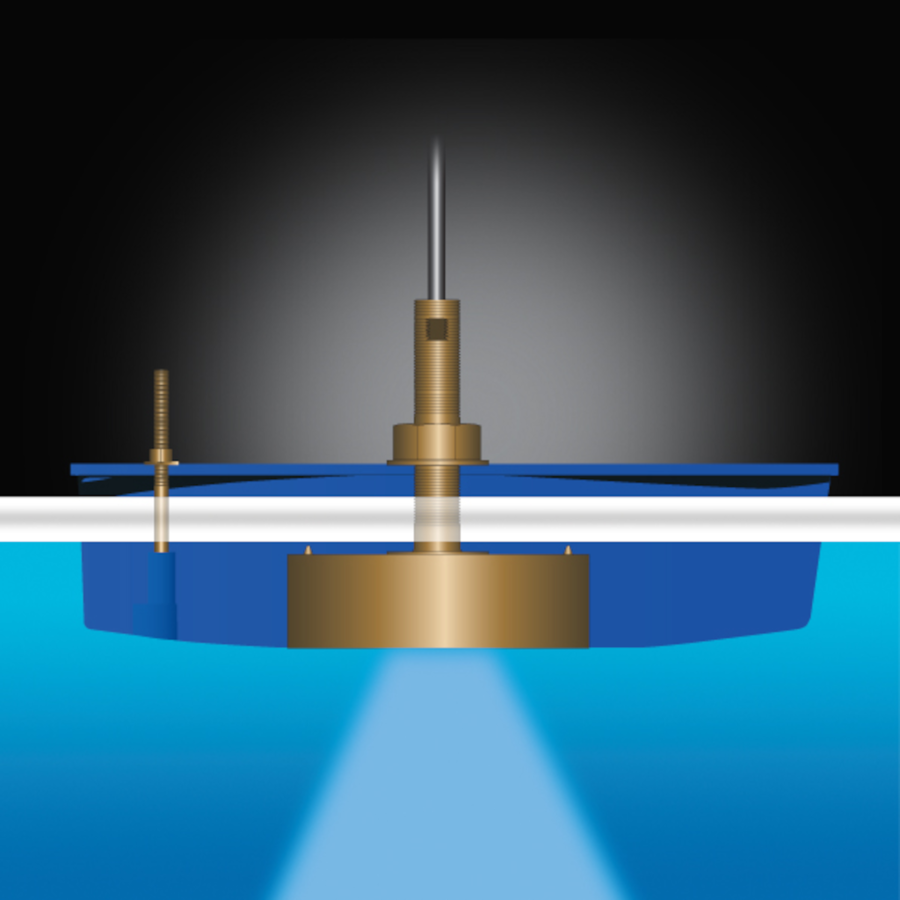

The transducer must be mounted thru-hull with a fairing, compatible with fiberglass or wood hulls and up to 26° deadrise when using the fairing.
What should you confirm before ordering the B285M transducer?
Ensure you know which connector type your fishfinder requires before placing your order.
What cable type is specified for the B285M F2?
The required cable type for the B285M F2 is C335, with a length of 10 m (33 ft).
How do you set frequency presets for different applications?
Create presets for 85 and 135 kHz and toggle between wide and narrow beams for area scouting and pinpointing.
What cable type is used with the B285M F2?
The technical specification lists the cable type as C335 for this broadband transducer family.
Is the B285M F2 suitable for single-channel sounders?
Yes, it is ideal for single-channel sounder applications where operating in Chirp mode is useful.
