Airmar

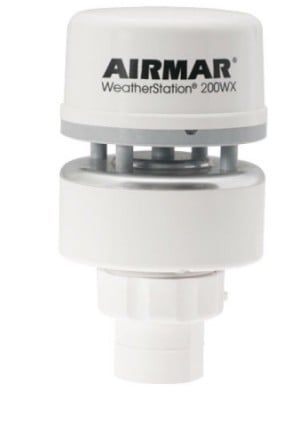

Airmar 200WX Dual NMEA RS232 10 Hz No Humidity IPX6
This product is no longer available
This model has been discontinued and can no longer be purchased. This page remains available for technical reference.
Need a replacement? Our team can help you find a suitable option for your boat.
Ask about a compatible alternative
B2B en btw-aftrek
Als u een bedrijf bent dat btw aftrekt in de Europese Unie, registreer u dan hier en voer vóór aankoop uw btw-nummer in om dit bij het afrekenen af te trekken.
Als u een professional in de maritieme sector bent en een samenwerking wilt verkennen, neem dan contact met ons op.
SKU:44-846-1-01
Volledige garantie
Koop met vertrouwen.
SailRACE.com verkoopt uitsluitend nieuwe producten met volledige officiële fabrieksgarantie.
Als u na aankoop problemen ondervindt, neem dan contact met ons op via team@sailrace.com om samen met de fabrikant de beste oplossing te bepalen.
Beschrijving
Overview
NOTE: Airmar introduced the 300WX WeatherStation Instruments in April of 2026 to replace the 200WX models. Inventory of 200WX will be in short supply through mid 2026.
Please contact our sales team about transitioning to 300WX. The WeatherStation 200WX is the best choice for mobile, weather-monitoring applications. Sensor rich, in a durable, rugged, small housing that is IPX6 rated, means the 200WX can be used on moving platforms such as TV-news and military vehicles. Knowing the dynamic true wind speed and direction is important and often mission-critical.
The 200WX calculates the dynamic true wind speed and direction based upon the apparent wind (the wind you would feel on your hand if you held it out while moving), speed of the vehicle, and vehicle heading.
Its internal 10 Hz GPS and three-axis electronic compass provide heading, position, speed-over-ground, and course-over-ground functionality that is necessary for dynamic true wind-data processing on a moving vehicle. The 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data.
The patented 200WX maintains dynamic compass performance in hilly and mountainous terrain—common in military situations.
Technical specifications
| Air Temp Accuracy | ±1.1°C At 20°C |
|---|---|
| Air Temp Range | -40 to 80°C (-40 to 176°F) |
| Air Temp Resolution | 0.1°C |
| Apparent Wind Speed and Angle | Yes |
| Barometric Pressure Accuracy | ±1 hPa At 25°C |
| Barometric Pressure Range | 300 to 1100 hPa |
| Barometric Pressure Resolution | 0.1 hPa |
| Certs And Standards | CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982 |
| Communications Available Hardware Interface | Serial RS232, Serial RS422, CAN |
| Communications Available Protocol | Serial - NMEA 0183, CAN - NMEA 2000 |
| Communications Serial Data Transmission Code | ASCII |
| Communications Serial Output Rate | 1 Hz typical. User selectable. 10 Hz maximum recommended |
| GPS Position Accuracy | 2.5 m (8’) Cep |
| Humidity | Optional |
| Mobile | Yes |
| Mounting Thread | Standard 1”-14 UNS (3/4” NPT optional) |
| NMEA 2000 LEN | 2 |
| Note | Cables sold separately unless otherwise specified |
| Operating Temp Range | -25 to 55°C (-13 to 131°F) |
| Optional RH Accuracy | ±5% RH at 0 to 90% RH at 20°C |
| Optional RH Range | 0 to 100% Rh |
| Optional RH Resolution | 0.1% Rh |
| Pitch Roll Accuracy | ±1° in range of ±30° |
| Pitch Roll Measurement Type | MEMS |
| Pitch Roll Range | 60° |
| Pitch Roll Resolution | 0.1° |
| Power Supply Current | <75 mA (<0.9 W) At 12 VDC |
| Power Supply Voltage | 9 to 40 VDC |
| Recommended Use | Marine or Land-Based, Mobile or Stationary |
| Theoretical Wind Speed and Direction | Yes |
| Three Axis Compass Dynamic Heading Accuracy | 2° dynamic heading accuracy |
| Three Axis Compass Range | 0 to 359.9° |
| Three Axis Compass Static Heading Accuracy | 1° static heading accuracy |
| True Wind Speed and Direction | Yes |
| Waterproof Rating | IPX6 (Relative Humidity/IPX4) |
| Weight | 300 g (0.7 lb.) |
| Wind Direction Accuracy | 2.5° Rms @ 20 knots |
| Wind Direction Calculations | User configurable damping |
| Wind Direction Range | 0° to 359.9° |
| Wind Direction Resolution | 0.1° |
| Wind Speed Accuracy | 2 knots Rms @ 20 knots |
| Wind Speed Calculations | User configurable damping |
| Wind Speed Range | 0 to 40 m/s (0 to 89 MPH) |
| Wind Speed Resolution | 0.1 m/s |
