Harken
Harken Performa Hydraulische Zelfkerende Aluminium Lier
- Regular price
- €6.329,70
- Sale price
- €6.329,70
- Regular price
- €7.112,03
B2B en btw-aftrek
Als u een bedrijf bent dat btw aftrekt in de Europese Unie, registreer u dan hier en voer vóór aankoop uw btw-nummer in om dit bij het afrekenen af te trekken.
Als u een professional in de maritieme sector bent en een samenwerking wilt verkennen, neem dan contact met ons op.
SKU:HKN-46.2STHP
Couldn't load pickup availability
Beschrijving
Key details

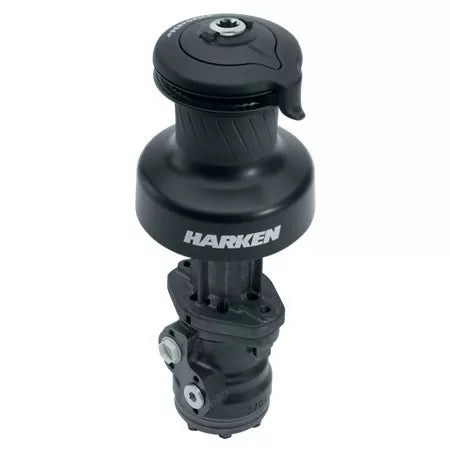

- Product type: Performa Hydraulic Self-Tailing Alum Winch
- Options: Model, Speed
- Available variants: 8
Overview

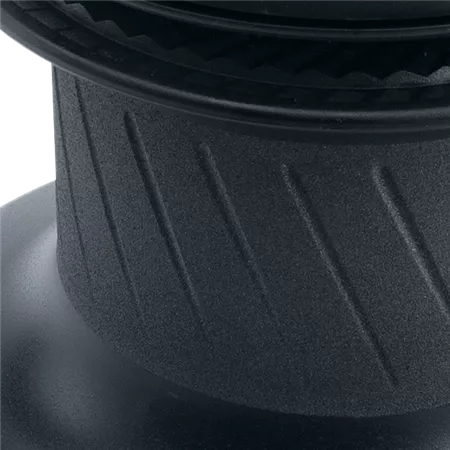

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Hydraulic Performa winches let you trim any size sail with the push of a button.
Specifications
Specifications vary by the selected variant. Use the variant table below to compare the available configurations and part numbers.
Variant details
Select the option combination that matches the required part number.
| Model | Speed | Part No. |
|---|---|---|
| 46 | 2 | 46.2STHP |
| 50 | 2 | 50.2STHP |
| 60 | 2 | 60.2STHP |
| 60 | 3 | 60.3STHP |
| 70 | 2 | 70.2STHP |
| 70 | 3 | 70.3STHP |
| 80 | 2 | 80.2STHP |
| 80 | 3 | 80.3STHP |
FAQs
How should the power be handled during installation/maintenance?
Ensure power is switched off before installing or maintaining the winch.
Who should perform installation and maintenance?
Must be carried out exclusively by specialized personnel or expert users.
What type of bolts should be used for installation?
Use only A4 stainless steel (DIN 267 part11) bolts to mount the winch to the deck.
Where should the drive gear be positioned during installation?
Mount the drive gear so it's at the sheet entry point; incorrect positioning can weaken the winch.
How should the sheet entry angle be set during installation?
Angle must be 8°, with a tolerance of ±2°, to prevent overrides and ensure winch safety.
What should you check before drilling the deck for installation?
Always check available space below deck for the flange and motor before drilling holes.
What is the torque specification for hydraulic motor flange screws?
Tighten six M6 precote coated screws to 8 Nm (71 in-lb) when installing the flange.
How should the mounting holes be treated before assembly?
Fill the mounting holes with a suitable marine sealant and remove excess sealant from drainage channels.
What material should mounting bolts be made of?
Only use A4 stainless steel (DIN 267 part 11) bolts. Other materials may lack sufficient strength or corrode.
Can countersunk bolts be used for mounting?
Do not use countersunk bolts to mount winches on the deck. Use only socket head bolts as specified.
How should the self-tailing arm be positioned?
Position the self-tailing arm so the line leaving the winch is led into the cockpit for safety and efficiency.
In what order should the electrical contact components be assembled?
The correct sequence is Nut – Cable Terminal – Self-Locking Washer – Lock Nut.
How should the winch be washed after use?
Wash frequently with fresh water; do not use teak cleaners, solvents, or abrasive pastes on metal or plastic parts.
