Actisense | NGW-1 Bi-directional NMEA 2000® Conversion Gateway
Original price was: 195,00 €.175,59 €Current price is: 175,59 €.
You save
The NMEA 2000 Gateway provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa.
Multiple NGW-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data from one place to another.
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Hook up to NMEA 2000 whilst keeping currently installed NMEA 0183 devices.
The NMEA 2000 Gateway provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa.
Multiple NGW-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data from one place to another.
ully NMEA 2000 Certified
Bridge an NMEA 2000 network with your old 0183 electronics using the NGW-1.
The NGW-1 has the largest range of conversions available on the market. To see a full up to date list of the conversions the various configurations can handle.
The Actisense NMEA Reader software utility allows the NGW-1 user to view and understand (in detail) the translated NMEA 0183 sentences output by an NGW-1 directly.
FEATURES
- Fully isolated NMEA 0183 incorporating ISO-Drive™ technology
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Up to 230,400 baud data transfer rate
- Integrated 1.5m drop cable
- Diagnostic receive LEDs
BENEFITS
- Upgrade NMEA 0183 equipment to NMEA 2000
- Allow NMEA 0183 devices to receive vital NMEA 2000 data
- Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
- Reliable, renowned bi-directional conversion engine
- Supports a wide range of conversions including AIS
- Easily configurable using Actisense Toolkit
Specifications:
Take a look at what is inside the NMEA 0183 to 2000 converter:
| Power Supply (ISO, ISO-AIS & STNG Variants) | |
| Supply Voltage (NMEA 2000 Port) | 9.5 to 35V DC |
| Supply Current (NMEA 2000 Port) | 35mA @ 12V DC, Max 50mA |
| Load Equivalent Number (LEN) | 1 |
| Power Supply (USB Variants) | |
| Supply Voltage (NMEA 2000 Port) | 9 to 29V DC |
| Supply Current (USB Host Port) | 85mA @ 5V DC |
| Supply Current (NMEA 2000 Port) | 15mA @ 12V DC, Max 50mA |
| Load Equivalent Number (LEN) | 1 |
| NMEA 2000 Port (All Variants) | |
| Compatibility | Fully NMEA 2000 certified |
| Speed / Baud Rate | 250kbps |
| Connectivity | M12 Male (A polarised) connector moulded on cable |
| Cable Length NMEA 2000 | 1.5m |

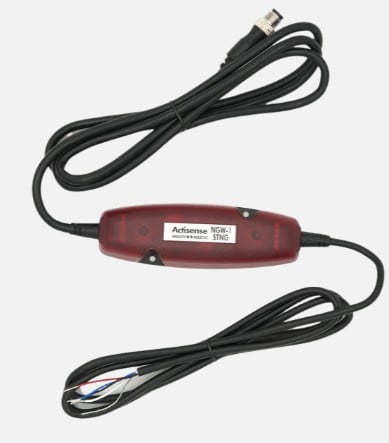

| Cable Length STNG Adapter | 0.4m (1.9m with NMEA 2000 cable connected) |

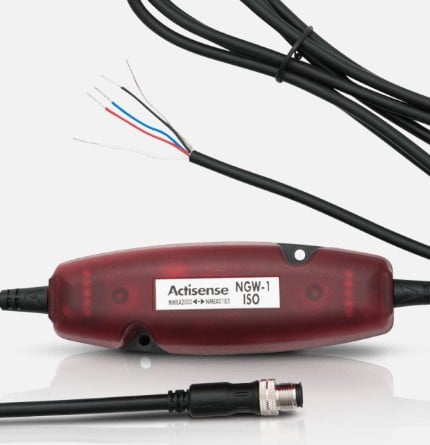

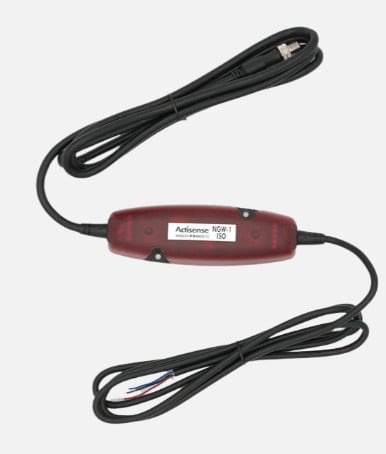

| ISO Port (NMEA 0183 port – ISO, ISO-AIS & STNG Variants) | |
| Compatibility | Full NMEA 0183, RS232 & RS422 compatible. RS485 Listener compatible |
| Speed/Baud Rate | 4800 to 115200 Baud |
| Output Voltage Drive | >= 2.1V (differential) into 100Ω |
| Output Current Drive | 20mA max. |
| Output Protection | Short circuit and ESD |
| Input Voltage Tolerance | -15V to +15V continuous -35V to +35V short term (< 1 second) |
| Input Protection | Current limited and overdrive protection to 40VDC |
| Connectivity | 5mm stripped and tinned wire |
| Cable Length | 1.5m |

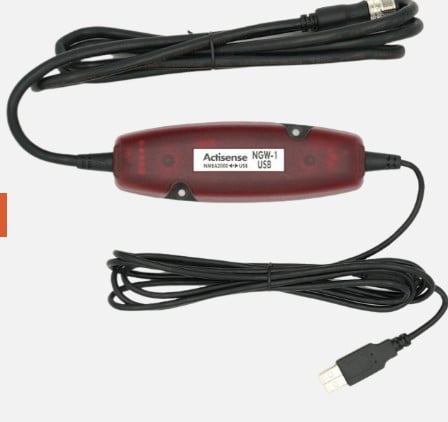

| USB Port (USB Variant) | |
| Compatibility | USB 1.1, 2.0 and 3.0 |
| Speed / Baud Rate | 4800 to 230400 Baud |
| Connectivity | Male type A plug moulded onto cable |
| Cable Length | 1.5m |
| Drivers (Latest OS) | Windows XP, Vista, 7, 8, 10, 11 & MAC OS X supplied on CD & available via the ‘Downloads’ button towards the bottom of this web page |
| Drivers (Legacy OS) | Contact Actisense for full details of the legacy OS versions supported: support@actisense.com |
| Isolation | |
| NMEA 2000 Port to ISO Port | Uses IsoDriveTM, Hi-Pot tested to 1000V |
| NMEA 2000 Port to USB Port | Galvanic Isolation, Hi-Pot tested to 1000V |
| Mechanical | |
| Housing Material Lid | Polycarbonate |
| Housing Material Base | Flame retardent ABS |
| Weight NGW-1-ISO & ISO-AIS | 220g |
| Weight NGW-1-USB | 210g |
| Weight NGW-1-STNG | 260g |
| Approvals and Certifications | |
| Fully NMEA 2000 Certified | |
| Meets all IEC 61162-1 & 61162-2 requirements | |
| Meets all IEC 61162-3 requirements | |
| EMC | IEC 60945 (sections 9, 10 & 11.2) |
| Environmental Protection | IP42 |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| Recommended Humidity | 0 – 93% RH |
| Guarantee | 3 years |
