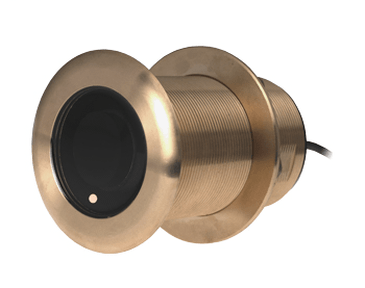

Airmar B75M
Original price was: 1.099,00 €.978,19 €Current price is: 978,19 €.
You save
Airmar’s low-profile, Chirp-ready transducer models are the perfect complement for smaller boats, such as center consoles. Operating in a frequency range of 80 to 130 kHz, the B75M offers up to 50 kHz of total bandwidth in a single installation. This transducer shows surprising details of the background in medium and low depths up to 274 m (900′).
The Tilted Element transducers have the ceramic element fixed at an angle of 20°, 12° or 0° inside the housing. When the transducer is installed almost flush with the hull, the inclination of the element corrects the elevation of the hull, orienting the beam directly downwards. This guarantees a maximum return of the echo to the transducer and more accurate depth readings.
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Airmar’s low-profile, Chirp-ready transducer models are the perfect complement for smaller boats, such as center consoles. Operating in a frequency range of 80 to 130 kHz, the B75M offers up to 50 kHz of total bandwidth in a single installation. This transducer shows surprising details of the background in medium and low depths up to 274 m (900′).
The Tilted Element transducers have the ceramic element fixed at an angle of 20°, 12° or 0° inside the housing. When the transducer is installed almost flush with the hull, the inclination of the element corrects the elevation of the hull, orienting the beam directly downwards. This guarantees a maximum return of the echo to the transducer and more accurate depth readings.
The B75M is available in three inclined element models:
Fixed inclined version of 20° for hull elevation angles from 16 to 24°
Fixed inclined version of 12° for hull elevation angles from 6 to 15°
Fixed inclined version of 0° for hull elevation angles from 0 to 7°
Features:
- Detection of depth and temperature of the fast-response water
- 600 W of power with a maximum depth of 274 m (900′)
- Average frequency: 80 to 130 kHz
- Beam width from 24° to 16°
- The medium frequency provides good performance in shallow water, background details and deeper performance than the high frequency band.
- The low-profile helmet housing offers a good screen resolution at high speed when installed correctly
- Bronze housing for use in fiberglass or wood hull.
- Recommended for stepped, gliding or displacement helmet.
- Also available in a stainless steel case (SS75M) for use in all hull materials.
Specifications:
- Acoustic window: urethane.
- Common use: fishing
- Functions: Depth, Temperature
- Hole size: 70 mm (2-13/16″)
- Housing: Bronze
- Hull material: Fiberglass or wood
- Low frequency: 40-75 kHz
- Low-frequency beam width: 32°-21°
- Max. Deadrise: up to 24°
- Maximum elevation angle: 24°
- Maximum depth: 366 m (1200′)
- Maximum ship’s length: up to 8 m (26′)
- Mounting style: element inclined through the helmet.
- Rated power: 600 W
- Retractable housing: No
- Single or dual frequency: Single band ready for CHIRP
- Inclined element: Yes
- Useful axle length: 95 mm (3.75″)
- Weight: 1.4 kg (3 pounds)
Additional information
| Weight | 2,8 kg |
|---|---|
| Dimensions | 19 × 27,6 × 12,7 cm |
| Inclination | 0º, 12º, 20º |
