R509LM Chirp-ready Thru-hull External Mount

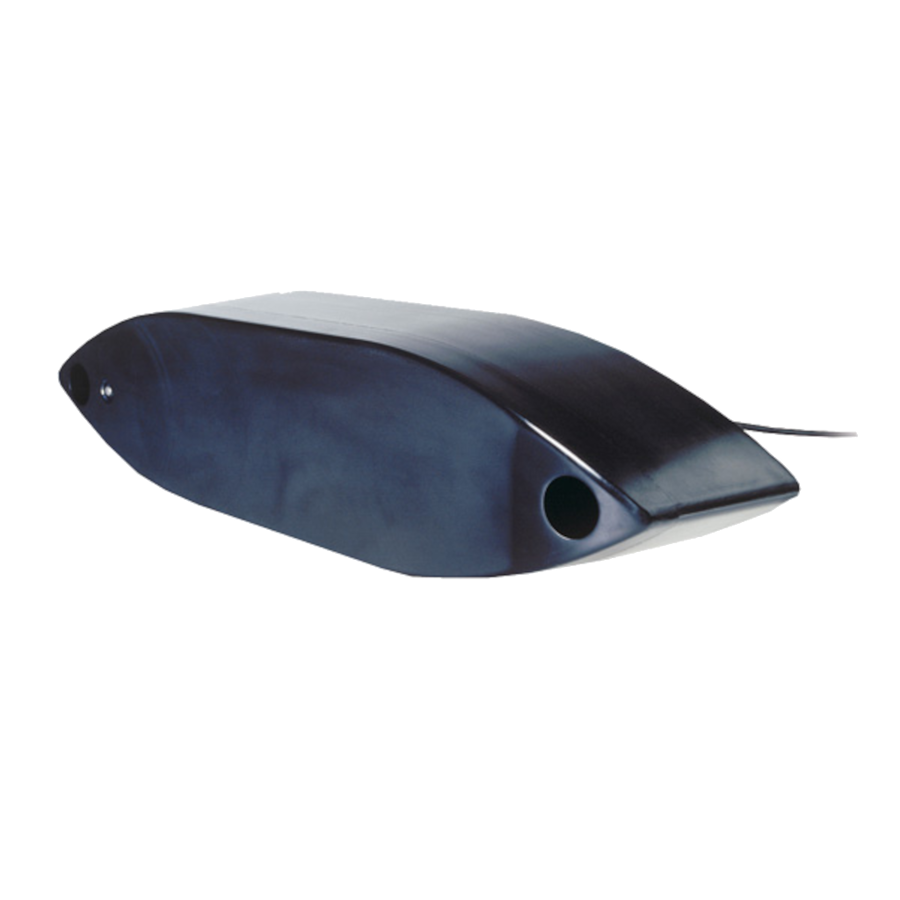

AIRMAR R509LHW Wide-beam Chirp-ready Thru-hull External Mount

Name: AIRMAR R509LHW Wide-beam Chirp-ready Thru-hull External Mount
SKU: R509C-LHW N
Price: 5188.59 EUR
Availability: InStock

Original price was: 5.765,00 €.Current price is: 5.188,59 €.
You save

SKU: R509C-LHW N Category: CHIRP Ready Thru Hull Sensors

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready R509LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500′). The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3048 m (10000′). Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.

Features

Depth and fast-response water-temperature sensing
3 kW of power for superior deep-water performance from the low frequency
Low frequency: 28 to 60 kHz
- 23° to 9° port-starboard beamwidth
- 11° to 5° fore-aft beamwidth
- Maximum depth of 3048 m (10000′)
1 kW high frequency: 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth of 152 m (500′)
132 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidths
High frequency provides superior shallow-water performance, bottom detail, and fish-target separation
High wide beamwidth yields more coverage for detecting fish in the upper-water column
Urethane housing with fairing for optimal performance
Also available as a cavity/welded-tank (CM599LHW) mount
Patented Xducer ID^® technology
