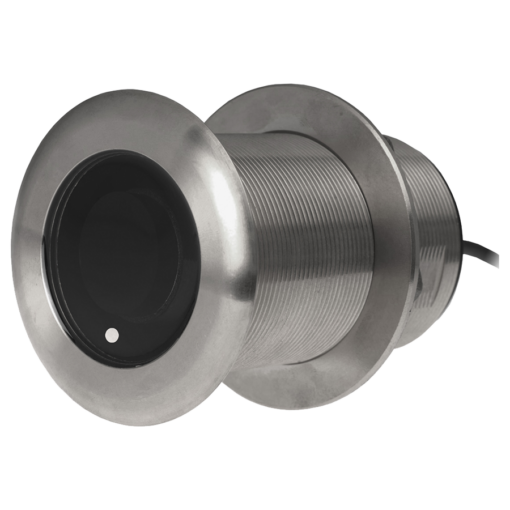

AIRMAR SS175M Chirp-ready Tilted Element Thru-hull
Original price was: 1.521,00 €.1.353,70 €Current price is: 1.353,70 €.
You save
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
The SS175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500′) and delivers ultra-clear target resolution.

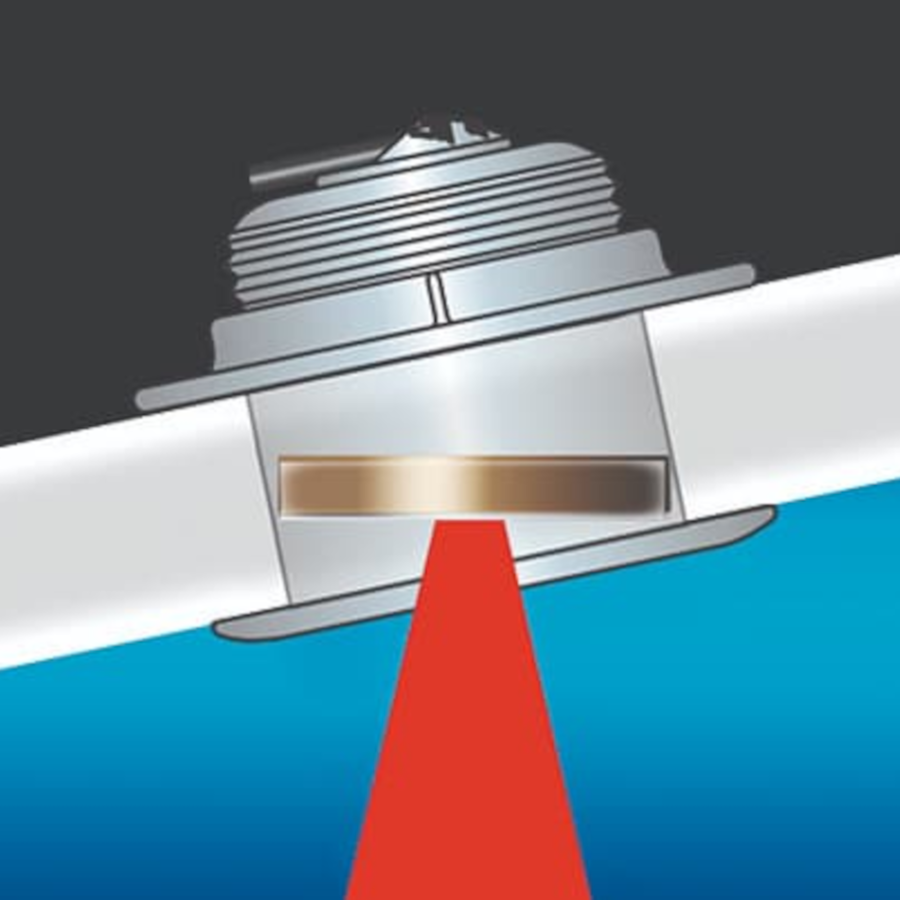

Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The SS175M is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Features
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Medium frequency: 85 to 135 kHz
- 16° to 11° beamwidth
- Maximum depth of 457 m (1500′)
- 50 kHz of total bandwidth from one transducer
- Low-profile, thru-hull housing provides good display resolution at speed when installed properly
- Recommended for stepped, planing, or displacement hull
- Stainless steel housing for use in all hull materials
- Also available in a bronze housing (B175M) for use in a fiberglass or wood hull
- Patented Xducer ID® technology
Specifications
- Acoustic Window: Urethane
- Common Use: Fishing
- Functions: Depth, Temperature

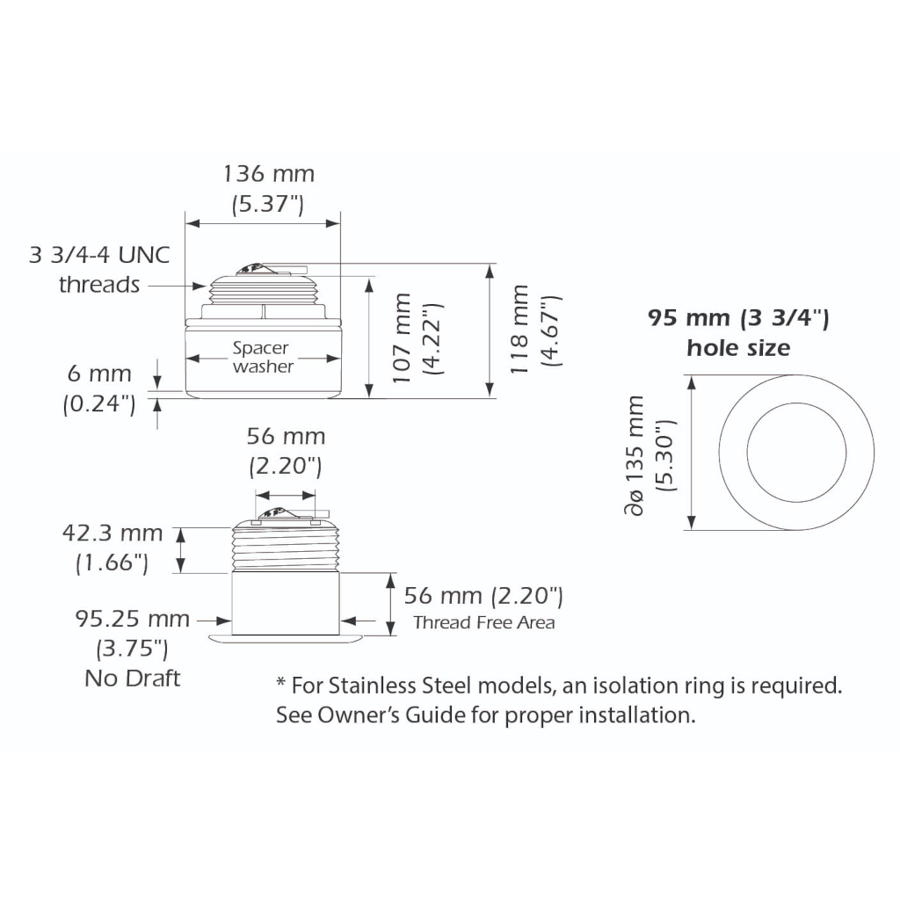

- Hole Size: Fiberglass or wood hull 95 mm (3-3/4″), Metal hull 105 mm (4-1/8″)
- Housing: Stainless Steel
- Hull Material: Compatible w/ all hull materials
- Max Deadrise: Up to 24°
- Max Deadrise Angle: 24°
- Max Depth: 457 m (1500′)
- Max Vessel LOA: Up to 11 m (36′)
- Medium Frequency: 85-135 kHz
- Medium Frequency Beamwidth: 16°-11°
- Mounting Style: Tilted Element Thru-Hull
- Power Rating: 1 kW
- Retractable housing: No
- Single or Dual Frequency: CHIRP-Ready Single-Band
- Tilted Element: Yes
- Weight: 2.7 kg (6 lb.)
Additional information
| Inclination | 0º, 12º, 20º |
|---|
