DST800 P17 200BA 10M Cable, Generic without connector.
Original price was: 260,99 €.234,99 €Current price is: 234,99 €.
You save

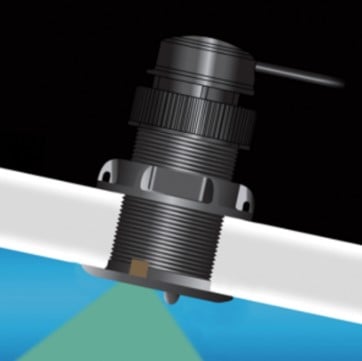

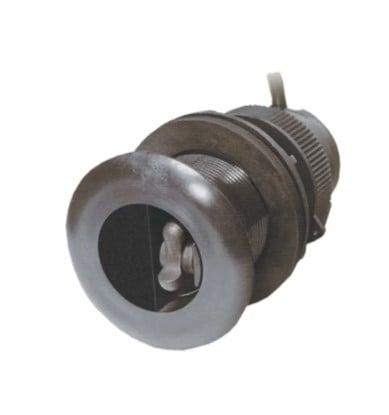

These transducers, available in plastic, steel, and bronze, offer depth, speed, and temperature. The speed and temperature sensors can be removed and cleaned without the need to dock the boat or disassemble the transducer
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
These transducers, available in plastic, steel, and bronze, offer depth, speed, and temperature. The speed and temperature sensors can be removed and cleaned without the need to dock the boat or disassemble the transducer.
Details:
- Depth, speed, and temperature in a compact housing
- The 235 kHz frequency prevents mutual interference with other echosounders on the boat
- Depth performance from 500 mm to 185 m (1.6 to 600′)

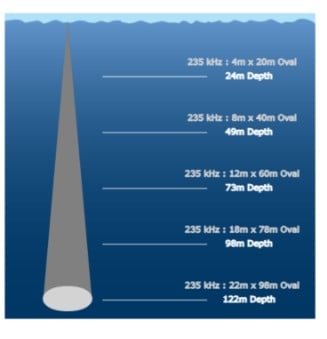

- The wide, fan-shaped port-starboard beam can detect the bottom even when installed on a high-hull vessel or a heeling sailboat
- The fast-response temperature sensor provides an accuracy of ±0.2 °C (±0.1 °F)
- Analog output sensor operating at 200 or 235 kHz
- Also available in NMEA 0183 or NMEA 2000 standard
- Plastic housing with water valve”
Specifications:
Acoustic Window: Urethane
Common Use: Cruising/racing sailboats, leisure/navigation, fishing
Conventional Beam: 13°
Data Rate: 1X per second
Functions: Depth, Speed, Temperature
Hole Size: 51 mm (2″)
Housing: Plastic
Hull Material: Fiberglass or metal
Max Deadrise: Up to 22°
Maximum Hull Angle: 22°
Maximum Depth: Up to 100 m (330′)
Mounting Style: Through-hull with tilted element
Rated Power: 250 W
Protocol Output: Analog
Pulses: 20,000 p/nm* (5.6 Hz per knot) — *p/nm = pulses per nautical mile
Retractable Housing: Yes
Single or Dual Frequency: Single conventional frequency
Speed Range: Up to 45 knots
Temperature Accuracy: ±0.5 °C (±1.8 °F)
Tilted Element: No
Shaft Length: 57 mm (2.25″)
Water Temperature: -10° to 40°C (14° to 104°F)
Weight: 0.9 kg (2 lbs)
