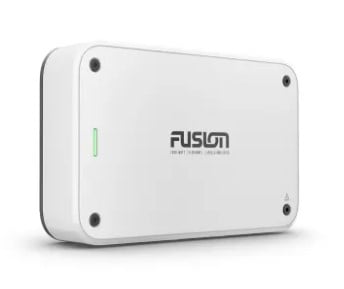

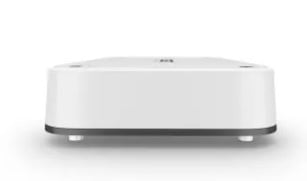

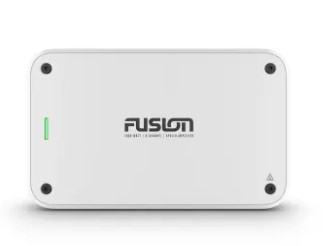

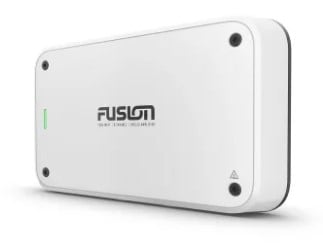

Garmin Fusion® Apollo™ Marine Amplifiers (150-watt RMS)(6 Channels)

These efficient, easy-to-install amplifiers work with your compatible Fusion stereo system and let you choose from monoblock, multichannel and zone amplifier options.

POWER AND EFFICIENCY

The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel.

EASY TUNE FEATURE

These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.

LESS DISTORTION

Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

LED INDICATORS

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

MOUNTING BRACKETS

Easily install the amplifiers on board with the included mounting brackets.

IGNITION PROTECTED

The ignition protected design helps prevent potential damage from overheating.

CONFORMAL-COATED PCBS

The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM STABLE

You can connect up to two speakers per channel, increasing setup options.

FUSION TRUE-MARINE^™ DESIGN

The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

1800-WATT 6 CHANNEL AMPLIFIER

This 6 channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.

Content:

• One Apollo 6 channel amplifier
• One mounting bracket
• One power connector

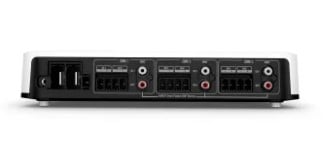

• Three speaker connectors with high power mode adapters
• Four 8-guage, flat head self-tapping screws
• Four 8-guage, pan head self-tapping screws (for mounting bracket)
• Four screw covers
• Mounting template
• Installation instructions
• ISPI

Specifications:

General

Physical dimensions without bracket (LxWxH)	11.69″ x 7.06″ x 1.75″ (297 x 180 x 45 mm)
Physical dimensions with bracket (LxWxH)	11.69″ x 7.06″ x 2.13″ (297 x 180 x 50 mm)
Weight	5.95 lb (2.7 kg)
Water Rating	IPX2
Amplifier class	Class-D
CEA-2006 power rating	150 watt RMS x 6 @ 14.4 V input – 4 ohm < 1% THD
Total rated power output – 2 ohm (watts)	290 watt RMS x 6 @ 14.4 V input – 2 ohm < 1% THD
Total rated power output – 4 ohm Bridged (watts)	580 watt RMS x 3 @ 14.4 V input – 4 ohm Bridged < 1% THD
Peak power (watts)	1800 watts
Input sensitivity	1.6 V RMS
Input impedance	22k ohm
Operating voltage	10.8 V – 16 V DC
Current draw, in standby/off using amplifier on wire	< 5 mA @ 14.4 V input
Current draw, on, no audio	< 1.32 A @ 14.4 V input
Fuse rating	125 A electronic fuse (no replacement neccessary)
Power-cable fuse model and rating	Bussmann™ BK/AMI-030 30 A fast-acting
Ignition Safety Protected (SAE J1171)	Yes
Protection circuits	Reverse voltage Input under/over voltage Over temperature Output short circuit
Operating temperature range	32° to 122° F (0° to 50° C)
Warranty	3 years



Brand	Garmin
