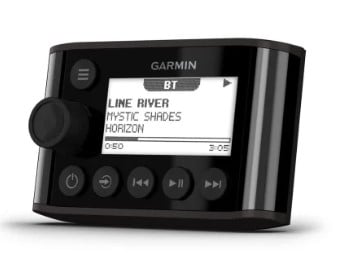

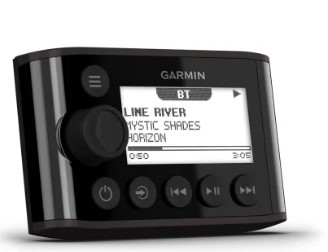

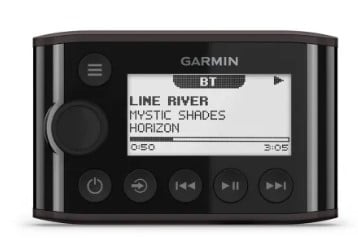

Garmin Fusion® MS-NRX300

DESIGNED AND ENGINEERED TO TRUE-MARINE^™ STANDARDS

Built on the True-Marine design philosophy from Fusion, the NRX300 black wired remote is IPX7 rated and has been tested to a high level of protection against salt fog, temperature, vibration and UV.

NMEA 2000 REPEATER

Connect the NRX300 black wired remote to your boat’s existing NMEA 2000 network and display data from your compatible marine electronics including wind data, depth, speed, heading, position, ETA and water temperature.

MULTI-ZONE^™ TECHNOLOGY

The NRX300 black wired remote can control up to 4 audio zones on board your boat with localized volume control and global source selection – allowing you to customize your onboard audio entertainment experience.

Content:

• Fusion NRX300 black wired remote
• Mounting gasket
• Four 8-gauge, self-tapping screws
• Two screw covers
• 20 ft (6 meter) drop cable for the NMEA 2000 network
• T-connector for the NMEA 2000 network
• Dust cover
• Documentation

Specifications:

General
Physical dimensions (HxWxD)	2.76″ x 4.33″ x 1.97″ (70 x 110 x 50 mm)
Water rating	IPX7
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	110 mA at 12 VDC



Remote Features
Display	2.6″ optically bonded monochrome LCD
Supported NMEA 2000 PGN data	127250 – Heading sensor reference (true, magnetic) 128259 – Water speed reference (paddle wheel, pitot tube, doppler log, correlation log, electromagnetic log) 128267 – Water depth (offset add or subtract) 129025 – Position (latitude and longitude) 129026 – Course Over Ground (COG) and Speed Over Ground (SOG) [COG reference true, magnetic] 129029 – Global Navigation Satellite System (GNSS) position data 129284 – Navigation data (ETA) 130306 – Wind data reference (apparent wind relative to the vessel centerline) 130310 – Water temperature and air pressure 130311 – Water temperature and air pressure 130312 – Temperature and temperature source (sea temperature)
Warranty	3 years



Connectivity
NMEA 2000	1 port
