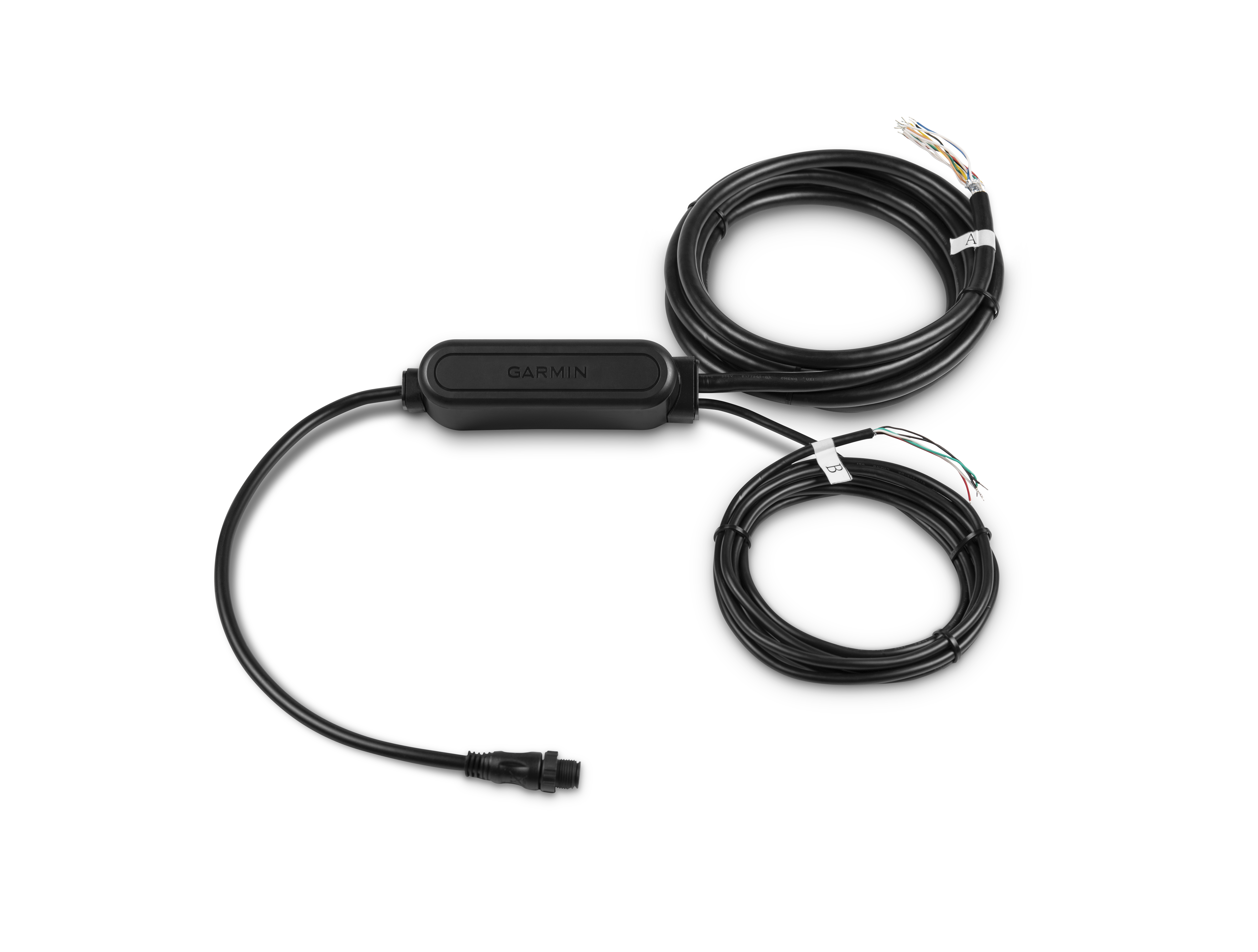

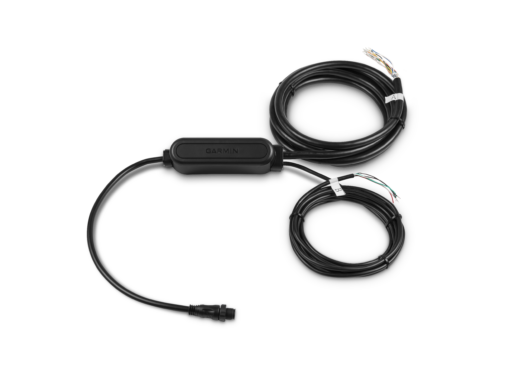

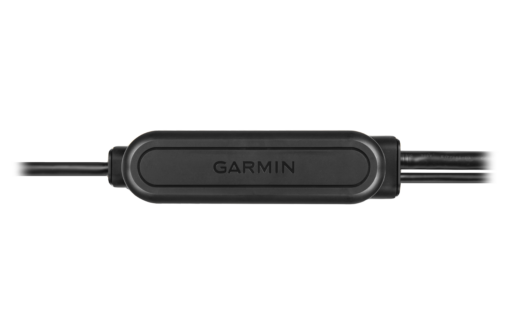

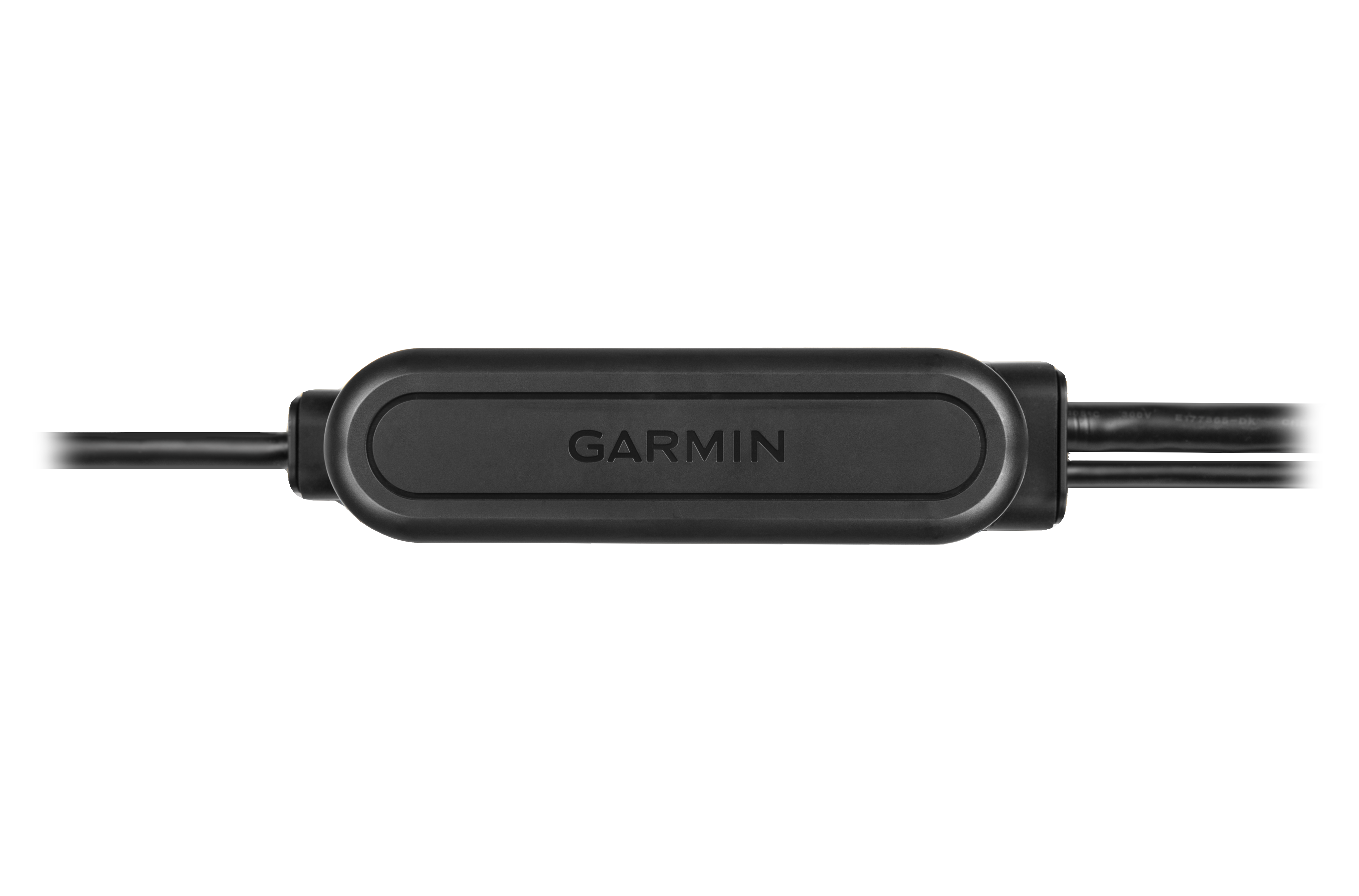

Garmin GNA 10
Original price was: 263,64 €.229,37 €Current price is: 229,37 €.
You save
Use the Garmin GNA 10 to connect an adjustment lever to our Reactor 401 autopilots on boats with a displacement helmet. An adjustment lever is a sturdy and simple steering control for work boats and trawlers. Adjust the course control with the adjustment lever by pressing it to the right or left, or put the autopilot in the new power steering mode to move the rudder without the autopilot guide. Optionally, the GNA 10 can also be connected to a button and an LED light to allow the change between the course control and the standby mode2. Garmin does not provide the adjustment lever, the button or the LED light.
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Use the Garmin GNA 10 to connect an adjustment lever to our Reactor 401 autopilots on boats with a displacement helmet. An adjustment lever is a sturdy and simple steering control for work boats and trawlers. Adjust the course control with the adjustment lever by pressing it to the right or left, or put the autopilot in the new power steering mode to move the rudder without the autopilot guide. Optionally, the GNA 10 can also be connected to a button and an LED light to allow the change between the course control and the standby mode2. Garmin does not provide the adjustment lever, the button or the LED light.
Features:

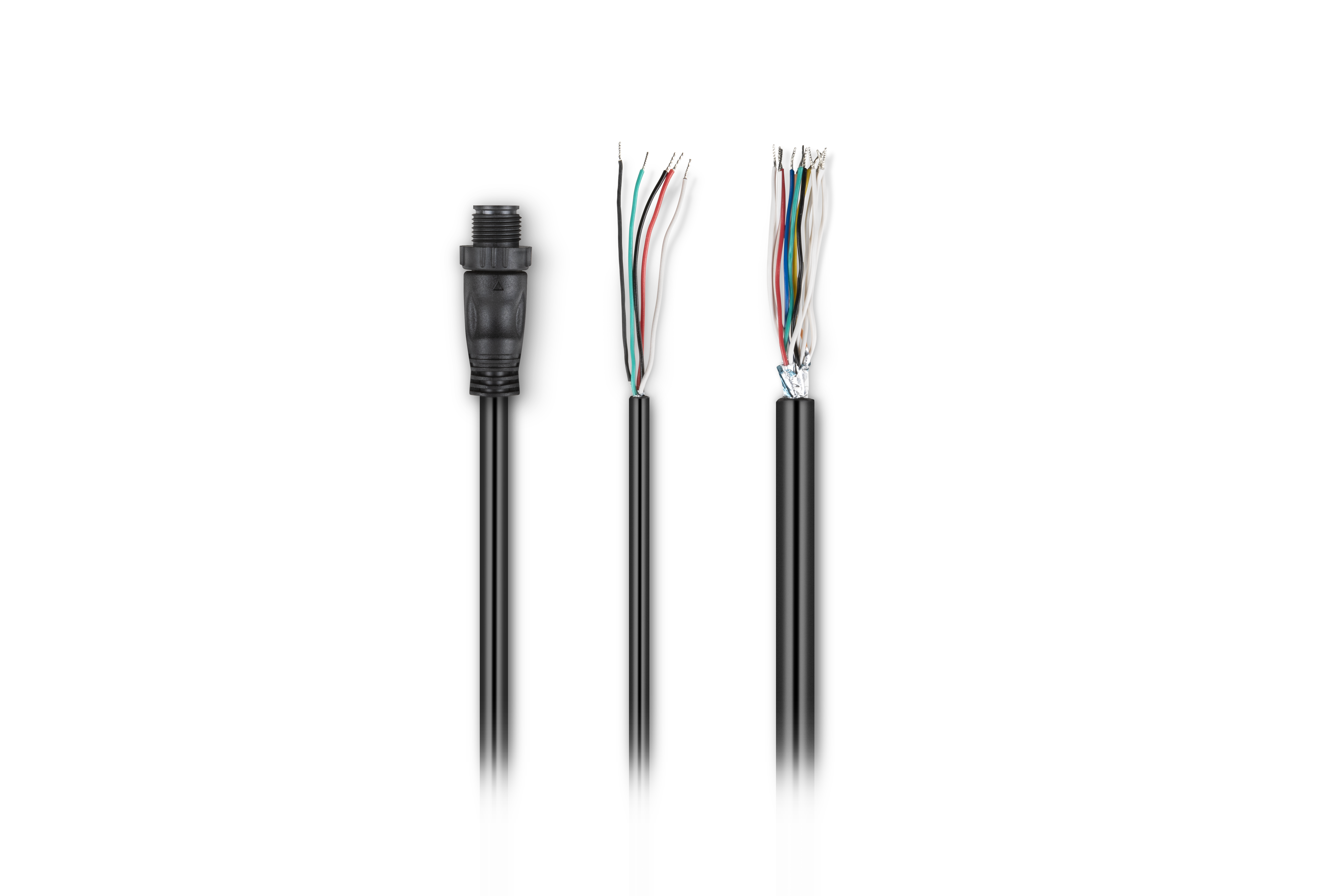

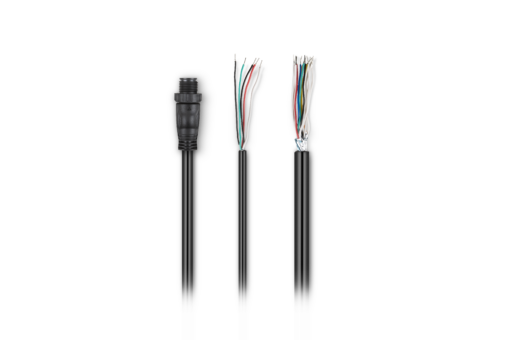

- Cable length: 2.8 meters
- Water resistance rating: IPX7
- NMEA exit: NMEA 2000
- LEN (load equivalence number) of NMEA 2000®: 5 (from 250 mA to 9 V of CC)
- Operating temperature: from -20 °C to 75 °C
- Power voltage: supplied by the NMEA 2000 communications link, 9-32 V
Compatible adjustment levers
- Kobelt 7170
- Jastram JO100/JO300
- Simrad S35 (has a built-in button and status LED, which are compatible)
- The GNA 10 is not compatible with two speed adjustment levers with two sets of switches
Compatible types of buttons
- DPST OFF-MOM (no diode required for installation) or
- SPST (requires diode for installation)
- Maximum current of 5 mA and maximum voltage of 12 V
- Compatible LED types
- LED lights with a current consumption of 20 mA or less
