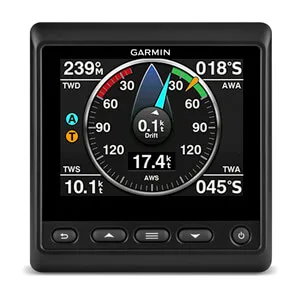

Garmin Nautical Instrument GMI™ 20
Original price was: 495,04 €.430,68 €Current price is: 430,68 €.
You save
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
Perfectly designed for sailing and motor boats
- The screen of the nautical instrument clearly shows the depth, speed, wind direction and the more than 100 nautical and boat parameters
- Large bright 4″ color screen, made of vitrified glass, with anti-reflective finish
- Easy to read at a distance and at a viewing angle of 170 degrees
- Improved night readability with backlight dimmer and full color palettes or in red/black or green/black
- Low-profile recessed mounting option or custom flush mounting
The digital nautical instrument display of the GMI 20 unit is perfectly designed for sailing and motor boats. It has been designed to clearly show the depth, speed, wind direction and the more than 100 nautical and boat parameters. Its large bright 4″ color screen with extra-large digits is easy to read from a distance and with a viewing angle of 170 degrees.
The glass with a vitrified finish prevents it from clouding and increases the level of contrast. Sunlight readability has been improved with a high-contrast color palette. For better night visibility, you can choose between a color palette in red/black, green/black or the normal night mode along with a light dimmer control. The screens can be set to the automatic scrolling mode, which automatically scrolls through the pages without you having to do anything. This is especially useful for navigators, since it allows them to install the unit or units in other locations of the boat. The default profiles can be customized to motorboat, sailboat, fishing, engine/fuel, in addition to many other user-specific profiles. The NMEA 2000® network is the one that provides power.
In addition, the GMI 20 unit has an exclusive countdown timer with internal beep. It includes 2 options of pressure covers of the trim piece that allow you to adjust the GMI 20 unit to the new GPSMAP® 500/700 series, GPSMAP 8000 with glass rudder or the previous Garmin plotters.
Specifications:
Physical and performance
| Screen size (Width/High) | 4″ diagonal |
| Screen resolution (Width/High) | 320 x 240 pixels |
| Dimensions of the unit (Width/High/Depth) | 110 x 115 x 30 mm (4.33″ x 4.53″ x 1.18″) |
| Voltage scale | 9-16 V (from NMEA 2000) |
| Classification of water resistance | IPX7 |
| Weight | 247 g (8.71 oz) |
| Assembly options | Flat or Flush |
| Type of screen | Color QVGA display |
Characteristics
| Compatible with NMEA 0183 | Yes |
| Audible alarms | Yes |
| Automatic ignition | Yes |
| Nautical and boat parameters | N/A |
| Temperature range | From 5° to 158°F (from -15° to 70°C) |
| Backlighting | Yes |
| Misc |
|
| Vitrified screen | Yes |
| User profiles | Yes |
| NMEA 2000® certified | Yes |
| Safety distance of the compass | 209 mm (8.25″) |
| Energy consumption | 3 W max |
Additional information
| Brand |
|---|
Related Products
Similar Products
The following products are from the same Category as this one:
Original price was: 24,79 €.21,57 €Current price is: 21,57 €.
You save
You save
Garmin
Original price was: 371,89 €.323,54 €Current price is: 323,54 €.
You save
You save
Garmin
Original price was: 263,64 €.229,37 €Current price is: 229,37 €.
You save
You save
Garmin
Original price was: 5.205,79 €.4.529,04 €Current price is: 4.529,04 €.
You save
You save
Garmin
Original price was: 2.602,48 €.2.264,16 €Current price is: 2.264,16 €.
You save
You save
Reviews (0)
Add a review
You must be logged in to post a review
Log In
Questions and Answers
Q & A (1)
Q & A
Ask a question
Gmi 10 replacement ok ?
Same connector ?
Dear Fernand,
The GMI10 works with both NMEA2000 and NMEA0183 data, while the GMI20 only works with NMEA2000 data. Therefore, if you are using NMEA2000 sensors, it is compatible.
