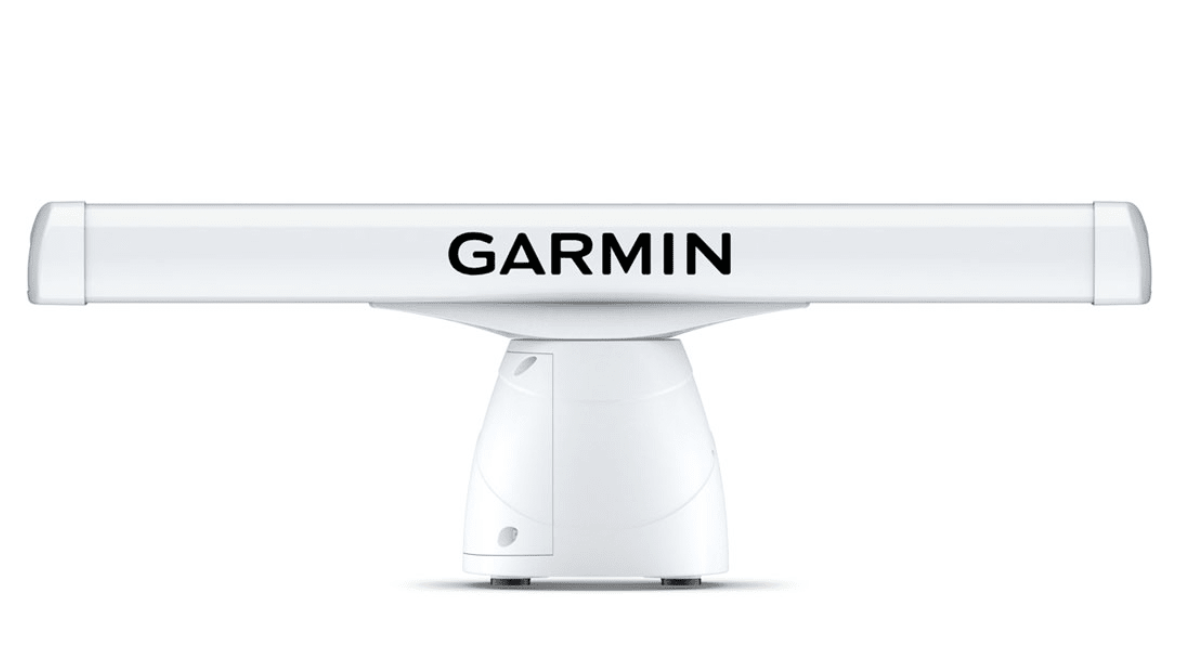

Garmin Open antenna and pedestal radar - Image 2

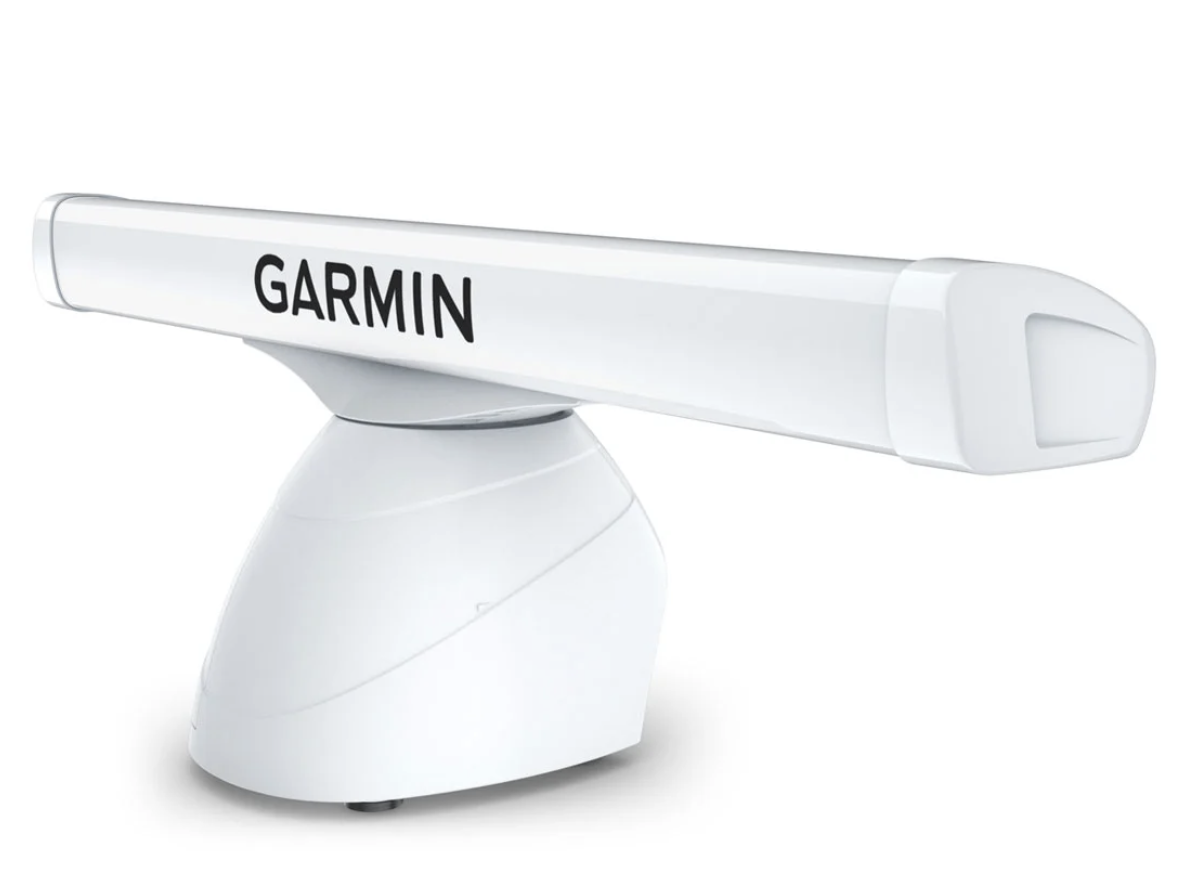

Garmin Open antenna and pedestal radar - Image 3

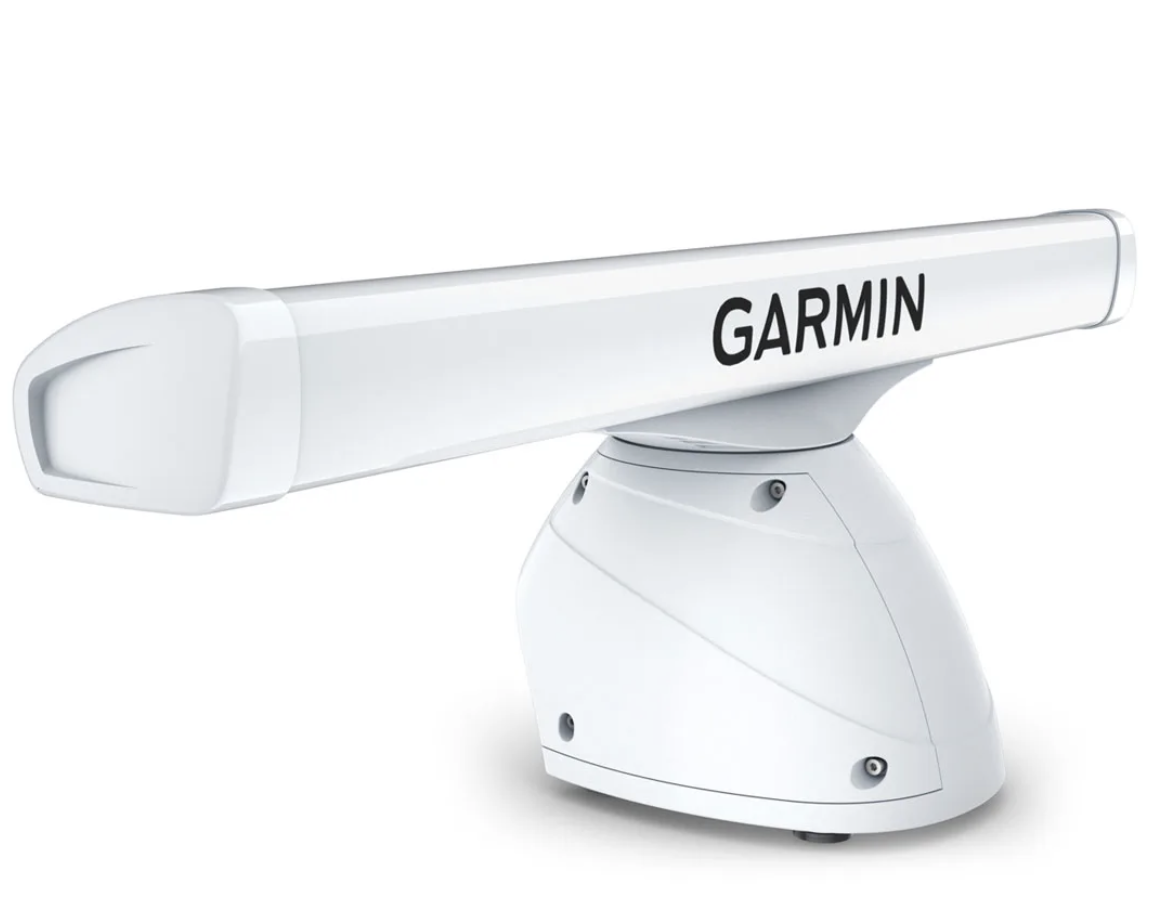

Garmin Open antenna and pedestal radar

4.314,04 € – 8.225,45 €
You save

These rugged 4-foot and 6-foot open antenna radars, which combine high-definition images with Garmin’s latest platform technology, offer superior detection of weather conditions, obstacles and traffic for navigators fishing or sailing on the high seas.

Size

Output power

Clear

Total:

Request a Quote

SKU: K10 Categories: Garmin, GMR™ xHD3 series
Brand: Garmin

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

NEW EXPLORATION MEDIA TECHNOLOGY

The scanning average, a first in Garmin radars, helps reduce the sea filter and interference to improve the detection and visualization of consistent targets.

ANGULAR ADJUSTMENT OF THE SIZE OF THE LENS

The expanded pulse and angular processing techniques of the size of the lens optimize the shapes of the objects on the screen to improve interpretation on all range scales.

HIGH-PERFORMANCE ANTENNAS

The open antennas with wind rating of 100 knots1 have rotation speeds of 24 and 48 RPM to increase the delay speed, with a maximum range of up to 96 nautical miles in the 25 kW versions (up to 72 nautical miles in the 4 and 12 kW versions).

REAL ECHO FOLLOW-UPS

The screen shows a historical “traw” of the navigation of the boats, which eliminates the influence of relative movement to help you quickly identify moving targets and possible collision threats.

DUAL SCALE WITH RADAR OVERLAY

The simple radar antenna has the ability to provide split-screen images on your compatible plotter in parallel, with independent controls and range settings for both short and long range. You can superimpose one or both scopes on a card.

DYNAMIC AUTOMATIC GAIN

The gain levels are automatically adjusted to the optimal configuration for ports, areas near the coast and the high seas.

Specifications:

Physical and performance characteristics
DIMENSIONS OF THE UNIT (WIDTH/HEIGHT/DEPTH)	1.2-meter (4-foot) antenna: 1325 x 122 x 170 mm (52.2′′ x 4.8′′ x 6.7′′) 1.8-meter (6-foot) antenna: 1938 x 122 x 170 mm (76.5′′ x 4.8′′ x 6.7′′) Pedestal: 520 x 328 x 314 mm (20.5′′ x 12.9′′ x 12.4′′)
WEIGHT	Antenna of 1.2 meters (4 feet) and pedestal: 27.6 kg Antenna of 1.8 meters (6 feet) and pedestal: 29.6 kg
WATER RESISTANCE CLASSIFICATION	IPX6
MAXIMUM WIND LOAD	80 kt (100 kt with the update of the optional voltage converter)
LENGTH OF THE ANTENNA	1.2-meter (4-foot) antenna: 122 cm (48′′) Antenna of 1.8 meters (6 feet): 183 cm (72′′)
RANGE OF THE ANTENNA	24 y 48 rpm
ANCHURA DEL HAZ	1.2-meter (4-foot) antenna: 1.8° horizontal, 23° vertical 1.8-meter (6-foot) antenna: 1.1° horizontal, 23° vertical
MAXIMUM SCALE	72 nm
MINIMUM SCALE	20 meters
TYPE OF RADAR	Open antenna

Electric
FEEDING INPUT	11-32 V CC
ENERGY CONSUMPTION, ON HOLD	18 W
TYPICAL ENERGY CONSUMPTION, TRANSMITTING (IN NORMAL MODE)	55 W
TRANSMISSION POWER	4 kW

EXPLORATION MEDIA
Radar functions
DUAL SCALE	Yes
SUPERIMPOSITION	Yes
COMPATIBILITY WITH DUAL RADARS	Yes
AUTO BIRD GAIN	Yes
AUTOMATIC PROFIT	Dynamic
TARGET TRACKING MARPA (TO AVOID COLLISIONS)	Yes (requires a direction sensor, sold separately)
ECHO TRACKING	True
PROGRAMMABLE ANTENNA PARKING	Yes
TARGET SIZE	Yes
