Garmin Panoptix™ PS30

With the Panoptix Down transducer, you will be able to see the fish and baits that pass under your boat in real time, even if the boat is immobile. You will get three extraordinary views: LiveVü from below, RealVü 3D from below and RealVü 3D historical.

LIVEVÜ FROM BELOW

It offers you moving probe images in real time. You will be able to see the fish moving towards the boat and those that move away from it. You will be able to see both the smallest fish and the largest fish you want to catch and even your bait.

REALVÜ 3-D FROM BELOW

It allows you to continue seeing in 3D all the elements that are around the boat, even if it is immobile. It shows the history of a single scan.

REALVÜ 3-D HISTORICAL

It is used to locate fish when the boat is in motion. It shows in 3D the complete column of water through which you pass, from the bottom to the surface, and all the fish that are in it.

LiveVü from below offers moving probe images in real time. You will be able to see the fish moving towards the boat and those that move away from it. You will be able to see both the smallest fish and the largest fish you want to catch and even the bait you use.

RealVü 3D from below allows you to continue seeing in 3D all the elements that are around the boat, even if it is immobile. It shows the history of a single scan.

RealVü historical 3D is used to locate fish when the boat is in motion. It shows in 3D the complete column of water through which you pass, from the bottom to the surface, and all the fish that are in it.

Seeing to believe

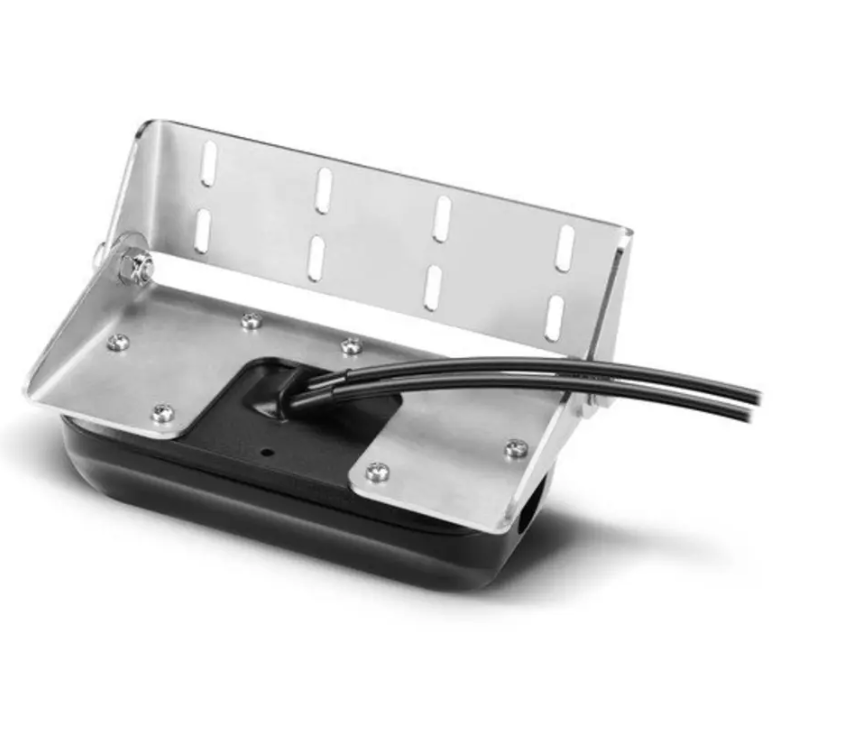

Garmin is the first to offer you Panoptix probe images on your boat. Panoptix, the probe that sees everything, totally different from anything you’ve seen in the water. It offers you the possibility to see everything that surrounds your boat in real time. You can see the fish in the water column in 3D. You can also observe your bait when you throw it into the water and while you collect it, in addition to the fish in motion in front of or under the boat. You’ll even see them bite the hook. But to really appreciate everything that Panoptix offers, the best thing is that you see it for yourself. Transducer mounting kit for aft mirror included.

Specifications:

Physical And Performance Characteristics
BEAM WIDTH	LiveVü Down: 120°/10°, 120°/20°, 120°/40° (+/- 45° fore/aft) RealVü Hist.: 120°x6° RealVü Down: 90°x120°(+/- 45° fore/aft sweep)
CABLE LENGTH	15 ft, power; 30 ft, Ethernet
DIMENSIONS OF THE UNIT (WIDTH/HEIGHT/DEPTH)	3.6″ x 1.7″ x 6.7″ (9.1 x 4.2 x 17 cm)
WEIGHT	1.8 lbs (800 g)
WATER RESISTANCE CLASSIFICATION	IPX7
TEMPERATURE RANGE	0° C to 40° C



Electric
FEEDING INPUT	10-35 V
ELECTRICITY CONSUMPTION	10 W
FUSE	4.0 A



Probe Specifications And Functions
FREQUENCY	417 kHz
TRANSMISSION POWER	144 W
MAXIMUM DEPTH	300′
TYPE OF PROBE	Antenna in multi-beam phase



Connections
GARMIN MARINE NETWORK PORTS™	1 (large RJ45)



Sonar Modes
LIVEVÜ DOWN	Yes
LIVEVÜ FORWARD	Yes
FRONTVÜ	Yes
REALVÜ 3D DOWN	Yes
REALVÜ 3D FORWARD	Yes
REALVÜ 3D HISTORICAL	Yes

Brand	Garmin
